SA-75 – Columbia Fire Department, MO

Truck Type:
SA 75 Aerial Ladder
Dealer:
Sutphen
Location:
Columbia, MO
Department:
Columbia Fire Department

Specs

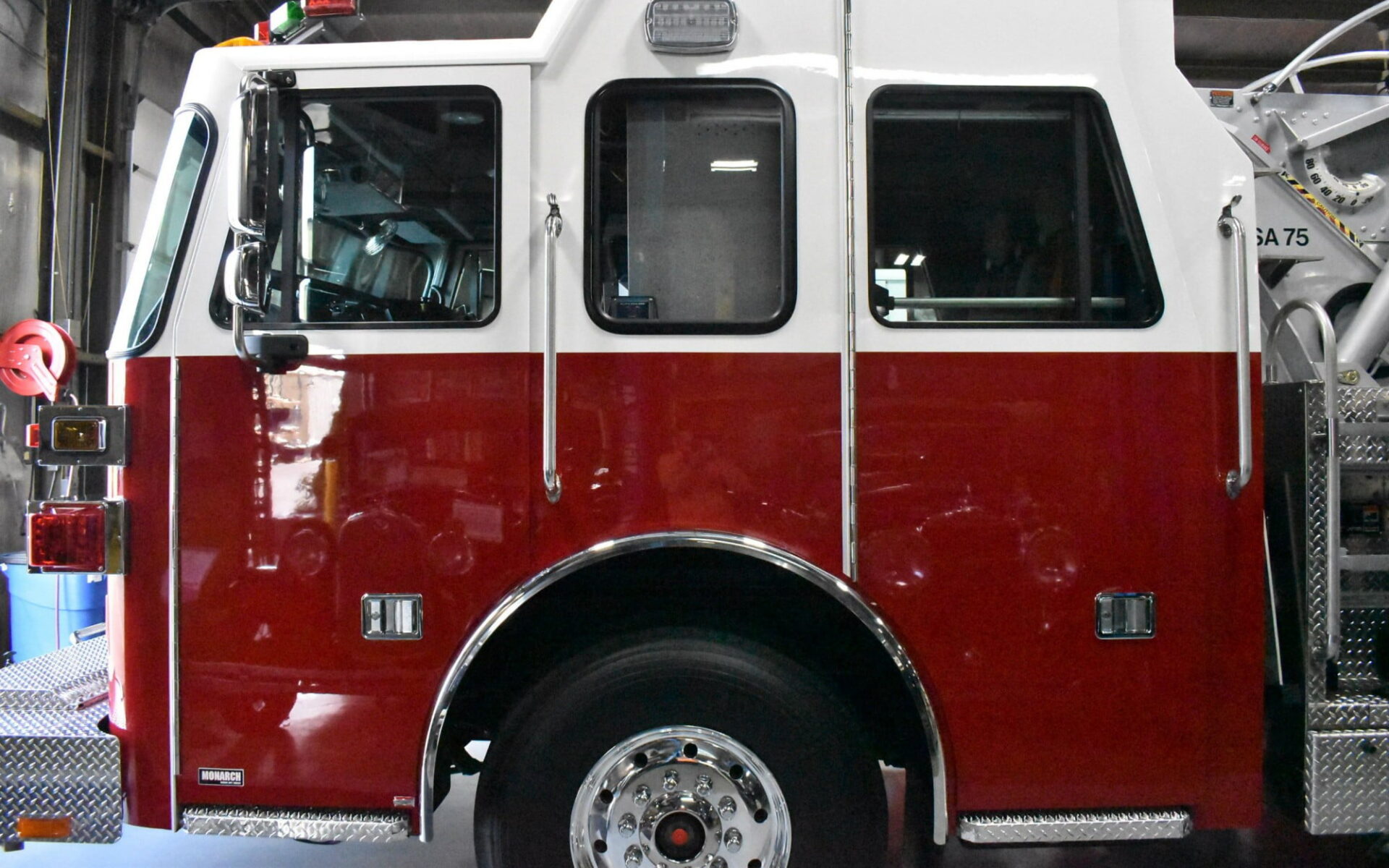

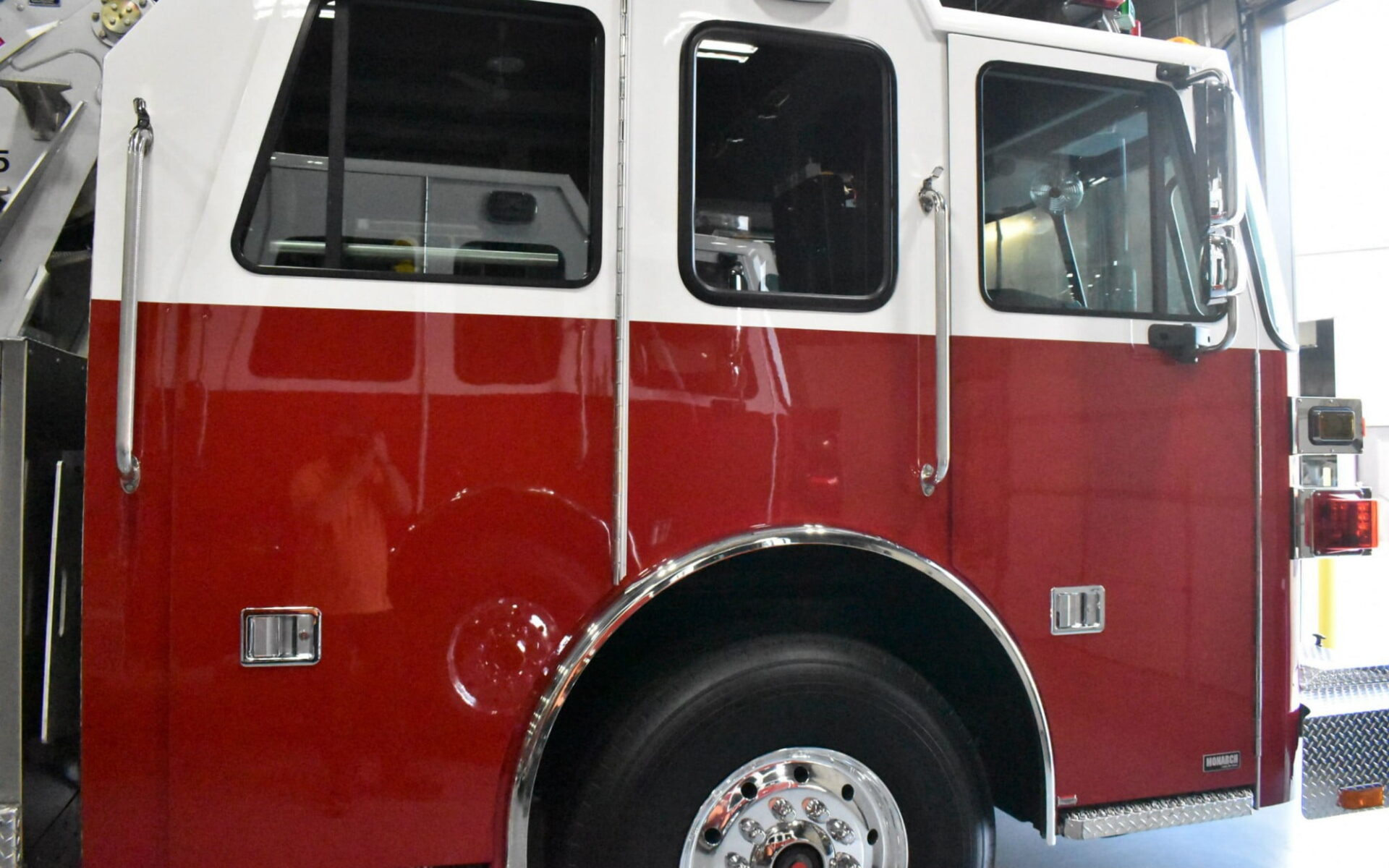

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins X 12, 500 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper
Crosslay
(2) 2” w/ 1 ½” Swivel, (1) 2 ½” w/ 2 ½” Swivel
Water Tank
500-gallon

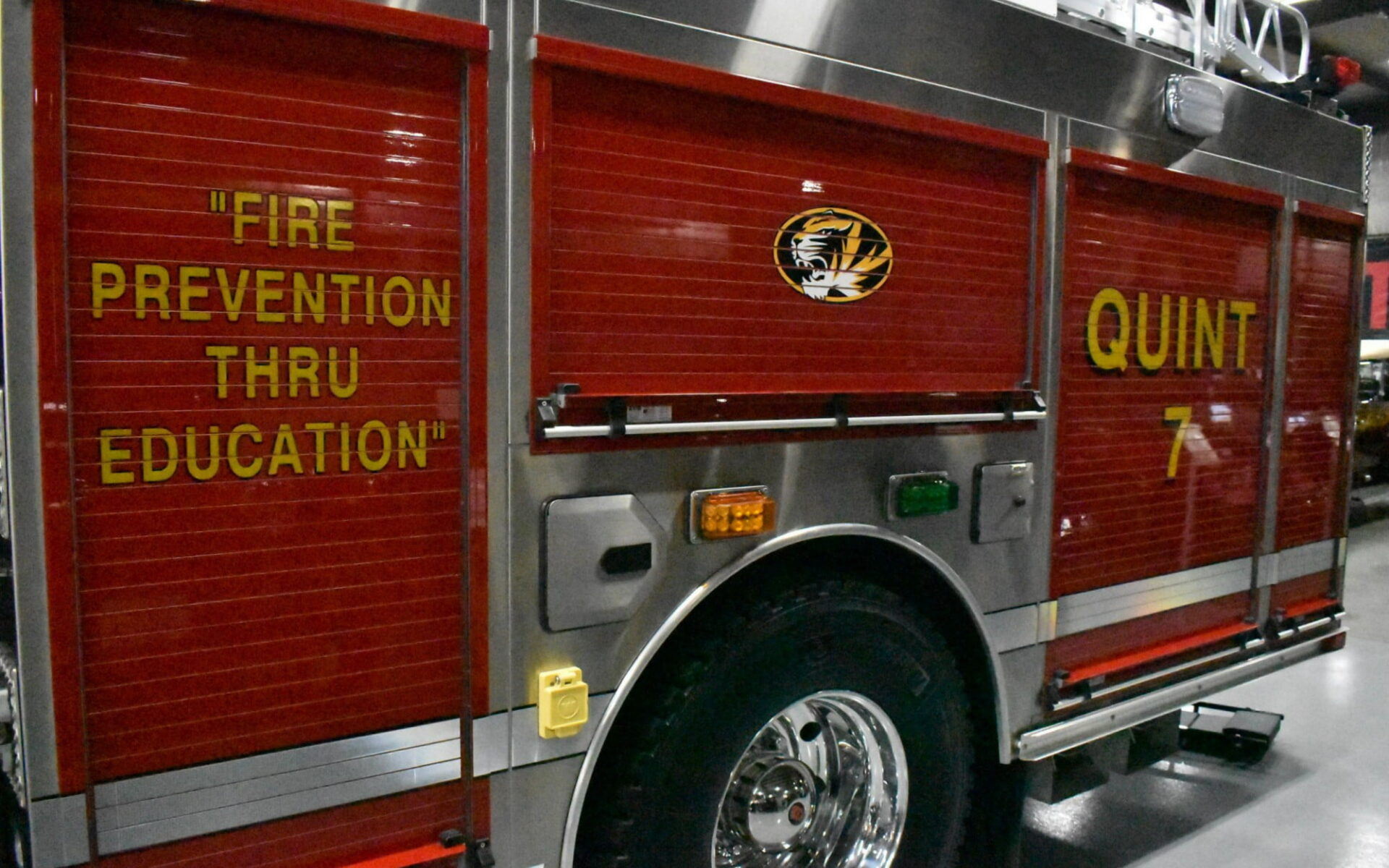

Doors
Rom roll-up compartment
Total Compartment Space
73 cu. ft.
Ladder Compliment
Ladder package ( (2) 10’ folding)
Body
Custom

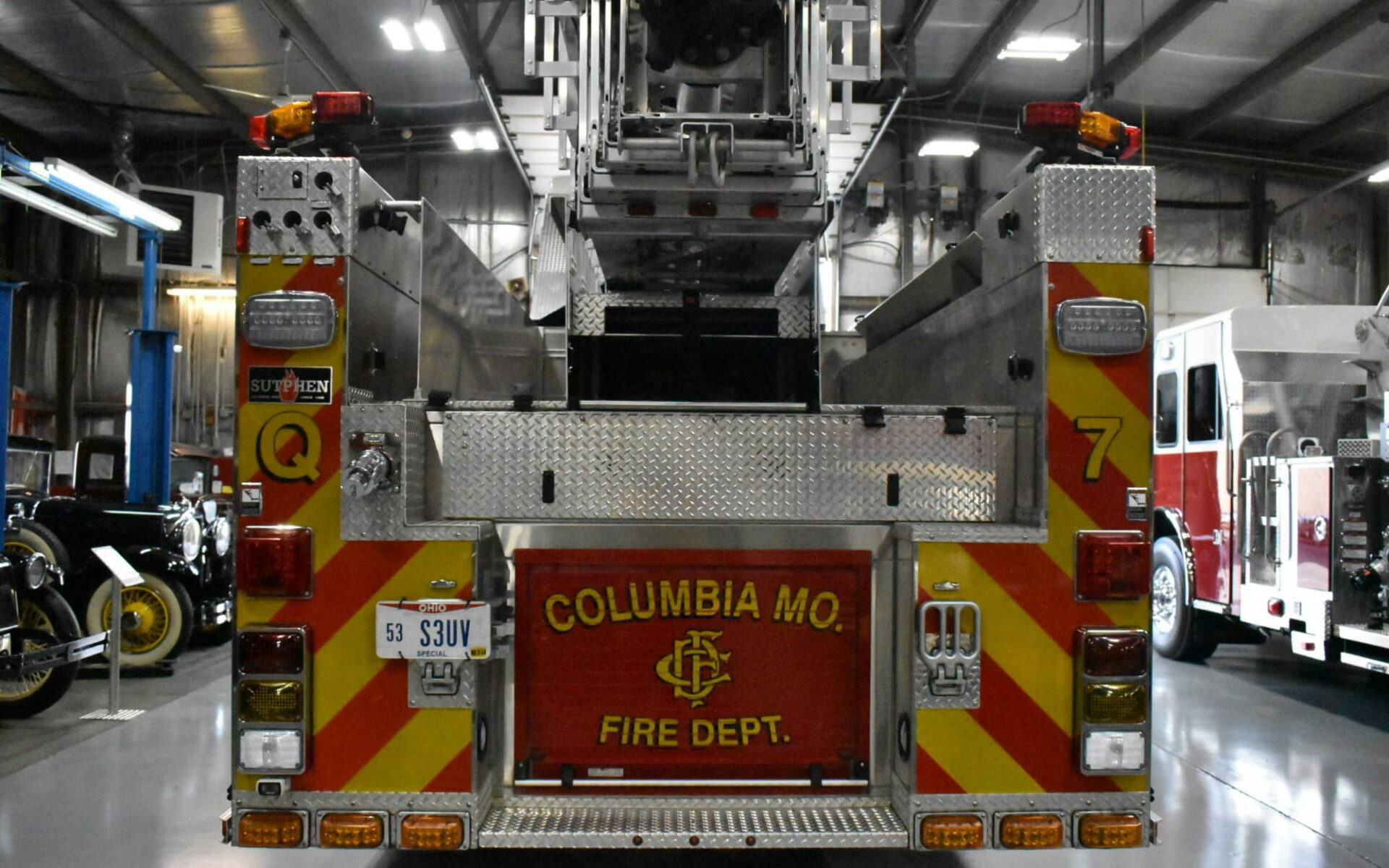

Bumper Extension
24” polished stainless steel bumper
Siren
Federal q2b , grille mount
3 Bottle Compartments
Included
Safety Vision Camera
System
Power
Smart 8kw generator
FRC Focus 750W
Brow light
Powerarc Lightbar
Included
Whelen M9 Scene
Lights
Rigid D2 LED
Spot light
