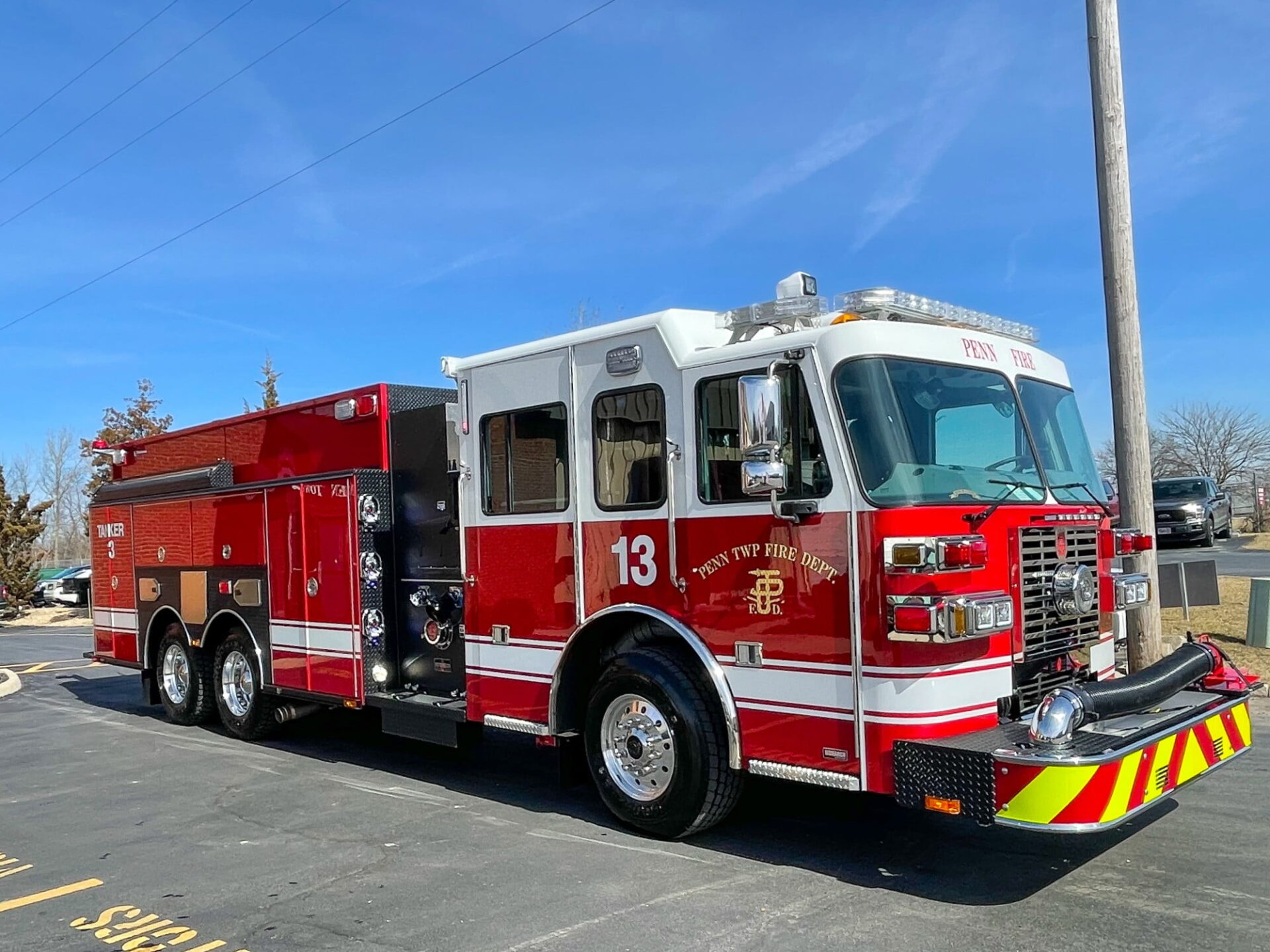

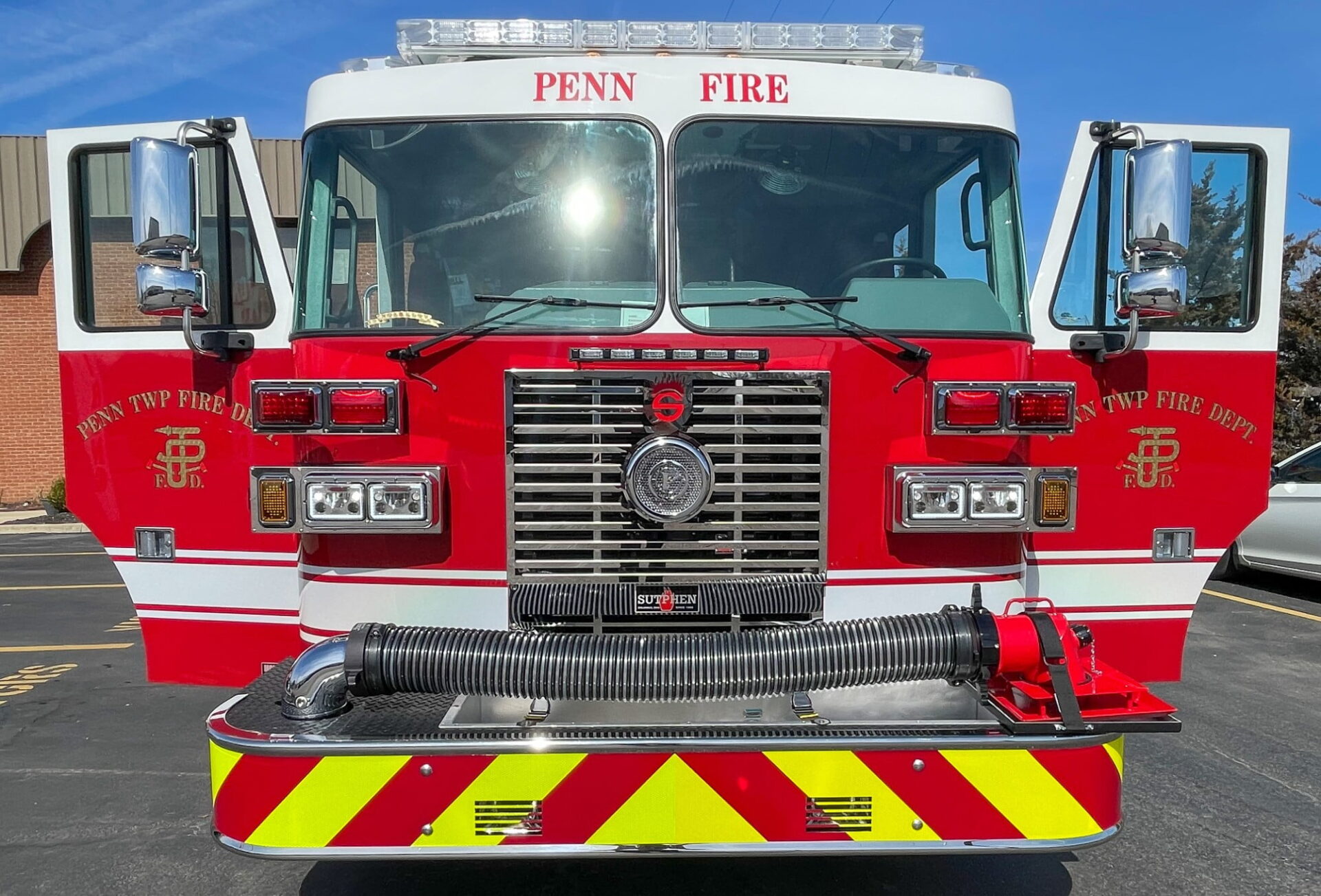

Custom Tanker – Penn Township Fire Department, IN

Specs

Cab
Four-door, four-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
40,000 lbs
Engine
Cummins L 9 450HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS 3000
Water Pump
Csu-1500 gpm single stage pump
Discharges
(1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Pipe Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslay
(2) 2” Valve-Piping 1 ½” Swivel
Water Tank
2,000-gallon
Construction
3/16” extruded aluminum
Doors
Hinged compartment
Total Compartment Space
Over 165 cu. ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Ladder Compliment
Ladder chute
Body
TA-05 Tanker 56/53 High/High – Ladder Rack
Bumper Extension
24” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Single Camera
Newton 10” Kwik
Dump electric
Whelen 72” Freedom
Lightbar
Whelen 21” Freedom
Lightbars
Whelen M9 Scene
Lights
Whelen 36” Traffic
Advisor
Whelen Tele Lights
Included
