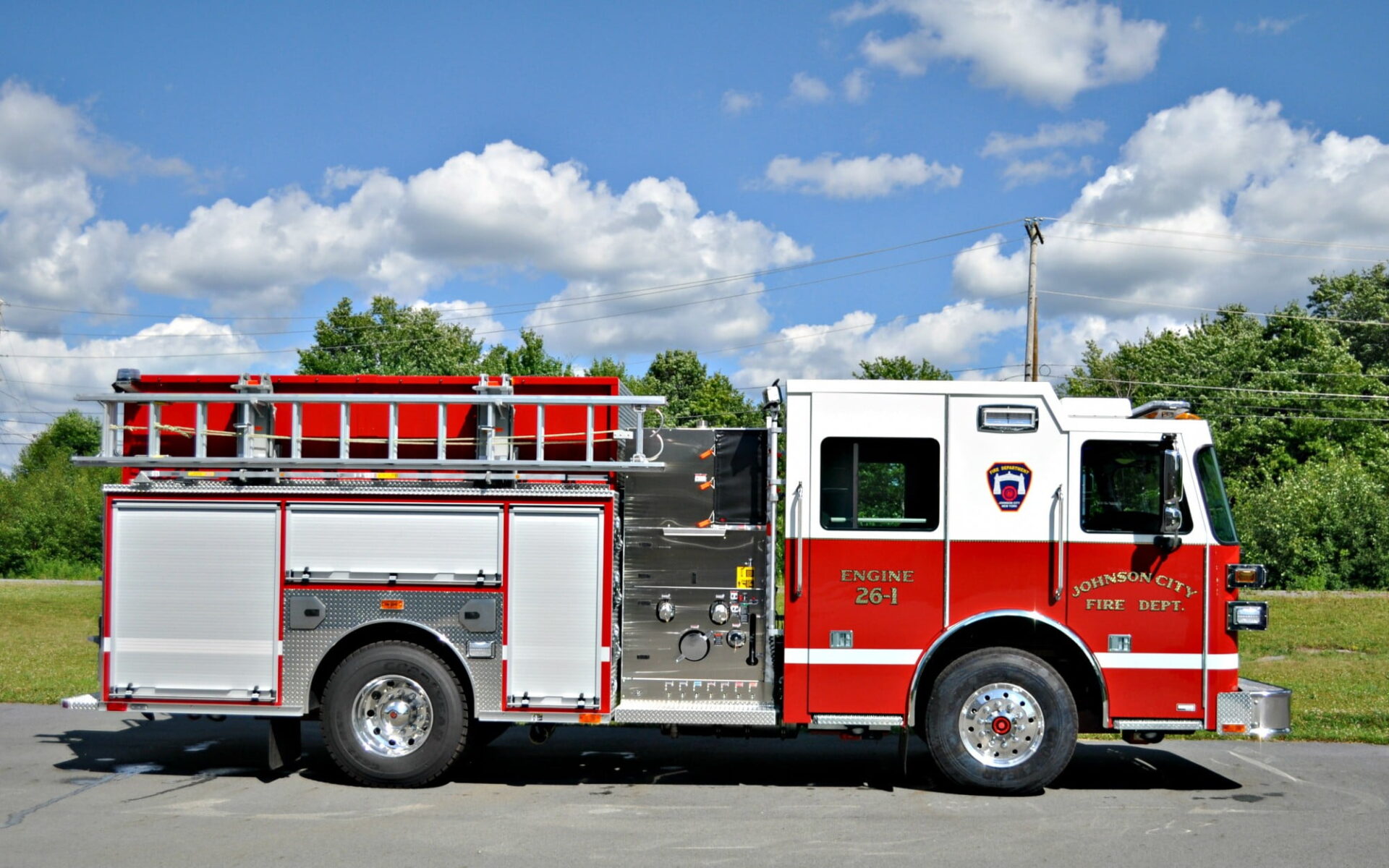

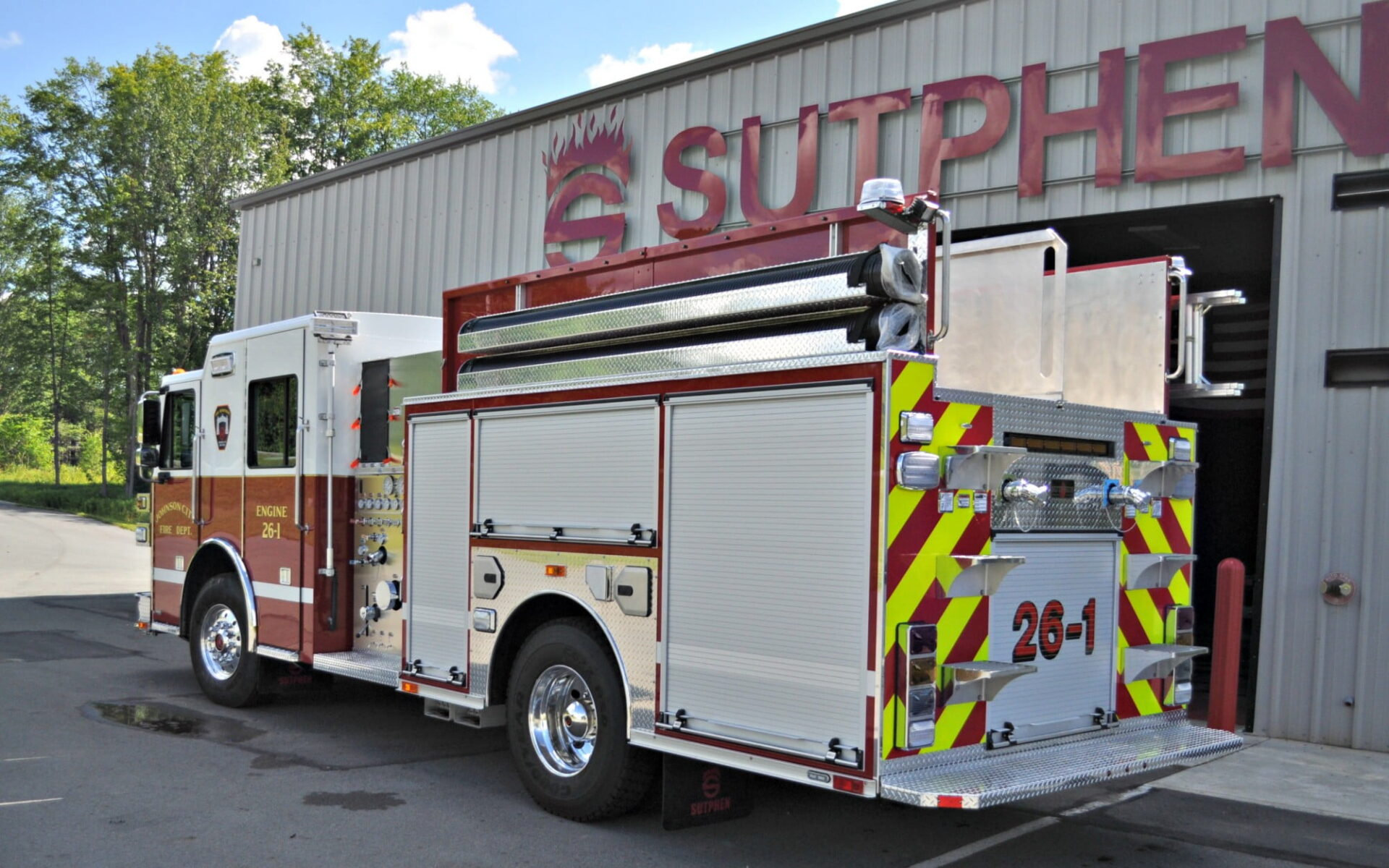

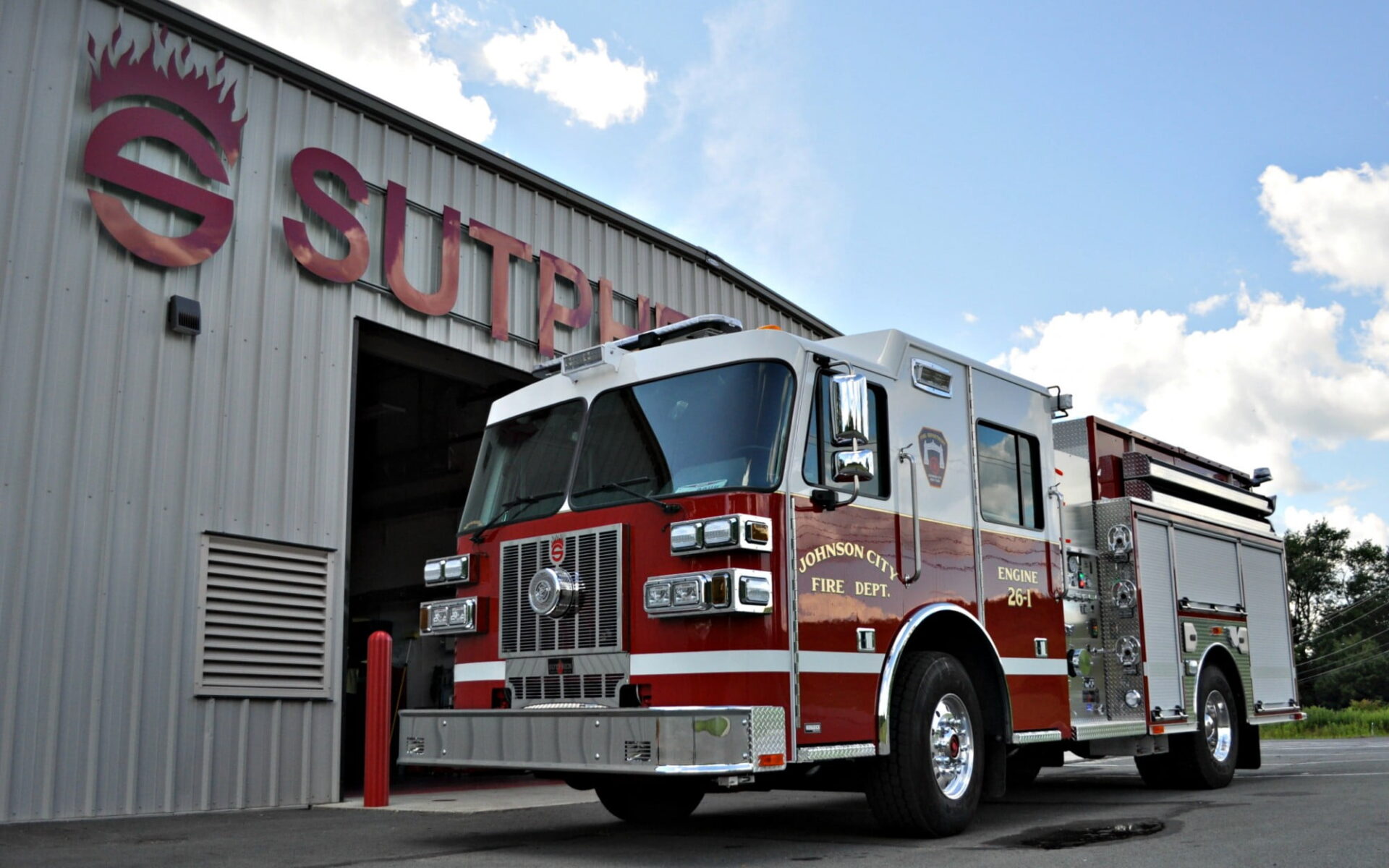

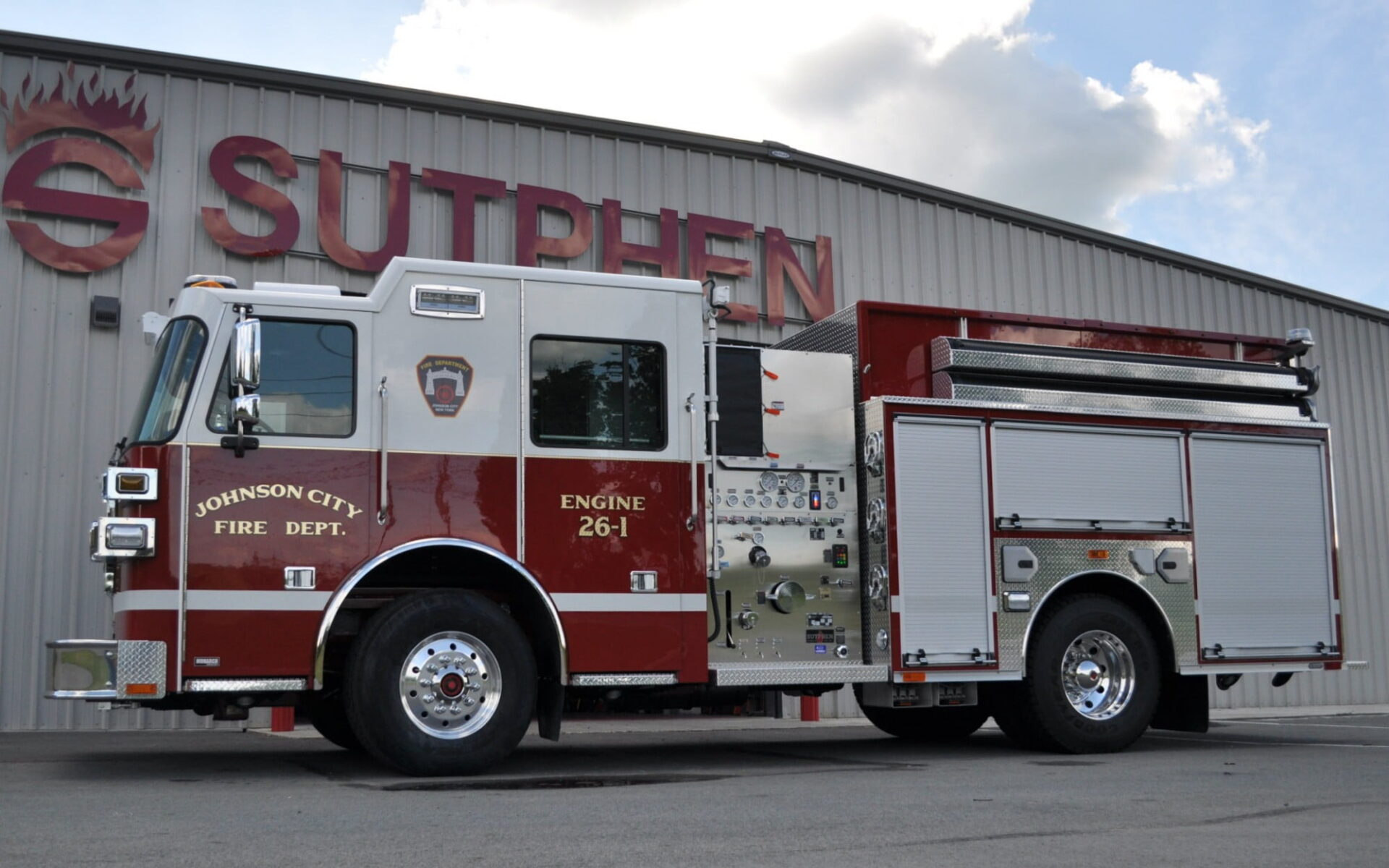

Custom Pumper – Johnson City Fire Department, NY

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-1,500 gpm, single stage pump
Discharges
(1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 3” Deck Gun
Crosslay
(2) 1 ½” w/ Swivel, (1) 2 ½” w/ Swivel
Water Tank
750-gallon
Doors
Amdor roll-up compartment
Total Compartment Space
249 cu. ft. compartment space
Ladder Compliment
Alco-lite ladder package (24’ 2-section, 14’ roof and 10’ folding)
Ladder Compliment
Electric ladder rack
Body
S4-Alum 30/53

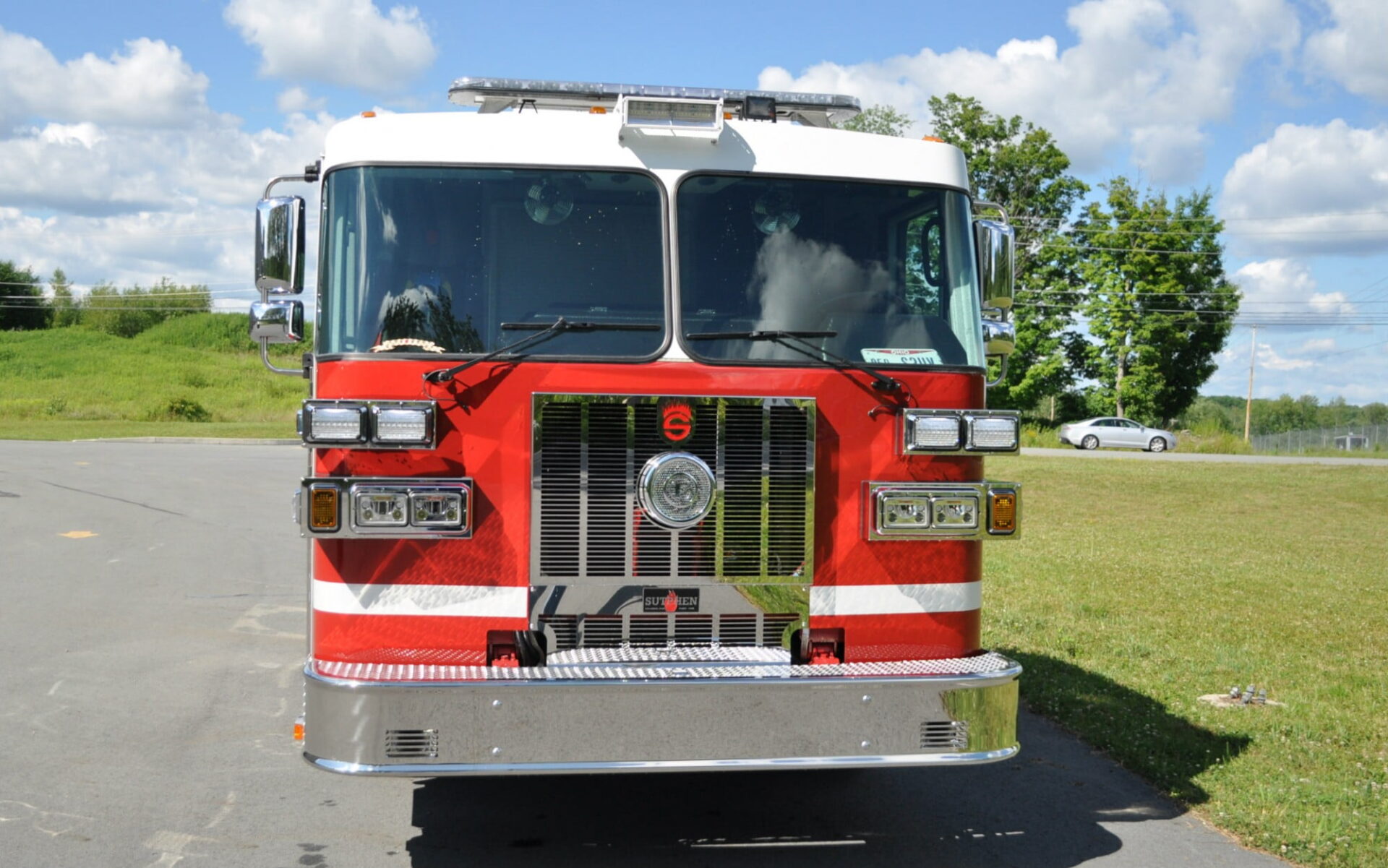

Bumper Extension
12” polished stainless-steel bumper
Siren
Federal q2b , grille mount
4 Bottle Compartments
Included
Whelen PFH2 LED
Brow light
Whelen Justice LED
Lightbar
Whelen PFP2 LED
Scene light
Whelen PFH2 telelights
Included
Whelen L31 Beacons
Included
Whelen M9 Scene
Lights
