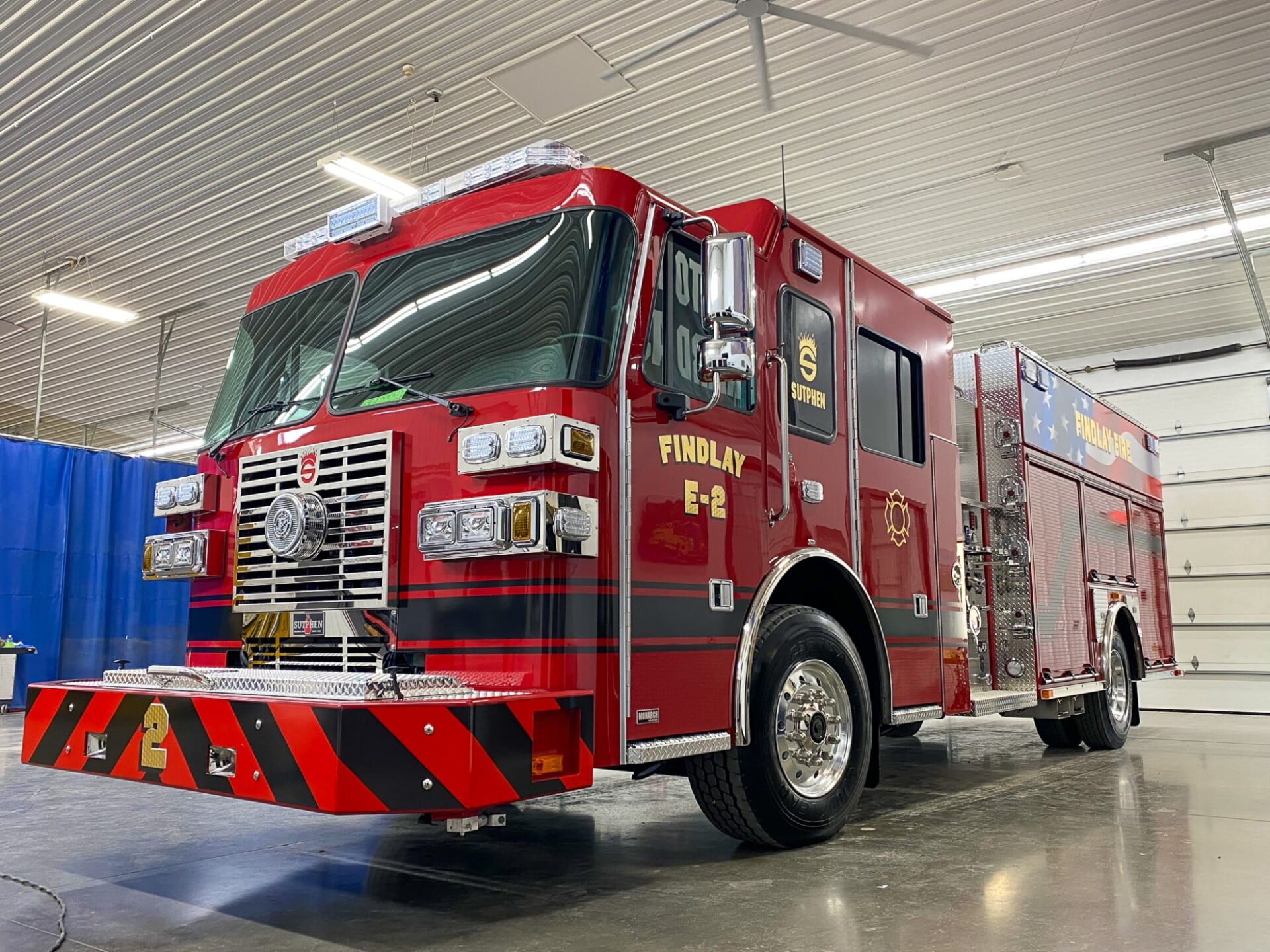

Custom Pumper – Findlay Fire Department, OH

Location:
Findlay, Ohio
Department:
Findlay Fire Department

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs.
Rear Axle and Suspension
27,000 lbs.
Engine
Cummins L 9, 450HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax 2000 gpm, single stage pump
Discharge
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslays
(2) 1 ½” Crosslay & (1) 2 ½” Crosslay with Swivels
Water Tank
750-gallon
Water Tank
30-gallon foam tank
Construction
3/16” extruded aluminum
Doors
Amdor painted roll-up compartment
Alco-Lite Ladder Compliment
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Total Compartment Space
Over 400 cu. ft.
Body
S8 – Alum 56/53 LAD Thru Tank & DBL Hatch
Bumper Extension
24” formed steel channel bumper
Siren
Federal q2b , grille mount
Camera System
Brigade Two Camera (Wired)
Whelen Freedom IV
72” led lightbar
FRC Spectra LED
12v brow light
FRC Spectra 12V
Scene lights
FRC Spectra 12V
Led scene lights
Whelen M9V2 Rear
Warning lights
