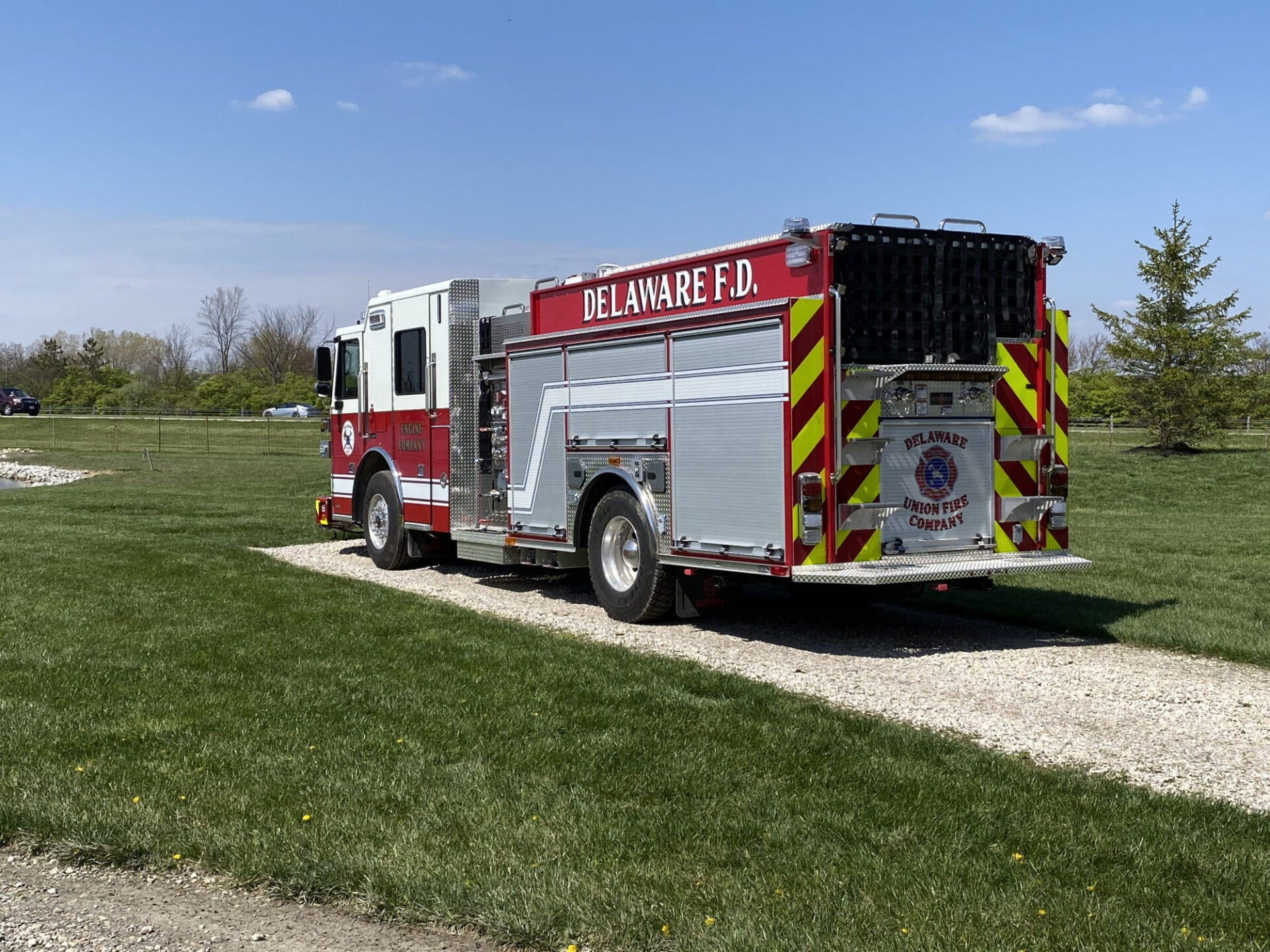

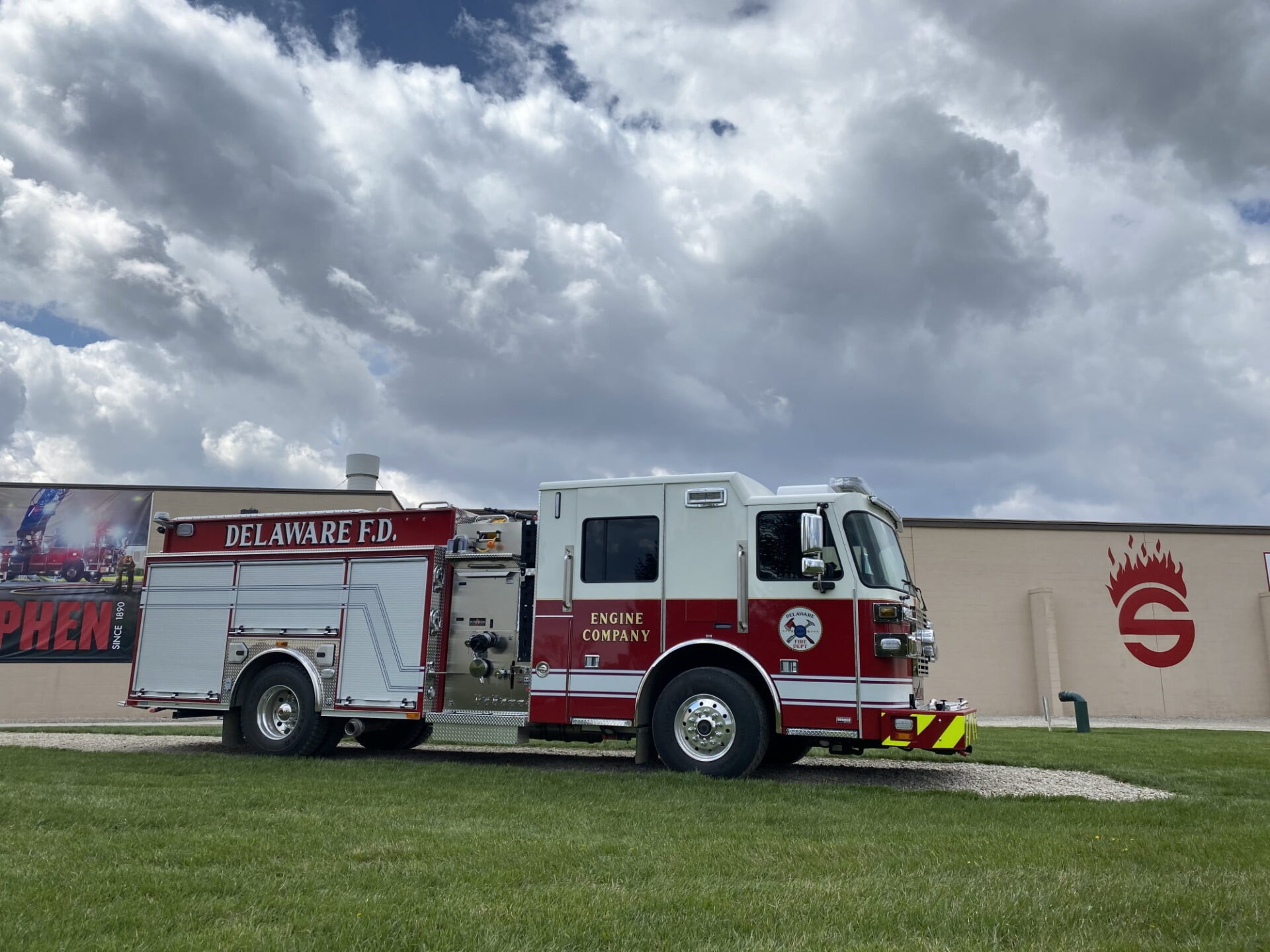

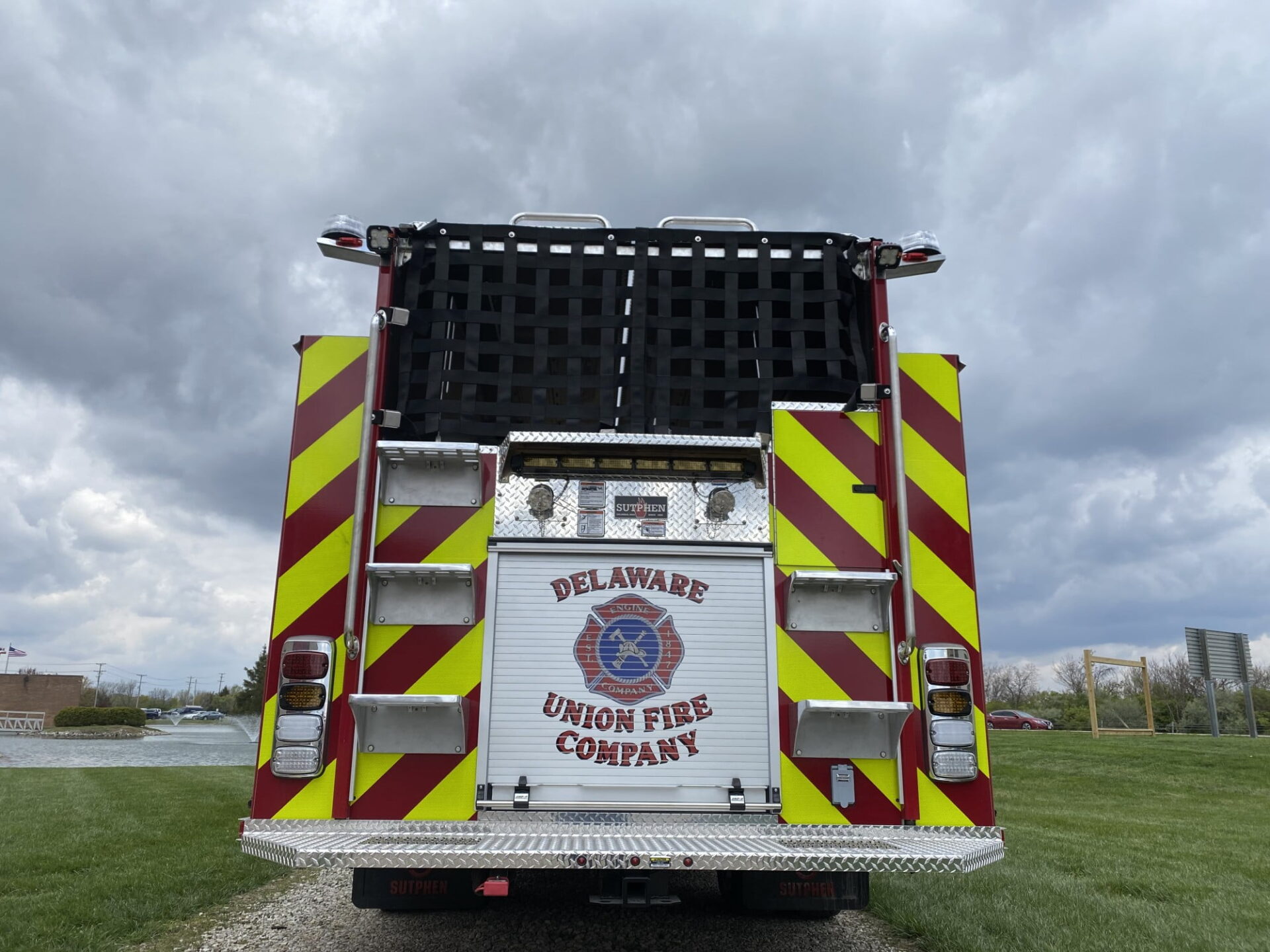

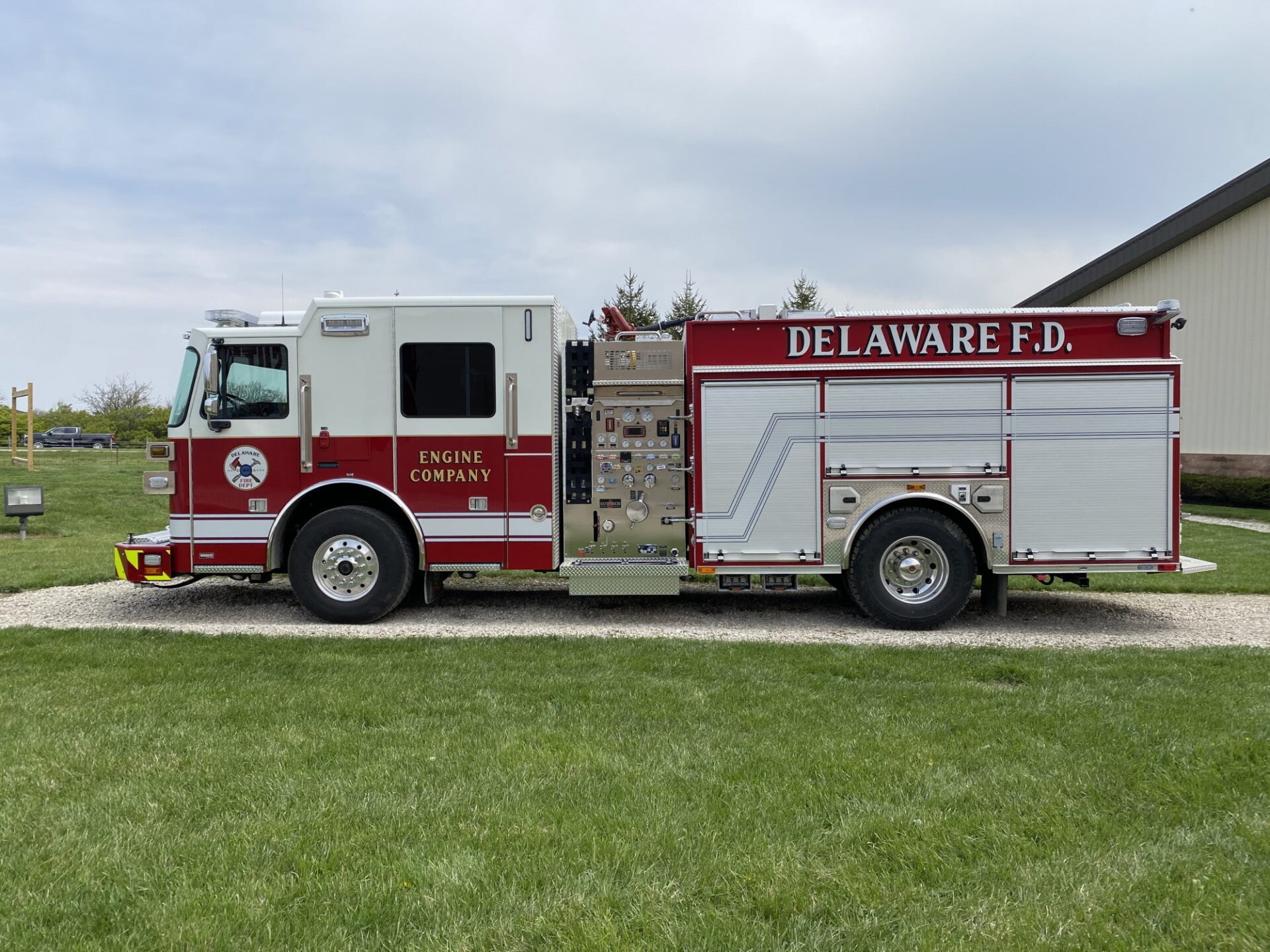

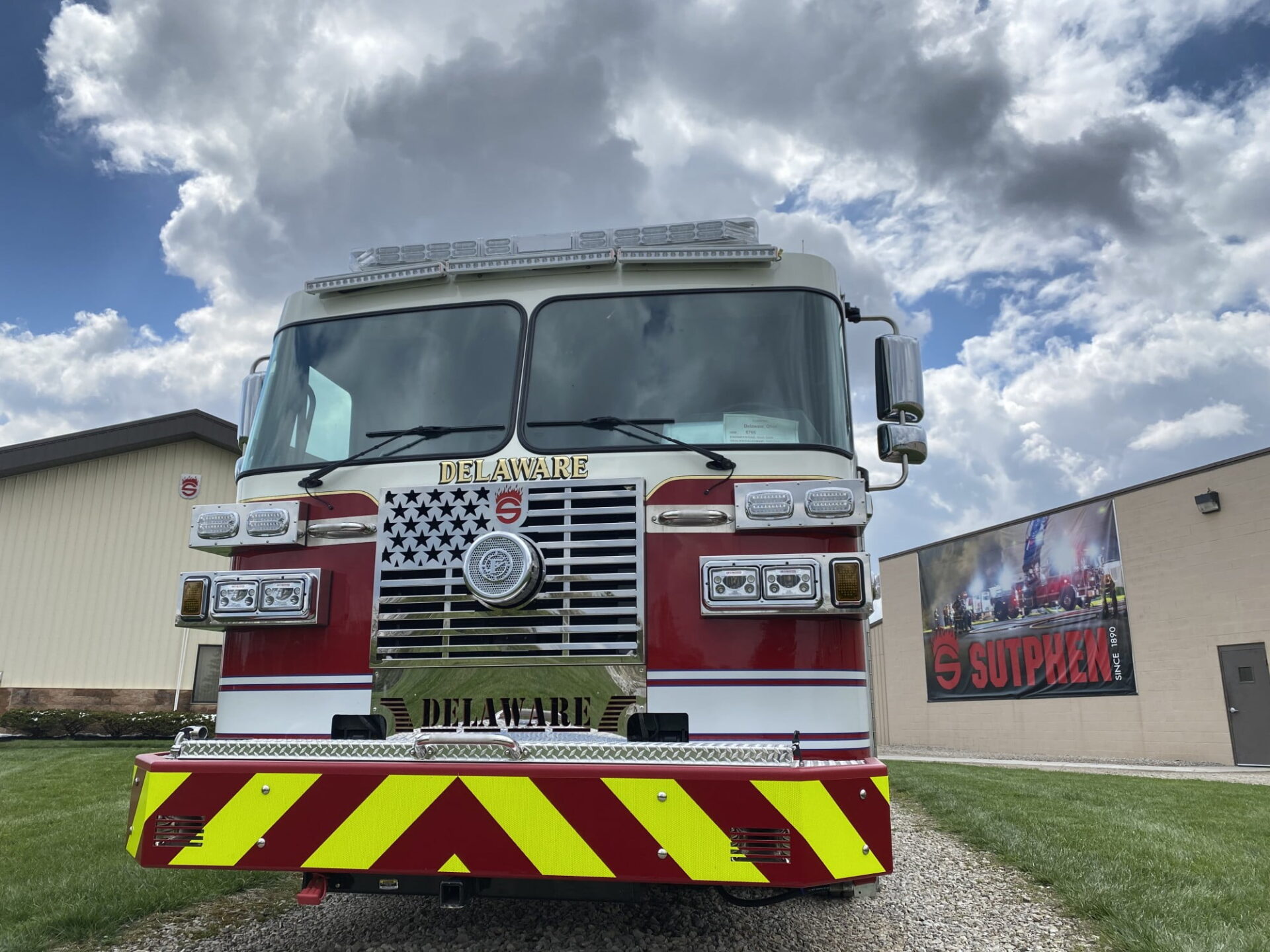

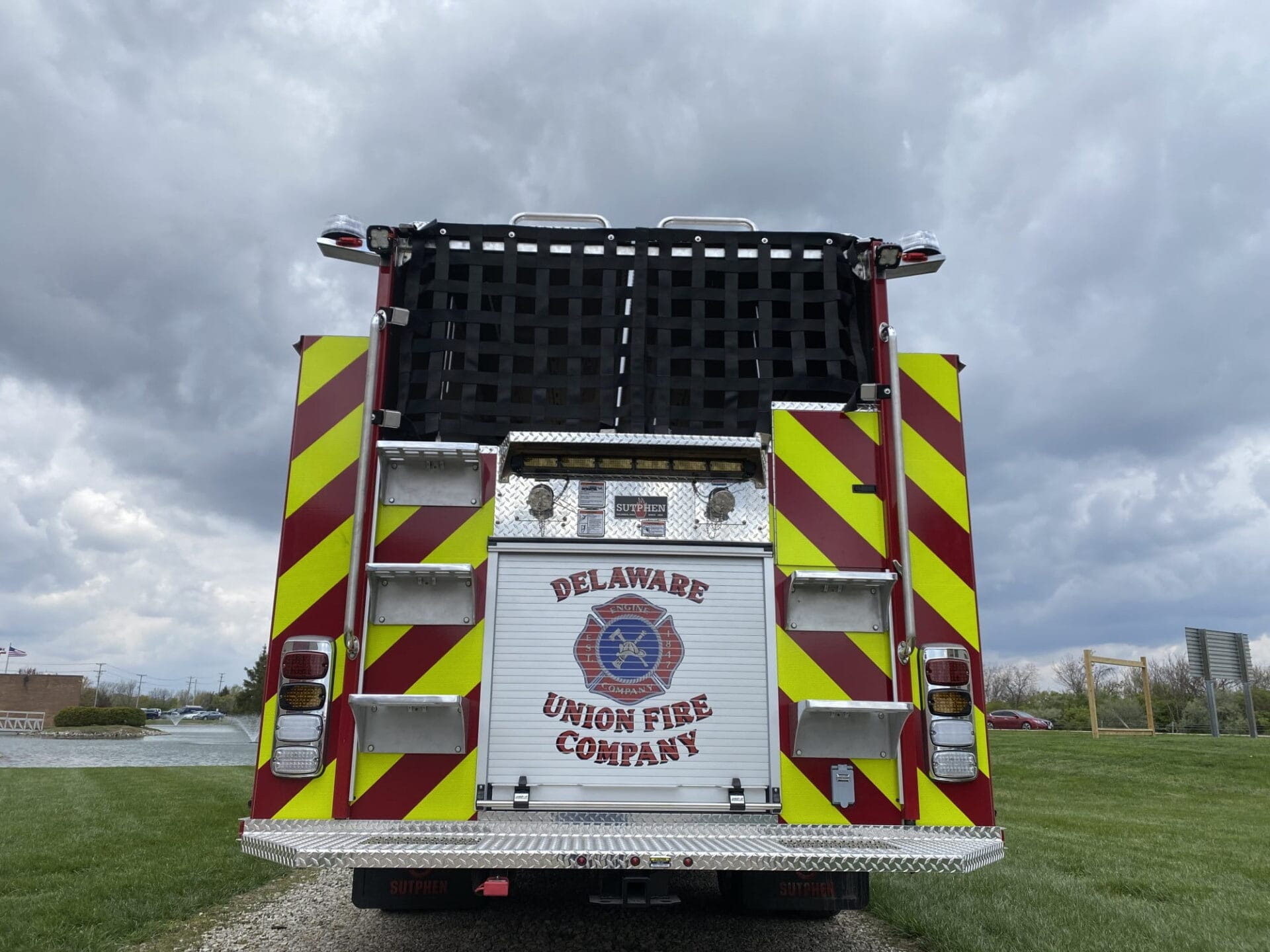

Custom Pumper – Delaware Fire Department, OH

Location:
Delaware, OH
Department:
Delaware Fire Department

Specs

Cab
Four-door, four-person
10” Double Rails
Single axle (50k psi)
Front Suspension 20,000
Lbs.
Rear suspension 24,000lbs
.
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Xs qmax-2,000 gpm single stage pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper w/ 2” Plumbing, (1) 3” Deck Gun
Crosslay/Speedlay
(2) 2” w/Swivel & Alum Trays Crosslay Section to be Used as a Compartment
Water Tank
750-gallon
Water Tank
30-gallon foam tank
Construction
Aluminum 43/53
Doors
Amdor roll-up compartment satin finish
Total Compartment Space
3 cu. ft.
Body
Custom Pumper S2
Bumper Extension
18” formed steel channel bumper, painted
Siren
Federal q2b , grille mount
Whelen Freedom IV
72” lightbar (14 modules)
Firetech 3-Piece 72”
Led brow light

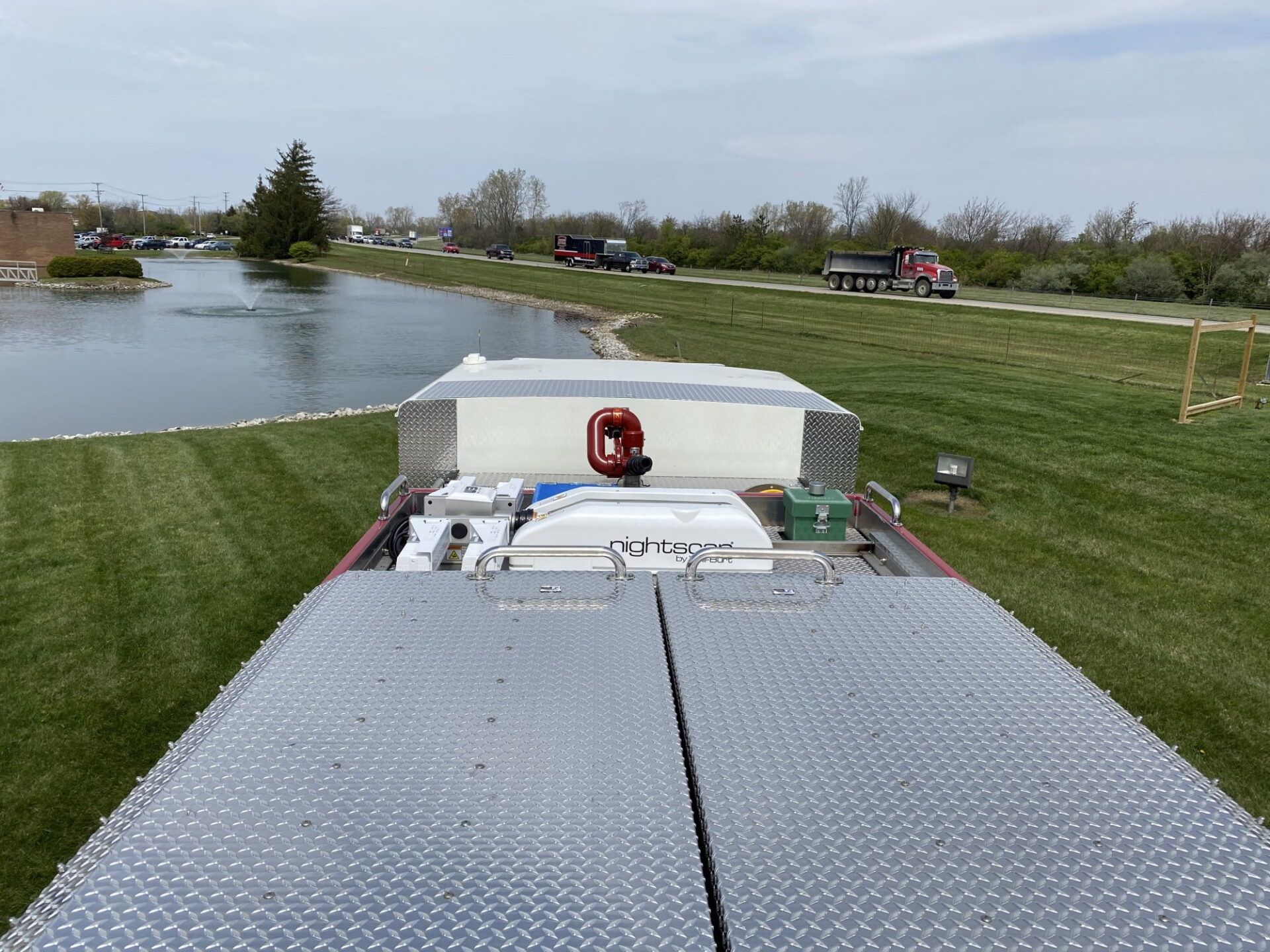

Will Burt LED
120v light tower
Power
Smartpower 10kw generator
Whelen TAL65 LED
Traffic advisor
