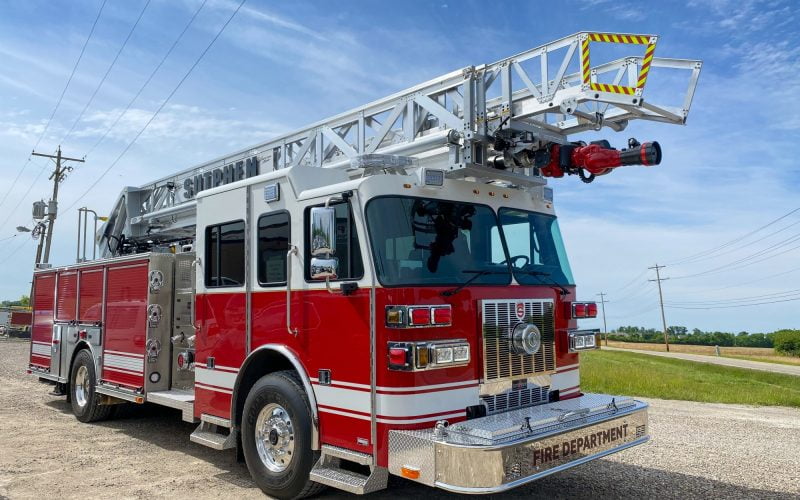

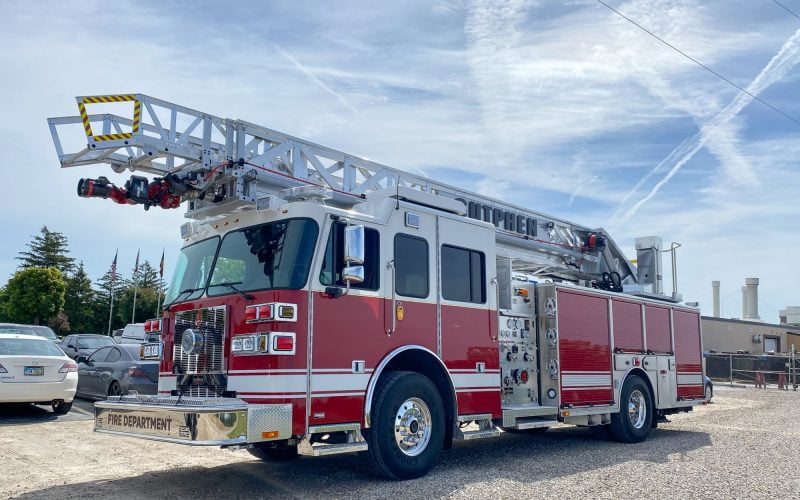

Sutphen SLR 75, Demo 502, HS #6961
WHEELBASE: 206”
TRAVEL HEIGHT: 11’ – 10 ½”
TRAVEL LENGTH: 37’ – 11 ¼”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Split Raised Roof

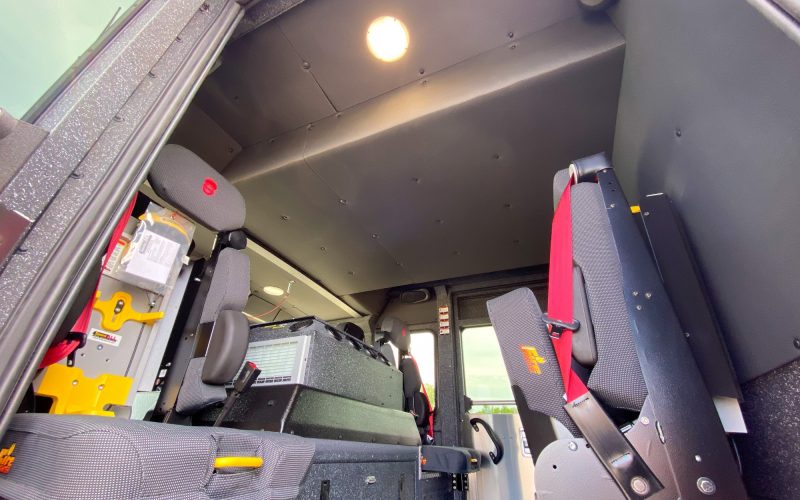

- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 35,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000

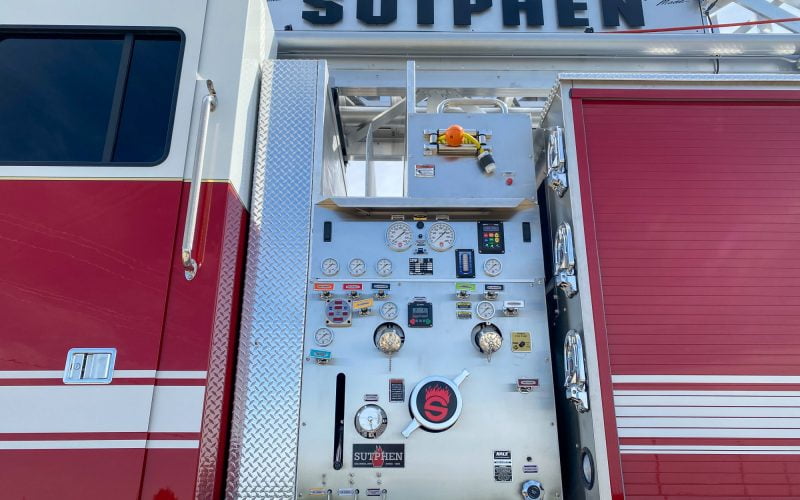

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
- Crosslay: (2) Crosslays, 2” Valve-Piping 1 ½” Swivel
- 500-Gallon Water Tank
- 30-Gallon Foam Tank

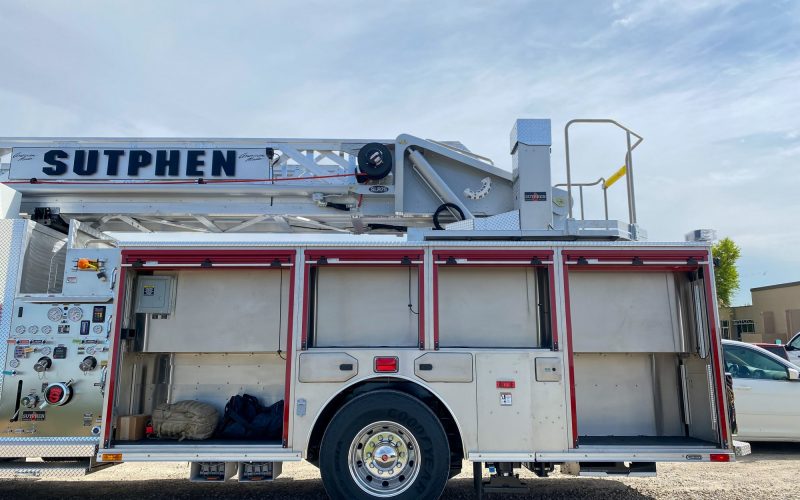

BODY: Sutphen
- ROM Roll-Up Compartment Doors, Painted
- Over 175 cu. ft. Total Compartment Space

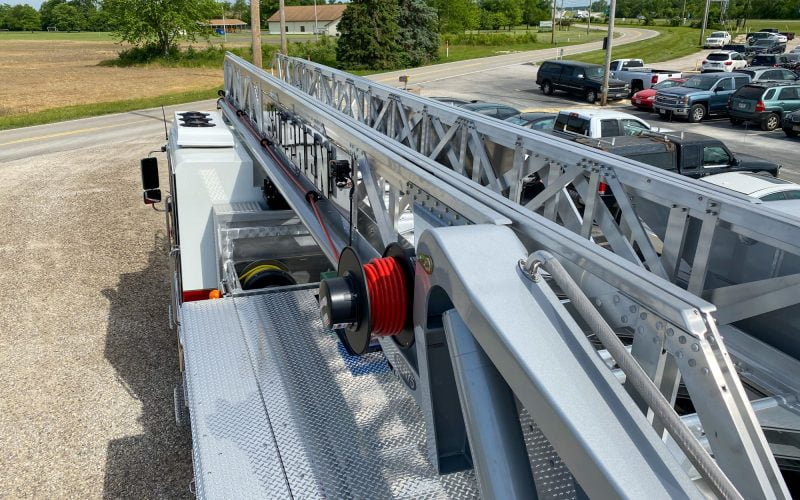

- Alco-Lite Quint Ladder Compliment: (85’: 16R’; 24’ 2-Section; 35’ 3-Section; 10’F)
- Body: SAA-RM1, Left High/Right High
- Monitor: Akron 3480 Stream Master2 Elec RF w/ 5178 Nozzle
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Hannay Booster Reel, 150’ (1)
- Camera System: FRC, Inview Trueview, Single Camera
- Generator: Smart Power 6KW
- Intercom System: FRC ACT 2-Station
- FRC Spectra MS 14K LED Brow Lights (2)
- Whelen FNMINI Lightbar
- FireTech LED Boom Spot Lights
- FireTech 12V LED Floodlights
