Truck Type:

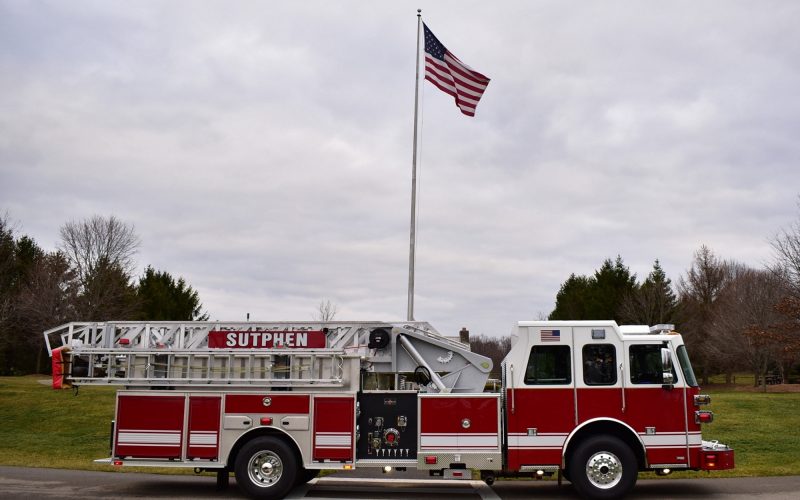

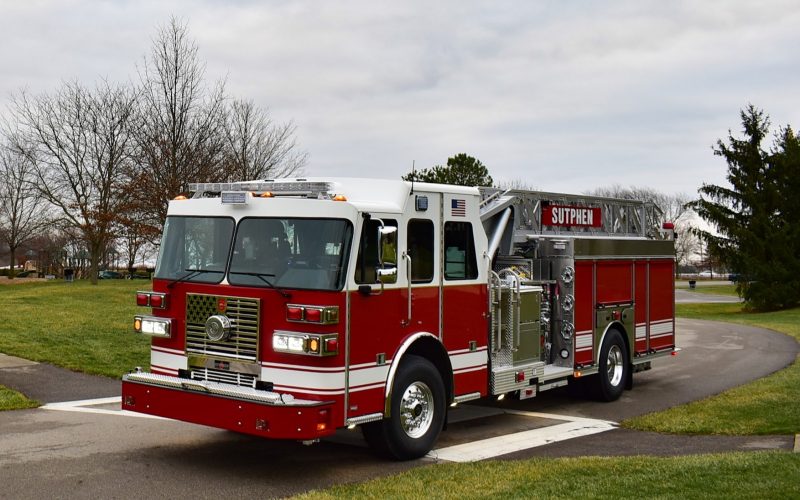

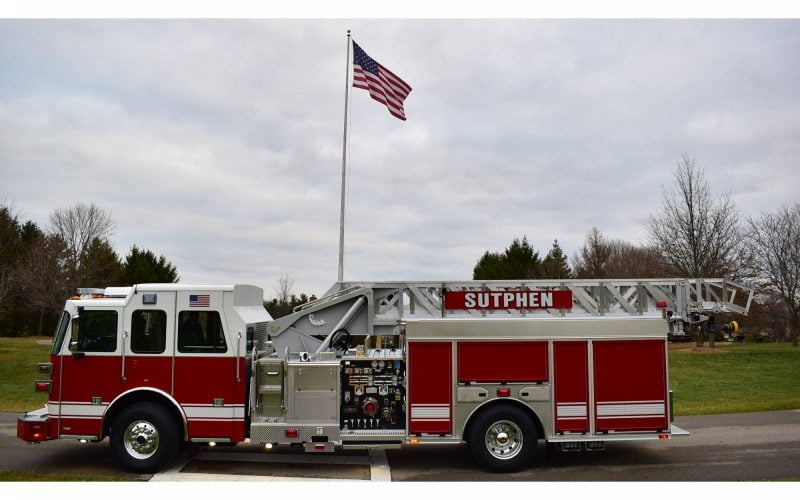

Sutphen SL 75, Demo 491, HS #6847

WHEELBASE: 221”

TRAVEL HEIGHT: 10’ – 0 ½”

TRAVEL LENGTH: 41’ – 4”

CHASSIS:             Sutphen Monarch Heavy Duty-Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (1) 1 ½” Front Bumper
  • Crosslays: (2) 2” Valve-Piping with 1 ½” Swivel
  • Monitor: Elkahart 7250 Cobra EXM w/ SM1500E Nozzle
  • 30-Gallon Foam Tank
  • 470-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Compartment Doors
  • Over 210 cu. ft. Total Compartment Space
  • Alco-Lite Quint Ladder Compliment (85’: 16R’, 24’ 2-Section, 35’ 3-Section & 10’F)
  • Body: SAA-4 Left High / Right Intermed / Trans

OPTIONAL EQUIPMENT:

  • 18” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC Inview Trueview
  • Ziamatic Quic-Lift Electric Ladder Rack w/ 24’ Ladder Chute
  • Whelen Freedom 4 Lightbar
  • FRC Spectra LED Brow Light
  • FRC Spectra 900 Scene Light
  • FRC Spectra 12V 15K Scene Light
  • FireTech 12V LED Rear Work Lights
