Sutphen SPH 100, Demo 486, HS #6811

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46′ – 7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62”cab with 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension: 23,000 lbs.
  • Rear Axle and Suspension: 52,000 lbs.
  • Engine: Cummins X 12, 500HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS4000

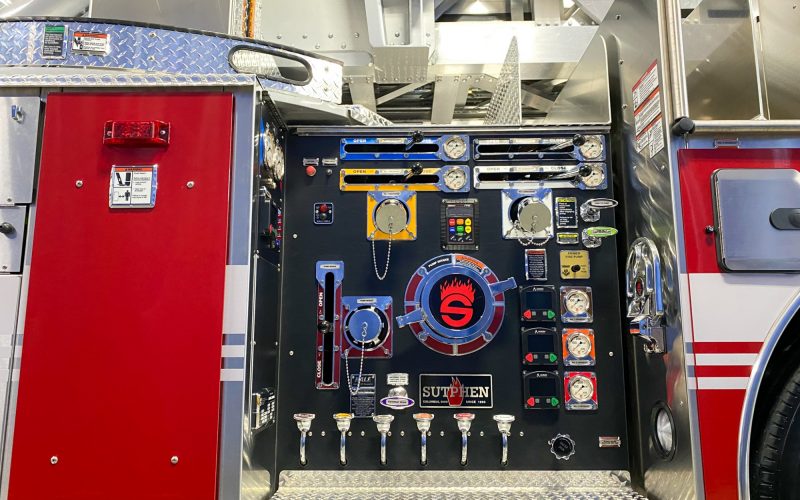

PUMP:                  Hale

  • QMAX-2000 GPM, 6” Suction Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Crosslay: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 300-Gallon Water Tank

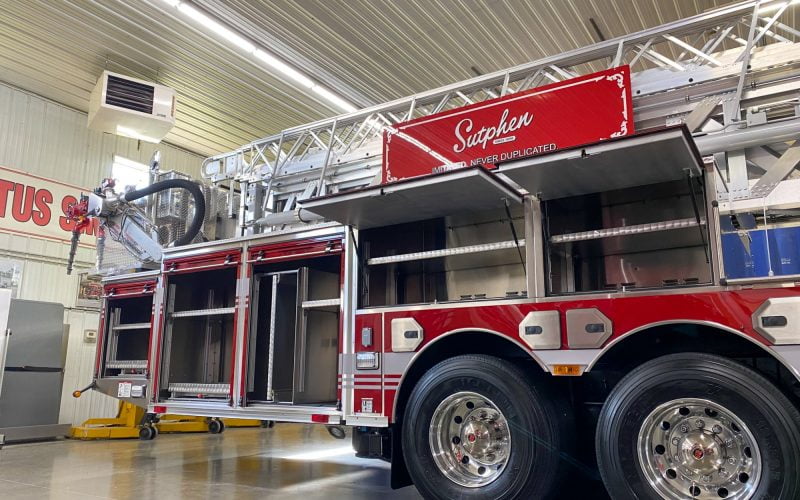

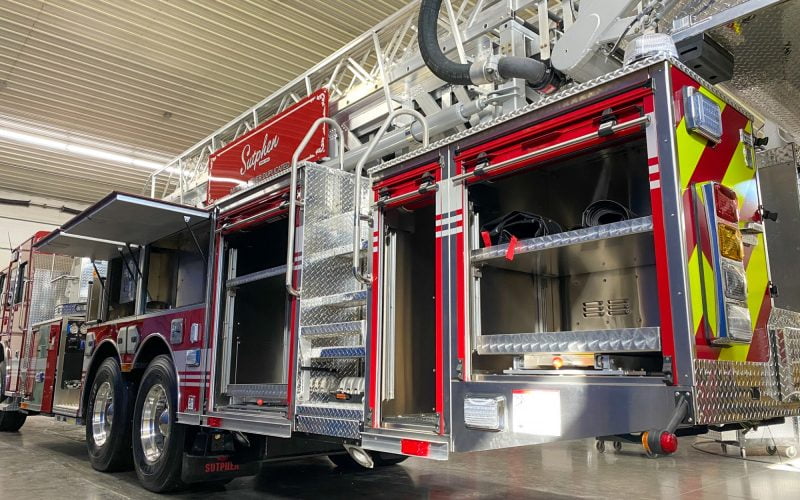

BODY:                  Sutphen

  • HuckBolted #304 Stainless Steel
  • Mixed Roll-Up and Hinged Compartment Doors
  • Over 280 cu. ft. Total Compartment Space
  • Alco-lite Ladders (115’: 14’, 16’, 16’, 24’ 2-Section, 35’ 2-Section & 10’ F)
  • Body SPH-3, Left 56” H / Right 56” High

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • 10KW Smart Power Generator
  • FRC Inview Trueview Camera System
  • Hannay Electric Cord Reel, 150’ (1)
  • FRC Spectra Brow Light
  • Whelen Freedom IV 72” Lightbar
  • FRC Spectra Brow Light
  • FR Spectra 12V Scene Lights
  • FR Spectra 240V Tele Lights
  • FireTech Aerial Spotlights
