Sutphen Heavy-Duty Custom Pumper

Sutphen Heavy-Duty Custom Pumper

The Sutphen Heavy Duty Custom Pumper is built on Sutphen’s robust Monarch custom chassis, delivering the strength, safety, and reliability departments expect from a fully custom apparatus. Available with aluminum or stainless steel bodies, this pumper offers a wide range of customizable pump and water tank configurations, allowing departments to tailor the build to fit their scale and environment.

Whether serving as a city engine or a multi-purpose rural response unit, the Heavy Duty Custom Pumper is engineered for flexibility and performance. With options for enhanced rescue capabilities, expanded storage, and scene-specific features, it’s a versatile solution trusted by departments that demand more from their frontline apparatus.

Specs

Chassis
Monarch 56”, 62”, 73” cab options with flat, 10” half, or 15” half raised roof options
Front Axle
Front Axle and Suspension up to 25,500 lbs.
Rear Axle
Rear Axle and Suspension up to 31,000 lbs.
Bumper Options
12” bumper standard, optional 6”, 18”, 24”, or 30” extension options. Optional steel or steel channel, painted bumper.
Engine Options
Cummins ISL 9 400 or 450HP, Cummins ISX 12L 425, 450, or 500HP, or Cummins ISX 15L 600HP.
Transmission
Allison Gen 5 EVS 3000 or EVS 4000 (dependent on engine)
Wiring
Point-to-Point or Multiplex wiring systems
Wheelbase
169-200” Wheelbase (depending on body and pump module configuration)
Pump
Hale, Waterous, or Darley, 1000 to 2000 gpm
Standard Pump Equipment
(2) 6” main suction, (2) 2.5” discharges left, (1) 2.5” discharge right, (2) 5” crosslay, (1) 3” tank to pump, and (1) 1.5” tank fill
Finish Options
Black vinyl, brushed, or mirrored finish stainless pump panel
Water Tank
Up to 1000 gallons poly water tank
Mount Options
Two type of pump modules, side and top mount. With 14 different configurations.
Body
3/16” Extruded Aluminum, or #304 Stainless Steel bolted body, Huck bolted to the chassis frame
Configurations
19 body configurations to choose from
Space
Over 300 cu. ft. of usable compartment space
Doors
Roll up doors or hinged doors offered in painted or non-painted satin finish
Ladders
Alco-Lite or Duo-Safety ladders
Cab Storage
EMS/storage cabinet options in the cab
Bumper Storage
Hose storage, front suction, front discharge options in the bumper
Pump
Multiple pump inlet, discharge, and crosslay options
Foam
Foam system options
Power
Generator options up to 30 kw
Electrical
Numerous electrical and scene lighting options

Features

Feature IconBooster Tank
Feature IconAir Bottle Storage
Feature IconCompartment Space
Feature IconHeaviest Rear Body Sub-Structure in the Industry
Feature IconCustom Extrusions
Feature IconHand-Built to Specification
Feature IconEase of Maintenance and Serviceability
Feature IconVarious Body Configurations

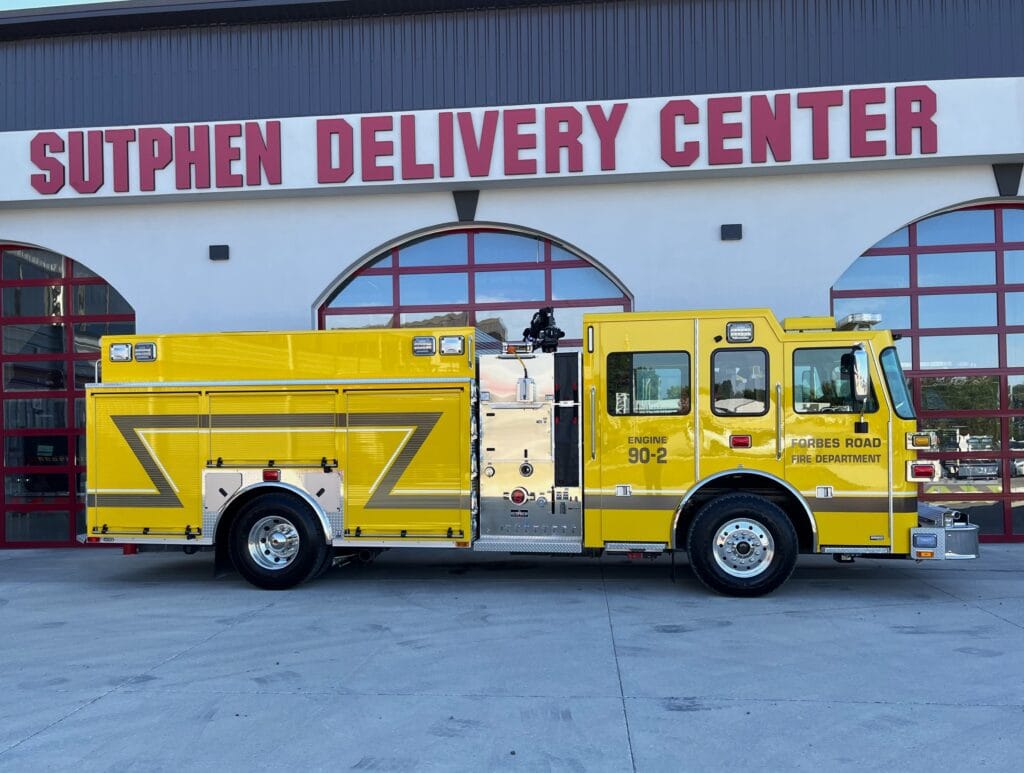

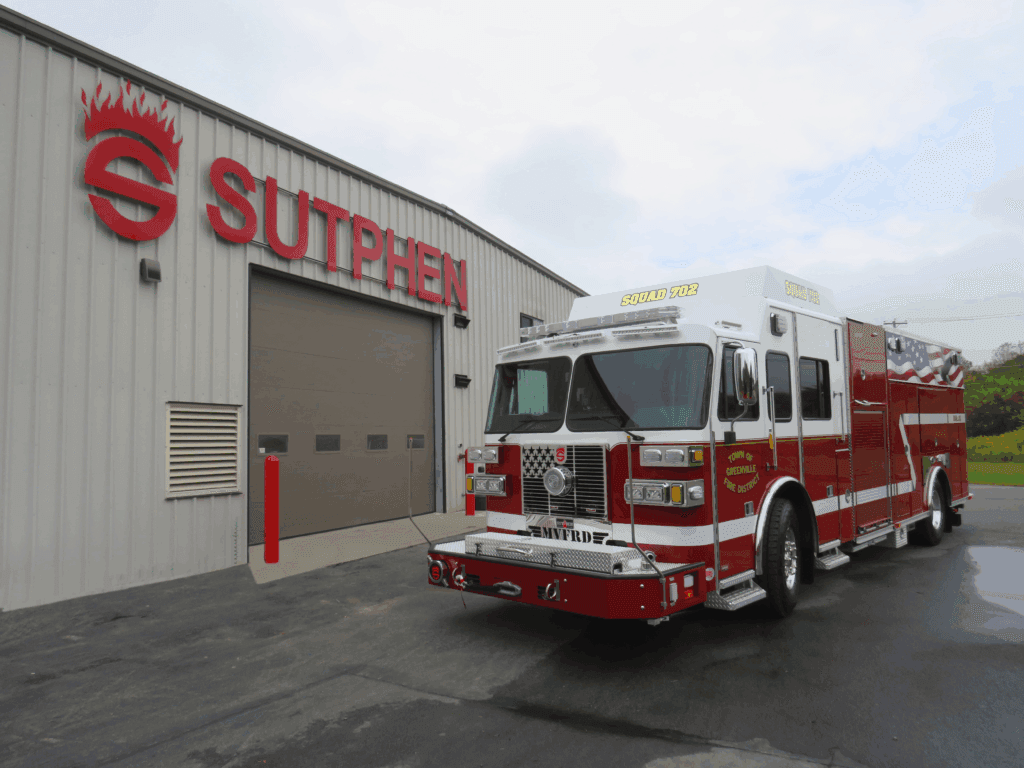

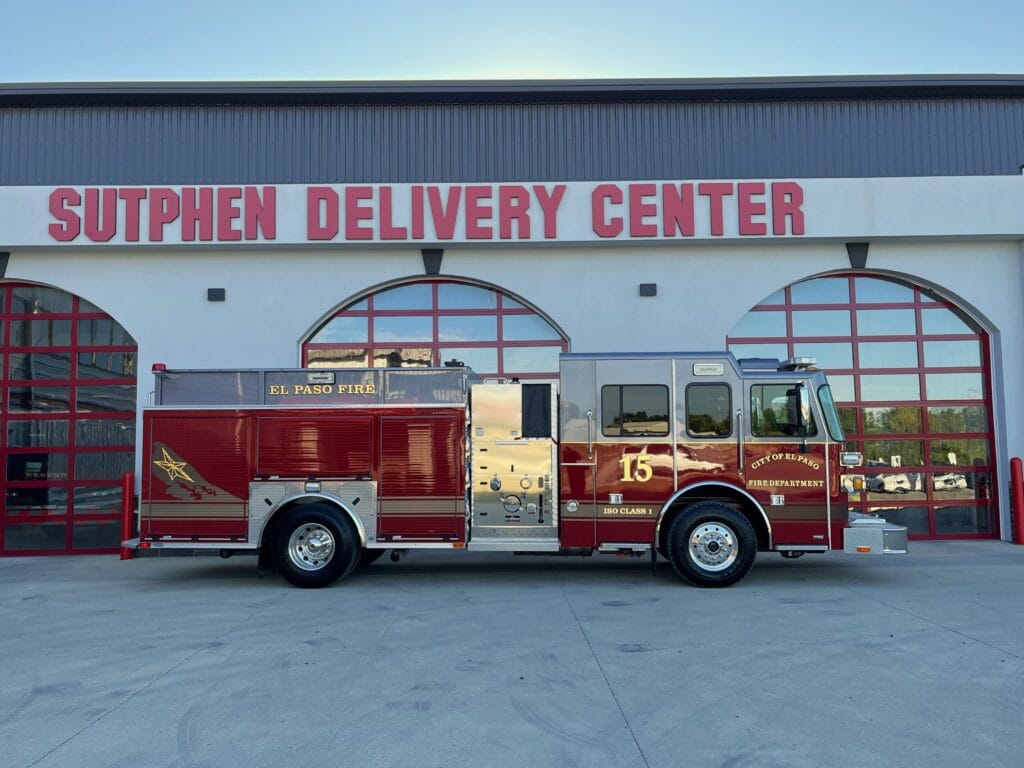

Recent Deliveries
