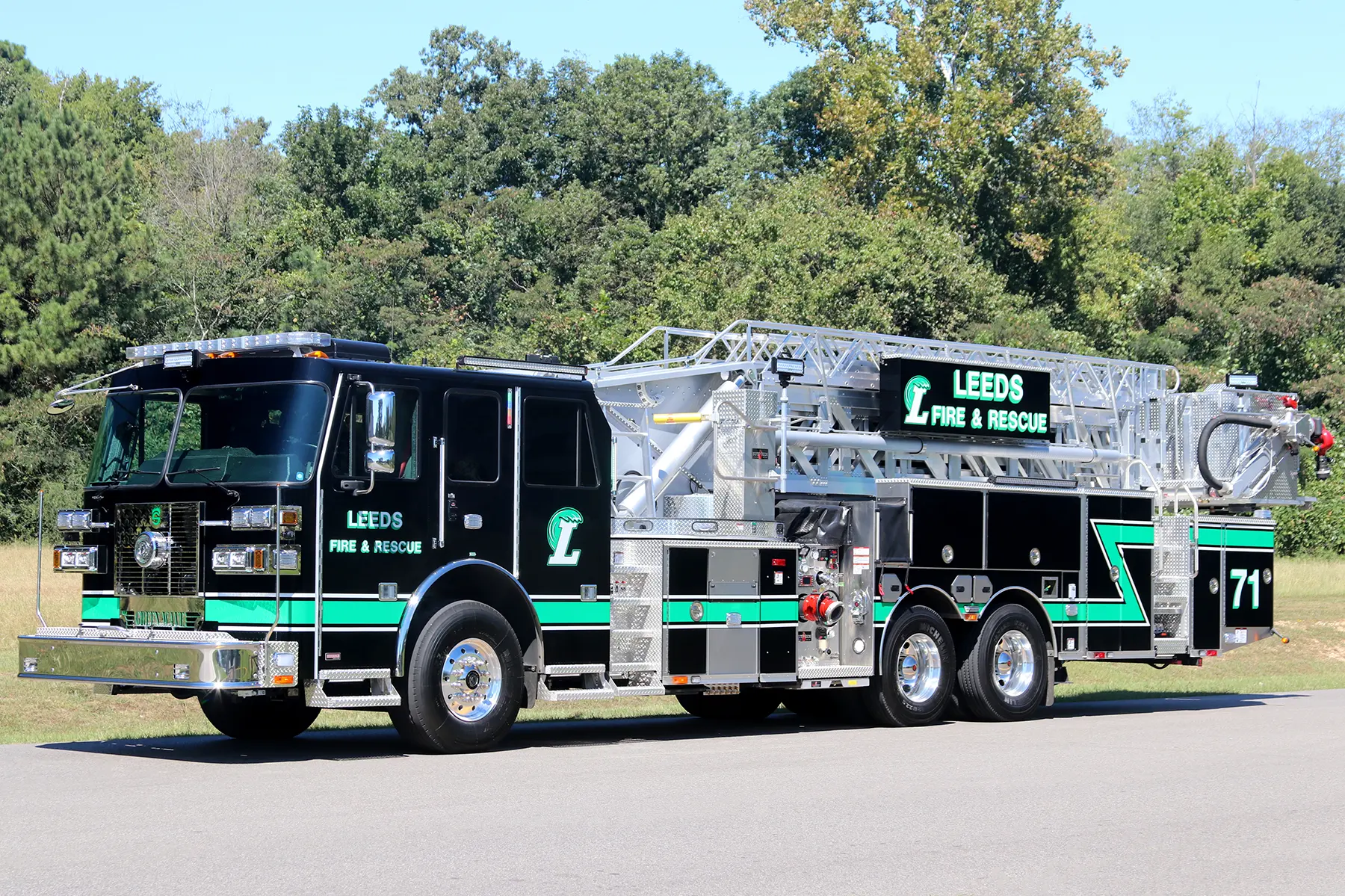

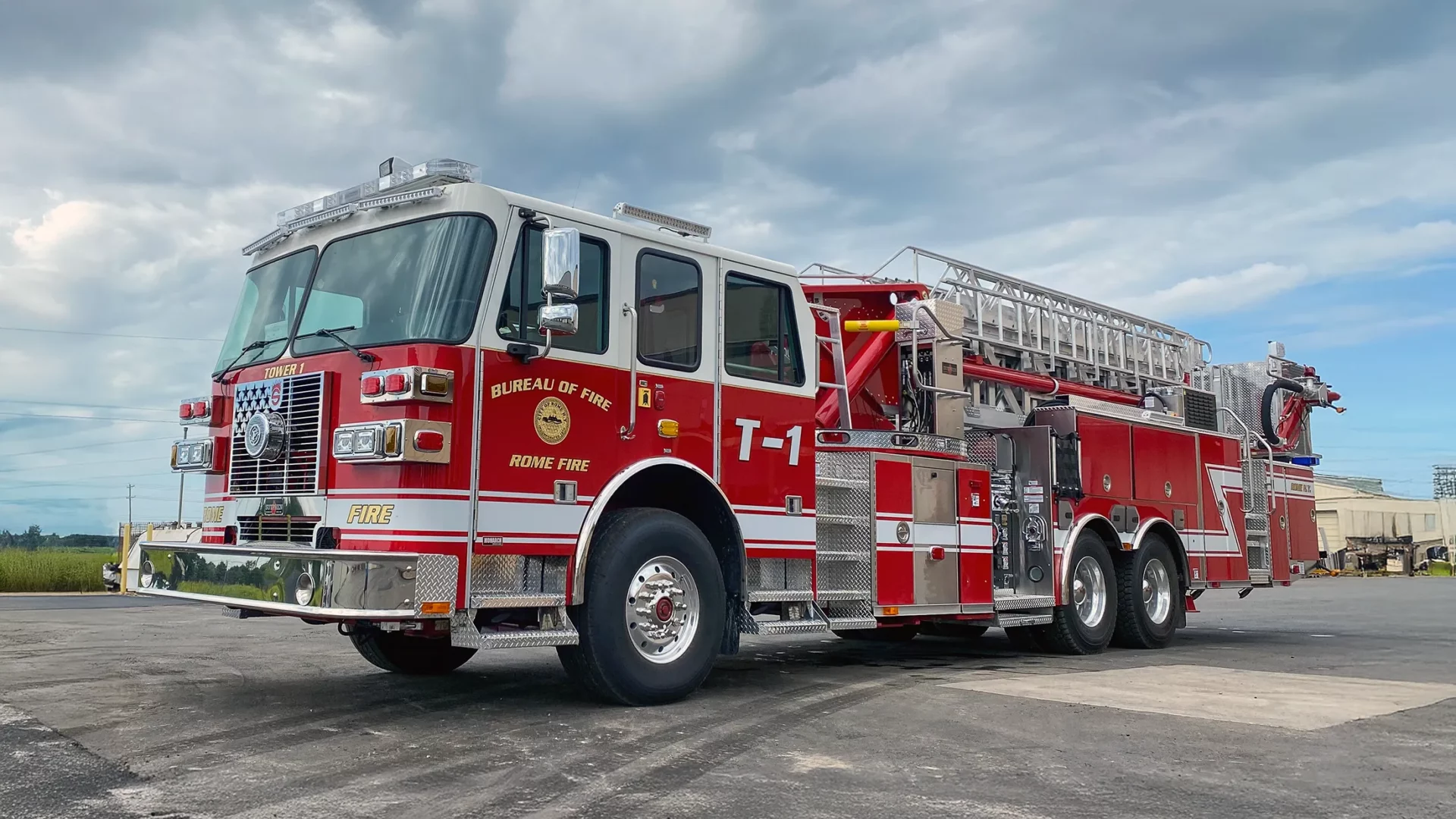

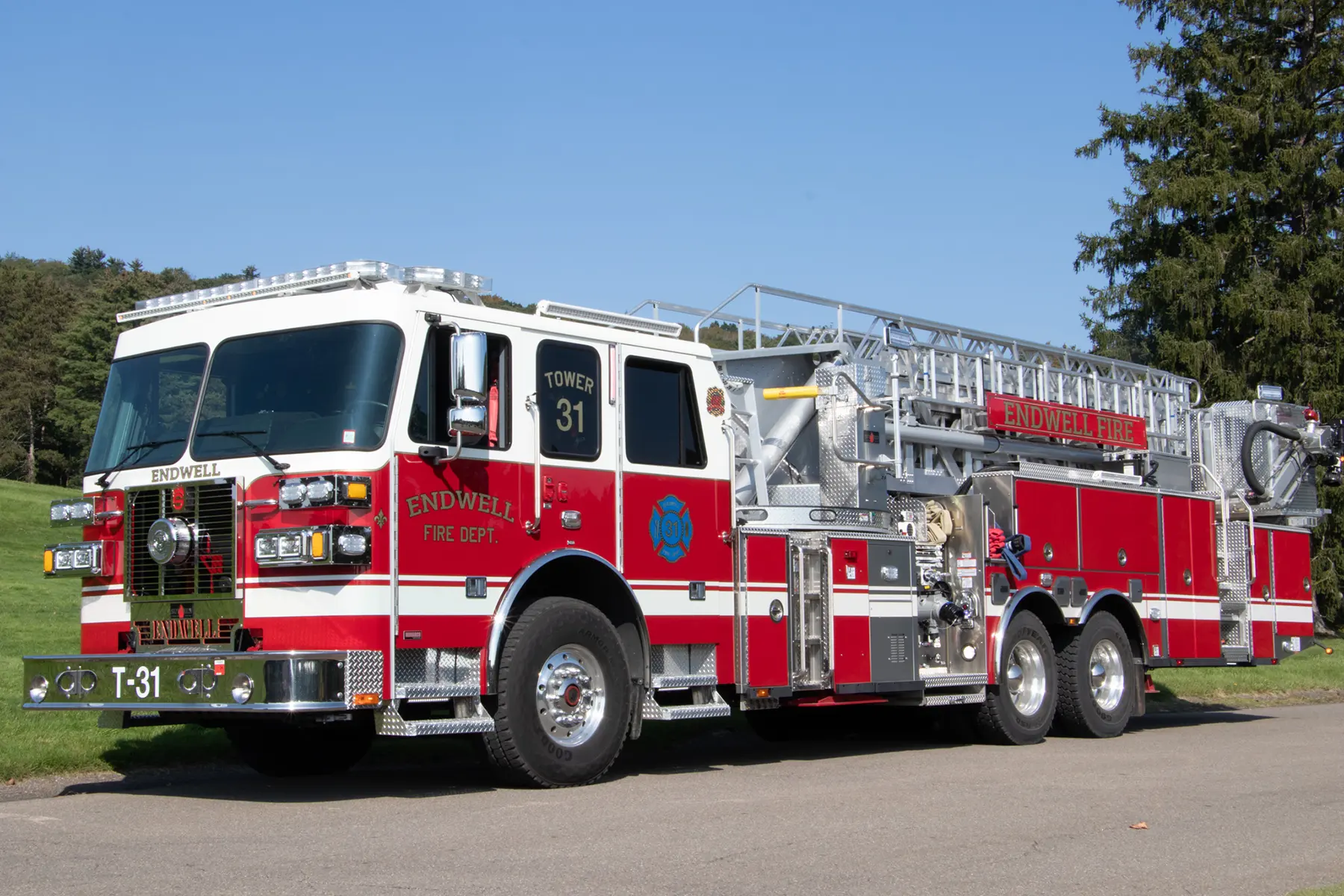

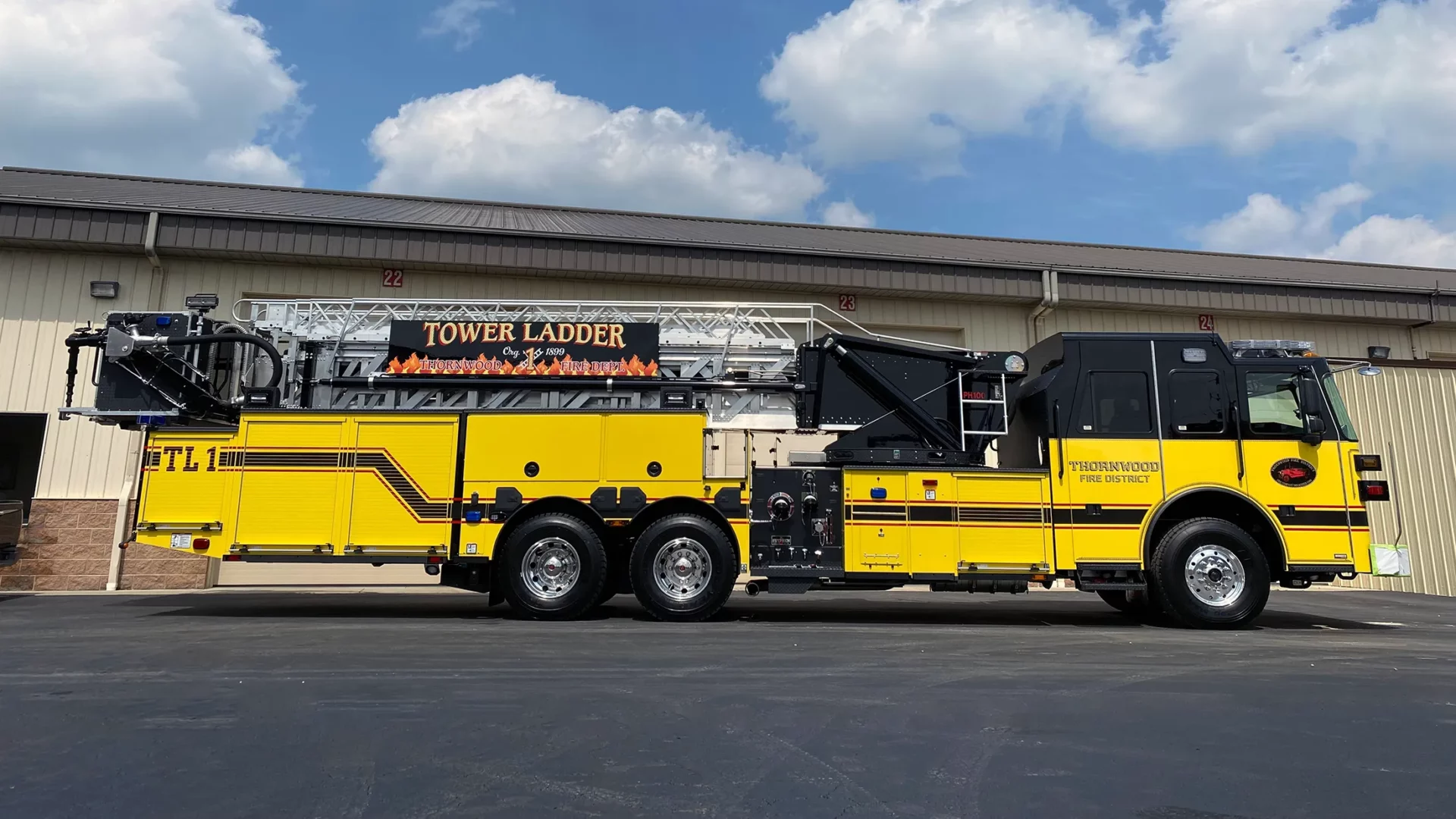

SPH 100 Aerial Platform

The SPH 100 is Sutphen’s flagship aerial platform, engineered for superior strength, stability, and performance. Its mid-mount design lowers the center of gravity for improved balance and handling, while a short wheelbase delivers outstanding maneuverability. Built with a stainless steel body and a signature box boom secured with huck bolts, the SPH 100 combines durability with a lightweight aluminum aerial for efficient, long-lasting operation. All critical components—electrical, air, and waterway—are routed internally through the boom for added protection and simplified maintenance.

Designed for real-world demands, the SPH 100 features a large, stable platform with nearly 20 square feet of working space, ground-level access, and dual monitors with multidirectional flow. It’s a versatile, high-performance solution trusted by departments nationwide.

Specs

Chassis
Monarch 56”, 62”, 73” cab options with flat, or 10” half, or 15” half raised roof options
Front Axle
Front Axle and Suspension up to 25,500 lbs.
Rear Axle
Rear Axle and Suspension up to 52,000 lbs.
Bumper Opions
12” bumper standard, optional 6”, 18”, 24”, or 30” extension options. Optional steel or steel channel, painted bumper
Engine Options
Cummins ISL 9 400 or 450HP, Cummins ISX 12L 425, 450, or 500HP, or Cummins ISX 15L 600HP.
Transmission Options
Allison Gen 5 EVS 3000 or EVS 4000 (dependent on engine)
Wiring
Point-to-Point or Multiplex wiring systems
Cab Roof
Diamond Plate Cab Roof (standard 36” x 59”)
Wheelbase
Standard 230” Wheelbase (with 56” cab)
Pump
Hale, Waterous, or No pump/no tank option, 1500 to 2000 gpm
Standard Pump Equipment
(2) 6” main suction, (2) 2.5” discharges left, (1) 2.5” discharge right, (2) 1.5” crosslay, (1) 2.5” crosslay, (1) 3” tank to pump, and (1) 1.5” tank fill

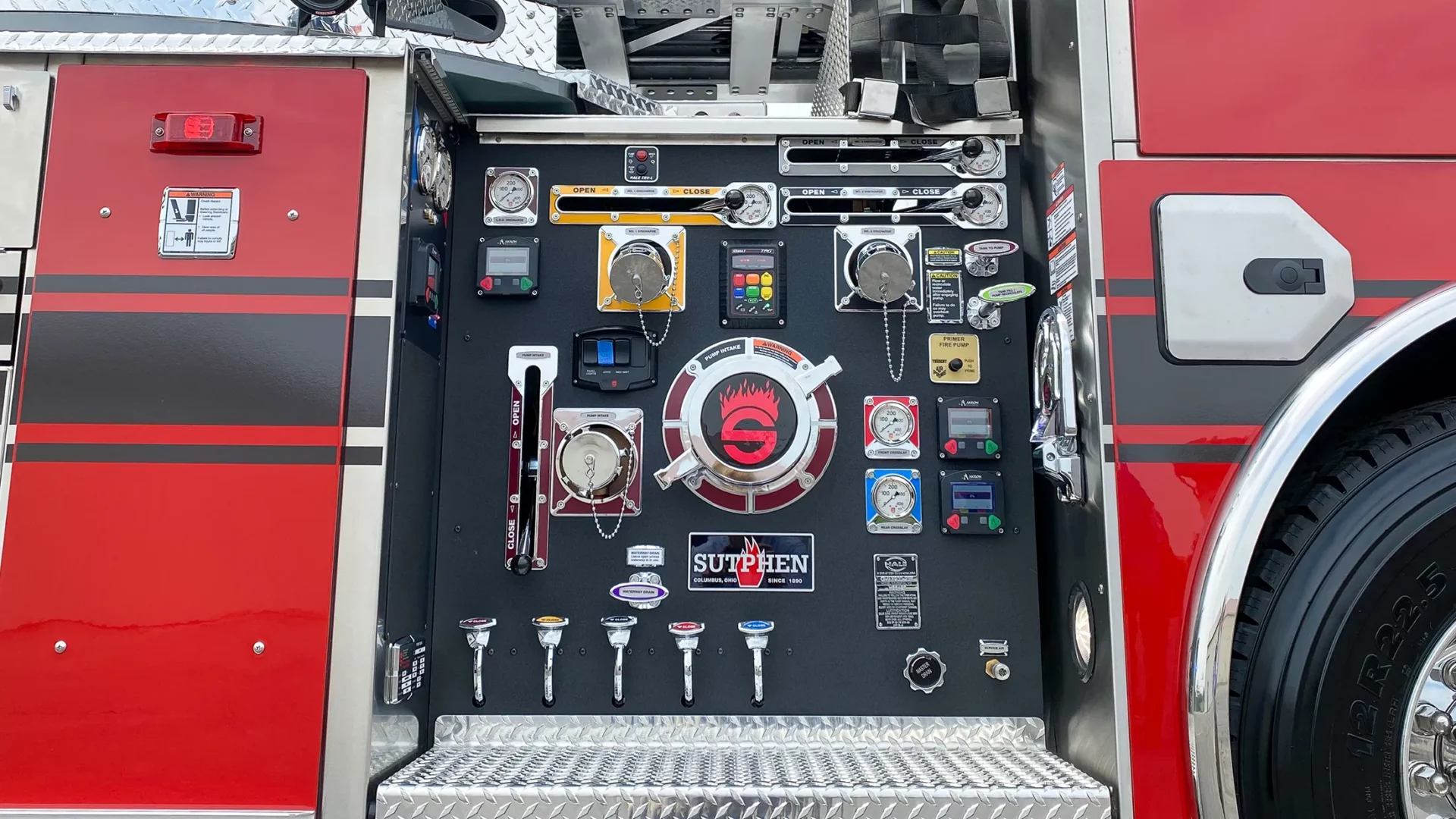

Finish Options
Black vinyl, brushed, or mirrored finish stainless pump panel
Water Tank
300 to 500 gallon poly water tanks
Body
#304 Stainless Steel bolted body, Huck bolted to the chassis frame
Configuration Options
Eight body configurations to choose from, Double high sides in 48” or 56” heights with enclosed ladder storage
Space
Up to 300 cu. ft. of useable compartment space
Doors
Roll up doors or hinged doors offered in painted or non-painted satin finish
Compliant
Alco-Lite or Duo-Safety ladders, aerial and ISO compliant
Sections
5-section ladder

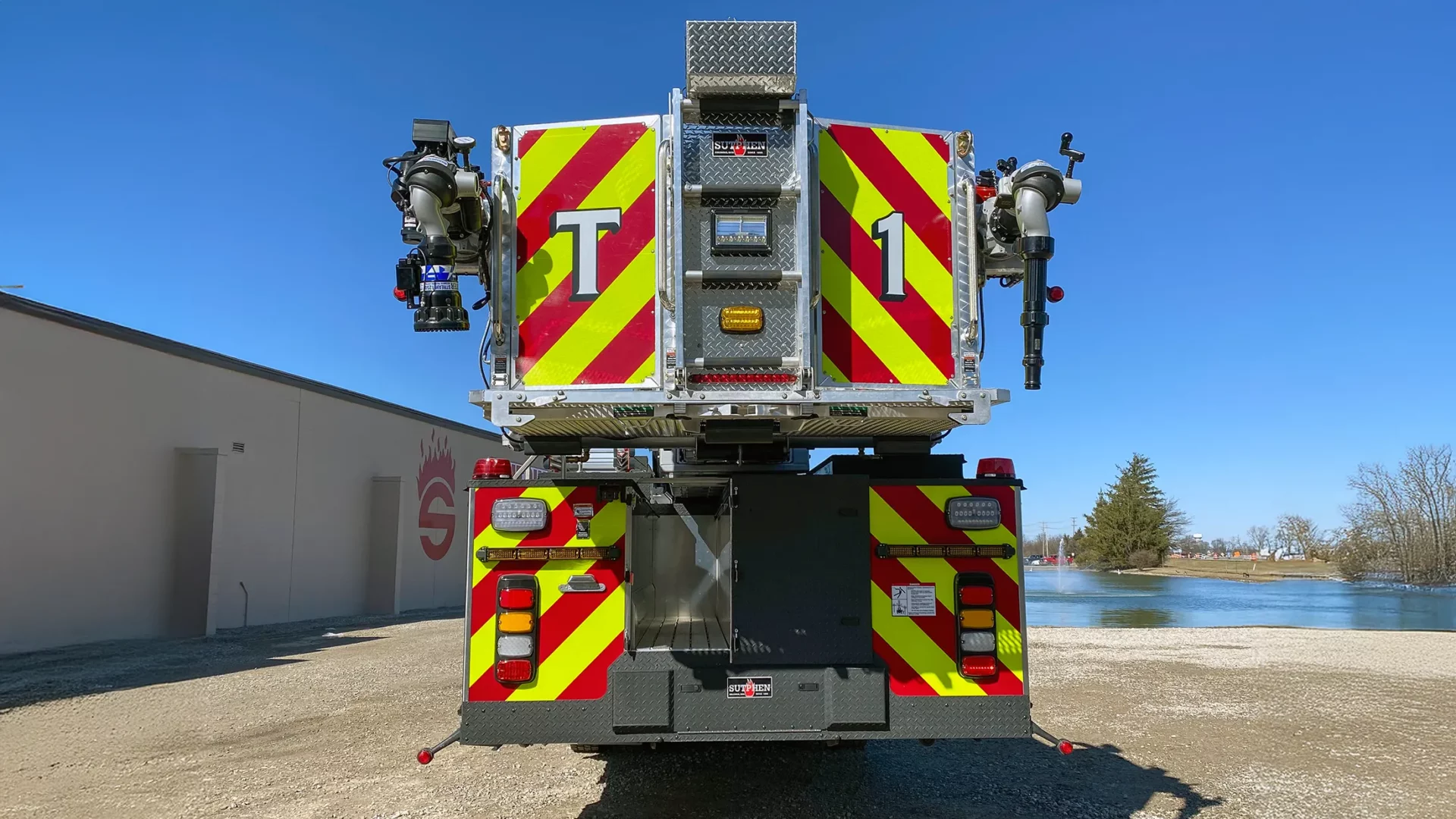

Nozzles
(2) 1000 GPM monitors/nozzles, one each side of the platform
Air
4500 psi breathing air to the platform
Power
120 volt outlet in the platform
Cab Storage
EMS/storage cabinet options in the cab
Bumper Storage
Hose storage, front suction, front discharge options in the bumper
Pump
Multiple pump inlet, discharge, and crosslay options
Foam
Foam system options
Power
Generator options up to 30 kw
Electrical
Numerous electrical and scene lighting options

Features

Feature IconSutphen Signature Mid-Mount Design
Feature IconLower Center of Gravity
Feature IconEase of Maintenance and Serviceability
Feature IconLighter Overall Weight
Feature IconThe Strongest Aerial Device in the Industry
Feature IconThinking Inside the Box
Feature IconLower Aerial Maintenance
Feature IconClimbing to New Heights
