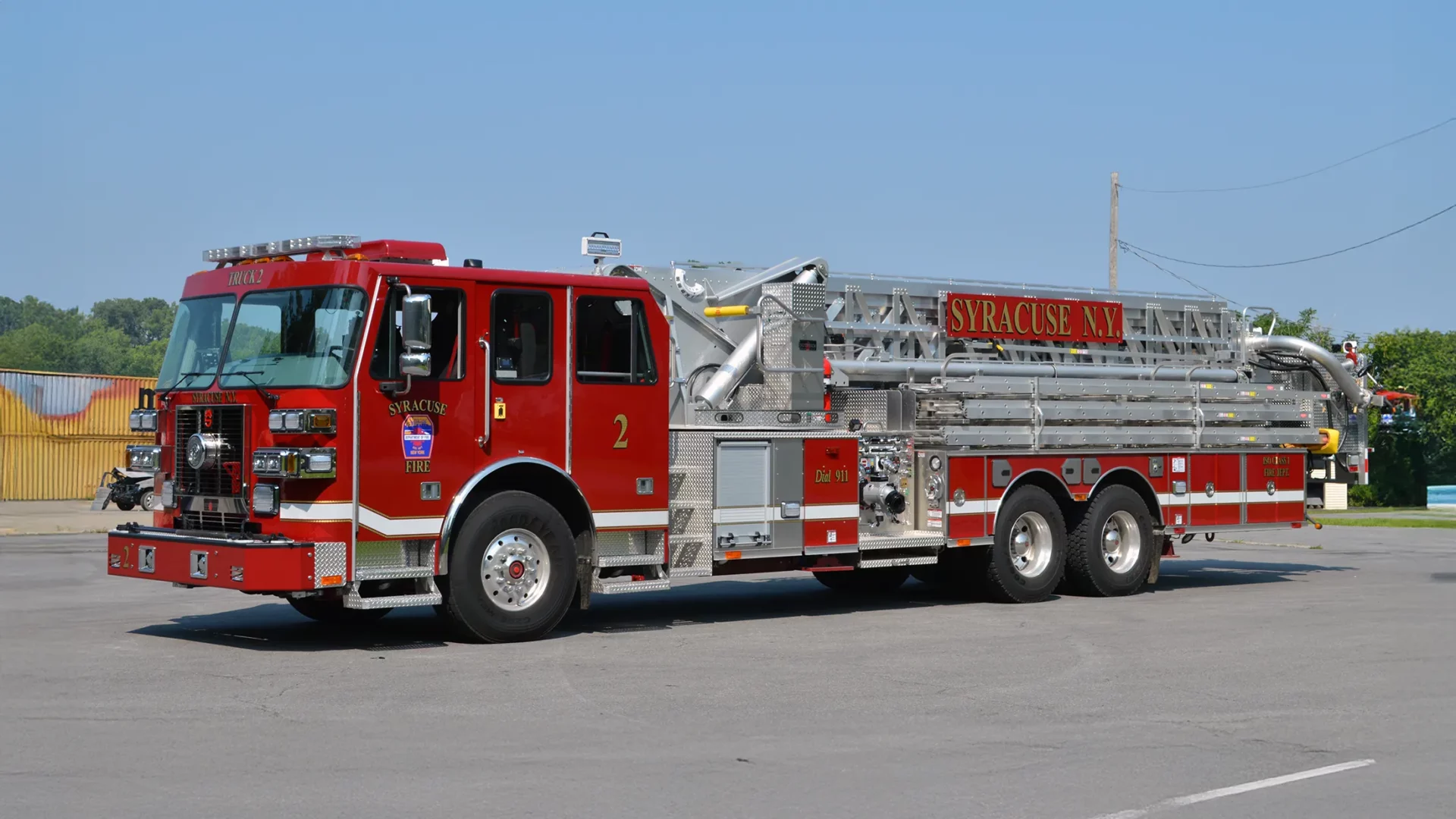

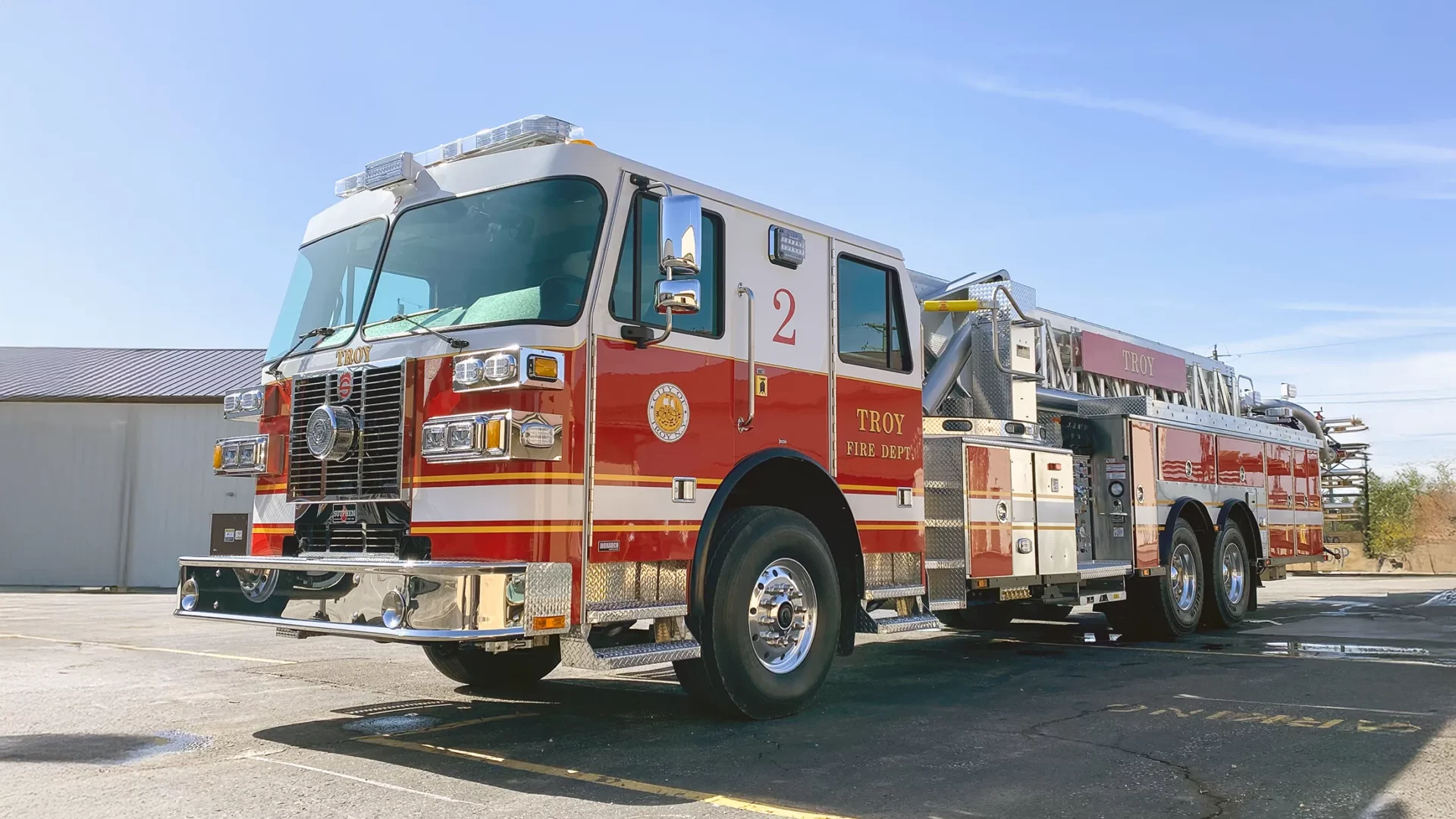

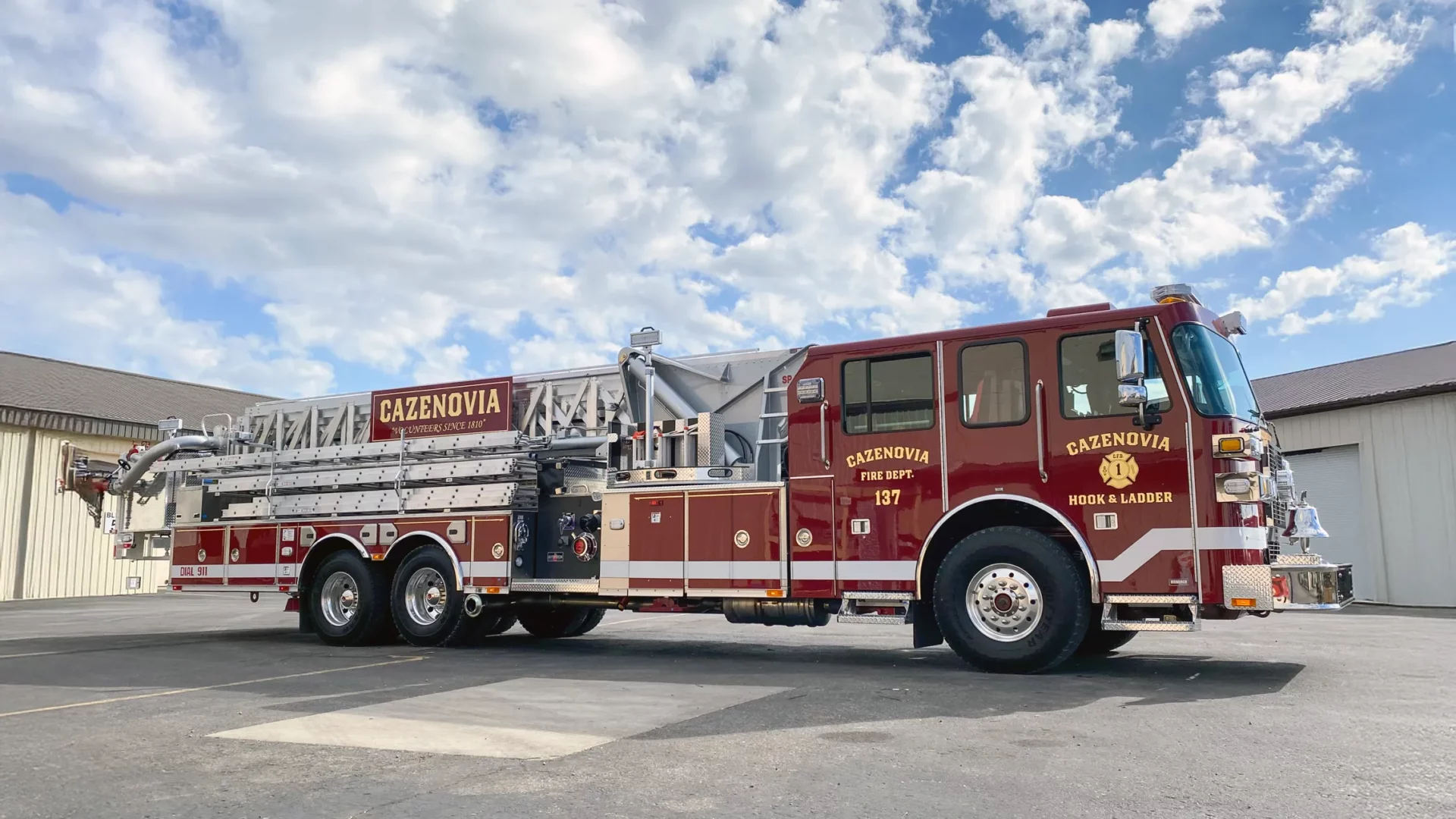

SP 95 100 Aerial Platform Fire Truck

SP 95 / 100 Aerial Platforms

The SP 95 and SP 100 Aerial Platforms deliver powerful performance in a streamlined design, featuring a five-section, midmount box boom secured with huck bolts for strength and longevity. With a low center of gravity and a single set of out-and-down outriggers, these aerials are quick to set up and built for stability in fast-moving scenarios. The midmount design enhances handling and balance, making it easier to operate in tight environments.

At the platform, crews benefit from ground-level access and a generous tip load, providing safe, efficient operation under demanding conditions. These aerial platforms provide a high-reach, heavy-duty platform that embodies Sutphen’s commitment to safe design, superior engineering, and reliable performance.

Specs

Chassis
Monarch 56”, 62”, 73” cab options with flat, 10” half, or 15” half raised roof options
Front Axle
Front Axle and Suspension up to 25,500 lbs.
Rear Axle
Rear Axle and Suspension up to 48,000 lbs.
Bumper Options
12” bumper standard, optional 6”, 18”, 24”, or 30” extension options. Optional steel or steel channel, painted bumper
Engine Options
Cummins ISL 9 400 or 450HP, or Cummins ISX 0 450 or 500HP 12L 425, 450, or 500HP, or Cummins ISX 15L 600HP.
Transmission Options
Allison Gen 5 EVS 3000 or EVS 4000 (dependent on engine)
Wiring
Point-to-Point or Multiplex wiring systems
Cab Roof
Diamond Plate Cab Roof (standard 36” x 59”)
Wheelbase
Standard 252” Wheelbase (with 56” cab)
Pump
Hale, Waterous, or No pump/no tank option, 1500 to 2000 gpm
Standard Pump Equipment
(2) 6” main suction, (2) 2.5” discharges left, (1) 2.5” discharge right, (2) 5” crosslay, (1) 3” tank to pump, and (1) 1.5” tank fill
Finish Options

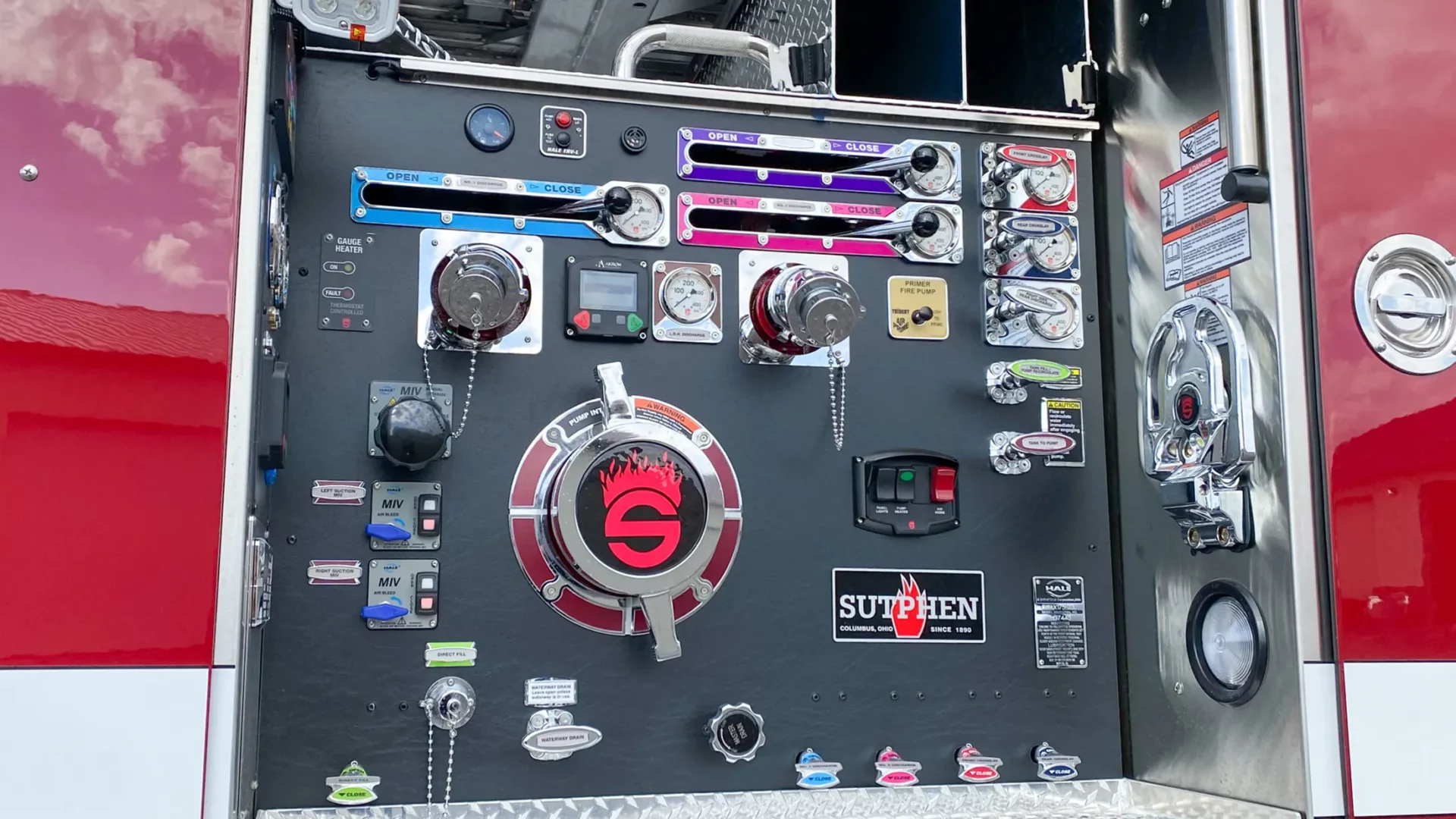

Black vinyl, brushed, or mirrored finish stainless pump panel
Water Tank
Up to 500 gallon poly water tanks
Body
#304 Stainless Steel bolted body, Huck bolted to the chassis frame
Configuration Options
(6) body configurations to choose from
Space
Up to 279 ft. of useable compartment space
Doors
Roll up doors or hinged doors offered in painted or non-painted satin finish
Compliant
Alco-Lite or Duo-Safety ladders, aerial and ISO compliant
Sections
4-section ladder
Nozzle

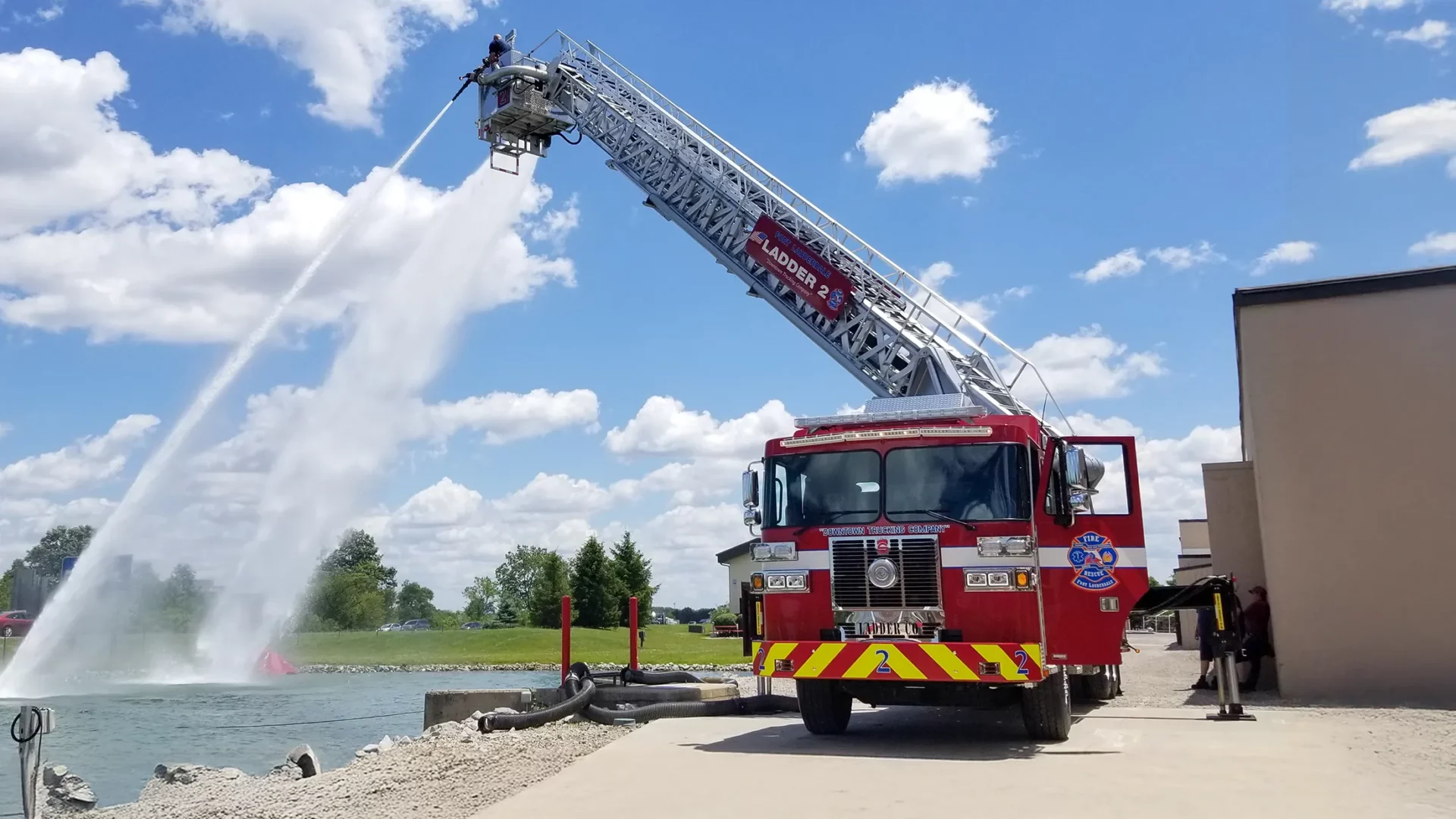

(2) 1000 GPM monitors/nozzles, one each side of the platform
Air
4500 psi breathing air to the platform
Power
120 volt outlet in the platform
Cab Storage
EMS/storage cabinet options in the cab
Bumper Storage
Hose storage, front suction, front discharge options in the bumper
Pump Inlet
Multiple pump inlet, discharge, and crosslay options
Foam
Foam system options
Power
Generator options up to 30 kw
Electrical
Numerous electrical and scene lighting options

Features

Feature IconSutphen Signature Mid-Mount Design
Feature IconLower Center of Gravity
Feature IconEase of Maintenance and Serviceability
Feature IconFour Section Boom
Feature IconBucket Access From the Ground
Feature IconDual Monitors
Feature IconLower Aerial Maintenance
Feature IconBox Boom Design
