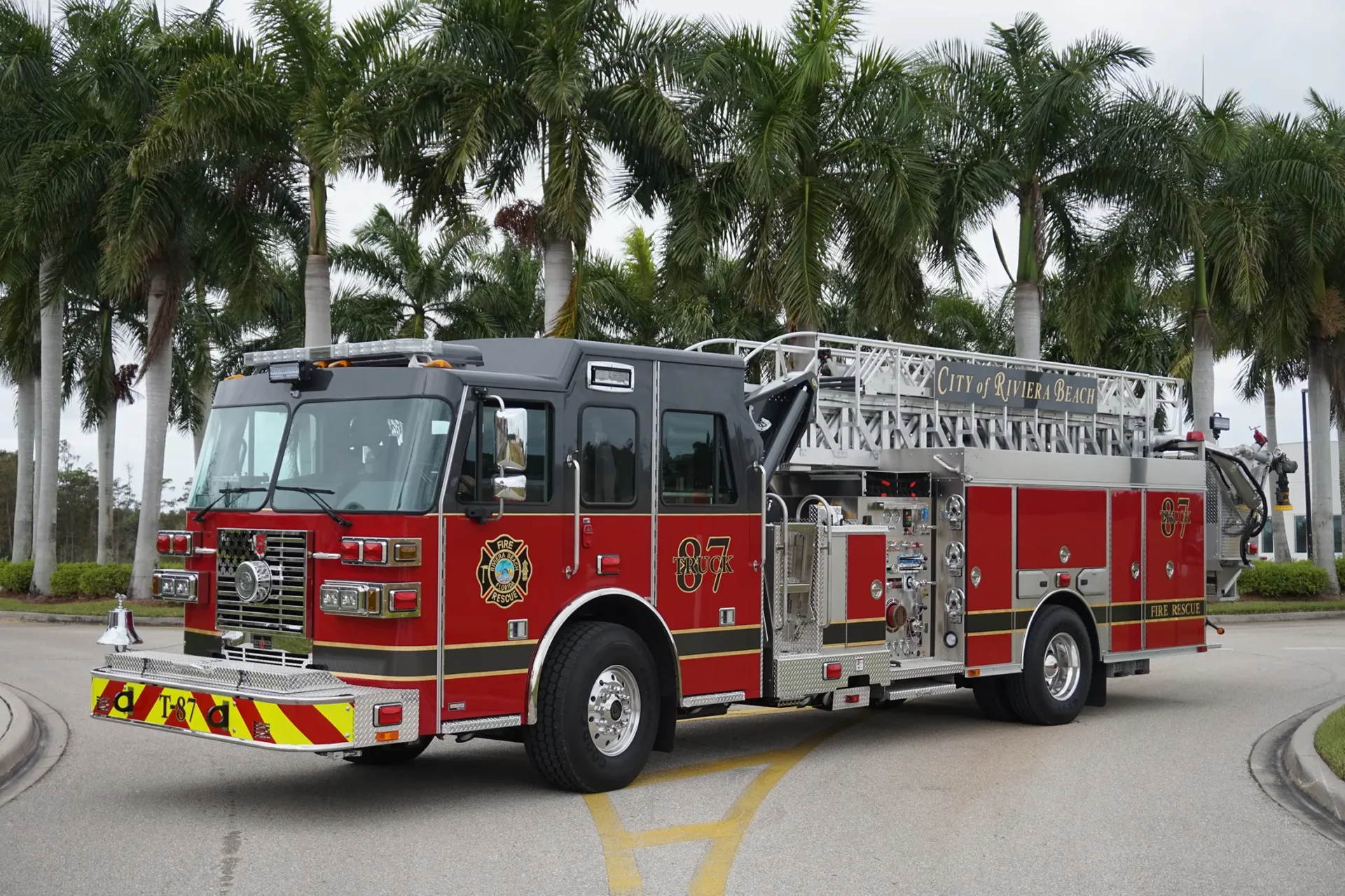

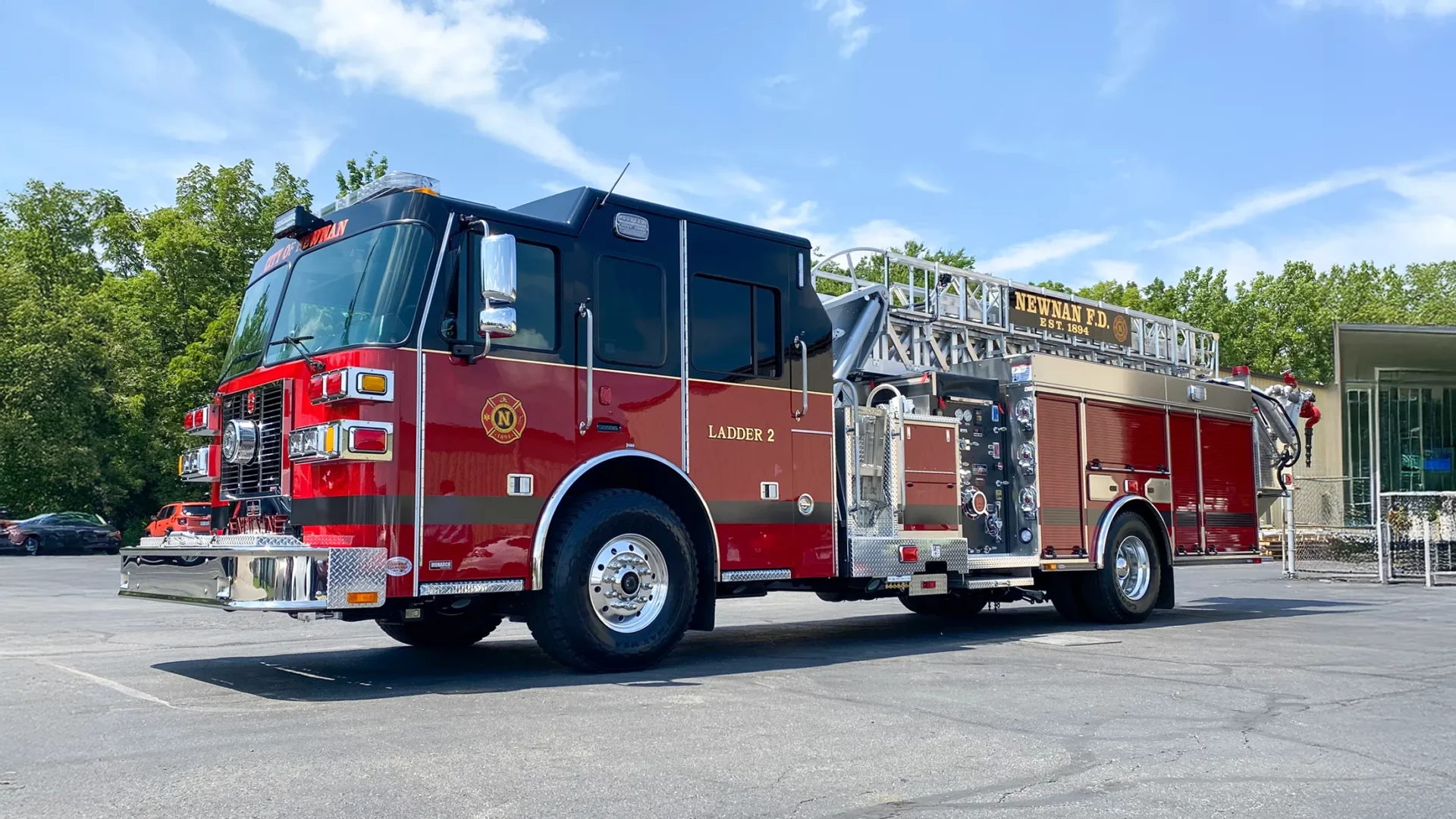

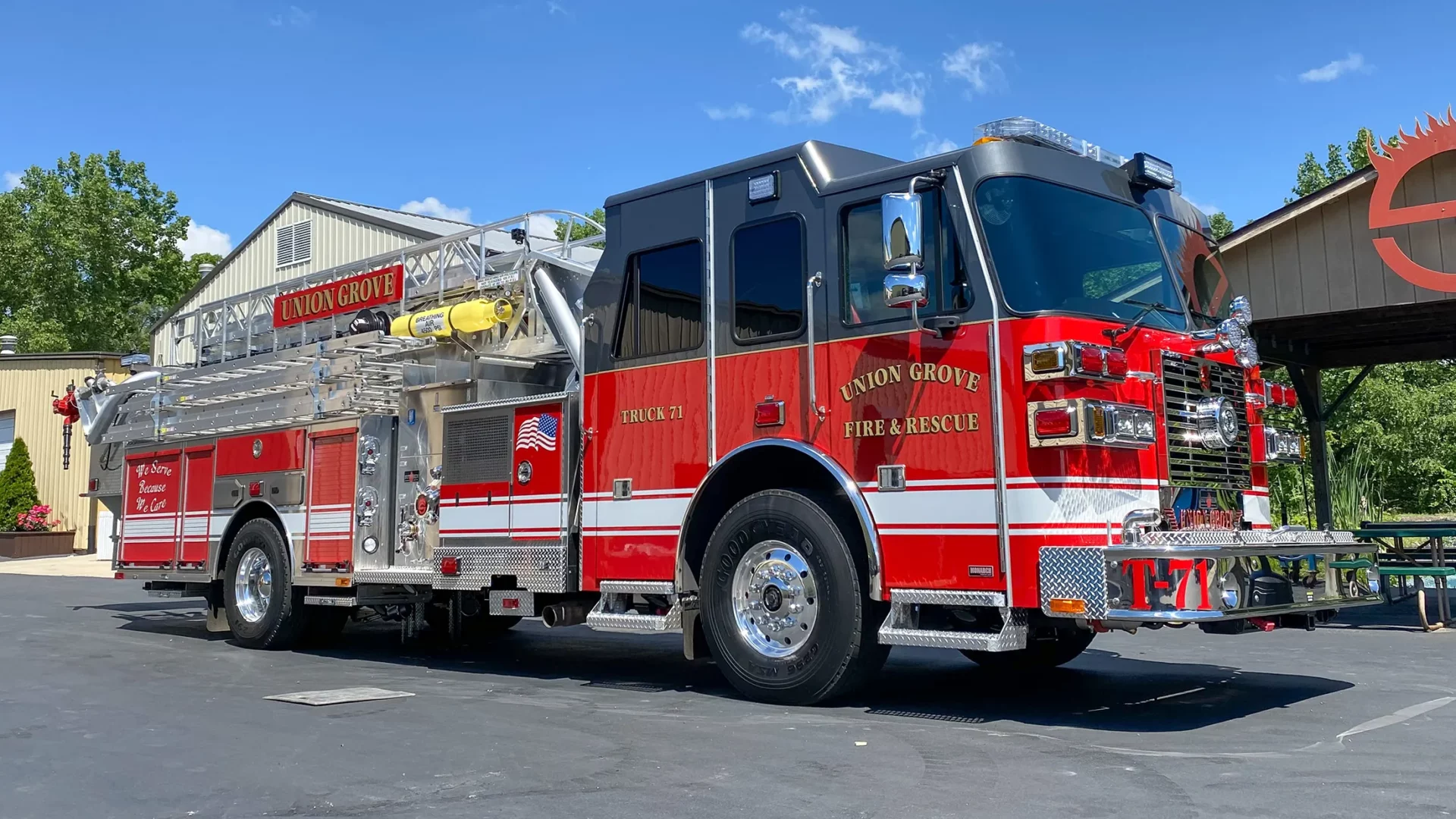

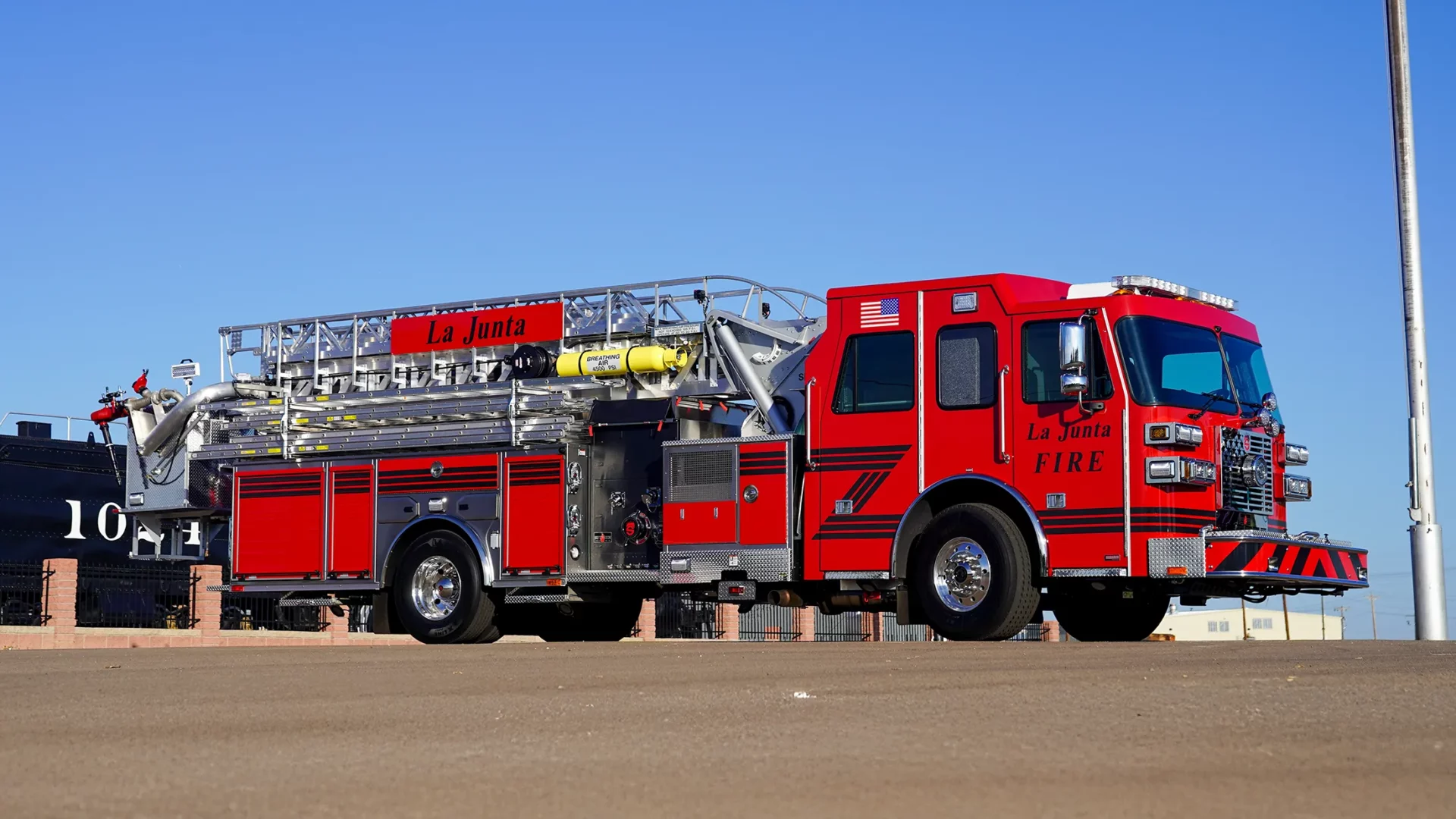

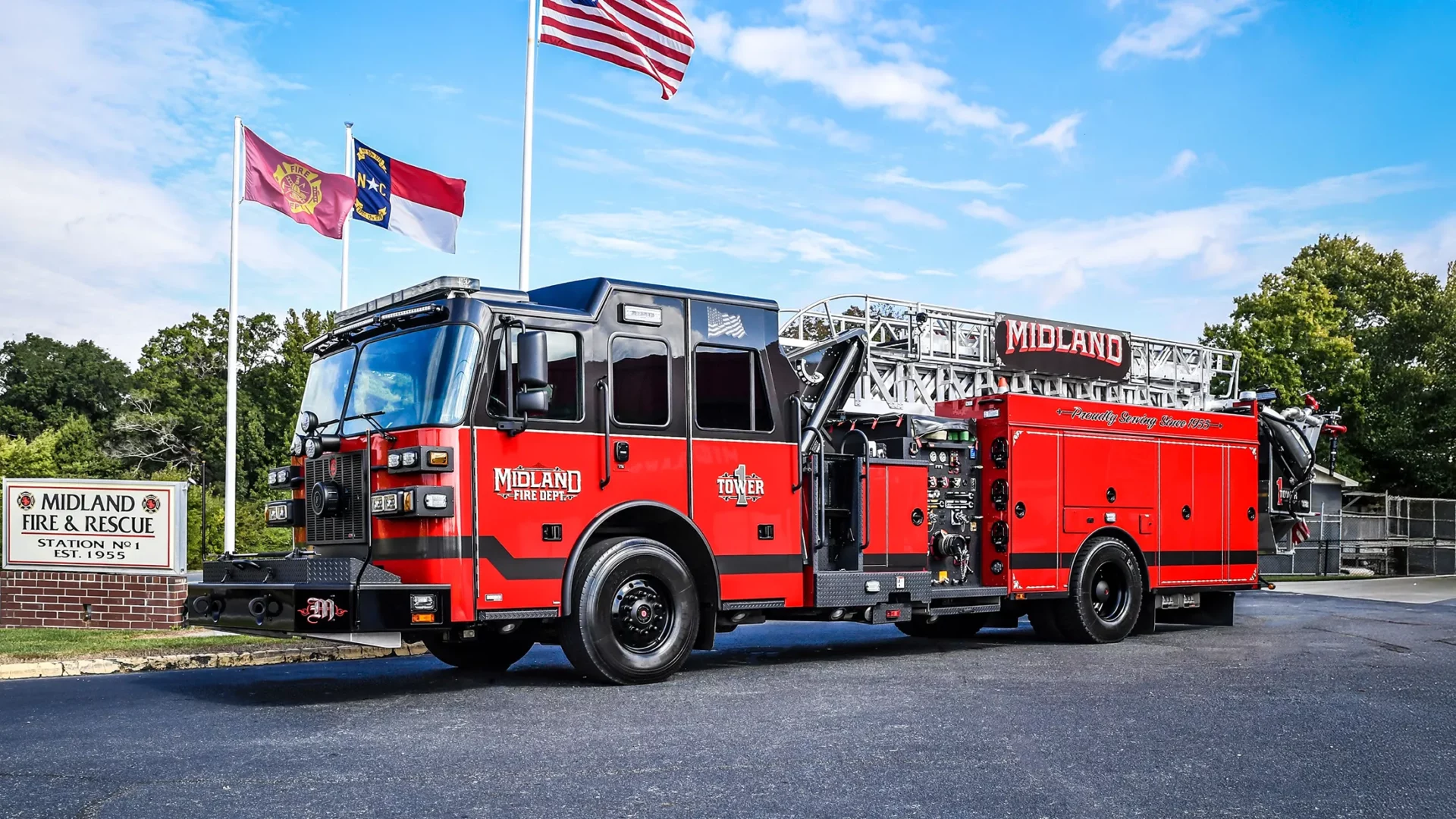

SP 70 Aerial Platform

The SP 70 combines the power and versatility of an aerial platform with the compact footprint and agility of a single-axle apparatus. Its rugged box boom construction and ground-accessible platform with dual monitors deliver the reach and suppression performance departments need, while remaining maneuverable. With underslung jacks and a compact setup station, the SP 70 is built for rapid response and streamlined operation.

Ideal for departments that need the capabilities of a pumper and an aerial in one apparatus, the SP 70 offers unmatched efficiency in a smaller, more flexible package. From tight urban environments to challenging residential scenes, it brings Sutphen’s hallmark durability and innovation to every call—making it a trusted tool for crews who demand more from every truck.

Specs

Chassis
Monarch 56”, 62”, 73” cab options with flat, 10” half, 15” half raised roof options
Front Axle
Front Axle and Suspension up to 25,500 lbs.
Rear Axle
Rear Axle and Suspension 31,000 lbs.
Bumper Options
12” bumper standard, optional 6”, 18”, 24”, or 30” extension options. Optional steel or steel channel, painted bumper
Engine Options
Cummins ISL 9 400 or 450HP, Cummins ISX 12L 425, 450, or 500HP, or Cummins ISX 15L 600HP.
Transmission
Allison Gen 5 EVS 3000 or EVS 4000 (dependent on engine)
Wiring
Point-to-Point or Multiplex wiring systems
Cab Roof
Diamond Plate Cab Roof (standard 36” x 59”)
Wheelbase
Standard 215” Wheelbase (with 56” cab)
Pump
Hale or Waterous, 1500 to 2000 gpm
Standard Pump Equipment
(2) 6” main suction, (2) 2.5” discharges left, (1) 2.5” discharge right, (2) 5” crosslay, (1) 3” tank to pump, and (1) 1.5” tank fill
Finish Options

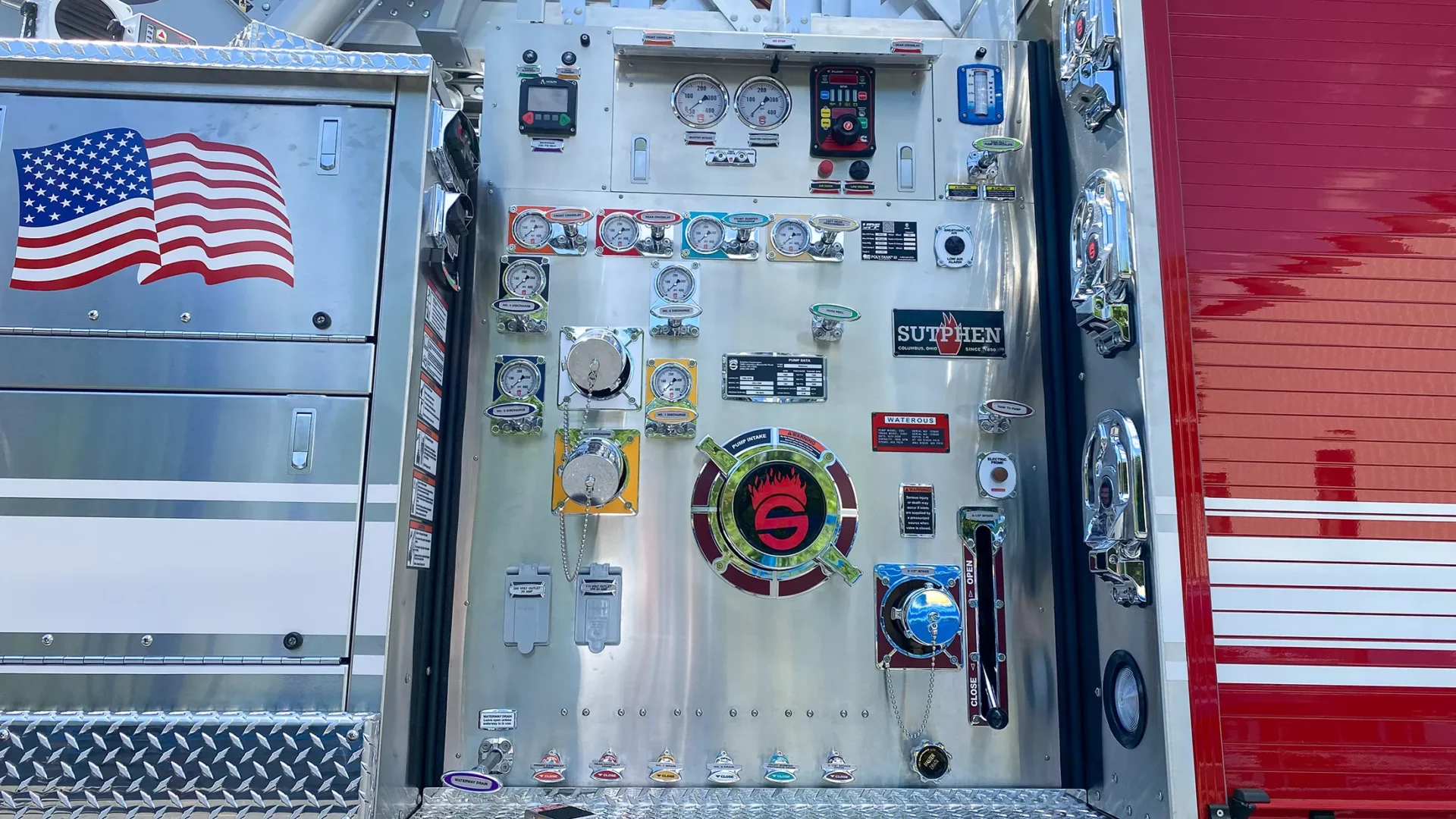

Black vinyl, brushed, or mirrored finish stainless pump panel
Water Tanks
Up to 500 gallon poly water tanks
Body
#304 Stainless Steel bolted body, Huck bolted to the chassis frame
Configuration Options
Four different body configuration options, with transverse rear compartment with two of the options
Space
Up to 210 ft. of useable compartment space
Doors
Roll up doors or hinged doors offered in painted or non-painted satin finish
Compliant
Alco-Lite or Duo-Safety ladders, pumper, quint or aerial compliant
Nozzles
(2) 750 gpm monitors/nozzles, one each side of the platform
Air
4500 psi breathing air to the platform
Power
120 volt outlet in the platform
Cab Storage
EMS/storage cabinet options in the cab
Bumper Storage
Hose storage, front suction, front discharge options in the bumper
Pump
Multiple pump inlet, discharge, and crosslay options
Foam
Foam system options
Power
Generator options up to 30 kw
Electrical
Numerous electrical and scene lighting options

Features

Feature IconSutphen Signature Mid-Mount Design
Feature IconLower Center of Gravity
Feature IconEase of Maintenance and Serviceability
Feature IconLighter Overall Weight
Feature IconThe Strongest Aerial Device in the Industry
Feature IconFast and Easy Set Up
Feature IconHeavy Duty Body
Feature IconSuperior Driving Visibility

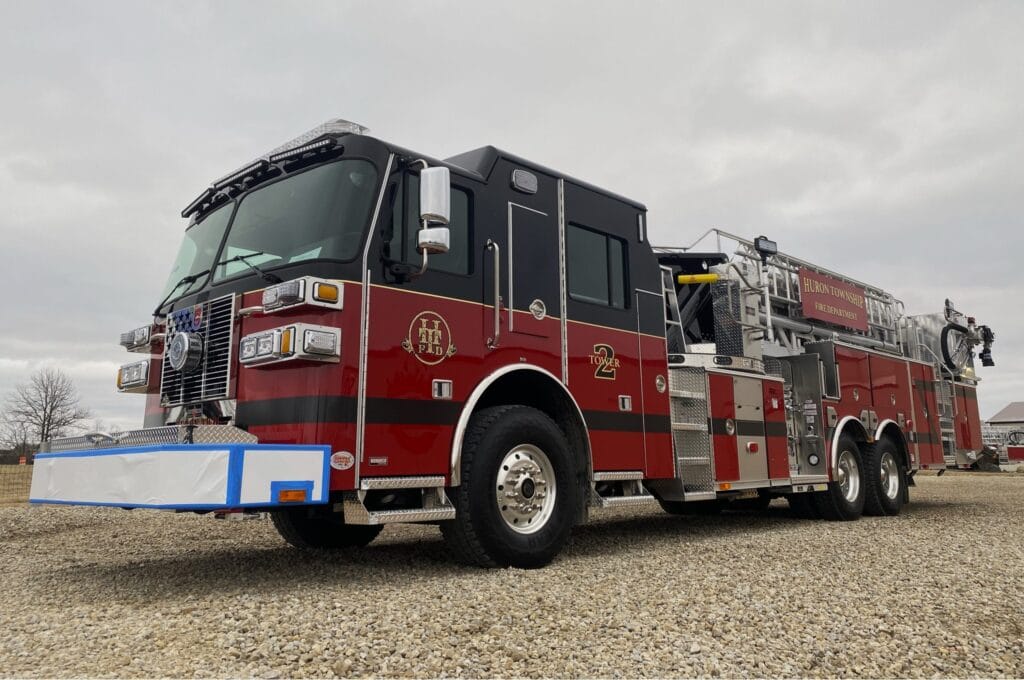

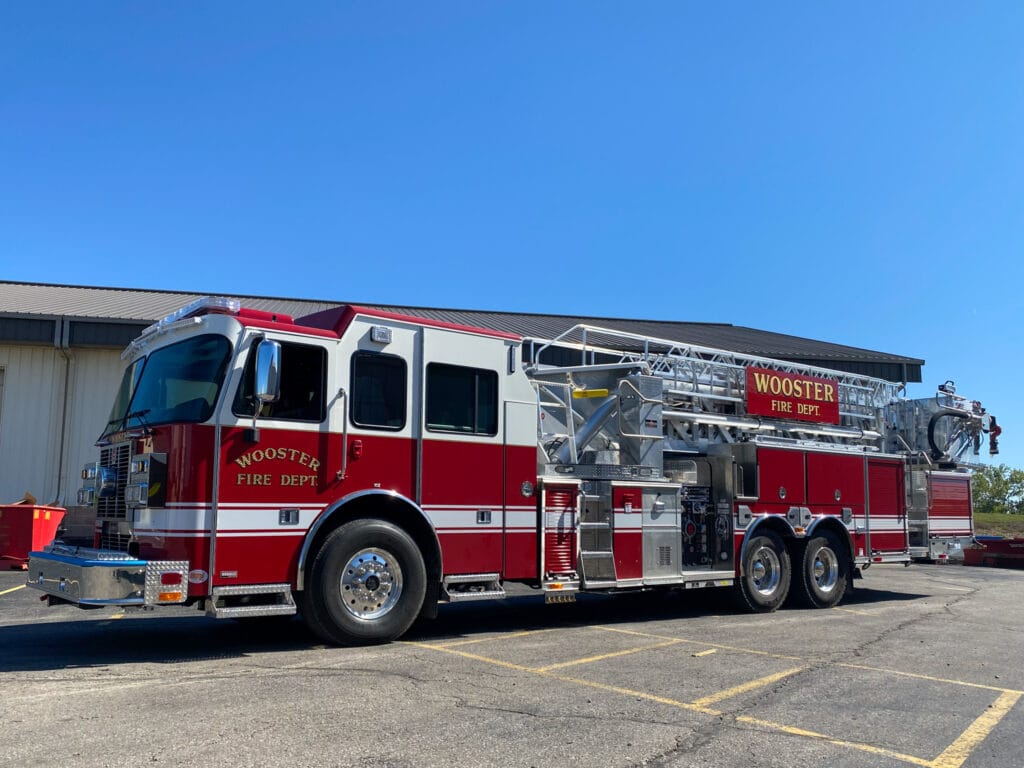

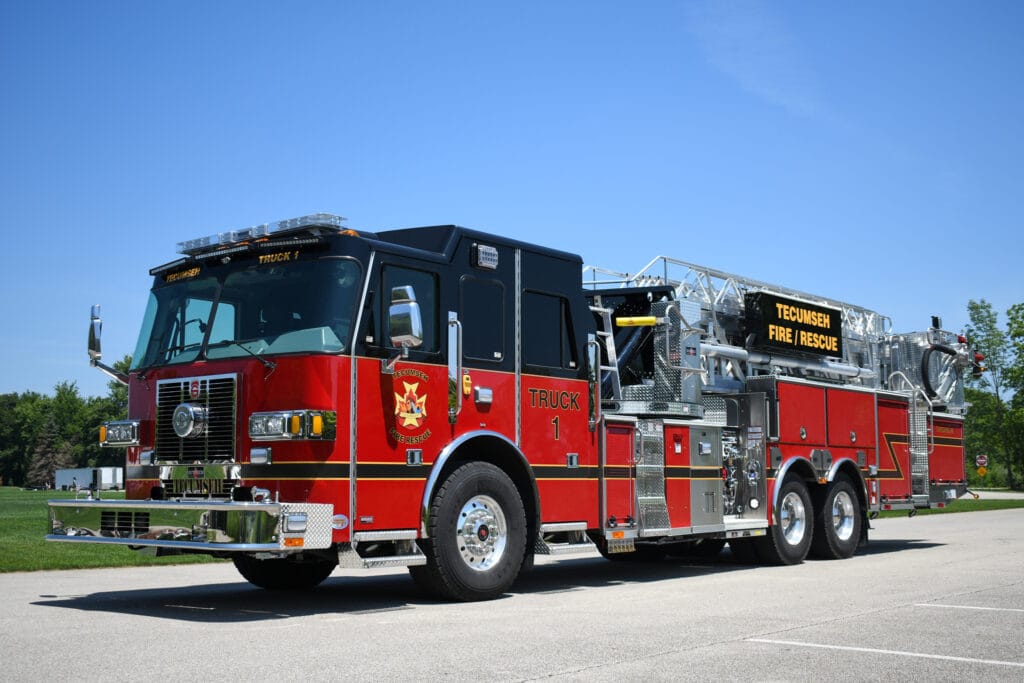

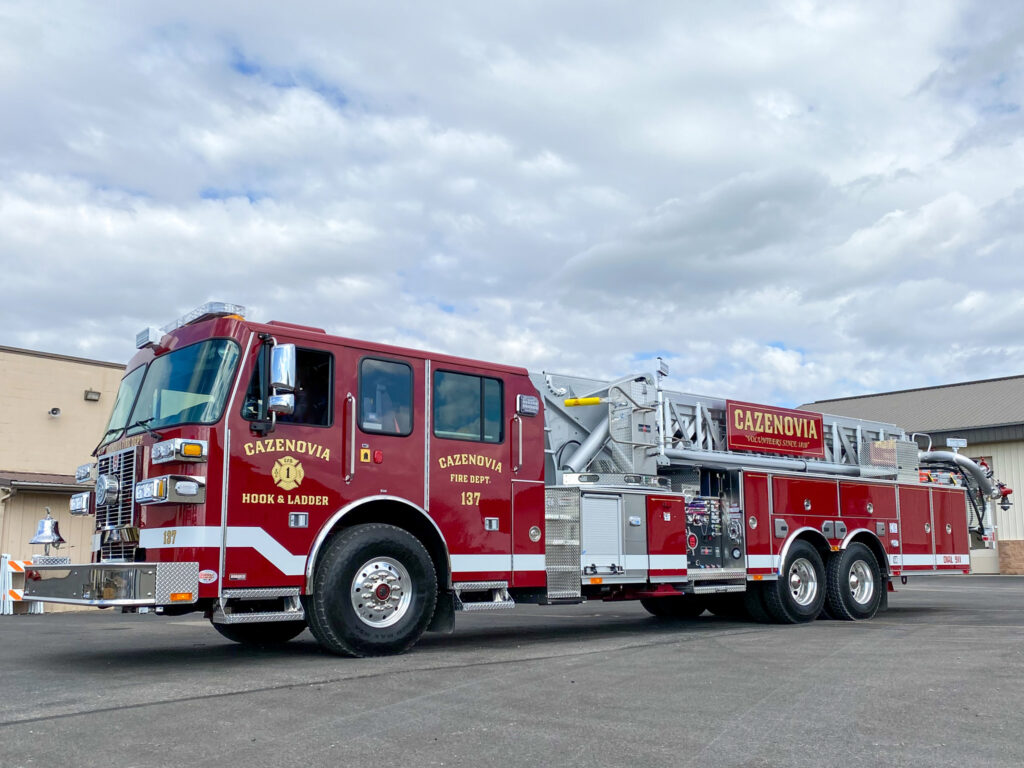

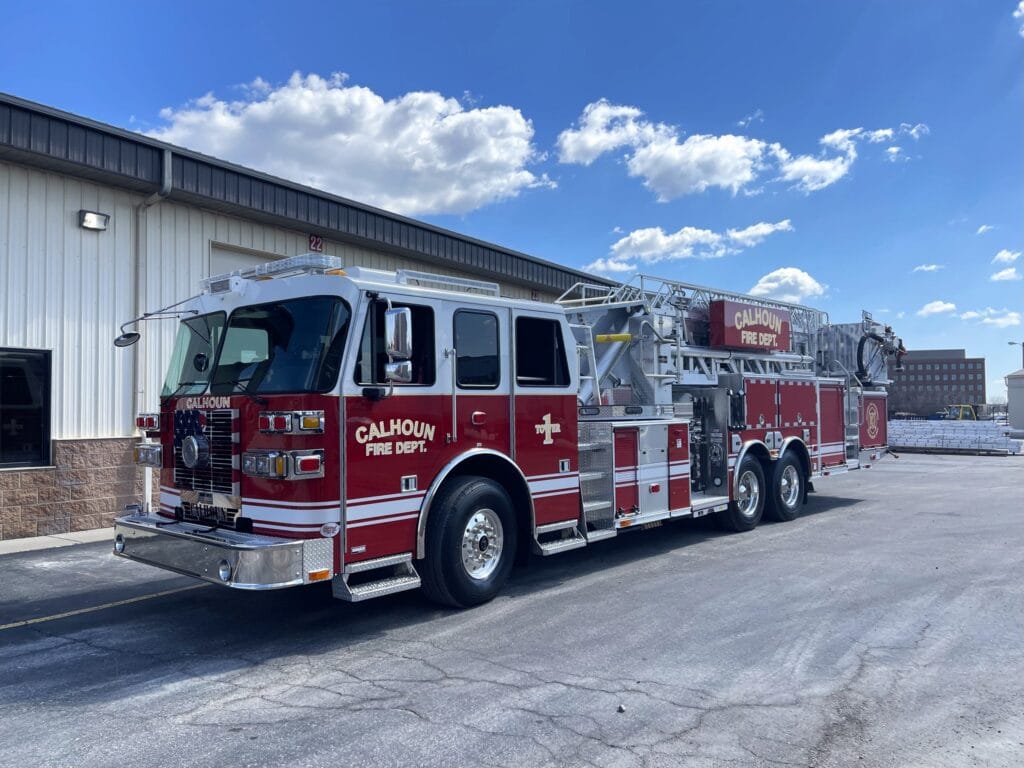

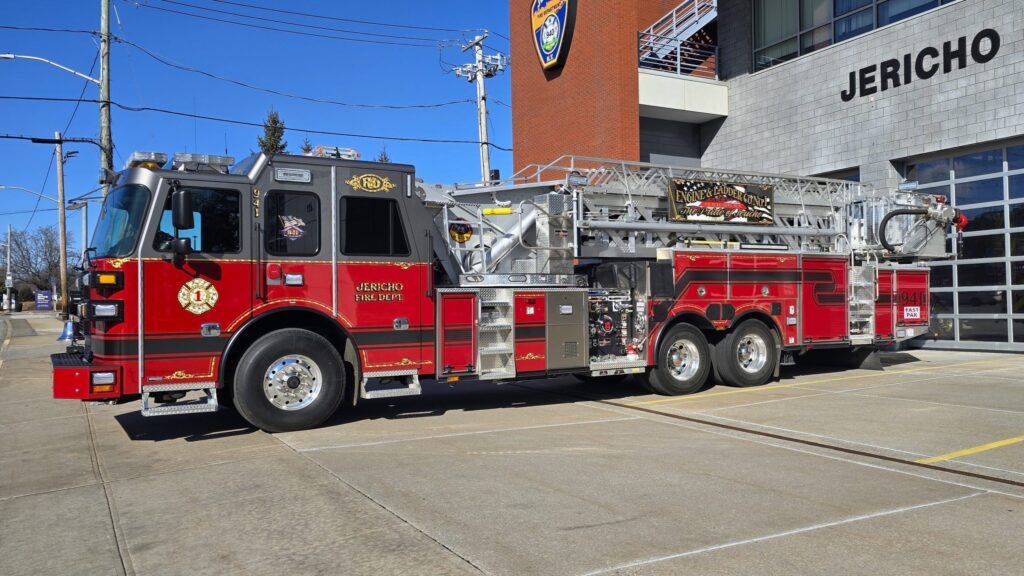

Recent Deliveries
