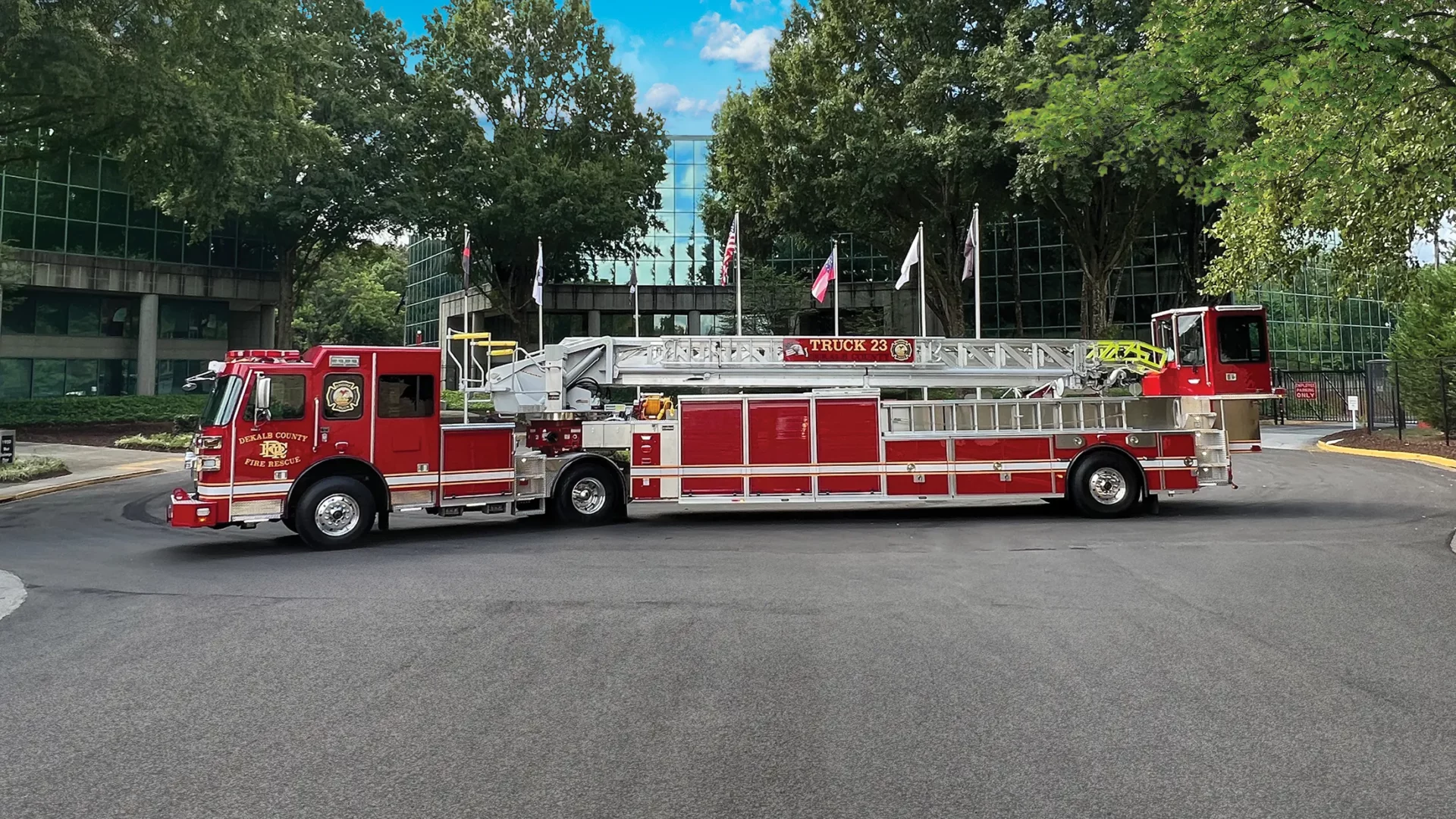

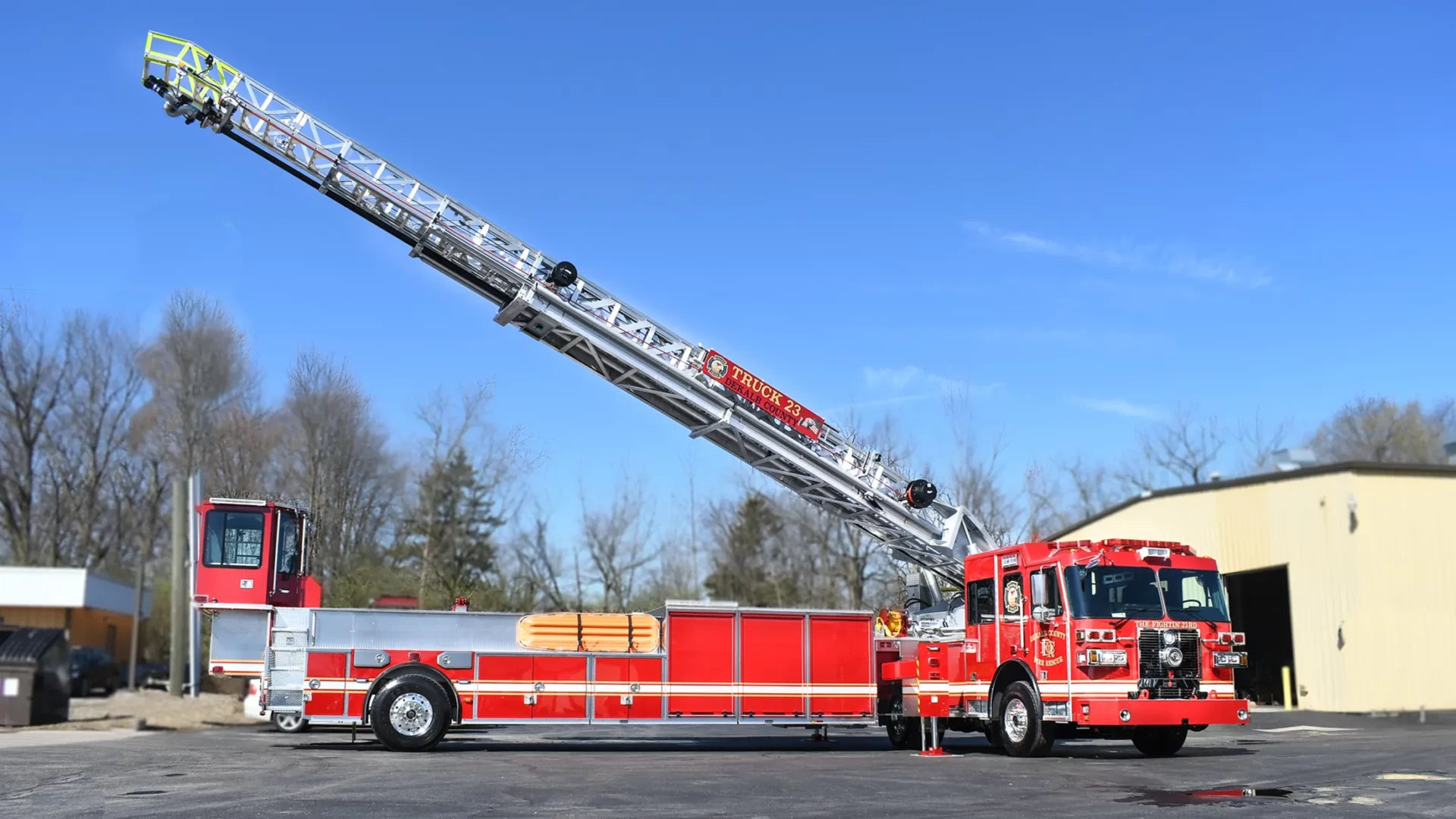

SLTDA 105 Aerial Ladder

The SLTDA 105 brings Sutphen’s trusted engineering to a tractor-drawn aerial (TDA) configuration, combining maximum maneuverability with heavy-duty performance. Built on Sutphen’s rugged Monarch custom chassis and paired with a huck-bolted aluminum aerial and stainless steel body, the SLTDA 105 delivers exceptional strength, durability, and long-term reliability. Its Tillerman cab features generous interior space, including an in-cab training seat, making it as functional as it is comfortable.

With the ability to jackknife at 90 degrees for optimal setup in tight spaces, the SLTDA 105 is purpose-built for urban response and complex access scenarios. It offers expansive, customizable compartment space to support rescue or aerial-focused missions.

Specs

Construction
Heavy Duty, corrosion resistant #304 stainless steel body
Doors
Roll up doors or hinged doors offered in painted or non-painted satin finish
Ladders
Up to 315 feet of ground ladders
Tank
Up to 300-gallon water tank
Air Bottle Storage
Capacity for up to 8 air bottles stored in the fender wells
Compartment Space
Options available with more than 620 cubic feet of usable compartment space
Options
Hale, Waterous or No Pump options available
Options
Akron, Elkhart or TFT options available
Flow
Flow up to 1,500 GPM out of the aerial device
Configurations
Crosslay configurations available
Aerial Flow
Aerial device flow rated at 1,500 GPM
Wheelbase
Tractor wheelbase ranging from 153″ – 180″
Outriggers
One set of “H-Style” outriggers with a total jack spread of 18 feet
Jacking
Short-jacking capabilities for narrow roads and alleyways

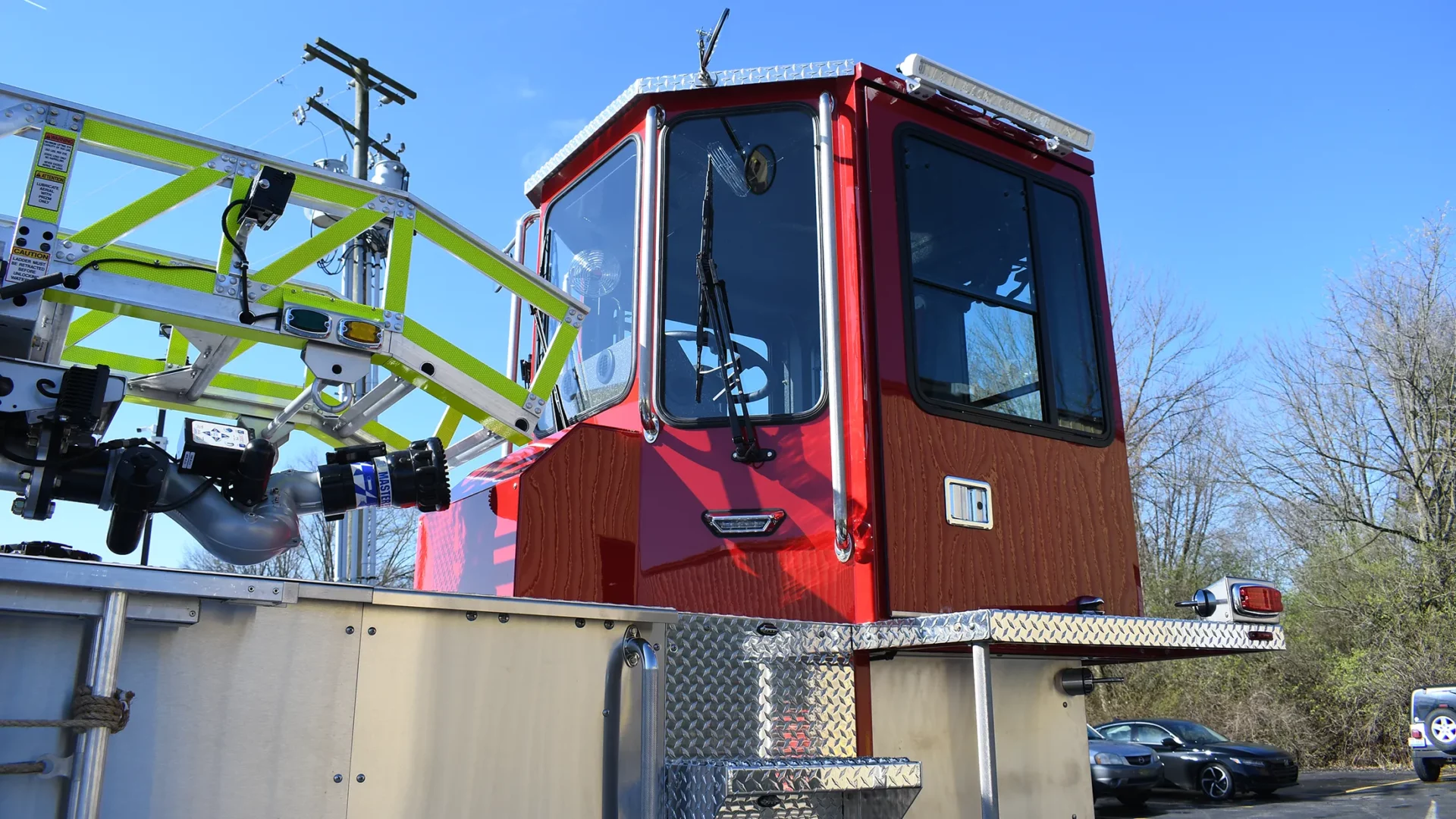

Cab
Spacious tiller cab measuring 62.5” wide at hip and shoulder
Training
Trainer’s seat enclosed in the tiller cab
Sight Lines
Clear tiller sight lines for peak apparatus performance
Jackknife
Jackknife up to 90 degrees for both turning and aerial set up
Range
Operating range of -5 degrees to +75 degrees
Angle of Departure
Angle of departure at 15 degrees

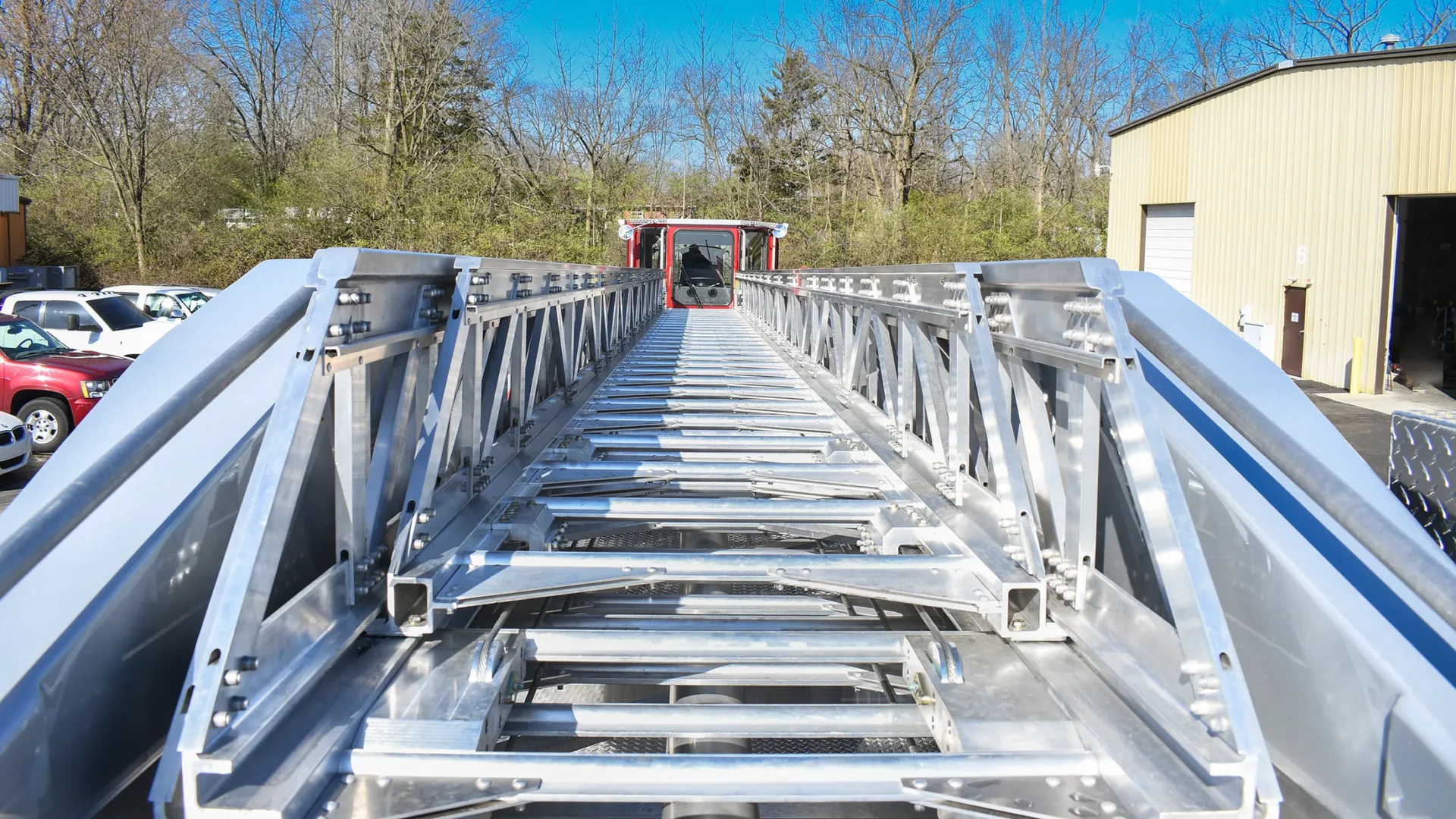

Sections
Compact, 4-section ladder
Vertical Reach
105’ of vertical reach
Horizontal Reach
97’ – 7” of horizontal reach
Load
Aerial device rated with a 750-pound tip load when dry and 500-pound tip load when wet
Safety
3:1 safety factor
Monitor
Electric, remote-controlled monitor at the tip of the aerial
Waterway
4” aerial waterway inlet for both sides
Warranty
30-year aerial structural and corrosion warranty

Features

Feature IconThe Strongest Aerial Device in the Industry
Feature IconLower Aerial Maintenance
Feature IconHeavy Duty Body
Feature IconHeavy Duty Cab Interior
Feature IconMonarch Extreme-Duty Cab
Feature IconLarge Tillerman's Cab
Feature IconTraining Seat in Tillerman's Cab
Feature IconEase of Maintenance and Serviceability

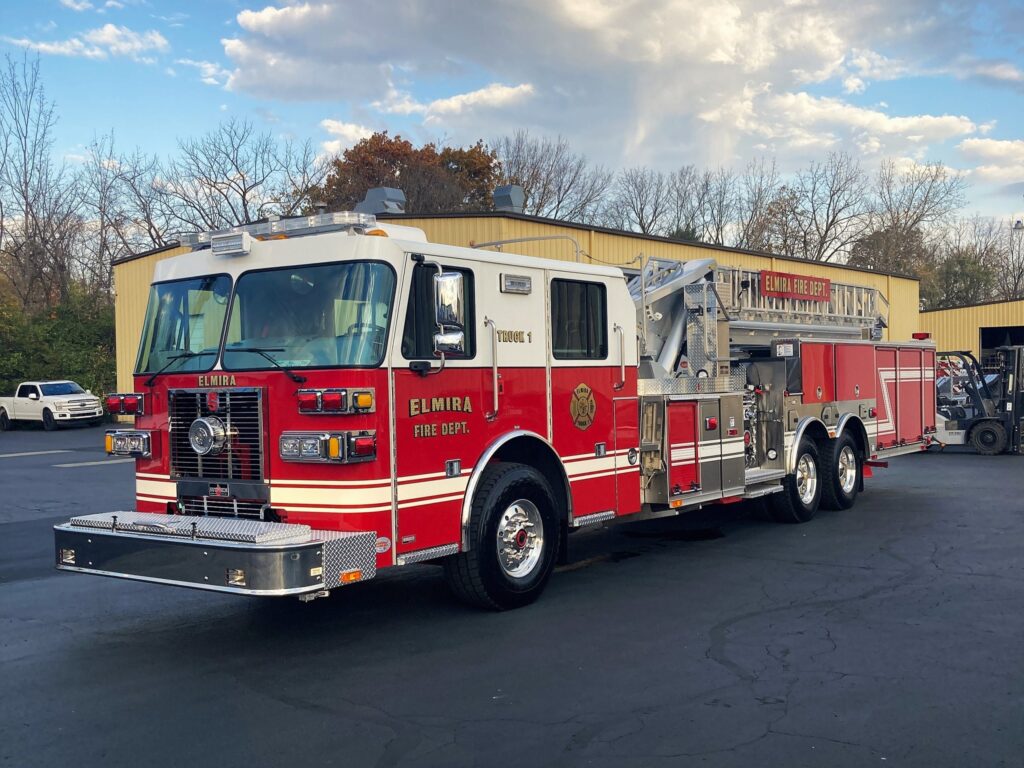

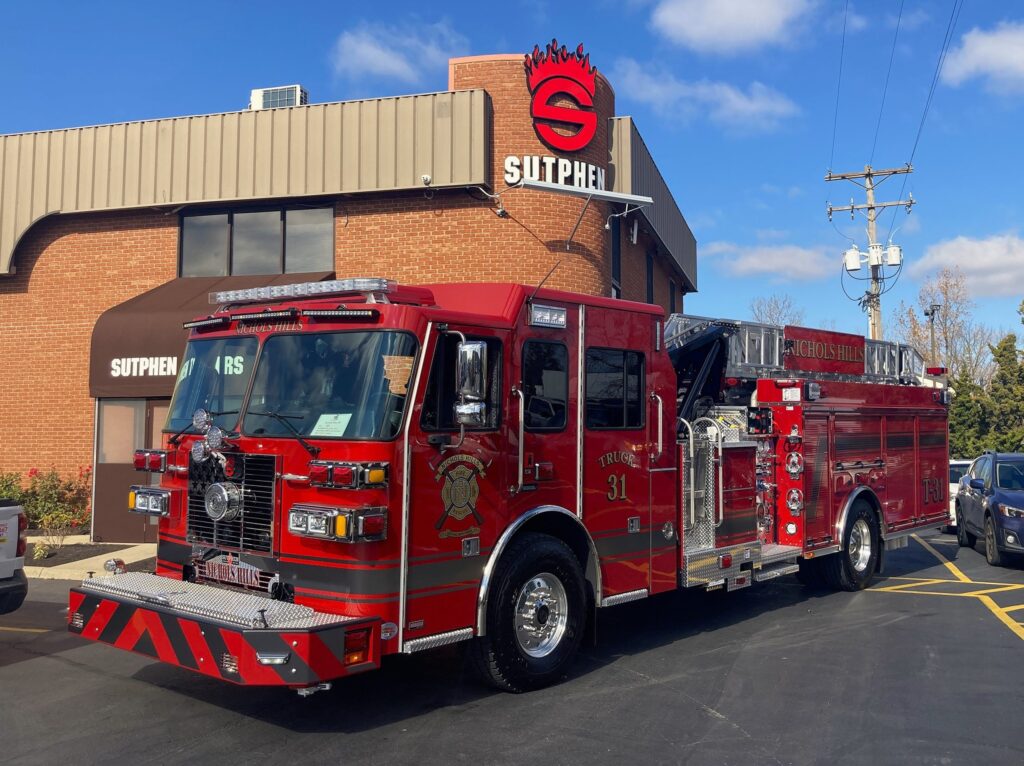

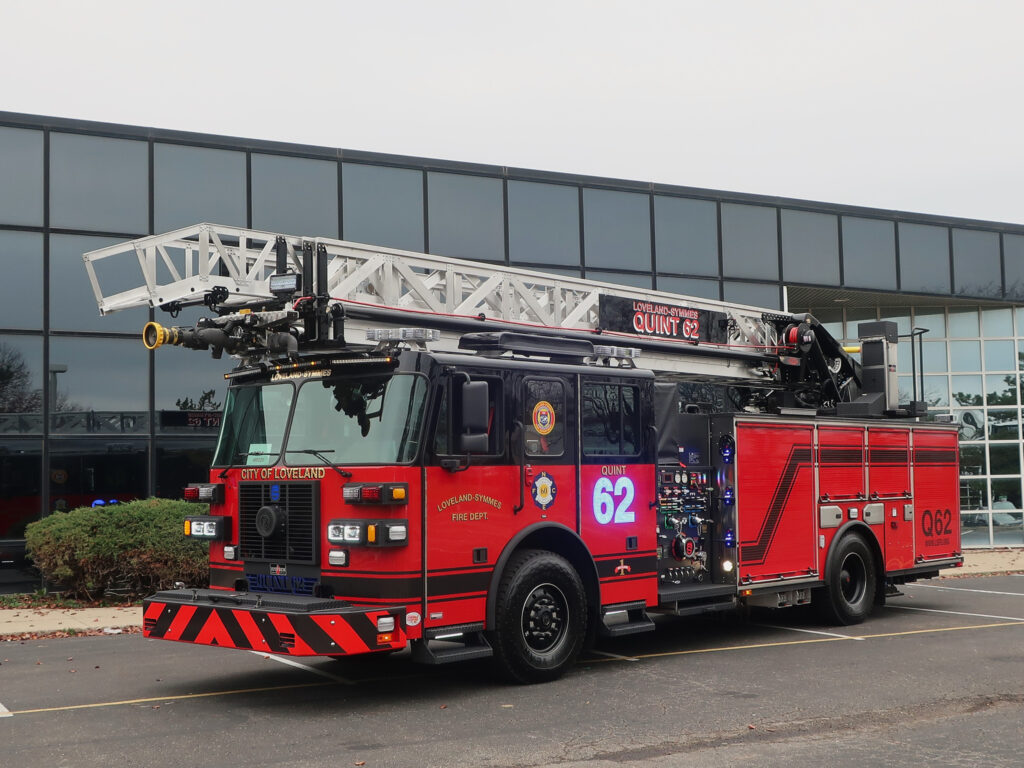

Recent Deliveries
