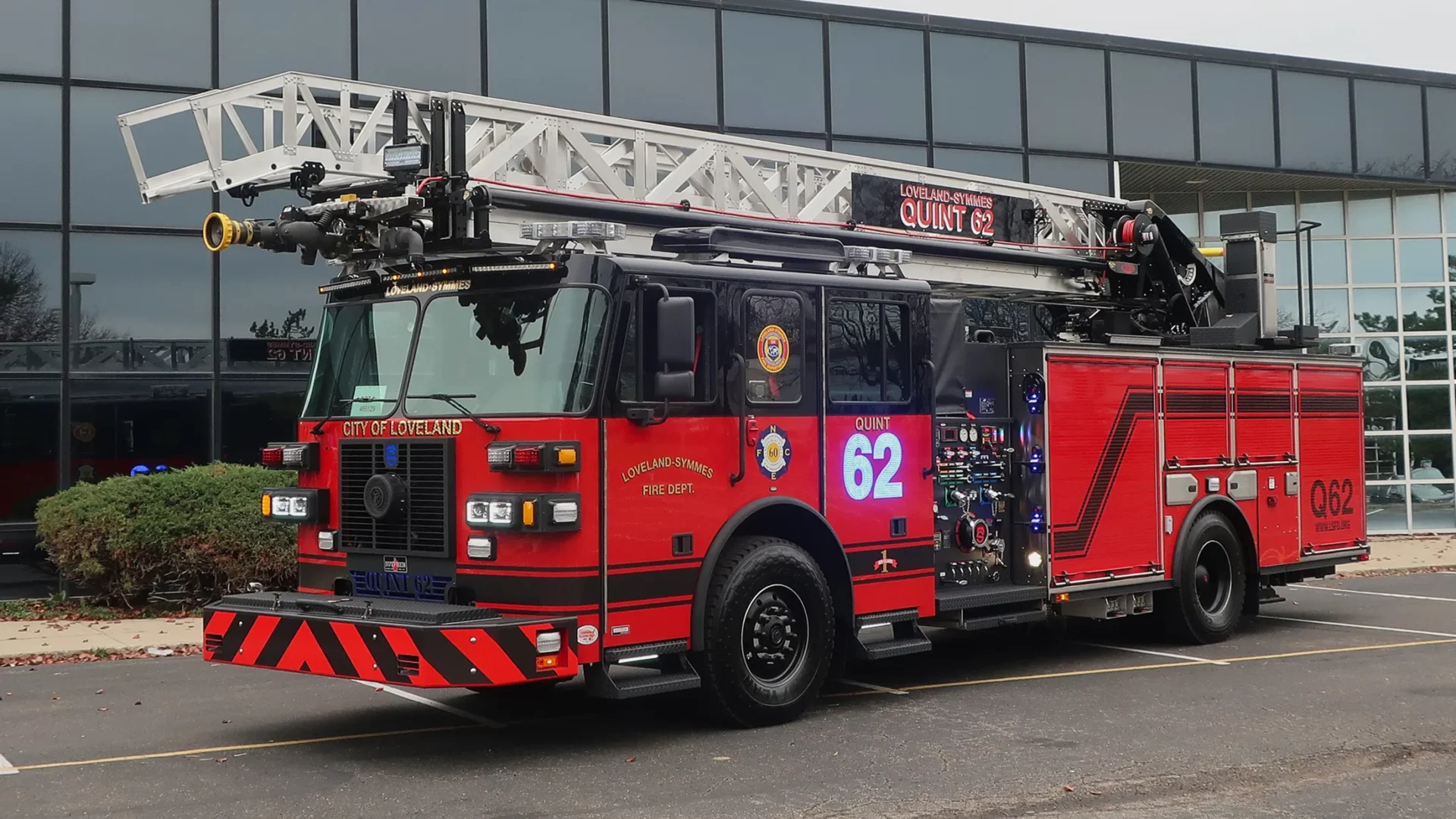

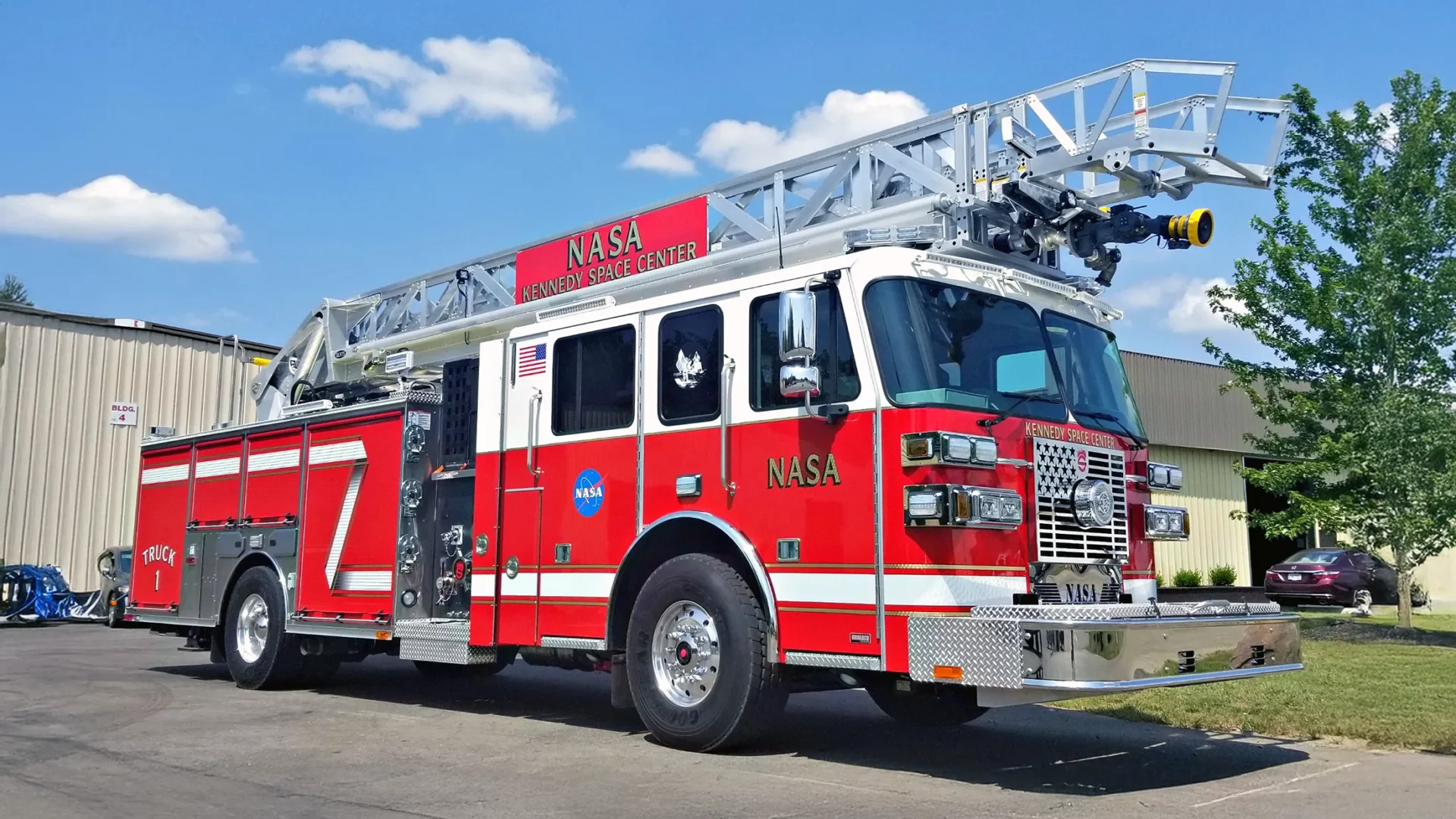

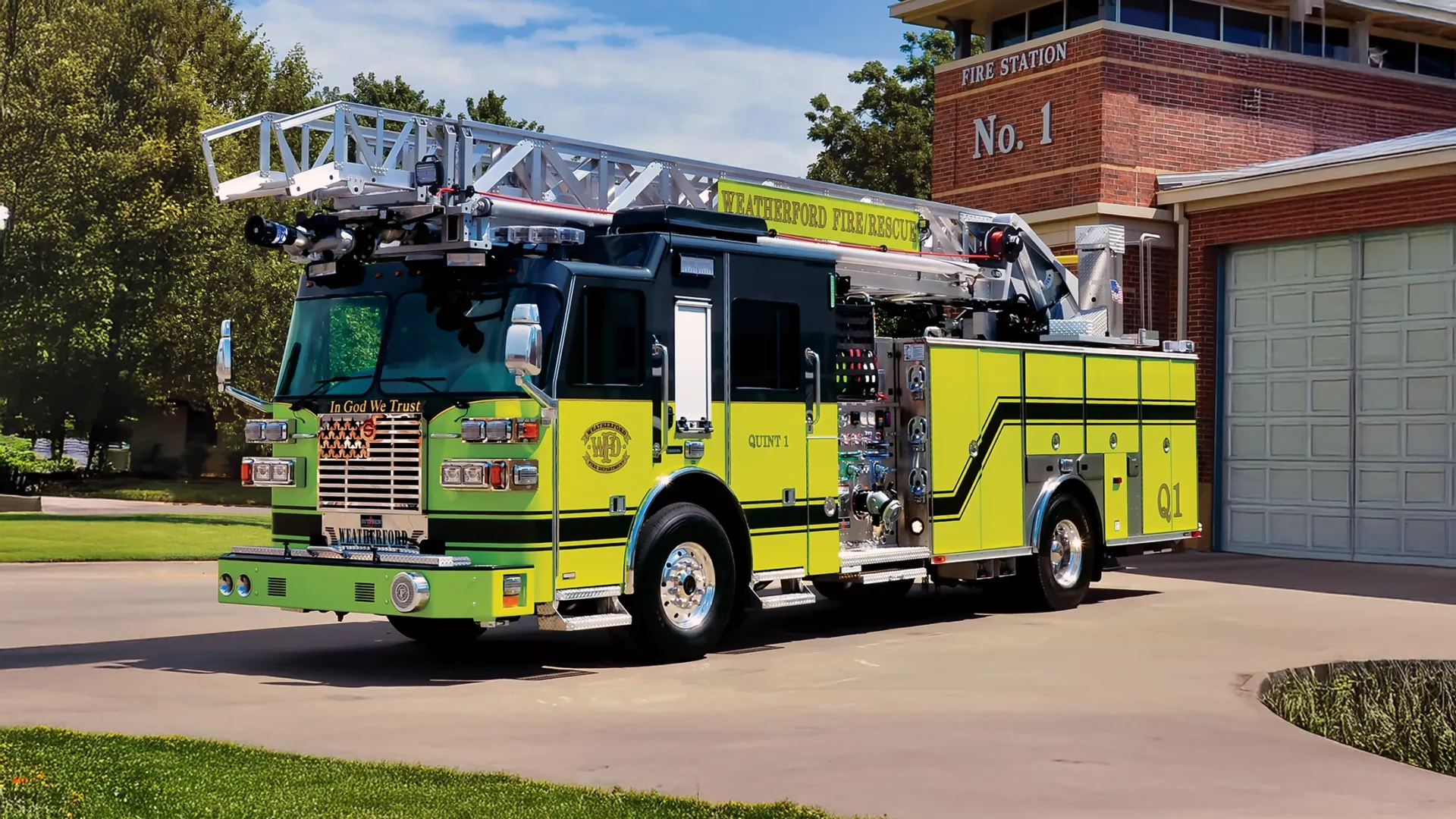

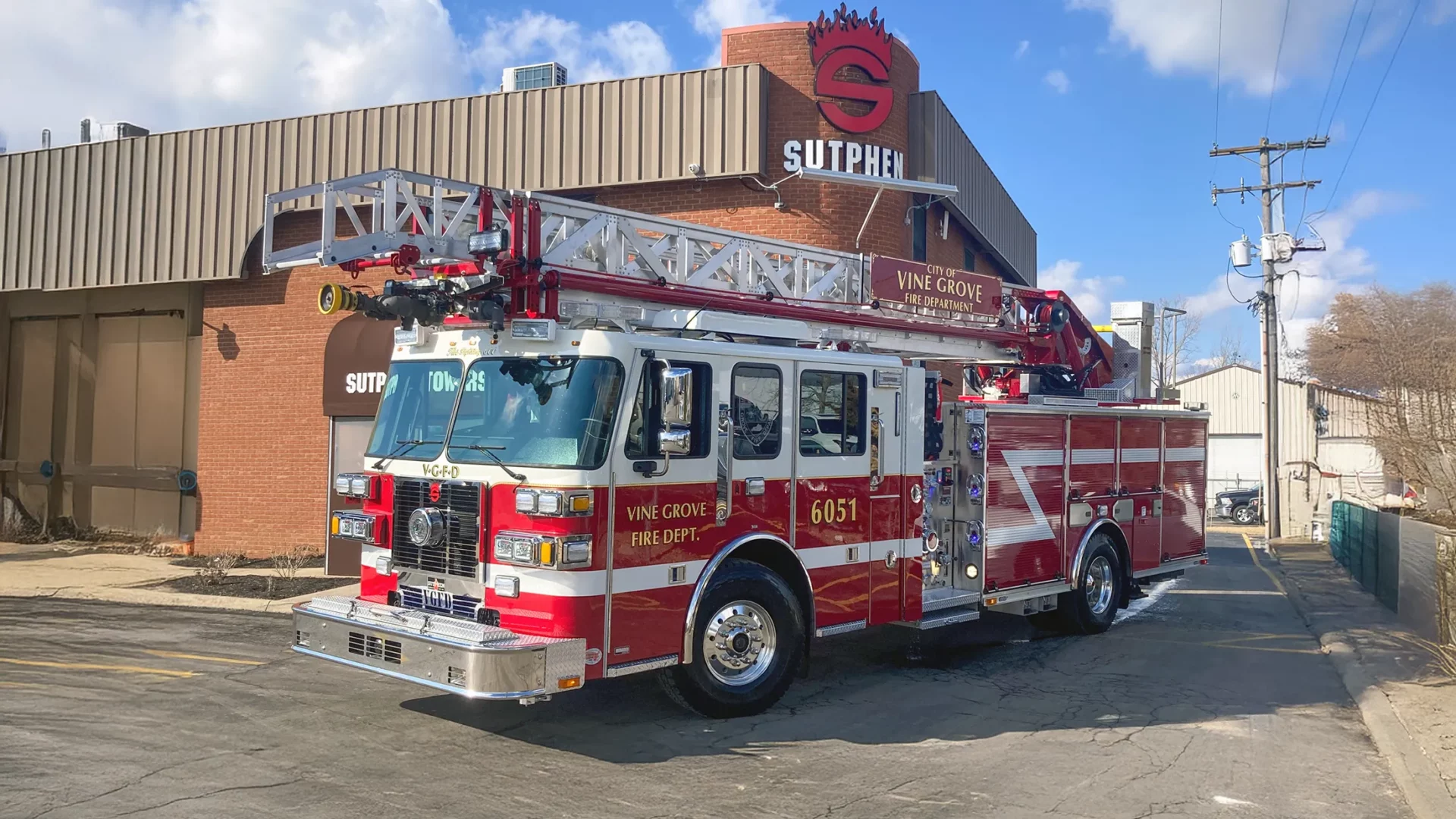

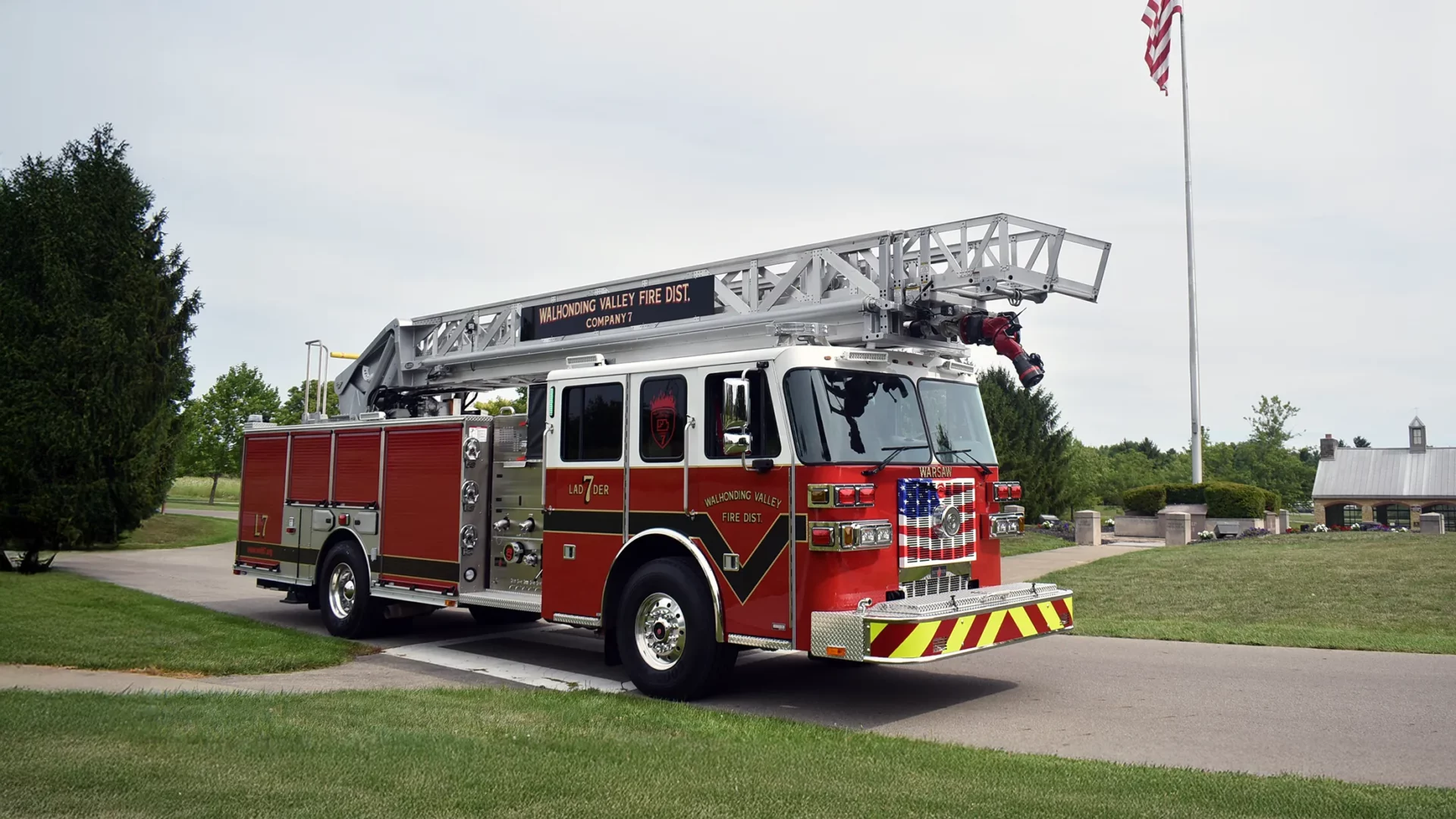

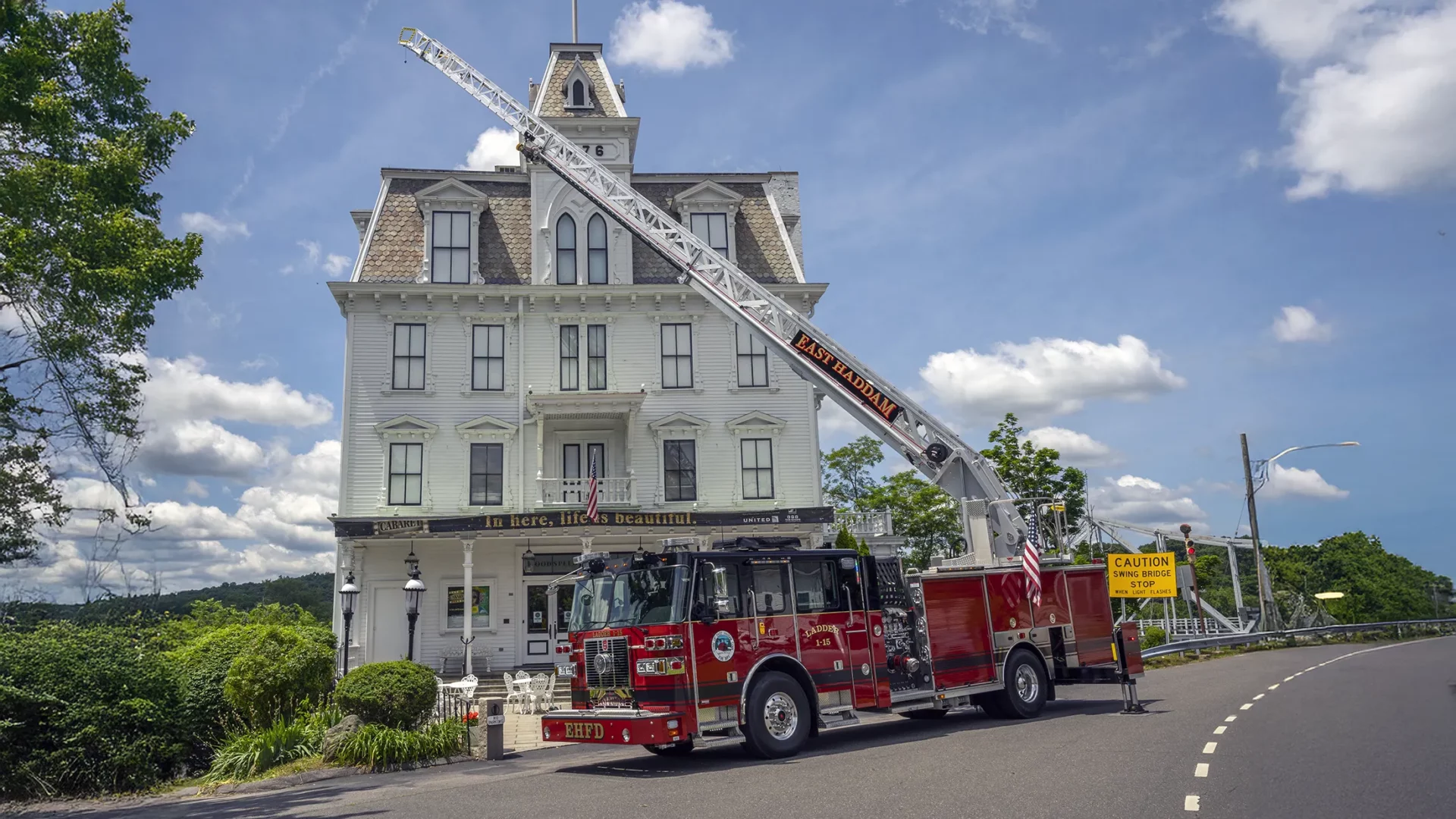

SLR 75 Aerial Ladder

Built on a single-axle chassis with a stainless steel body and lightweight aluminum aerial, the SLR 75 delivers impressive versatility and maneuverability—ideal for departments that need the functionality of an engine with the reach of an aerial. It features a 750 lb dry and 500 lb wet tip load, and carries 300–500 gallons of water to support aggressive initial attack capabilities.

With over 200 cubic feet of compartment space, the SLR 75 offers ample room for tools, equipment, and mission-specific gear. Its compact footprint and smooth handling make it equally at home in dense urban neighborhoods or suburban districts.

Specs

Roof
Monarch 56”, 62”, 73” flat roof options
Front Axle
Front Axle and Suspension 23,000 lbs.
Rear Axle
Rear Axle and Suspension 35,000 lbs.
Bumper
12” bumper standard, optional 6”, 18”, 24”, or 30” extension options. Optional steel or steel channel, painted bumper
Engine
Cummins ISL 9 400 or 450HP, Cummins ISX 12L 425, 450, or 500HP, or Cummins ISX 15L 600HP.
Transmission
Allison Gen 5 EVS 3000 or EVS 4000 (dependent on engine)
Wiring
Point-to-Point or Multiplex wiring systems
Wheelbase
Standard 200” Wheelbase (with 56” cab)
Pump
Hale or Waterous, 1500 to 2000 gpm
Equipment
Standard Pump Equipment: (2) 6” main suction, (2) 2.5” discharges left, (1) 2.5” discharge right, (2) 1.5” crosslay, (1) 3” tank to pump, and (1) 1.5” tank fill
Finish
Black vinyl, brushed, or mirrored finish stainless pump panel
Water Tanks
Up to 500 gallon poly water tanks
Body
#304 Stainless Steel bolted body, Huck bolted to the chassis frame
Storage
Up to 222 cu. ft. of useable compartment space
Doors
Roll up doors or hinged doors offered in painted or non-painted satin finish
Compliance
Alco-Lite or Duo-Safety ladders, pumper, quint or aerial compliant
Section
3-section ladder
Nozzle
1500 GPM monitor/nozzle
Cab Storage
EMS/storage cabinet in the cab
Bumper Storage
Hose storage, front suction, front discharge in the bumper
Inlet
Multiple pump inlet, discharge, and crosslay
Foam
Foam system
Power
Generator up to 30 kw
Electrical
Numerous electrical and scene lighting setups

Features

Feature IconLighter Overall Weight
Feature IconThe Strongest Aerial Device in the Industry
Feature IconLower Aerial Maintenance
Feature IconFast and Easy Set Up
Feature IconHeavy Duty Body
Feature IconHeavy Duty Cab Interior
Feature IconMultiple Seating Configurations
Feature IconEase of Maintenance and Serviceability
