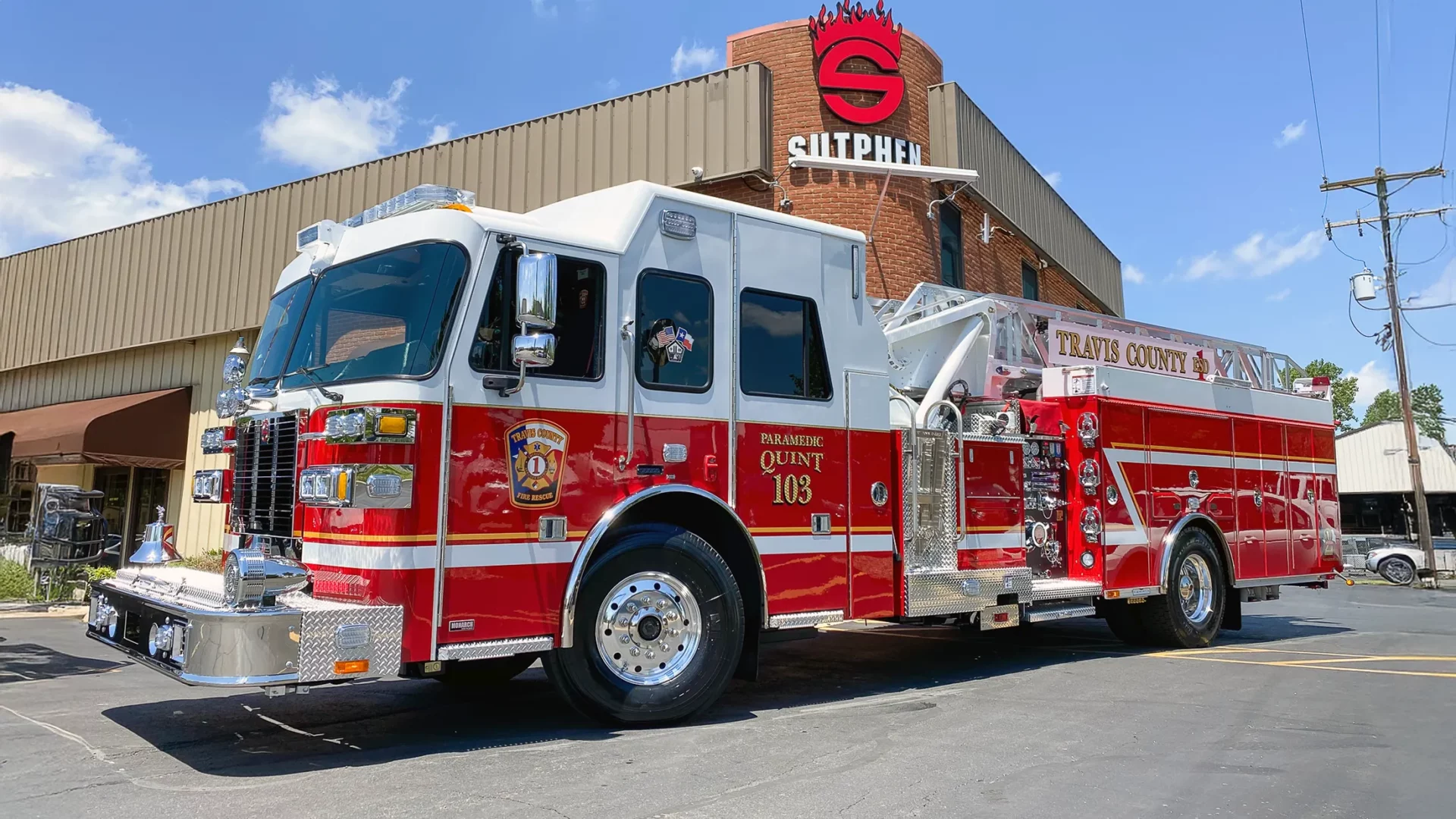

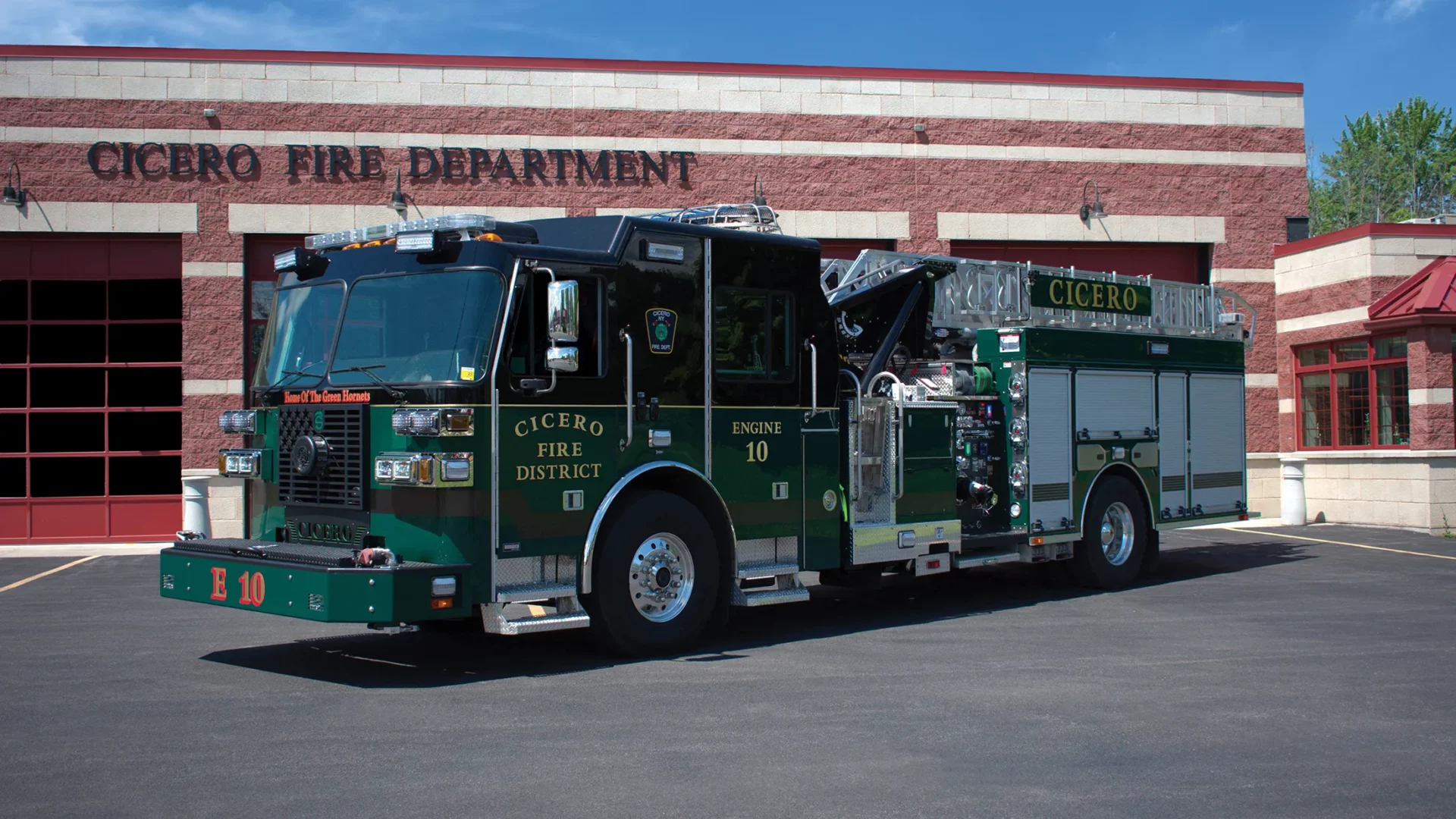

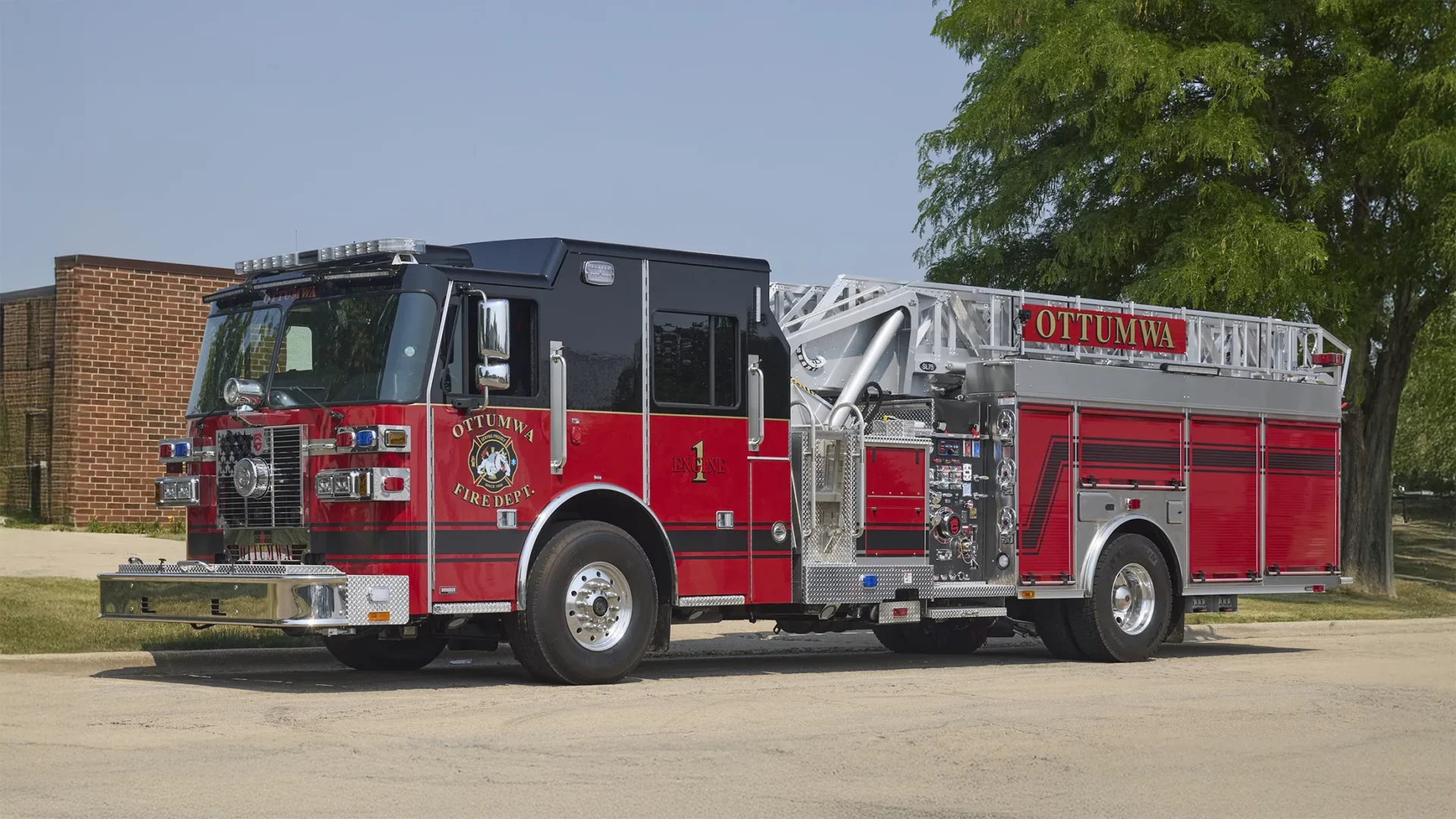

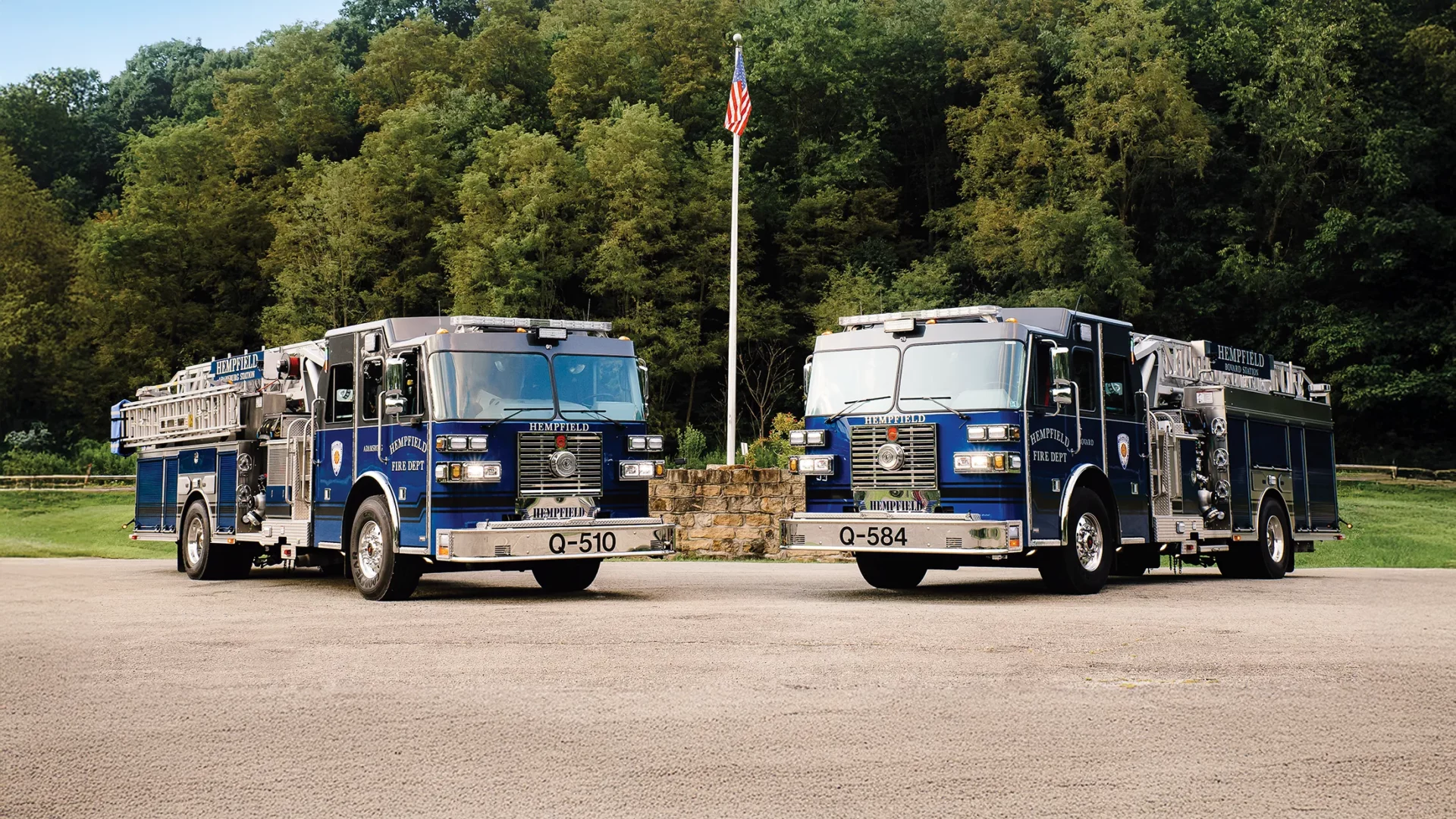

SL 75 Aerial Ladder

The SL 75 is a single-axle aerial ladder that delivers the strength of a full-sized truck in a compact, highly maneuverable package. Built with huck-bolted construction and a 3:1 safety factor, it’s one of the strongest aerials in the industry. With a 1,000 lb dry/750 lb wet tip load, and an electrically controlled nozzle, the SL 75 provides reliable reach and water delivery without compromising agility.

Designed to drive like a pumper but perform like a full aerial, the SL 75 is versatile enough for a wide range of scenarios. Despite its smaller footprint, it offers generous compartment space for gear, tools, and rescue equipment. Whether navigating narrow streets or responding to dynamic rescue calls, the SL 75 gives departments the flexibility, strength, and dependability they expect from a Sutphen.

Specs

Cab Options
Monarch 56”, 62”, 73” cab options with flat,10” half, or 15” half raised roof options
Front Axle
Front Axle and Suspension up to 25,500 lbs.
Rear Axle
Rear Axle and Suspension 31,000 lbs.
Bumper Options
12” bumper standard, optional 6”, 18”, 24”, or 30” extension options. Optional steel or steel channel, painted bumper
Engine Options
Cummins ISL 9 400 or 450HP, Cummins ISX 12L 425, 450, or 500HP, or Cummins ISX 15L 600HP.
Transmission Options
Allison Gen 5 EVS 3000 or EVS 4000 (dependent on engine)
Wiring
Point-to-Point or Multiplex wiring systems
Cab Roof
Diamond Plate Cab Roof (standard 36” x 59”)
Wheelbase
Standard 215” Wheelbase (with 56” cab)
Pump
Hale or Waterous, 1500 to 2000 gpm
Standard Pump Equipment
(1) (2) 6” main suction and (1) 2.5” inlet each side, (2) 2.5” discharges left, (1) 2.5” discharge right, (1) 3” discharge right, (2) 2” 1.5” crosslay, (1) 3” tank to pump, and (1) 1.5” tank fill

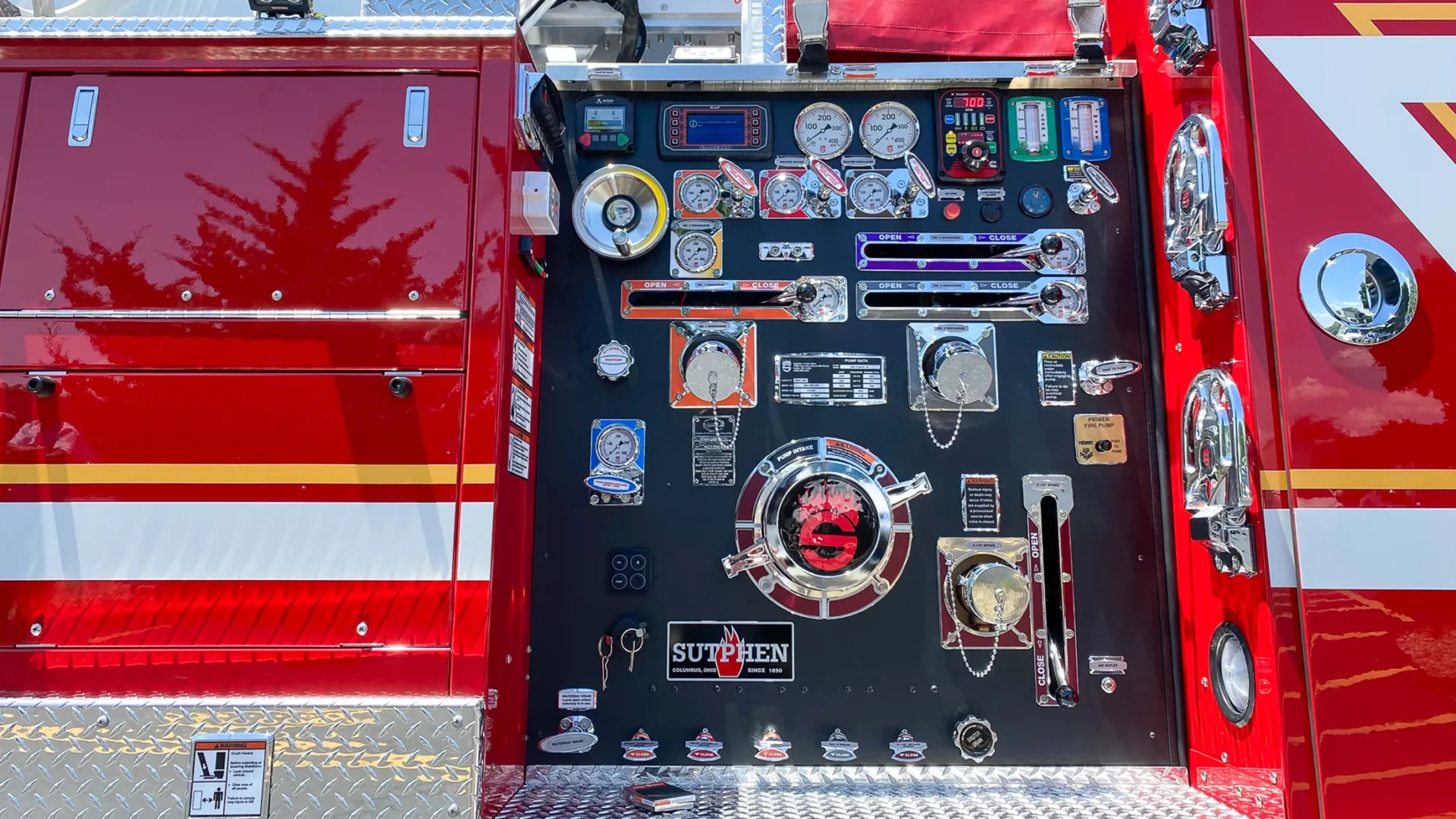

Finish Options
Black vinyl, brushed, or mirrored or mirrored or brushed finish stainless pump panel
Water Tank
300 to 500 gallon poly water tanks
Body
#304 Stainless Steel bolted body, Huck bolted to the chassis frame
Body Configurations
Two Four different body configuration options, with transverse rear compartment with two of the options
Compartment Space
Up to 210 cu. ft. of useable compartment space
Doors
ROM Roll up doors or hinged doors offered in painted or non-painted satin brushed finish
Compliance
Alco-Lite or Duo-Safety ladders, pumper, quint or aerial compliant complement
Sections
4-section ladder

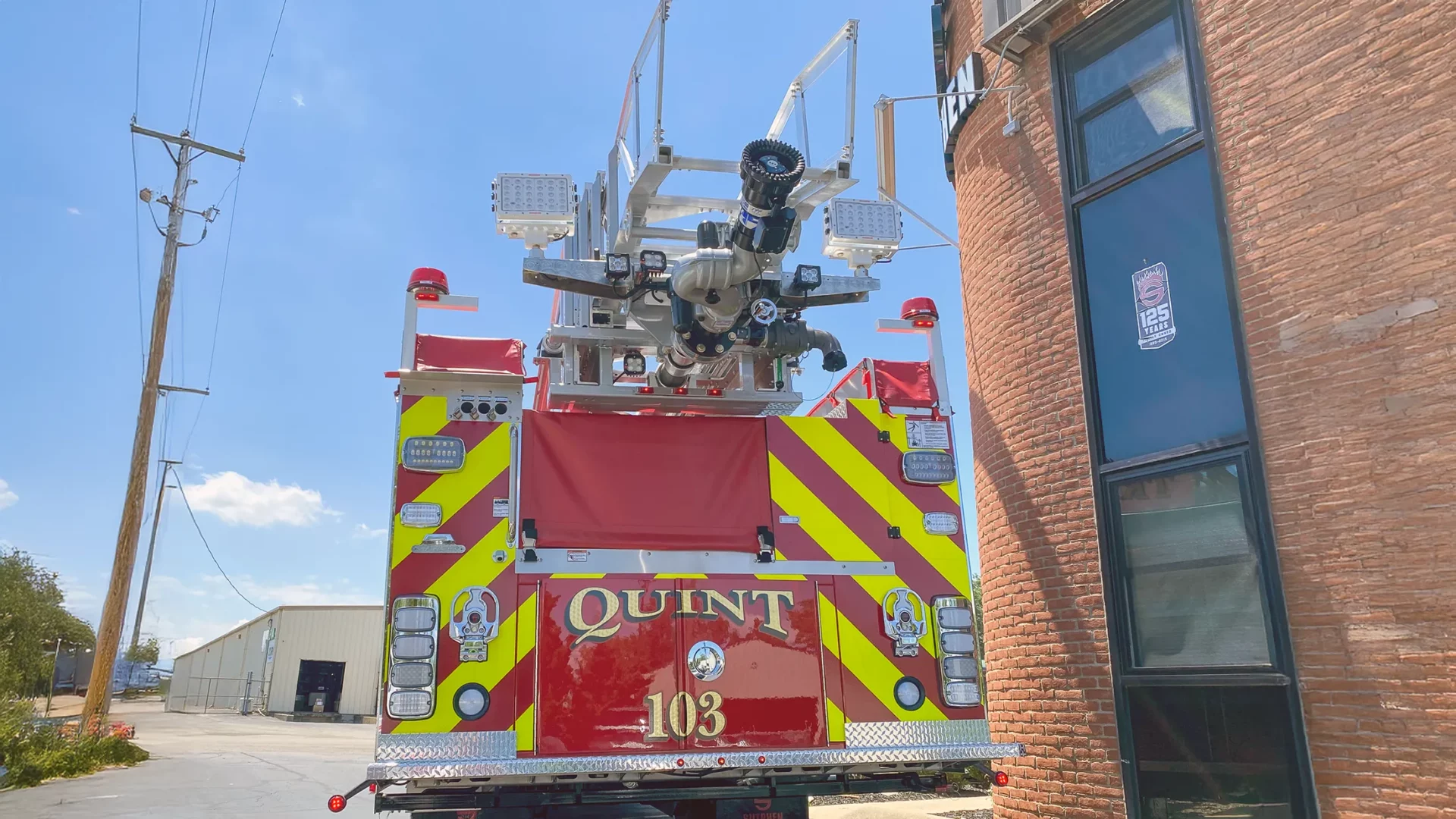

Nozzle
1500 GPM monitor/nozzle
Waterway
Pinnable 4th section waterway
Storage
EMS/storage cabinet options in the cab
Bumper Storage
Hose storage, front suction, front discharge options in the bumper
Pump
Multiple pump inlet, discharge, and crosslay options
Foam
Foam system options
Power
Generator options up to 30 kw
Electrical
Numerous electrical and scene lighting options

Features

Feature IconSutphen Signature Mid-Mount Design
Feature IconLower Center of Gravity
Feature IconAerial That Drives Like a Pumper
Feature IconEase of Maintenance and Serviceability
Feature IconThe Strongest Aerial Device in the Industry
Feature IconLower Aerial Maintenance
Feature IconLighter Overall Weight
Feature IconOne Set of Underslung Jacks
