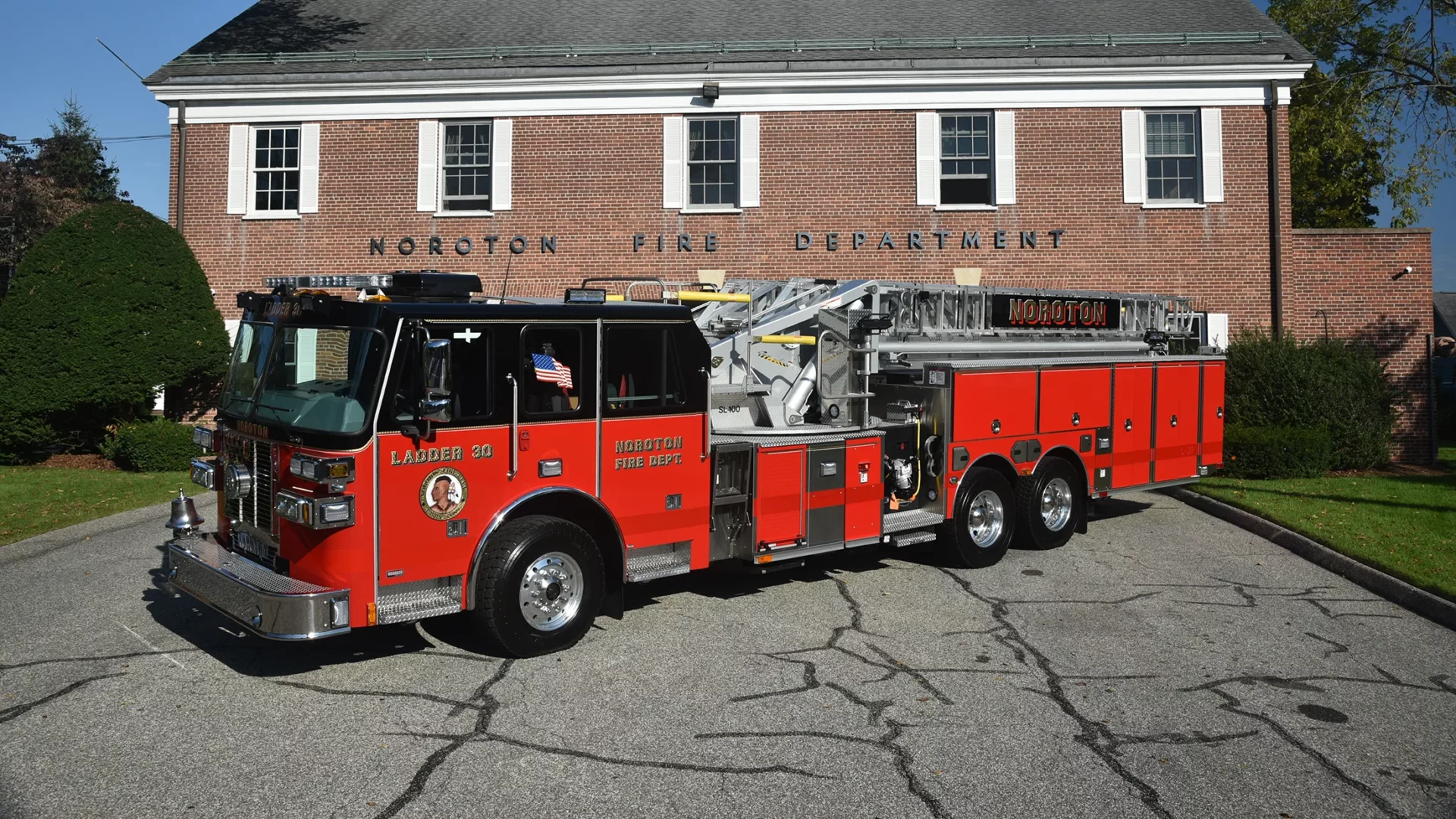

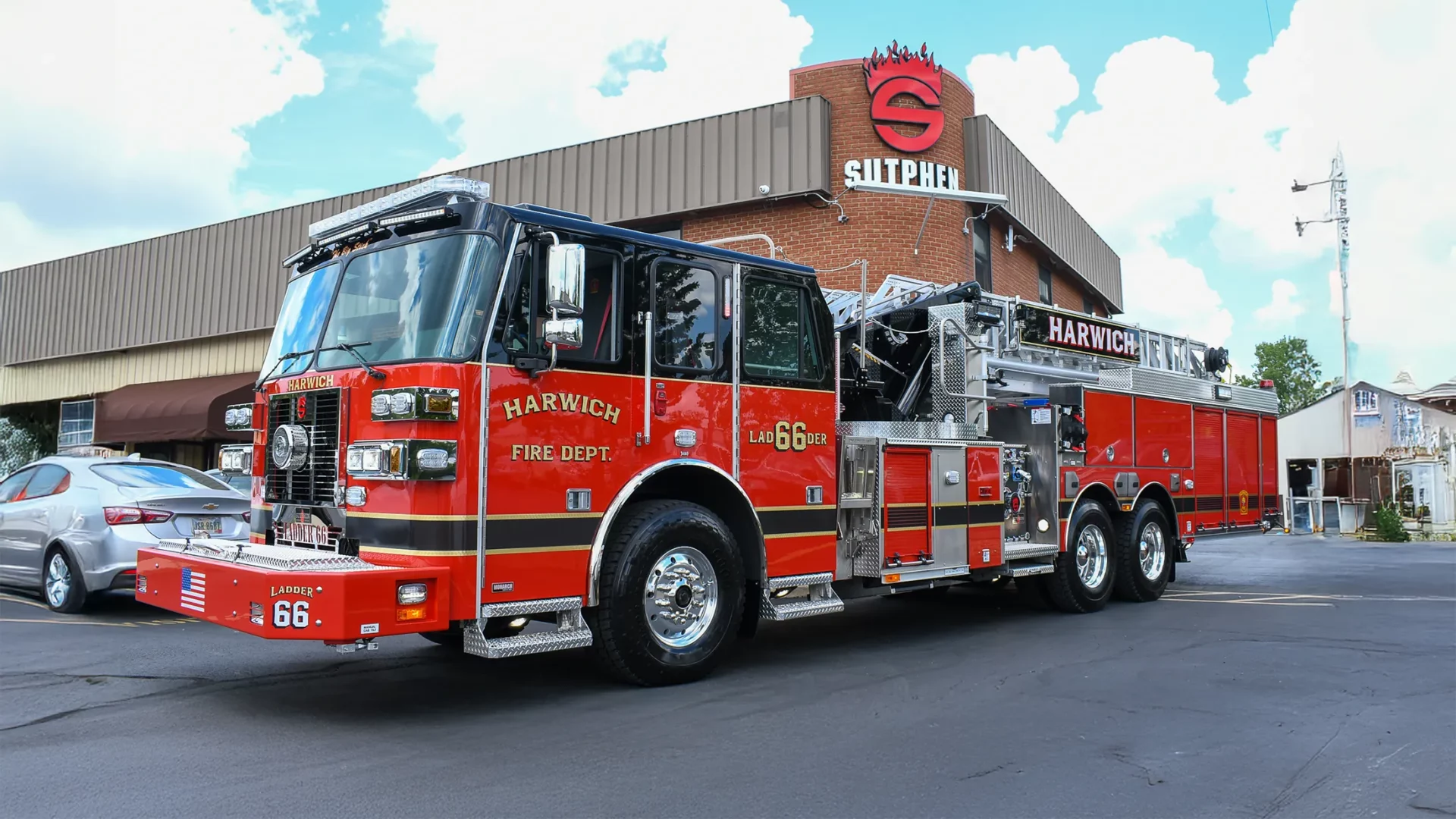

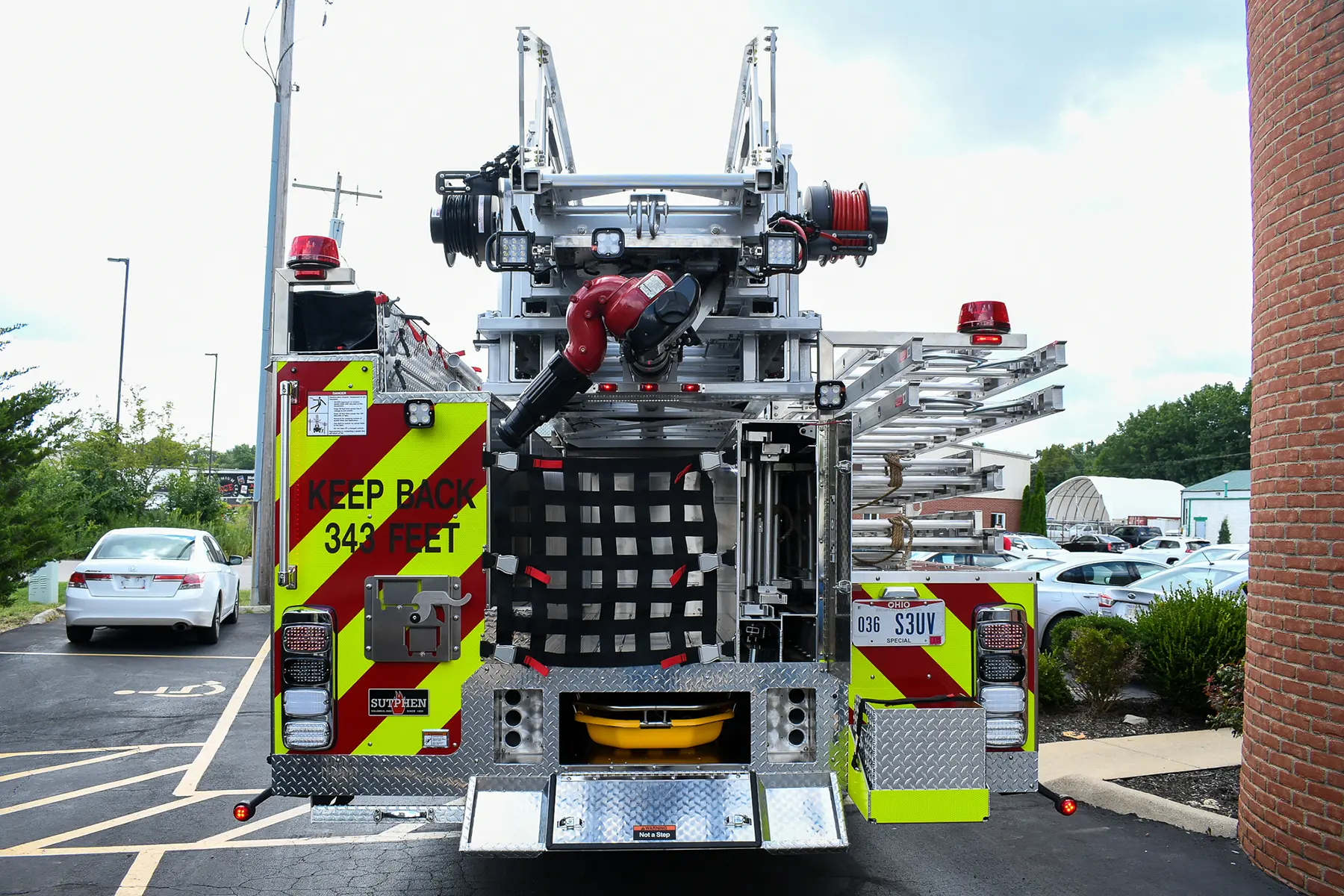

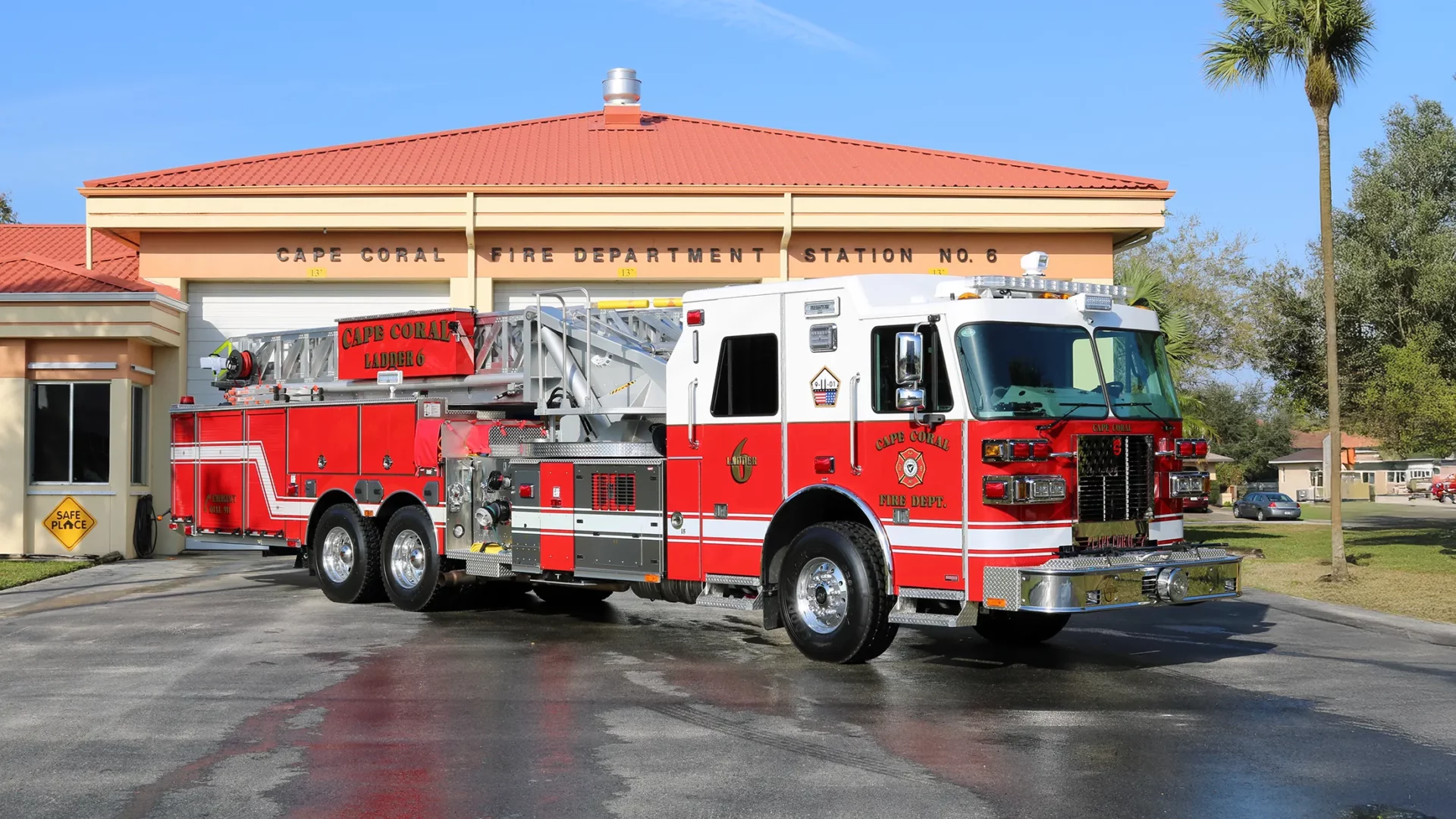

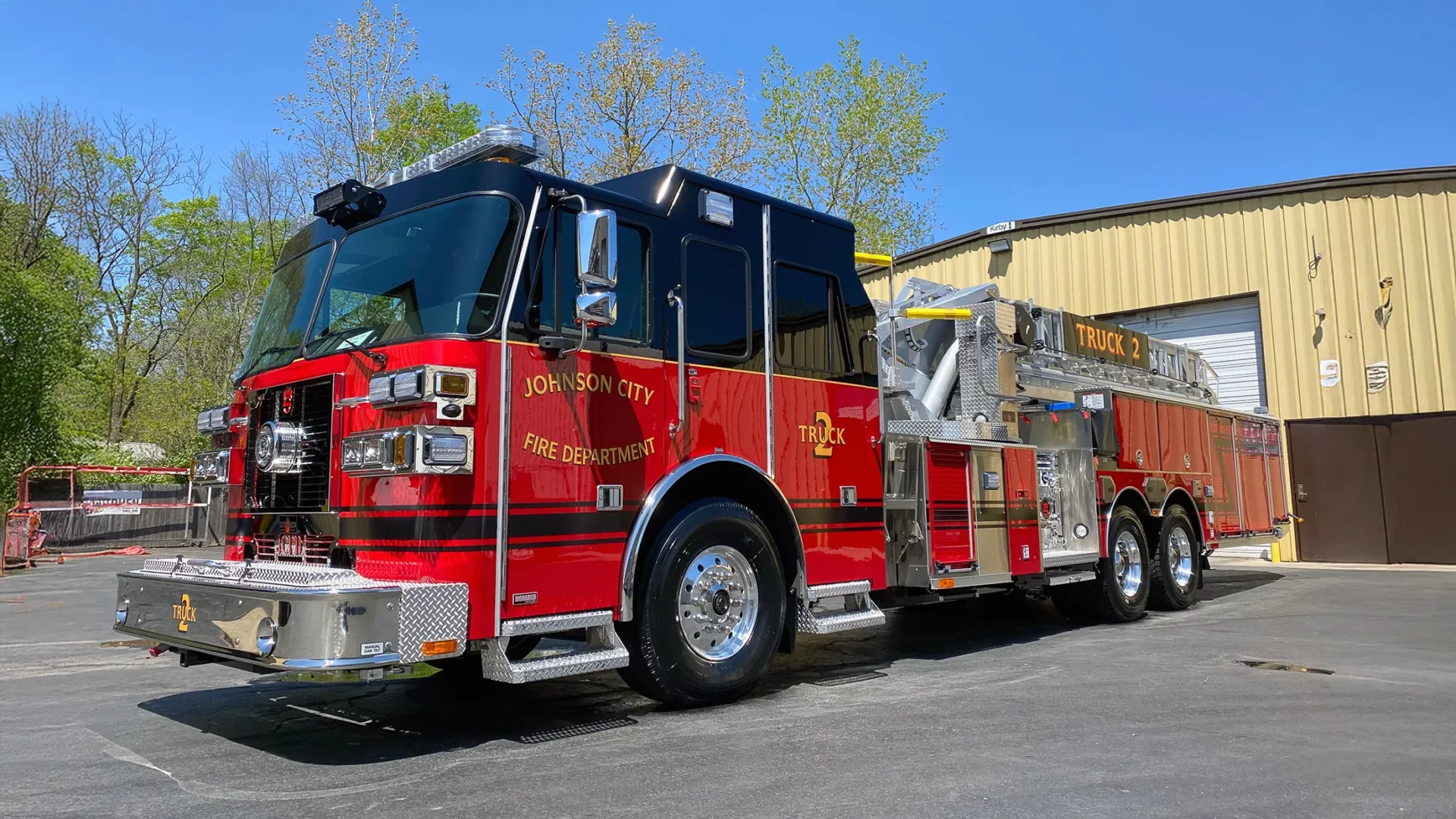

SL 100 Aerial Ladder

The SL 100 is a 100-foot straight stick aerial ladder built for departments that demand strength, reach, and rapid deployment. With a rugged five-section ladder, 3:1 safety factor, and huck-bolted construction, the SL 100 delivers exceptional reliability for both rescue operations and water movement. A 1,000 lb dry and 500 lb wet tip load ensures crews have the capacity and confidence to perform under pressure.

Its midmount design, short wheelbase, and low overall height give the SL 100 superior maneuverability, even in tight urban environments. A single set of out-and-down outriggers allows for quick, efficient setup without compromising stability. Purpose-built for real-world challenges, the SL 100 reflects Sutphen’s dedication to performance, safety, and innovation.

Specs

Cab Options
Monarch 56”, 62”, 73” cab options with flat, 10” half, or 15” half raised roof options
Front Axle
Front Axle and Suspension up to 25,500 lbs.
Rear Axle
Rear Axle and Suspension up to 48,000 lbs.
Bumper Options
12” bumper standard, optional 6”, 18”, 24”, or 30” extension options. Optional steel or steel channel, painted bumper
Engine Options
Cummins ISL 9 400 or 450HP, or Cummins ISX 12L 425, 450, or 500HP, or Cummins ISX 15L 600HP.
Transmission
Allison Gen 5 EVS 3000 or EVS 4000 (dependent on engine)
Wiring
Point-to-Point or Multiplex wiring systems
Cab Roof
Diamond Plate Cab Roof (standard 36” x 59”)
Wheelbase
Standard 230” Wheelbase (with 56” cab)
Pump Options
Hale, Waterous, or No pump/no tank option, 1500 to 2000 gpm
Standard Pump Equipment
(2) 6” main suction, (2) 2.5” discharges left, (1) 2.5” discharge right, (2) 5” crosslay, (1) 3” tank to pump, and (1) 1.5” tank fill

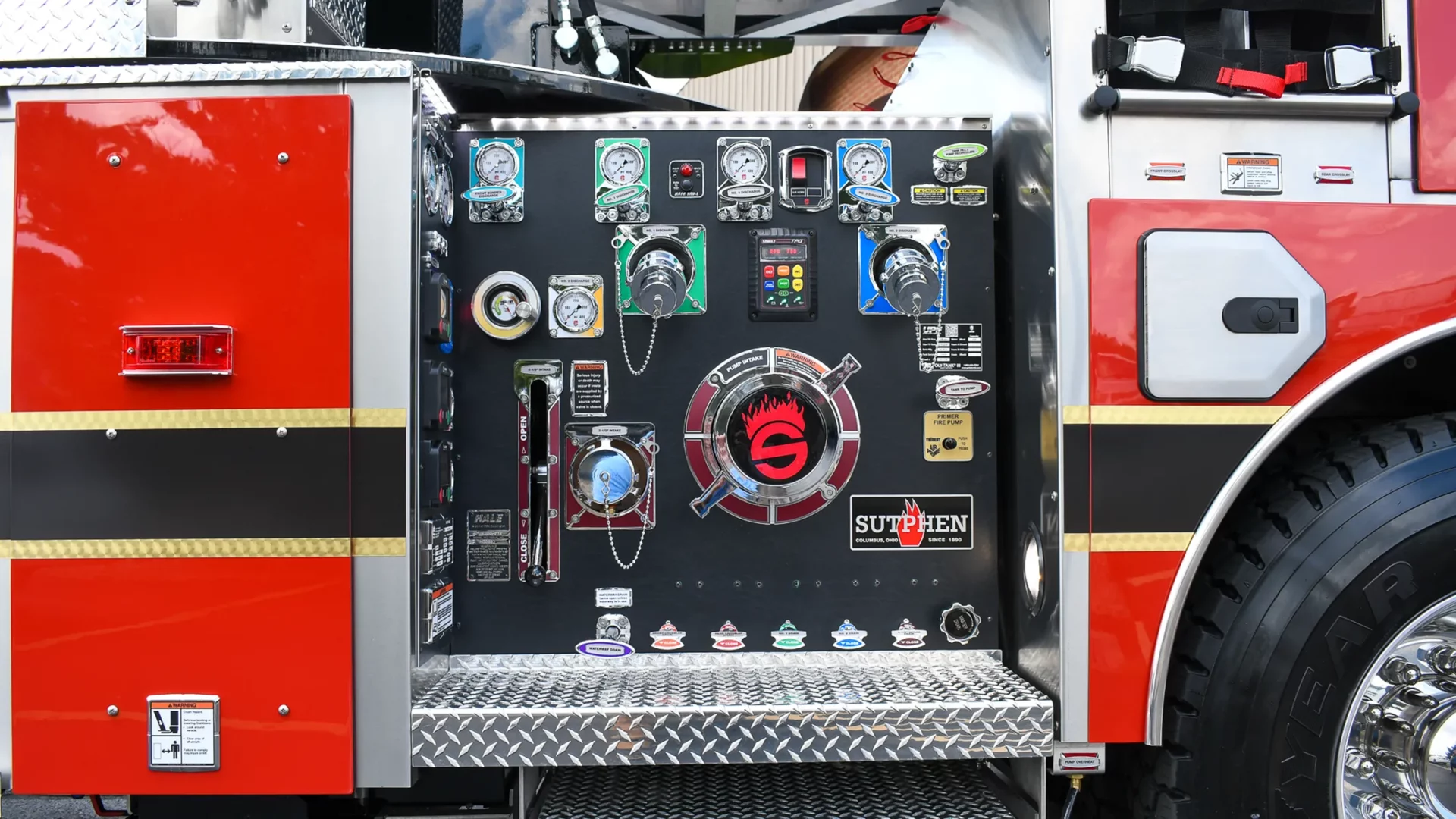

Finish Options
Black vinyl, brushed, or mirrored finish stainless pump panel
Water Tank
Up to 500 gallon poly water tanks
Body
#304 Stainless Steel bolted body, Huck bolted to the chassis frame
Body Configuration Options
Two body configurations to choose from, Left high/right low, or Double high sides with enclosed ladder storage
Space
Up to 300 cu. ft. of useable compartment space
Doors
Roll up doors or hinged doors offered in painted or non-painted satin finish
Compliance
Alco-Lite or Duo-Safety ladders, aerial or ISO compliant
Section
5-section ladder
Nozzle
1500 GPM monitor/nozzle
Waterway
Pinnable 5th section waterway
Storage
EMS/storage cabinet options in the cab
Bumper Storage
Hose storage, front suction, front discharge options in the bumper
Pump
Multiple pump inlet, discharge, and crosslay options
Foam
Foam system options
Power
Generator options up to 30 kw
Electrical
Numerous electrical and scene lighting options

Features

Feature IconSutphen Signature Mid-Mount Design
Feature IconLower Center of Gravity
Feature IconEase of Maintenance and Serviceability
Feature IconLighter Overall Weight
Feature IconThe Strongest Aerial Device in the Industry
Feature IconLower Aerial Maintenance
Feature IconFast and Easy Set Up
Feature IconHeavy Duty Cab Interior

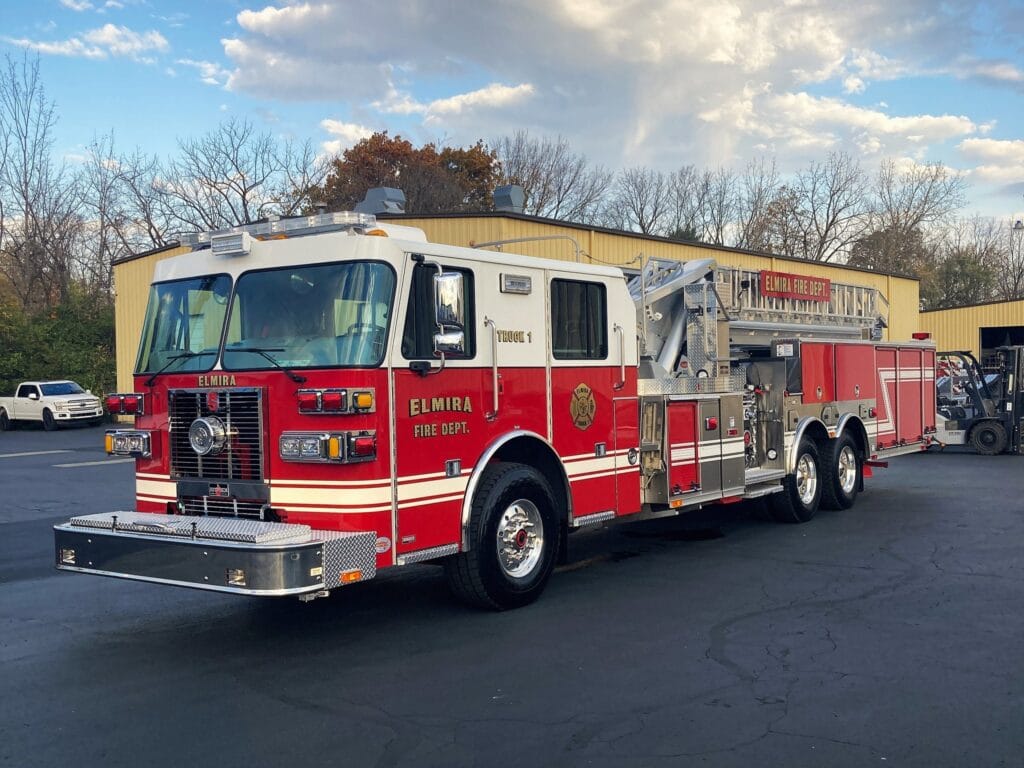

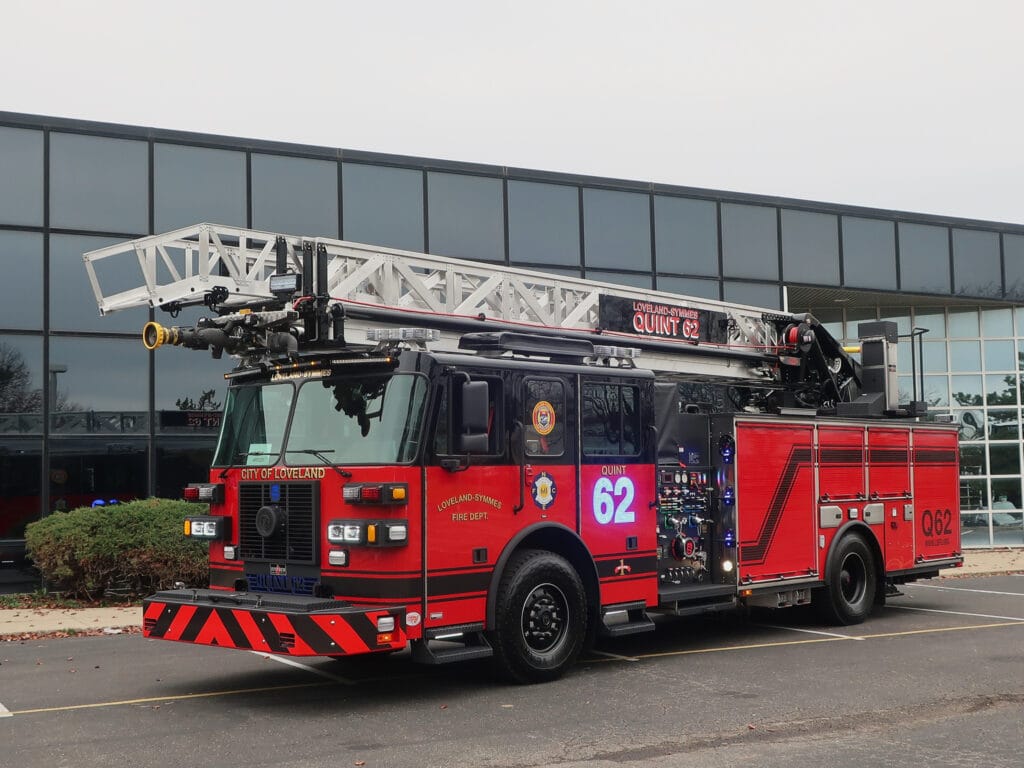

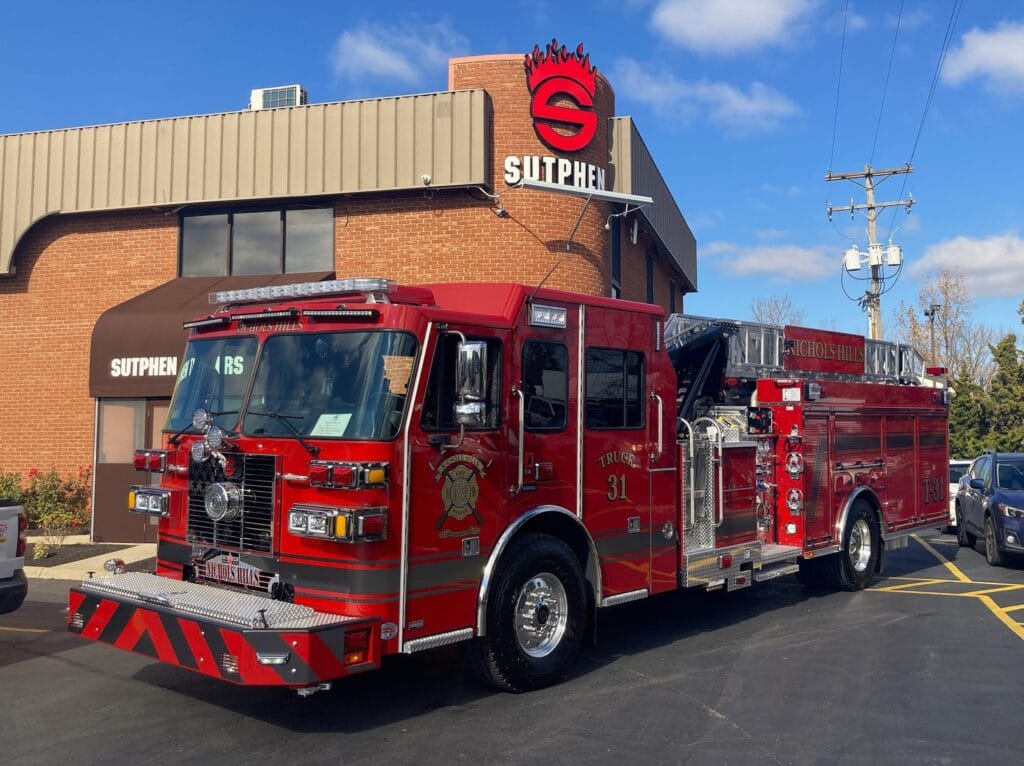

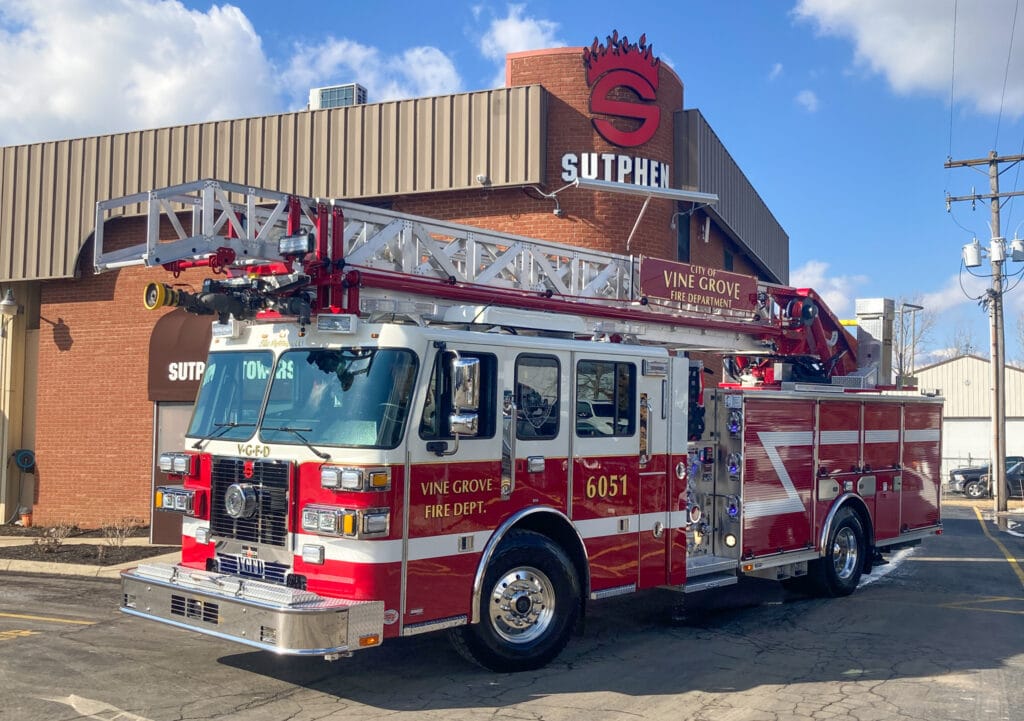

Recent Deliveries
