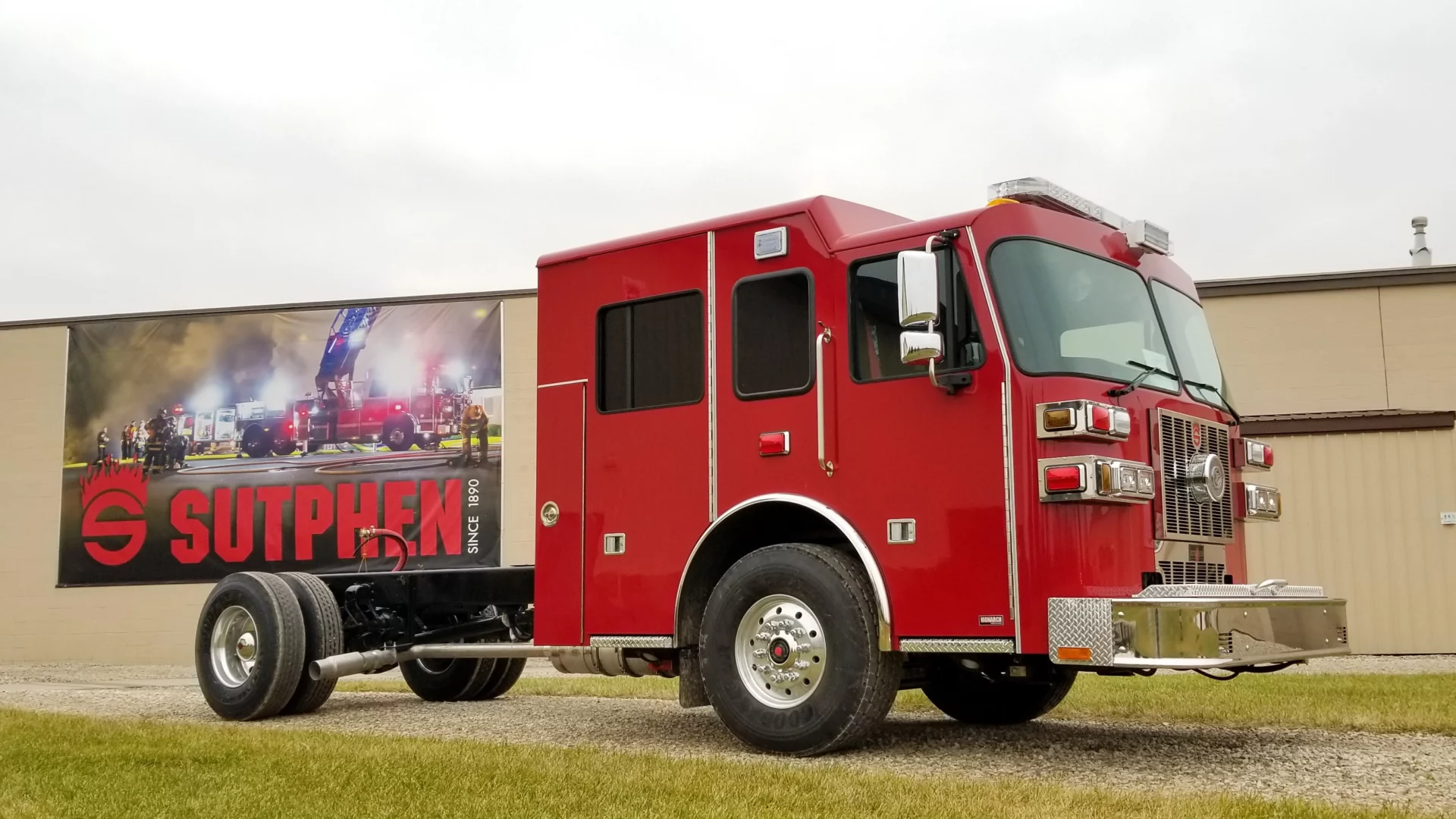

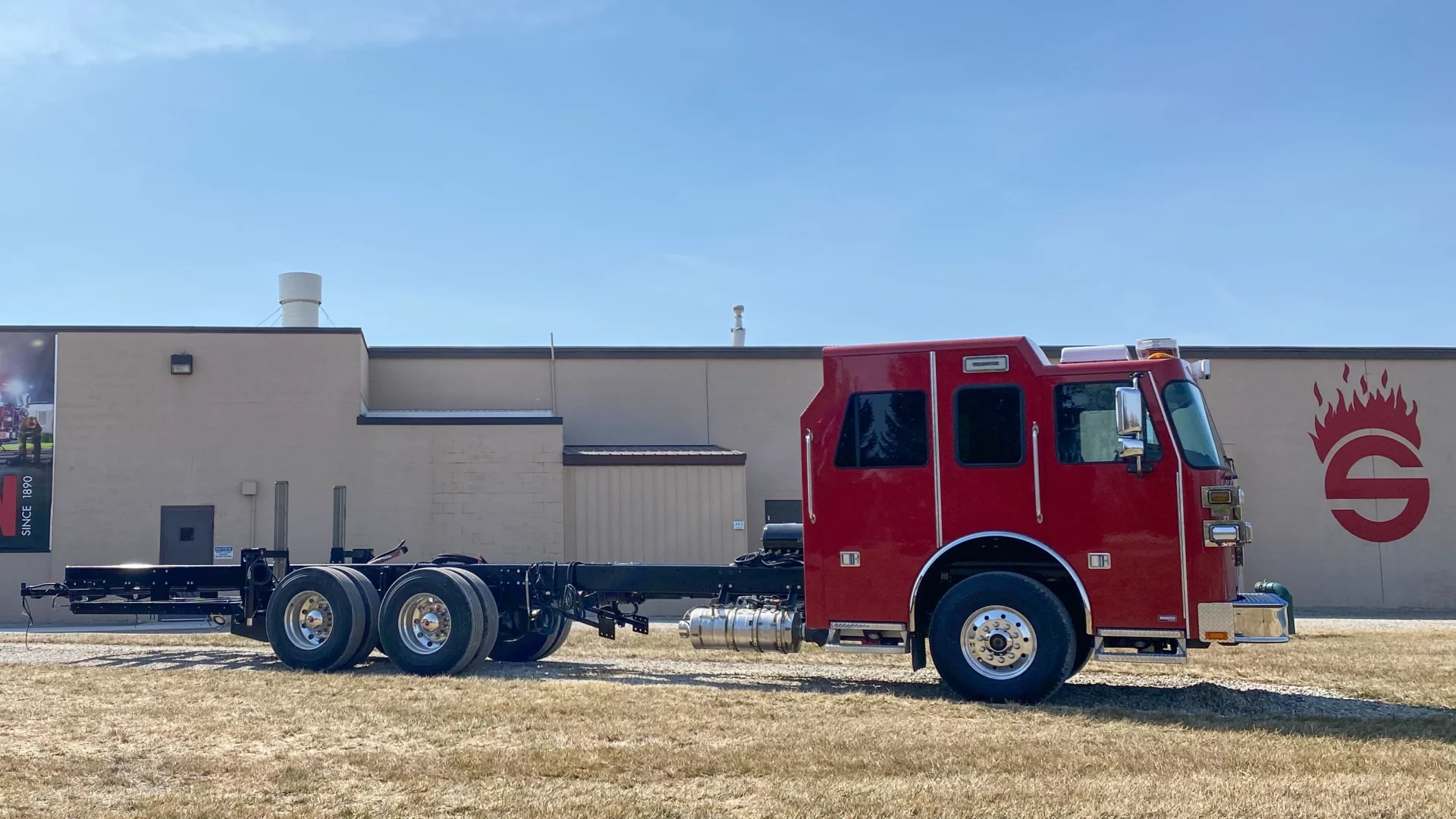

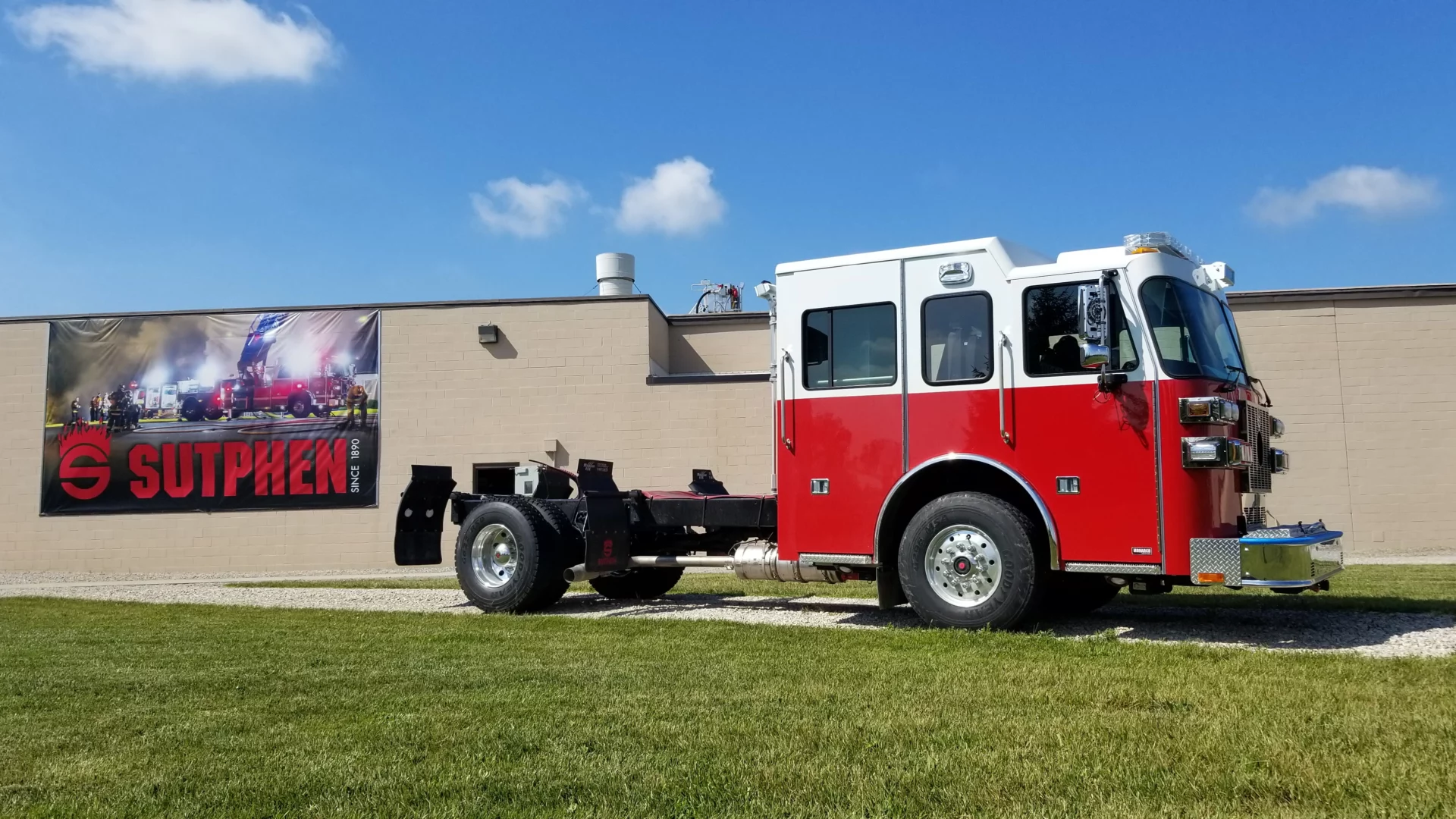

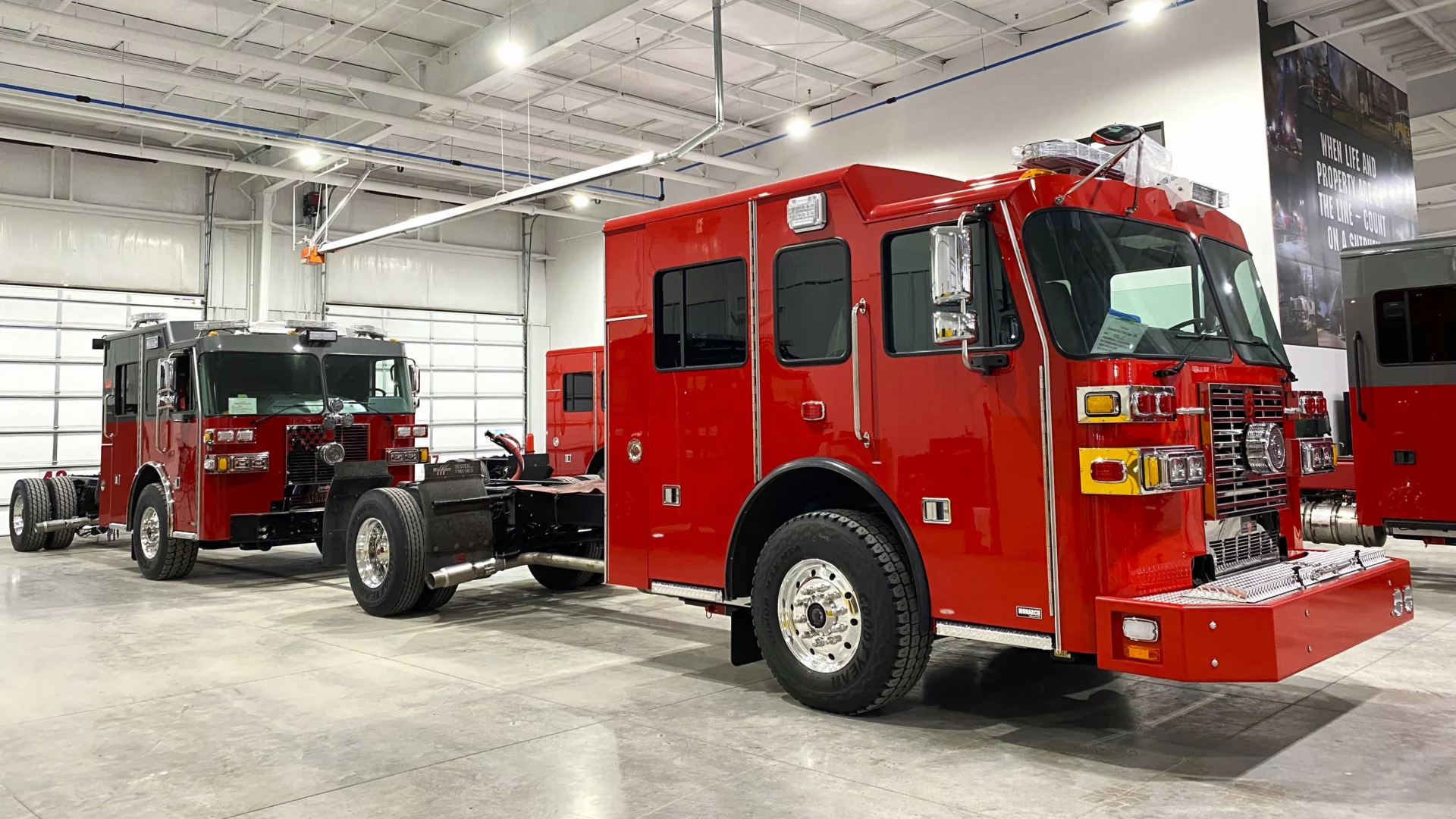

Monarch Extreme Duty Chassis

Monarch Extreme Duty

Since 1968, our experience and focus on the fire service have driven Sutphen to build the industry’s most Extreme Duty Chassis. Every inch of our custom chassis is built to withstand the most severe firefighting conditions. From the cab construction with heavy wall 6061 T6 aluminum extrusions and heavy duty aluminum plate, to the steel box tube design Subframe under cab, our chassis provides superior crash protection and is fully certified to meet all ASME and ECE standards. Our standard double frame rails, cross members, and suspension hangers are Huck Bolted with Grade 8 fasteners, and are bead blasted to prep the surface for better adhesion of the Cathacoat primer and durable Imron top coat paint to ensure that it will be long lasting and safe from corrosion. The front and rear suspension work together resulting in superior handling, a smoother ride, and better turning radius.

Its interior durability is just as rugged. There are no plastic trim panels, only heavy duty Durawear seats, headliners, and back wall; full length stainless steel interior door panels; and, durable urethane coated dash, switch console, and engine hood. The bumper is 10-gauge #304 Stainless steel, reinforced with a ¼” steel plate for added crash protection. The grille and headlight housings are 14-gauge #304 stainless steel, never plastic, for durability, and give the chassis the classic Sutphen look. From the moment you see it, you know it’s a Sutphen, and it’s built to last.

Specs

Cab
Constructed from heavy wall 6061 T6 aluminum extrusions
Cab Height Options
Flat, 10”, 15” or 20”
Cab Length Options
36”, 56”, 62” or 73”
Front Axle
Front Axle and Suspension up to 25,500 lbs
Rear Axle
Rear Axle and Suspension up to 52,000 lbs
Bumper Options
12” bumper standard, optional 6”, 18”, 24”, or 30” extension options. Optional steel or steel channel, painted bumper
Engine Options
Cummins ISL 9 400 or 450HP, Cummins ISX 12L 425, 450, or 500HP, or Cummins ISX 15L 600HP
Transmission Options
Allison Gen 5 EVS 3000 or EVS 4000 (dependent on engine)
Wiring
Point-to-Point or Multiplex wiring systems
Cab Roof
Diamond Plate Cab Roof (standard 36” x 59”)

Features

Feature IconExtreme Duty Materials
Feature IconFour-Step Frame Rail Paint Process
Feature IconDeutsch Connectors
Feature IconPoint to Point or Multi Plex
Feature IconVarious Engine Options
Feature IconNumerous Cab Dimensions Available
Feature IconHand-Built to Specification
Feature IconEase of Maintenance and Serviceability
