Winter Haven Fire Department, FL

Truck Type:

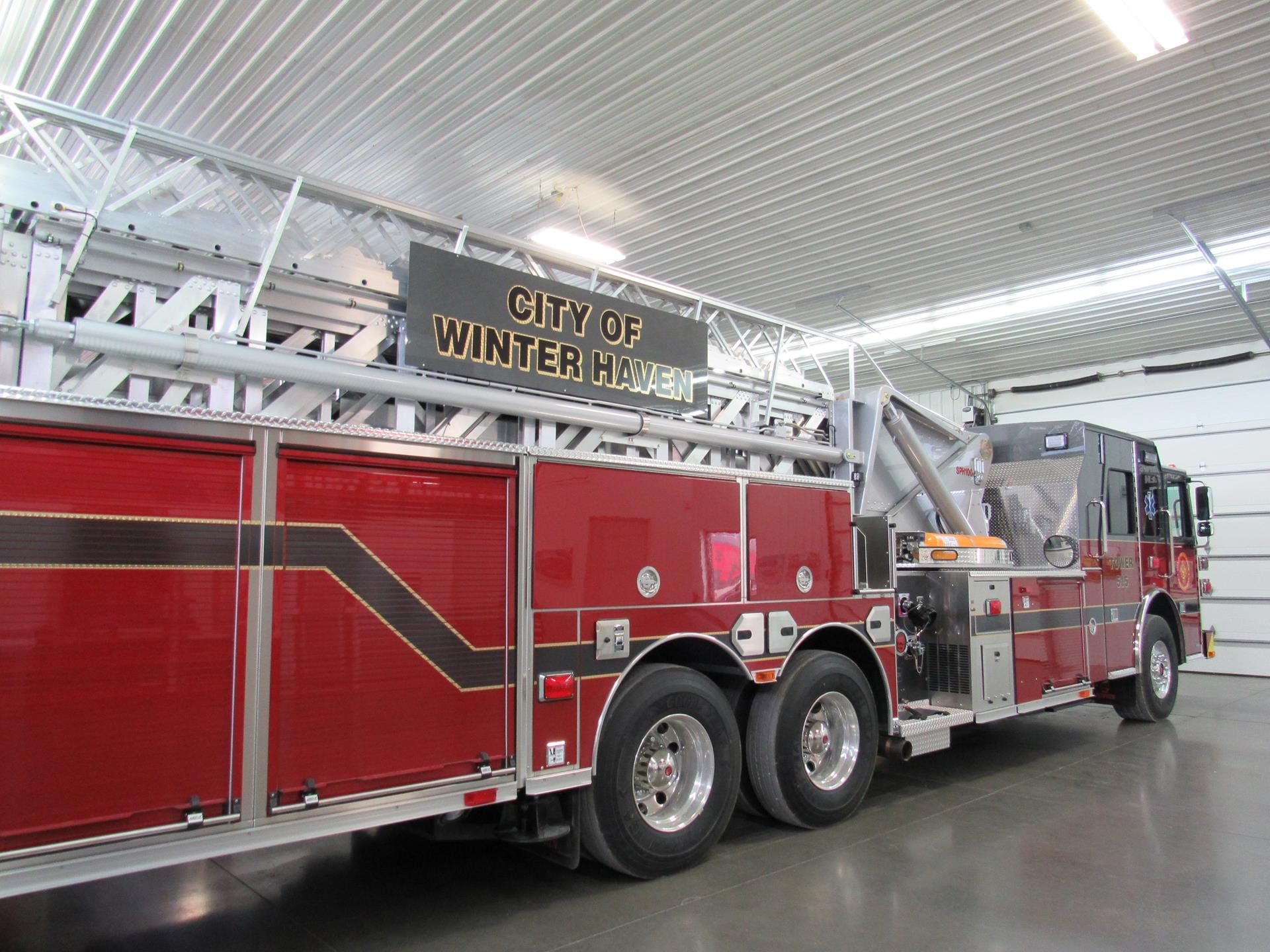

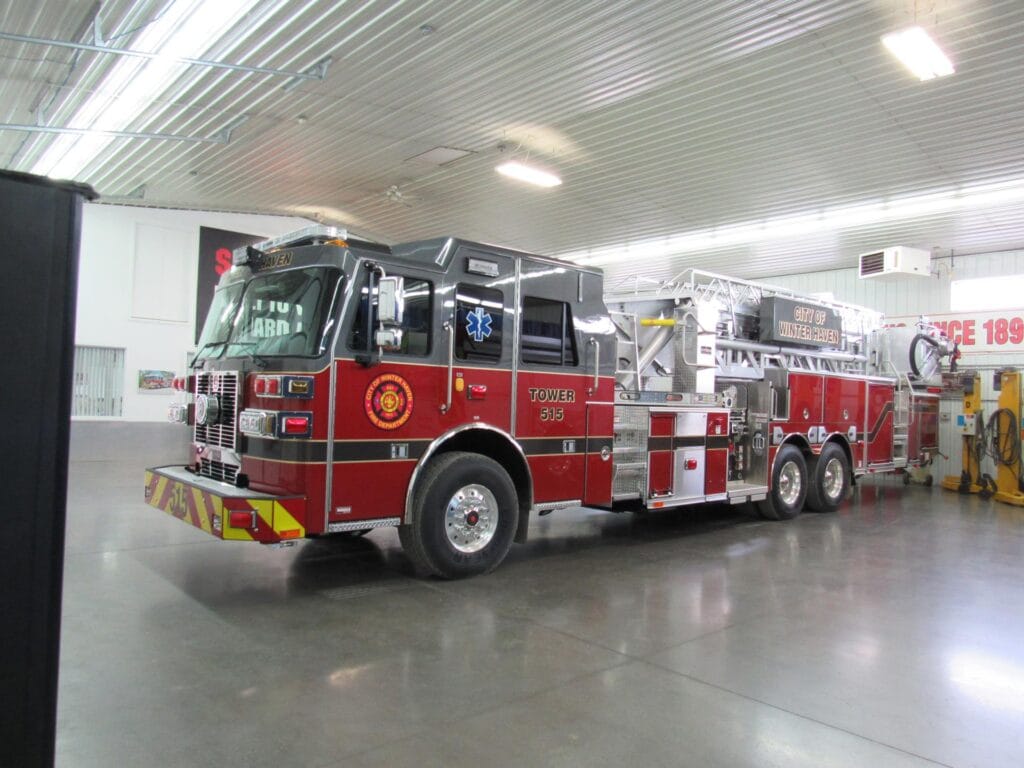

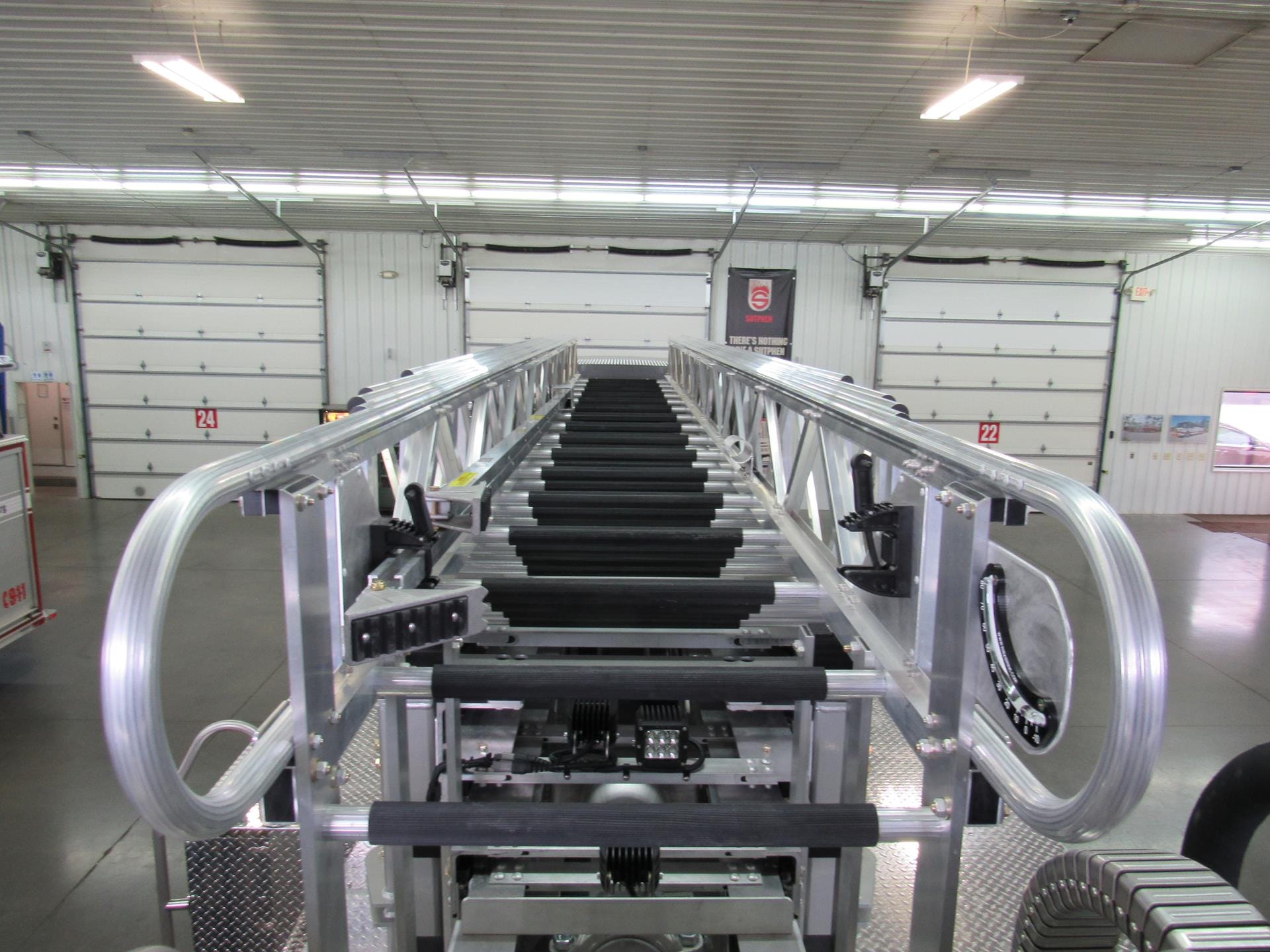

SPH 100 Aerial Platform
Dealer:
Sutphen
Location:
Winter Haven, FL
Department:
Winter Haven Fire Department

Specs

Cab
Four-door, six-person
Front Axle and Suspension
23,000 lbs.
Rear Axle and Suspension
52,000 lbs.
Engine
Cummins ISX 12 500HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5
2000 GPM Single
Stage
Discharge
(2) 2.5” Left, 3” Right, 2.5” Right,
Water Tank
300 gallon
Construction
Aluminum
Total Compartment Space
293 cu. ft.
Siren
Federal q2b
Power
Harrison, 10kw hyd
Valve Under Monitor
Manual valve, auto drain, crank handle on port
Bumper Extension
Black bullet liner top edge of bumper
Siren
Whelen howler to electronic
3-Way Scene Light
Switch for officer’s side
Fan, 12 Volt
Crew seat area
Class 1 Sentry
Pressure governor
Water Pump

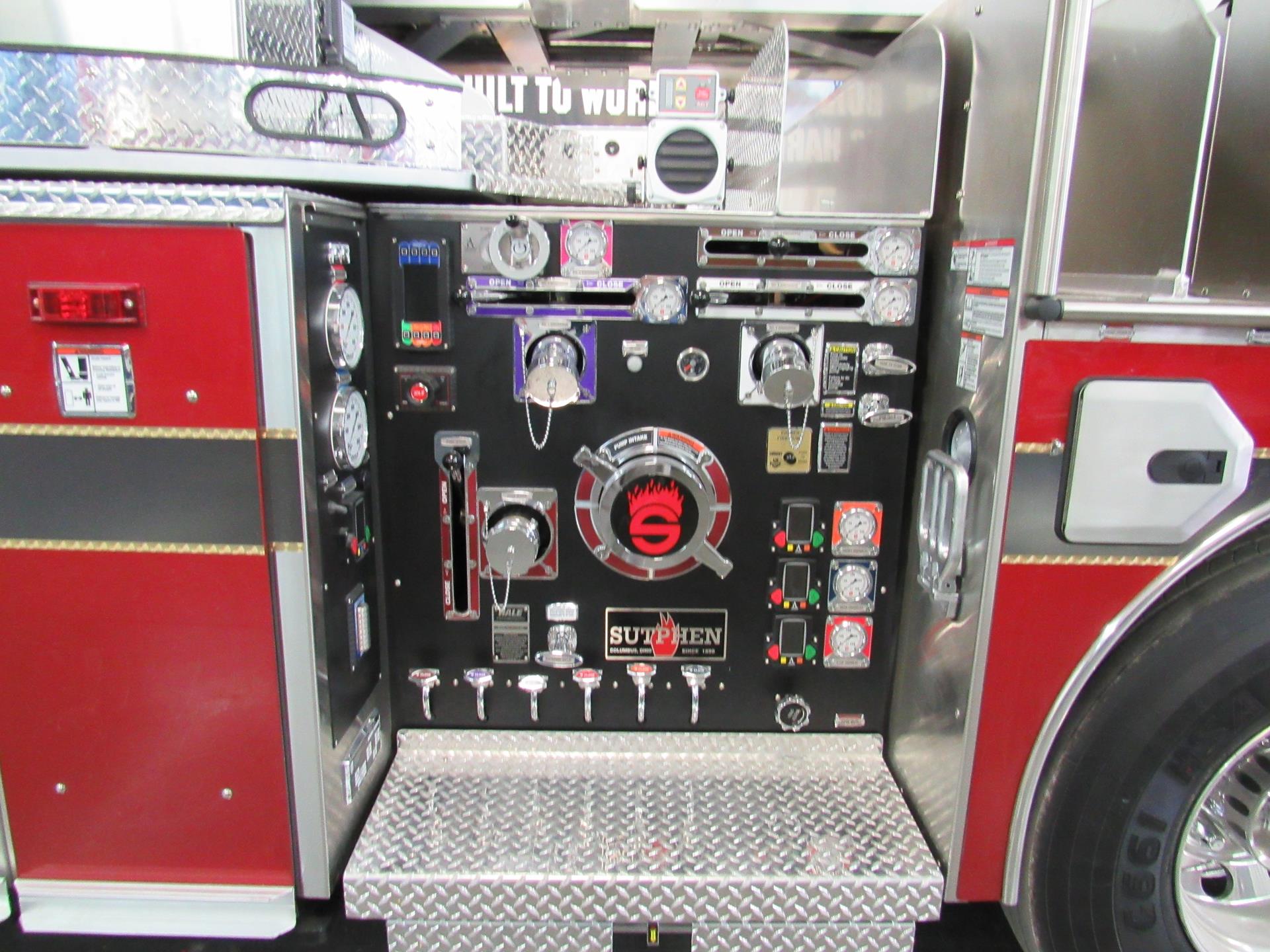

Pump panel finish black powder coated
Run 12V Power
To r1 compartment
1000# Slide-Master Tray
With tool board in hose bed compartment
