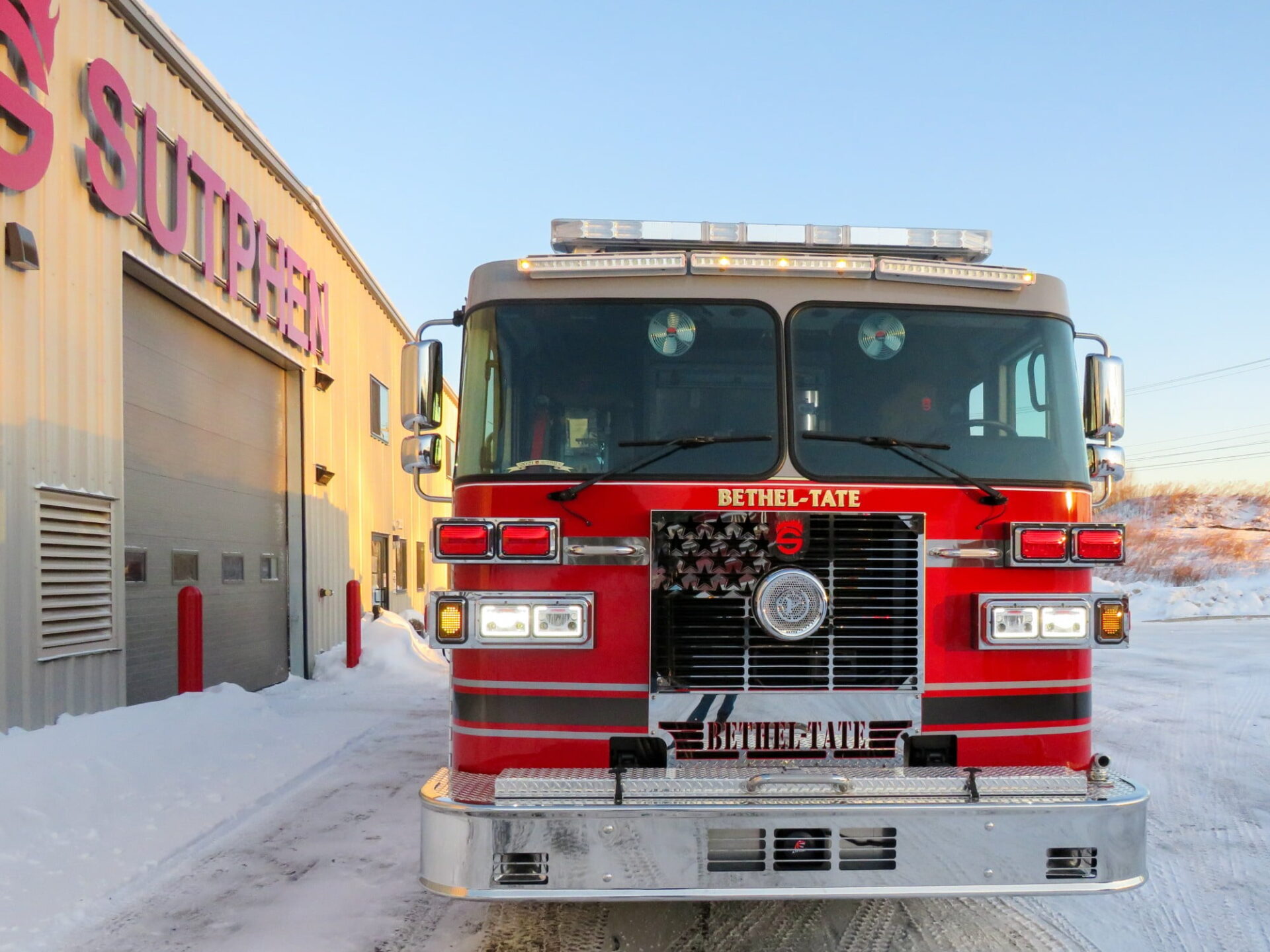

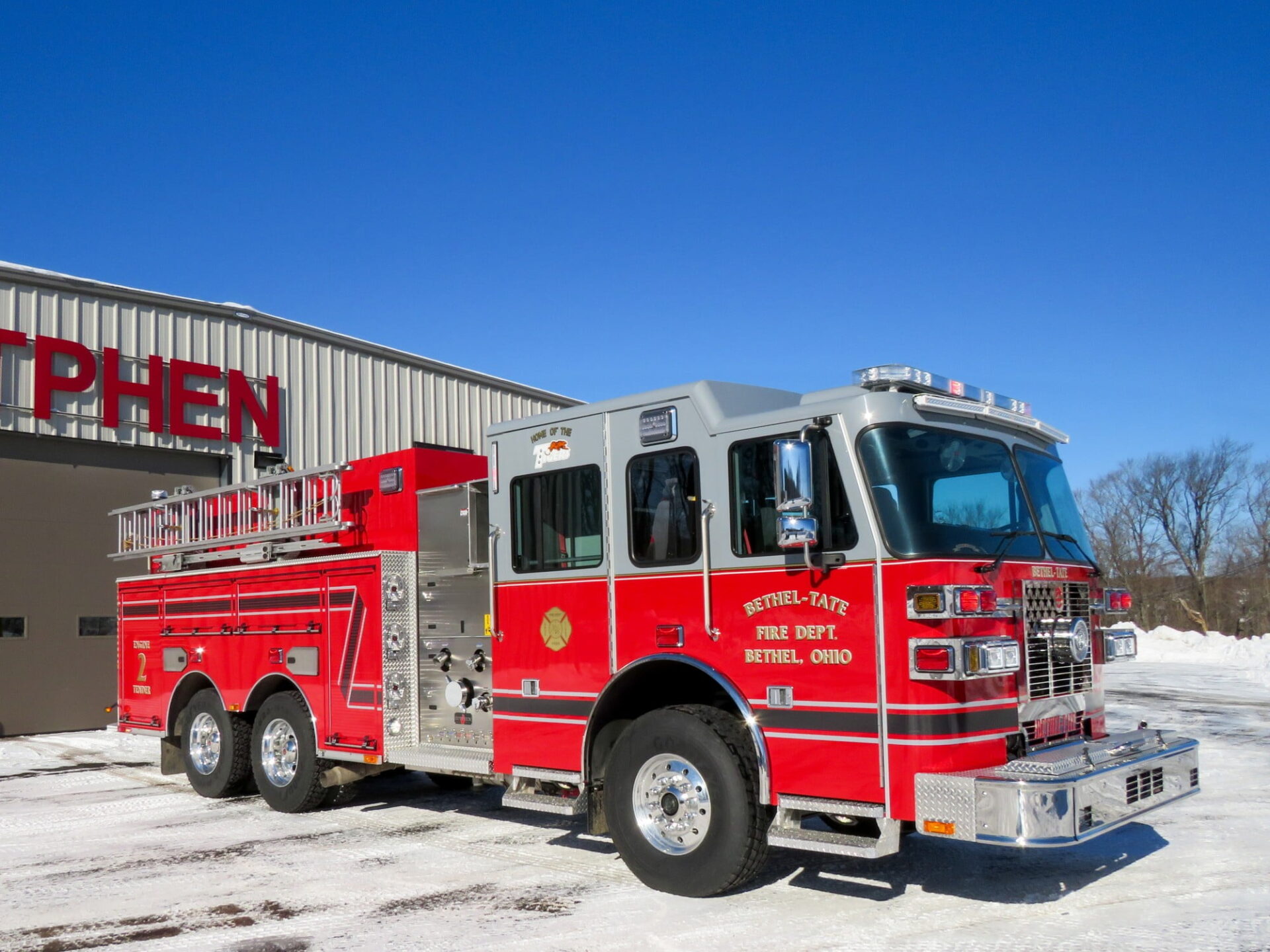

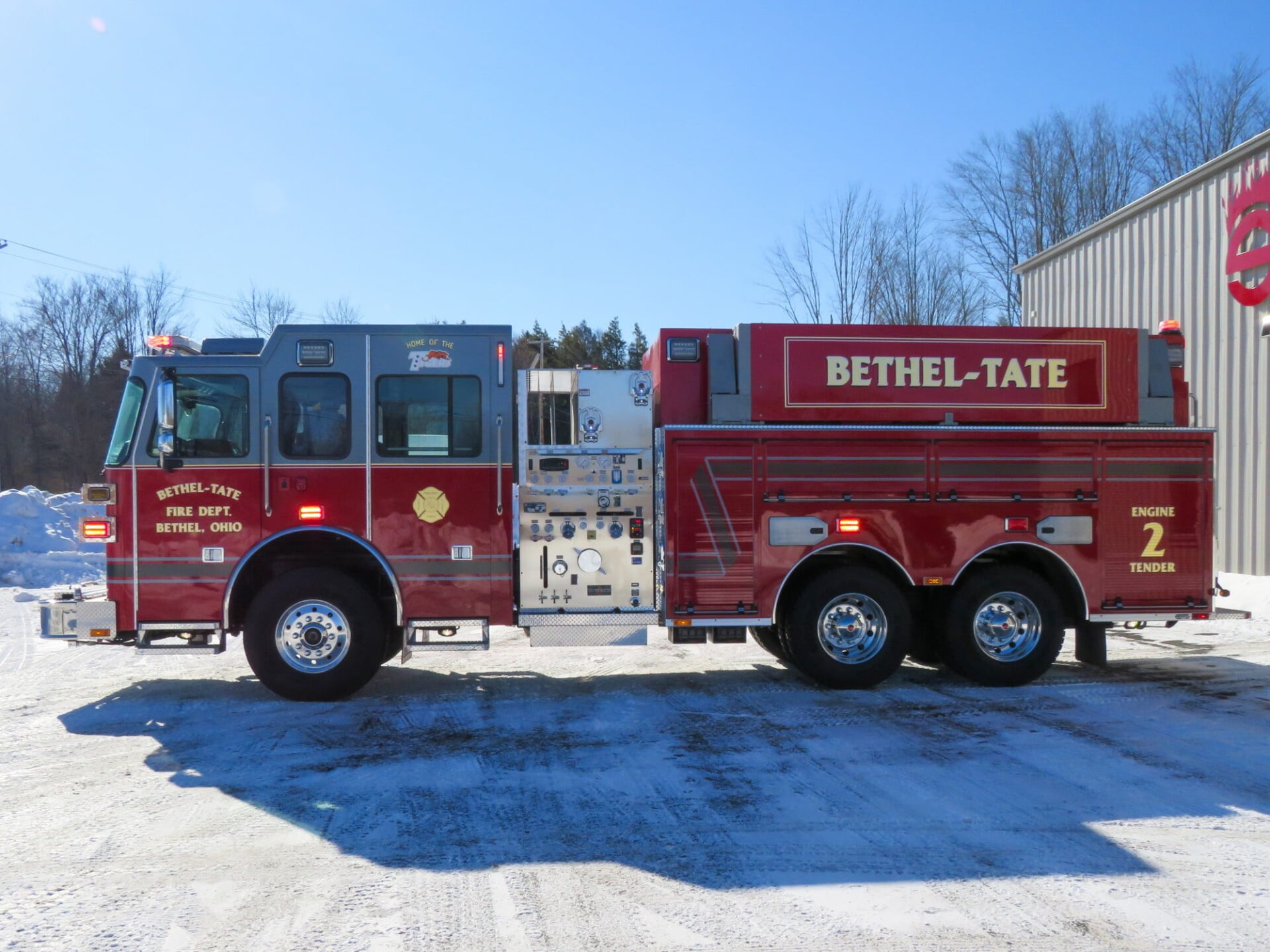

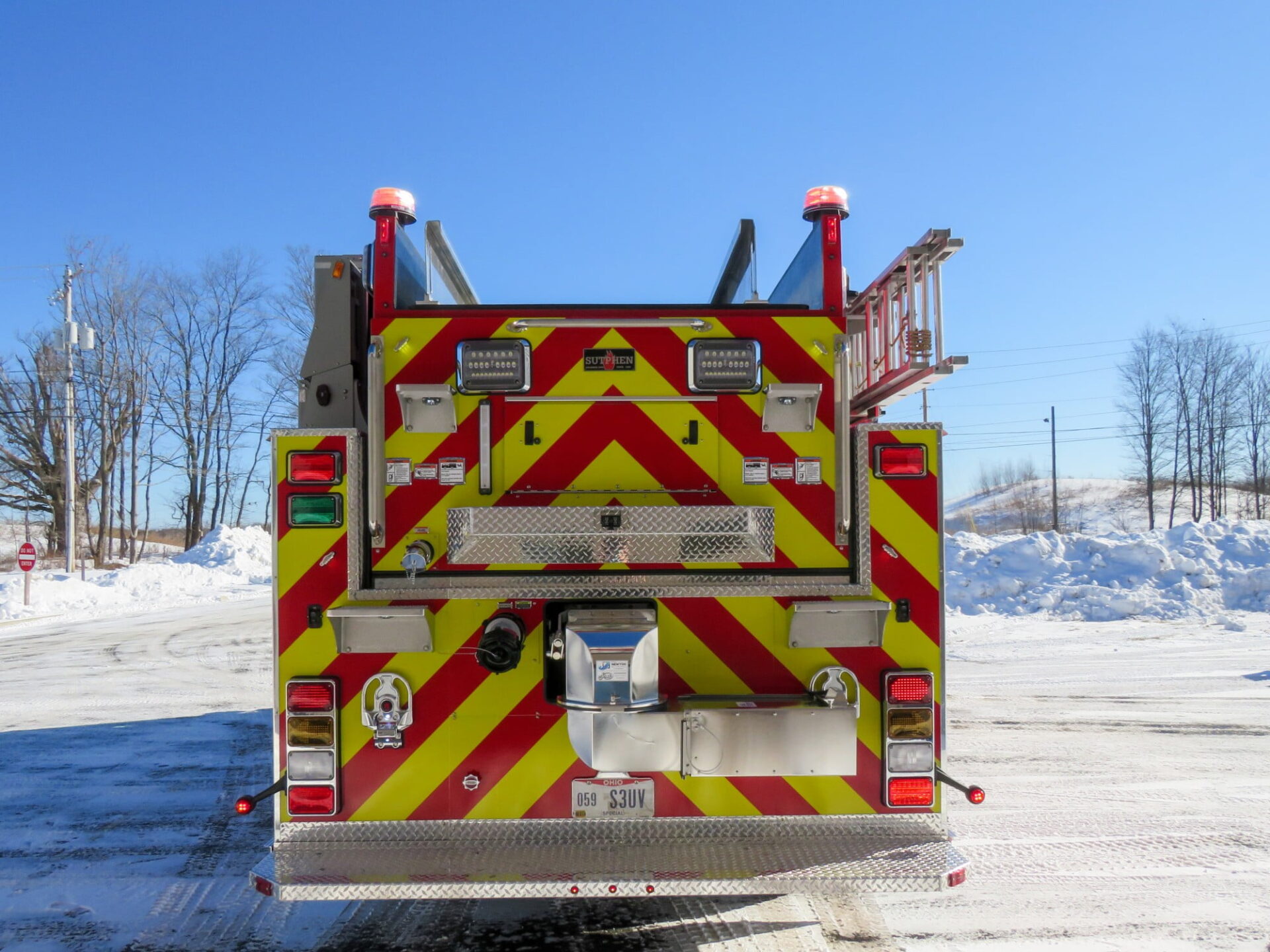

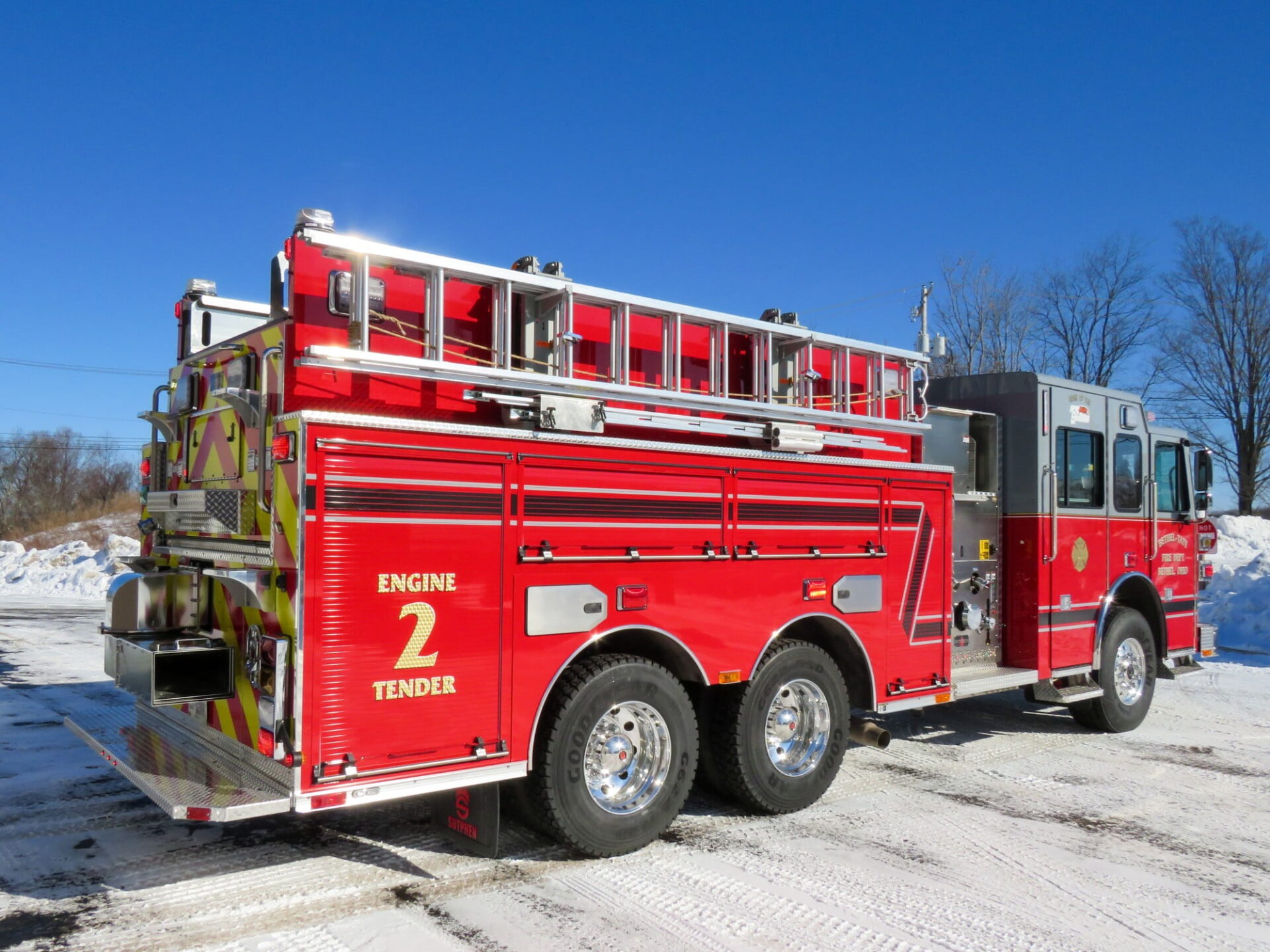

Wetside Tanker – Bethel-Tate Fire Department, Ohio

Location:
Bethel, Ohio
Department:
Bethel-Tate Fire Department, Ohio

Specs

Cab
Four-door, five-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
48,000 lbs
Engine
Cummins X 12, 455 HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS 4000
Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
Crosslay
(3) 2” w/ 1 ½” Swivels
Water Tank
2,500-gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
Over 125 cu. ft.
Ladder Compliment
Duo-safety ladder package (900a 24’ 2-section & 775a 14’ roof & 10’ folding)
Body
SWT-04A STS Wet Side Tanker Tandem
Bumper Extension
18” polished stainless steel
Siren
Federal q2b , grille mount
Newton 10 x
10 electric, with swivel dump
Water Tank
2,100 gallon portable tank
Camera System
FRC, Inview Trueview, Single Camera
Whelen Freedom IV
72” led light bar
Whelen L31 Beacons
Included
Whelen 900 LED
Scene lights
FireTech 3-Piece 72”
Led brow light
