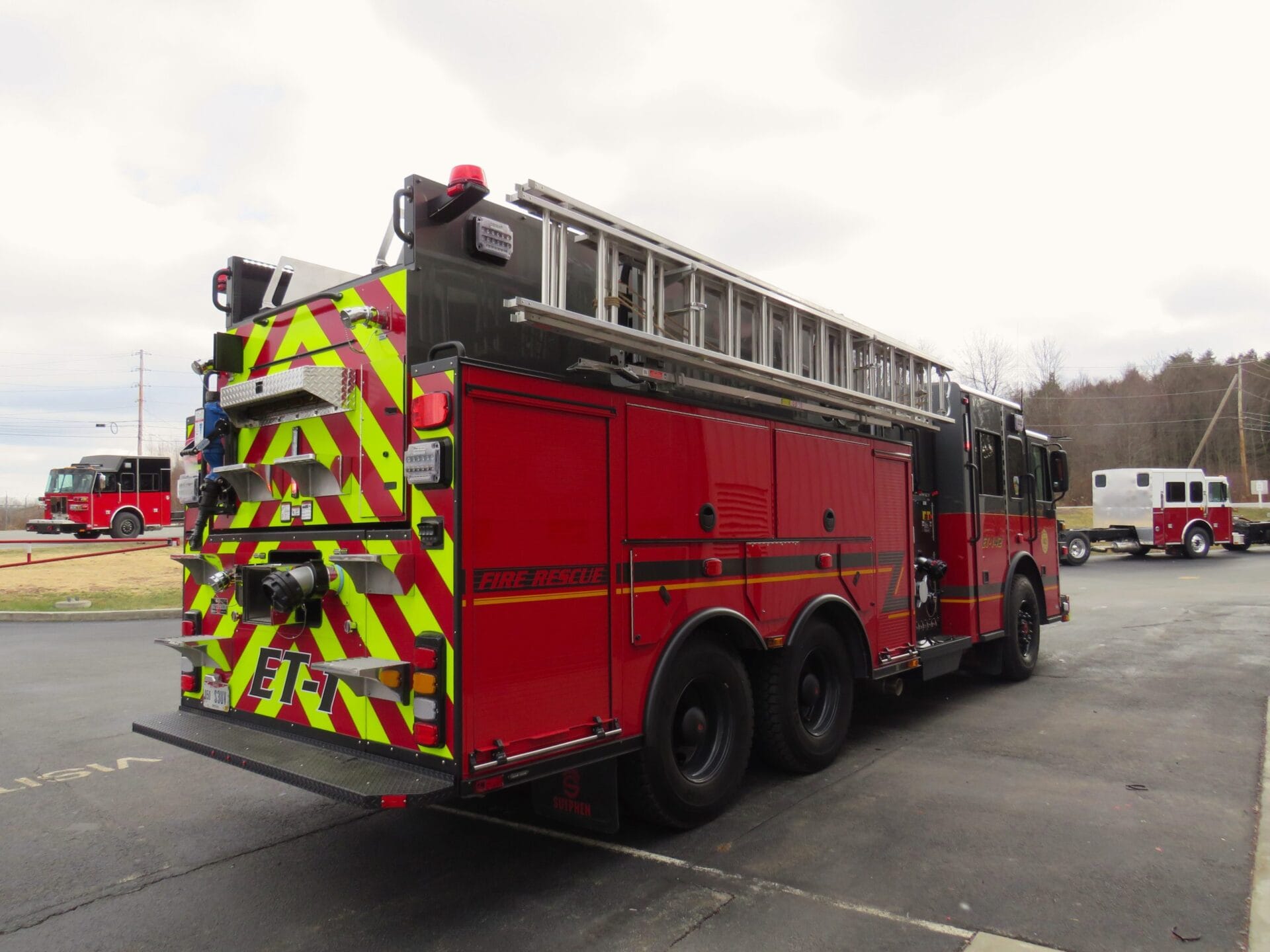

Wet Side Tanker – Crystal Lake Fire Department, CT

Location:
Ellington, CT
Department:
Crystal Lake Fire Department

Specs

Cab
Four-door, six- person
Front Axle and Suspension
23,000 lbs w/ (4) 56” leafs
Rear Axle and Suspension
48,000 lbs
Engine
Cummins X 12, 500HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4500
Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper w/ 2 ½” Plumbing, (1) 3” Deck Gun
Crosslay
(2) 2” w/ 1 ½” Swivel
Water Tank
2500-gallon
Construction
Stainless steel body
Doors
Mixed hinged and amdor roll up compartment
Total Compartment Space
Nearly 140 cu ft.
Duo-Safety Ladder Package
35’ 3-Section, 16’ Roof & 10’ Attic
Body
SWT-04A STS Wet Side Tanker Tandem, Pump Module
Bumper Extension
12” formed steel bumper
Siren
Federal q2b , grille mount
Ladder Compliment
Zico extend down ladder rack
Camera System
FRC, Inview Trueview, Two Cameras (Wired)
Whelen Freedom IV
72” led light bar
FireTech 3-Piece 72”
Led brow light
FireTech Guardian Scene
Light
Whelen L31 Beacons
Included
Whelen M2 Warning
Light
TFT XFC-42 Crossfire
W/ safety flow w/ quad stack tips & stream shaper
