SPH100 Aerial Platform- Cocoa Beach, FL

Specs

Cab
Four-door, four-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 12, 500HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax – 2000 6” suction, single stage pump

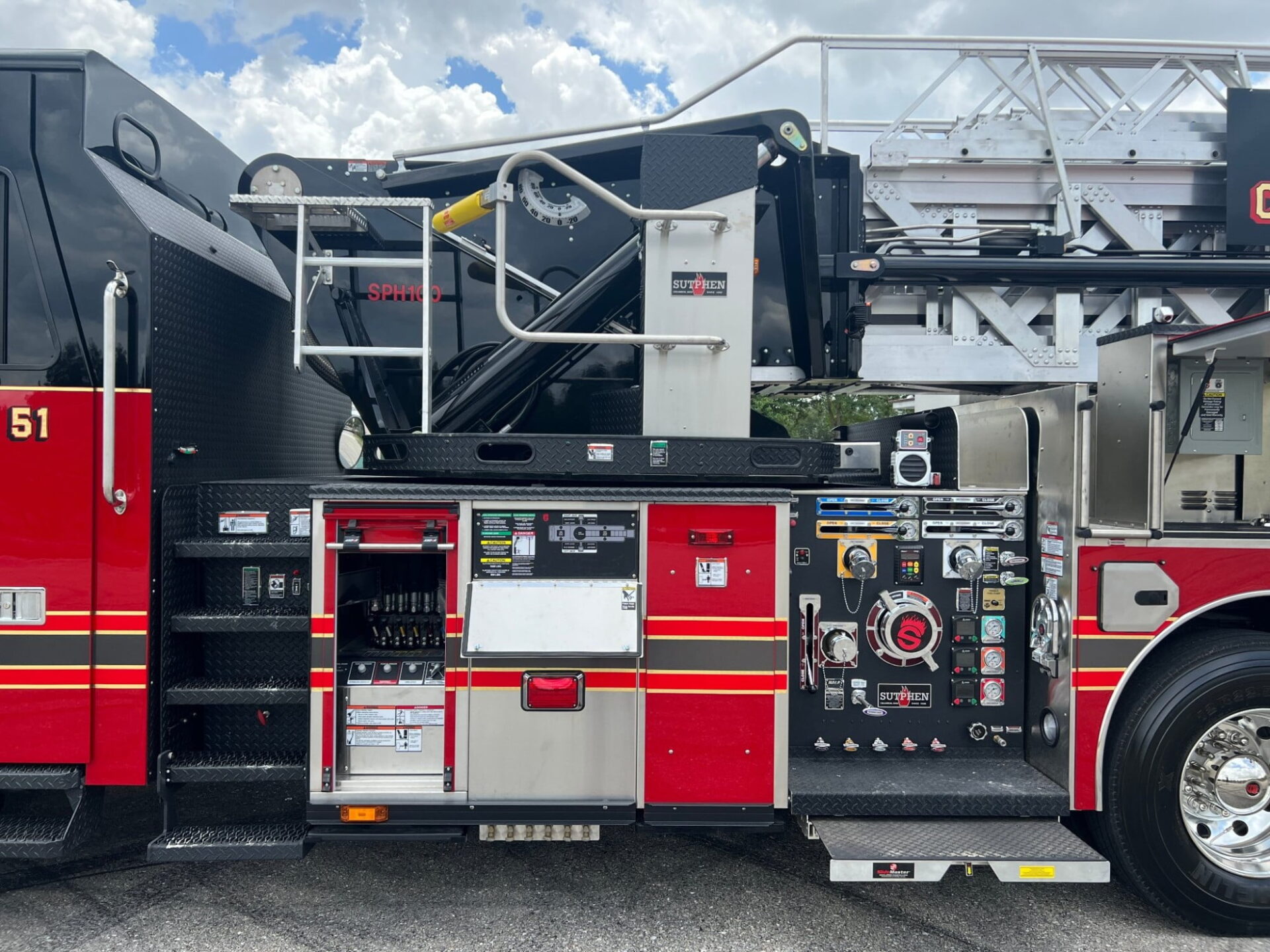

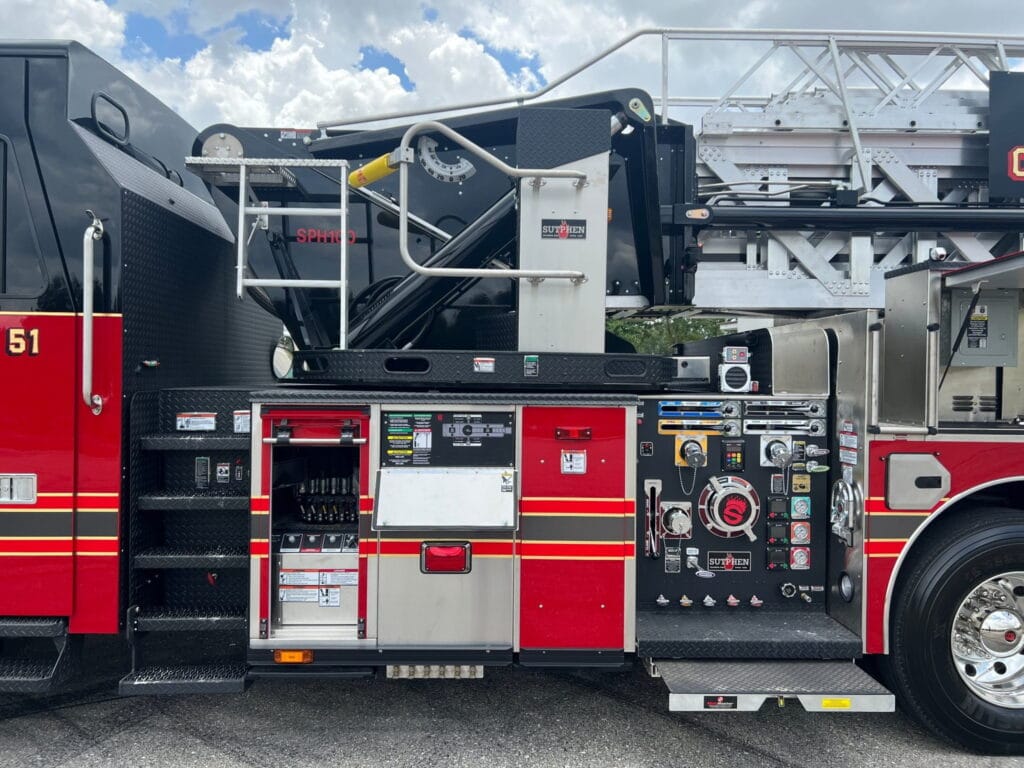

Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, 1) 2 ½” Front Bumper
Crosslays
(1) 2 ½” Crosslay, (1) 2 ½” Swivel, (1) 2” Crosslays w/ 1 ½” Swivel
Water Tank
300-gallon
Construction
Huckbolted #304 stainless steel
Doors
Sph mixed roll-up and hinged compartment
Total Compartment Space
Over 283 cu ft.
Alco-Lite Ladder Package
(1) 14’, (2) 16’, 24’ 2-section, 35’ 2-section & 10’ Folding
Body
SPH-3, Left 56” H / Right 56” H
Bumper Extension
24” polished stainless steel,
Siren
Federal q2b , grille mount
Camera System
Brigade 360
Intercom System” FRC
Act 3-station
Power
Hannay electric cord reel, 150’ (1)
Whelen Freedom IV
72” led lightbar
12V Pioneer Brow
Light
12V FireTech Scene
Light
120V Pioneer Tele
Lights
