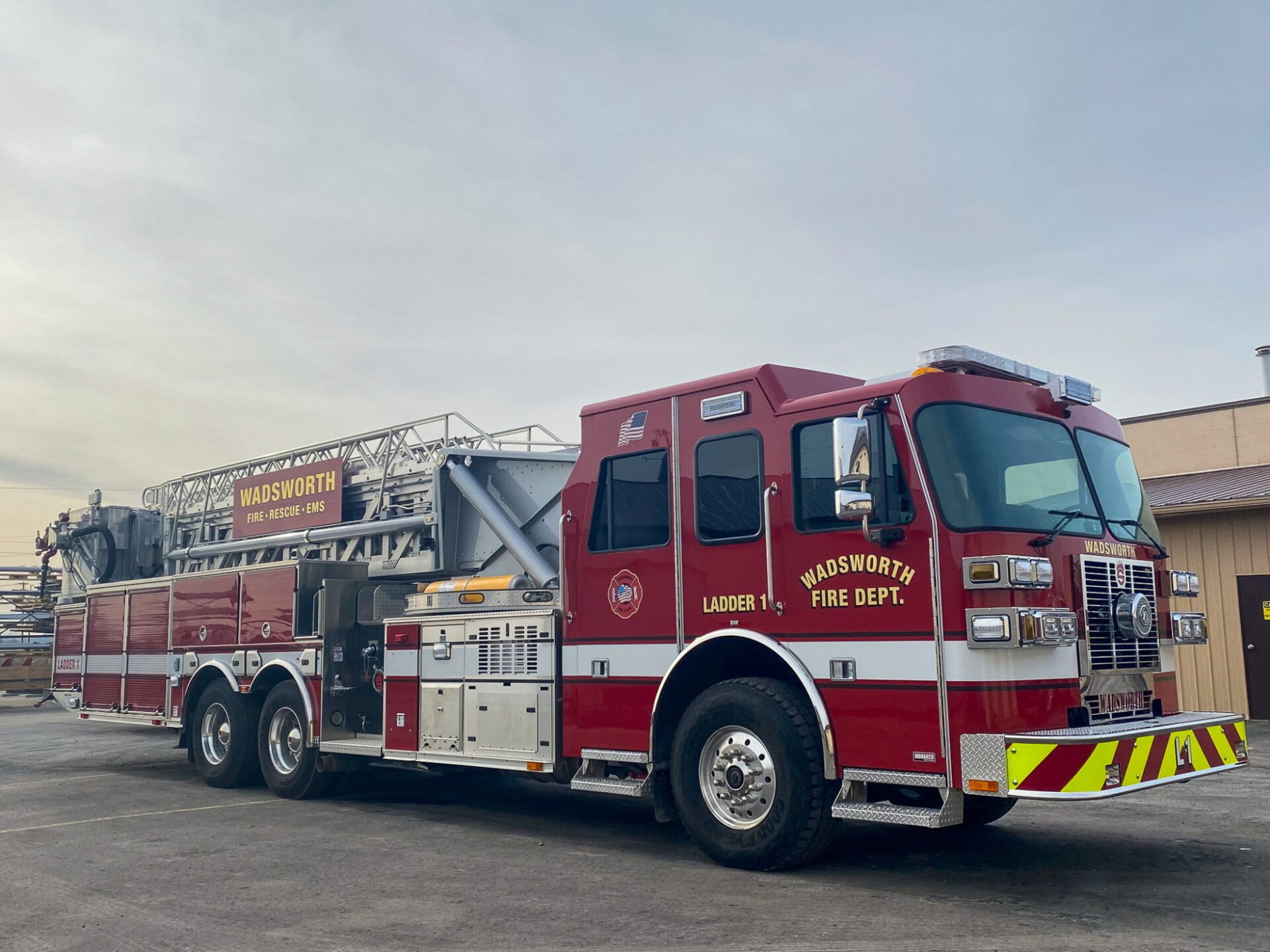

SPH 100 – Wadsworth Fire Department, OH

Location:
Wadsworth, OH
Department:
Wadsworth Fire Department

Specs

Cab
Four-door, six-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 12, 500HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS4000

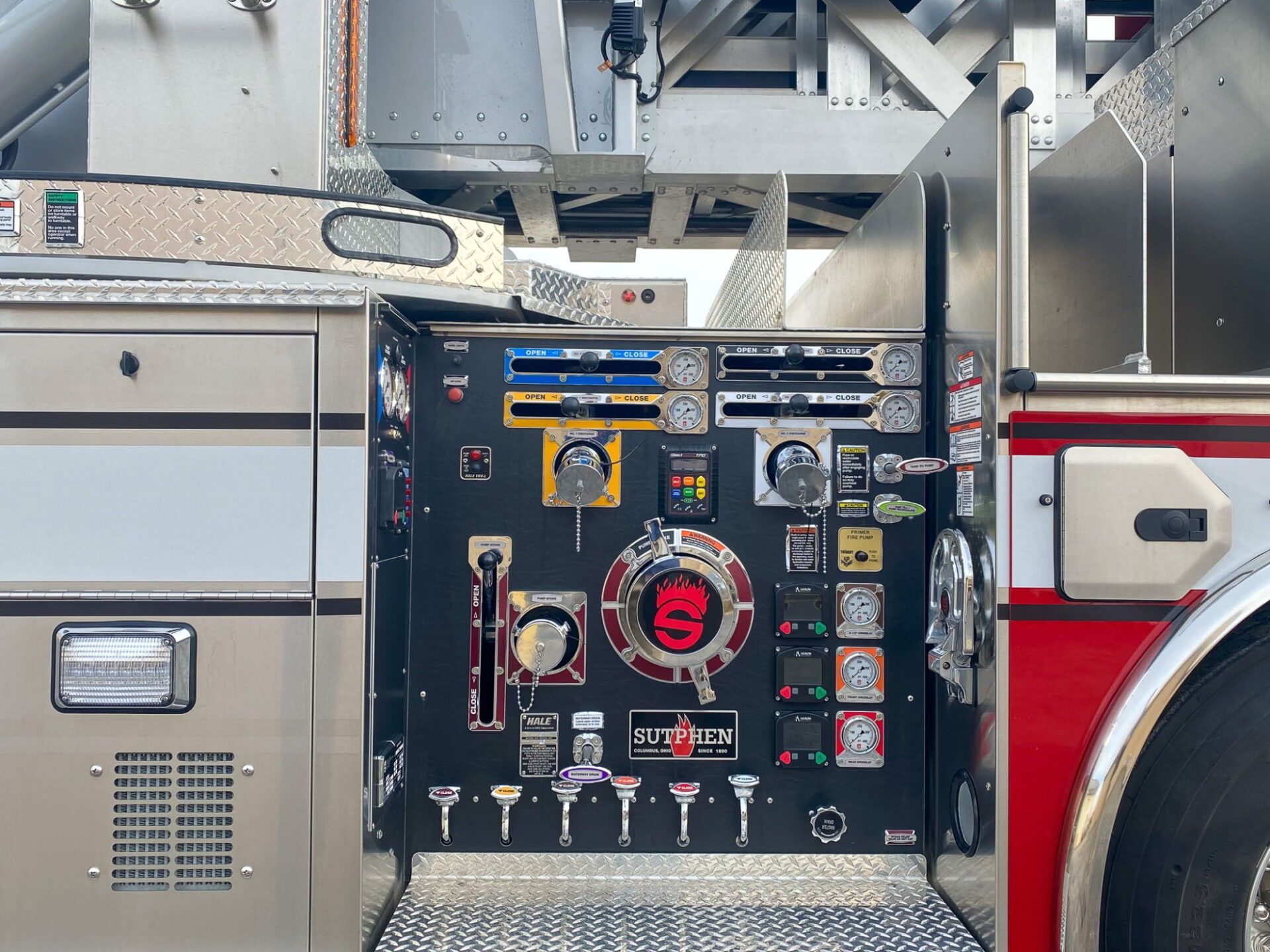

Water Pump
Qmax-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
Crosslays
(1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
Water Tank
400-gallon
Construction
Huckbolt #304 stainless steel
Doors
Mixed roll up and hinged compartment
Total Compartment Space
Over 280 cu ft.
Alco-Lite Ladder Package
115’: 14’; 16’; 16’; 24’ 2-Section; 35’ 2-Section & 10’F
Body
SPH-3, Left 56” H / Right 56” H
Bumper Extension
12” polished stainless steel,
Siren
Federal q2b , grille mount
Intercom System
Wireless Firecom 5100D, Single Radio, 6 Position
Power
Hannay electric cord reel, 150’ (1)
Generator
Smart Power 10KW HYD
Camera System
FRC, Inview 360HD w/ Built-In DVR
Whelen Freedom IV
72” lightbar
12V FR Spectra
Brow light
FireTech Aerial Spotlights
Included
240V FR Spectra
Tele lights
12V FR Spectra
900 scene light
Whelen 600 Warning
Light
Driver Side Monitor
Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
Officer Side Monitor
Akron 3483 Stream Master2, Manual 1250 GPM
Officer Side Nozzle
Akron 2499 & 3488 Pipe
