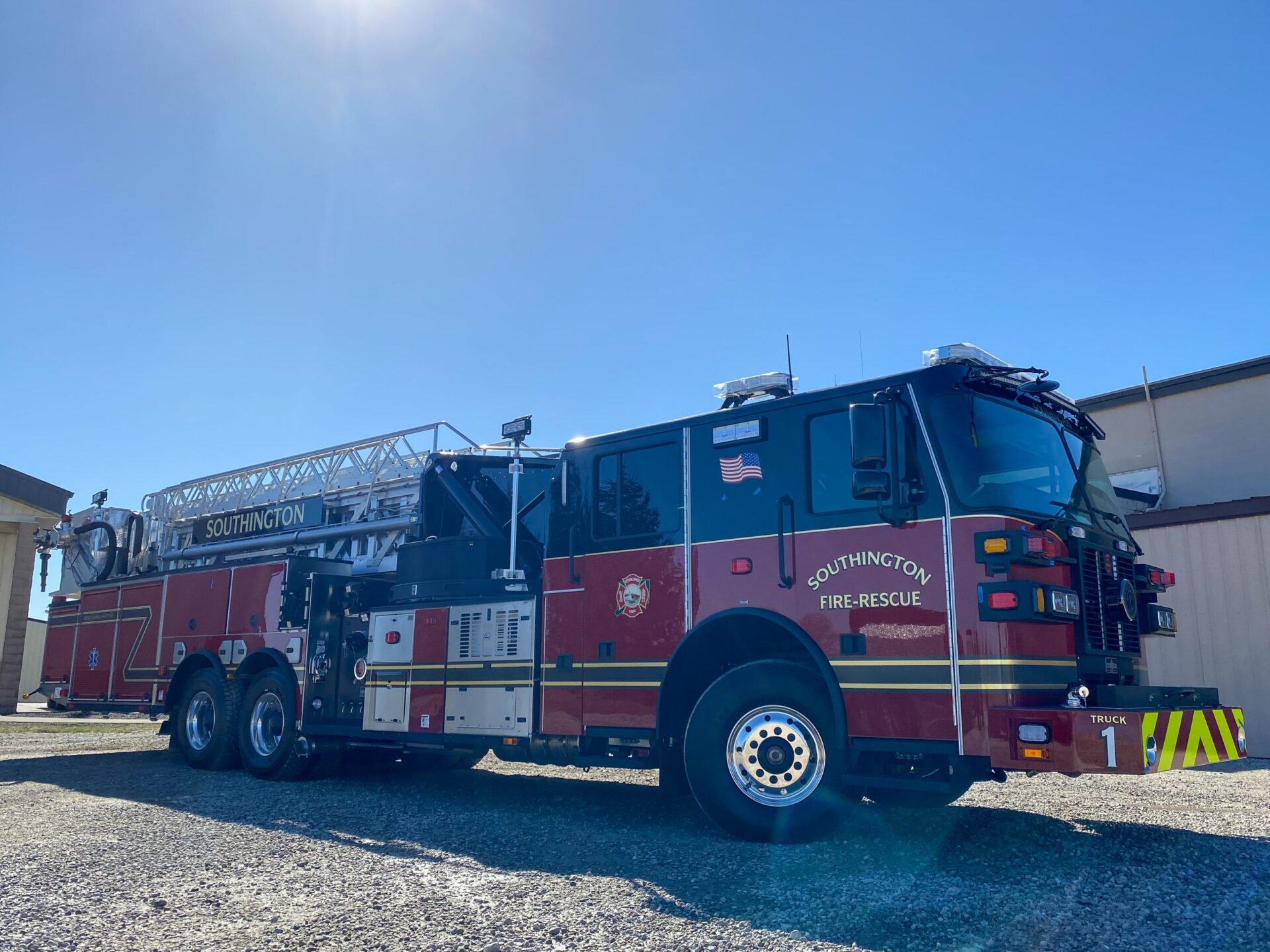

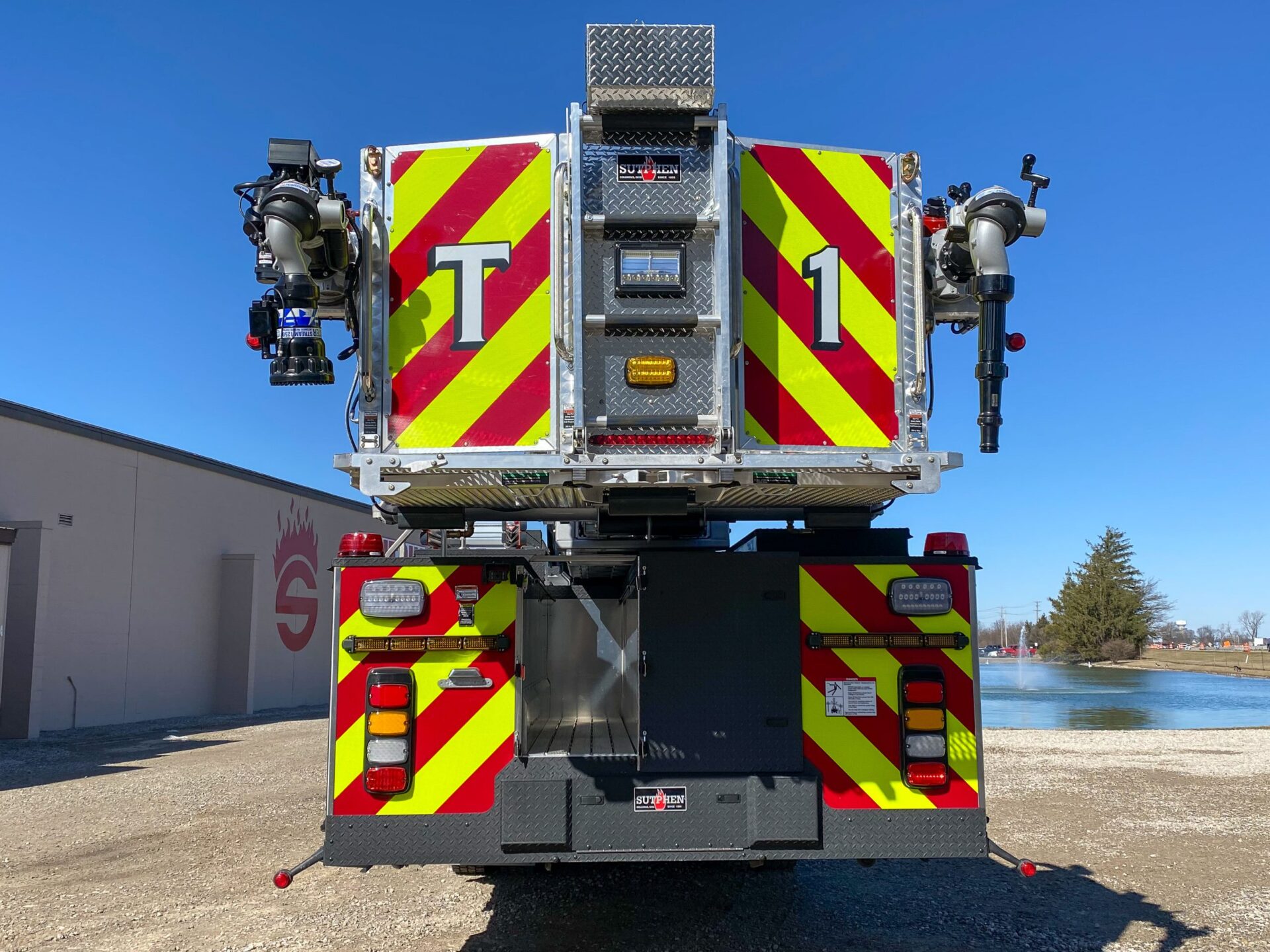

SPH 100 – Southington Fire Department, CT

Location:
Southington, CT
Department:
Southington Fire Department

Specs

Cab
Four-door, five-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
24,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 15, 600HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS4000

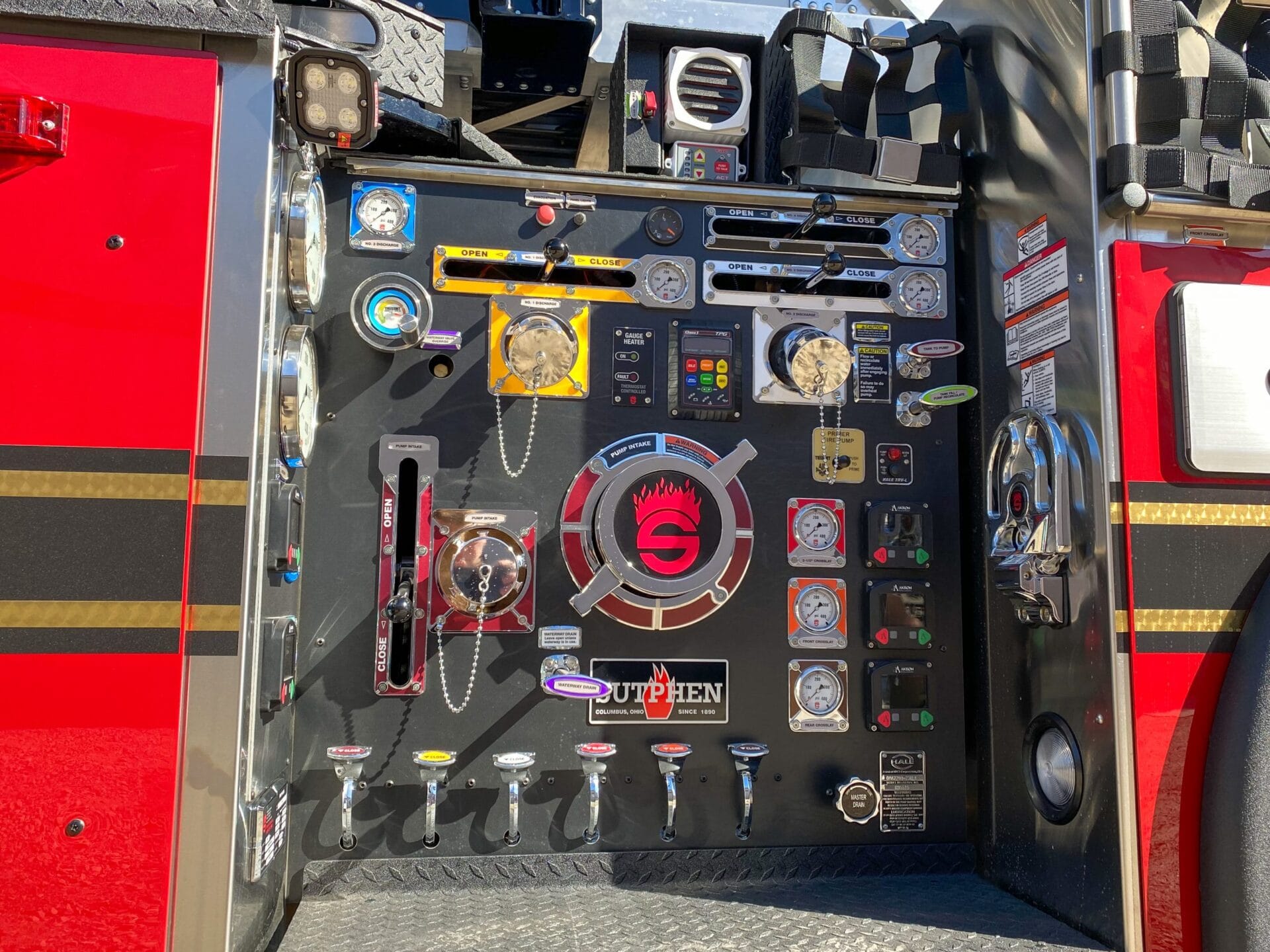

Water Pump
Qmax-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
Crosslays
(1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
Water Tank
440-gallon
Construction
Huckbolt #304 stainless steel
Doors
Mixed roll-up and hinged compartment
Total Compartment Space
Over 280 cu ft.
Duo-Safety Ladder Package
115’: 14’; 16’; 16’; 24’ 2-Section; 35’ 2-Section & 10’F
Body
SPH-3, Left 56” H / Right 48” H
Bumper Extension
18” extreme-duty steel,
Siren
Federal q2b , grille mount
Intercom System
FRC ACT 3-Station
Power
Hannay electric cord reel, 150’ (1)
Generator
Smart Power 6KW ER HYD
Camera System
Voyager 3
Whelen Freedom IV
72” lightbar
Whelen M7 Warning
Light
Whelen MINI Freedom
Iv light bar
12V FireTech 3-Piece
Brow light
12V FireTech Aerial
Spotlights
Driver Side Monitor
TFT Monsoon RC, Elec, w/ Elec VUM, (2) Panel Controllers & (1) Wireless Controller, Includes TFT Master Stream 1250 GPM Electric Nozzle
Officer Side Monitor
TFT Monsoon, Manual 2000 GPM w/ Manual VUM, Y4-MP1A
Officer Side Nozzle
TFT MST-4NJ Stacked Tips w/ XF-SS10-NN Stream Straightener
