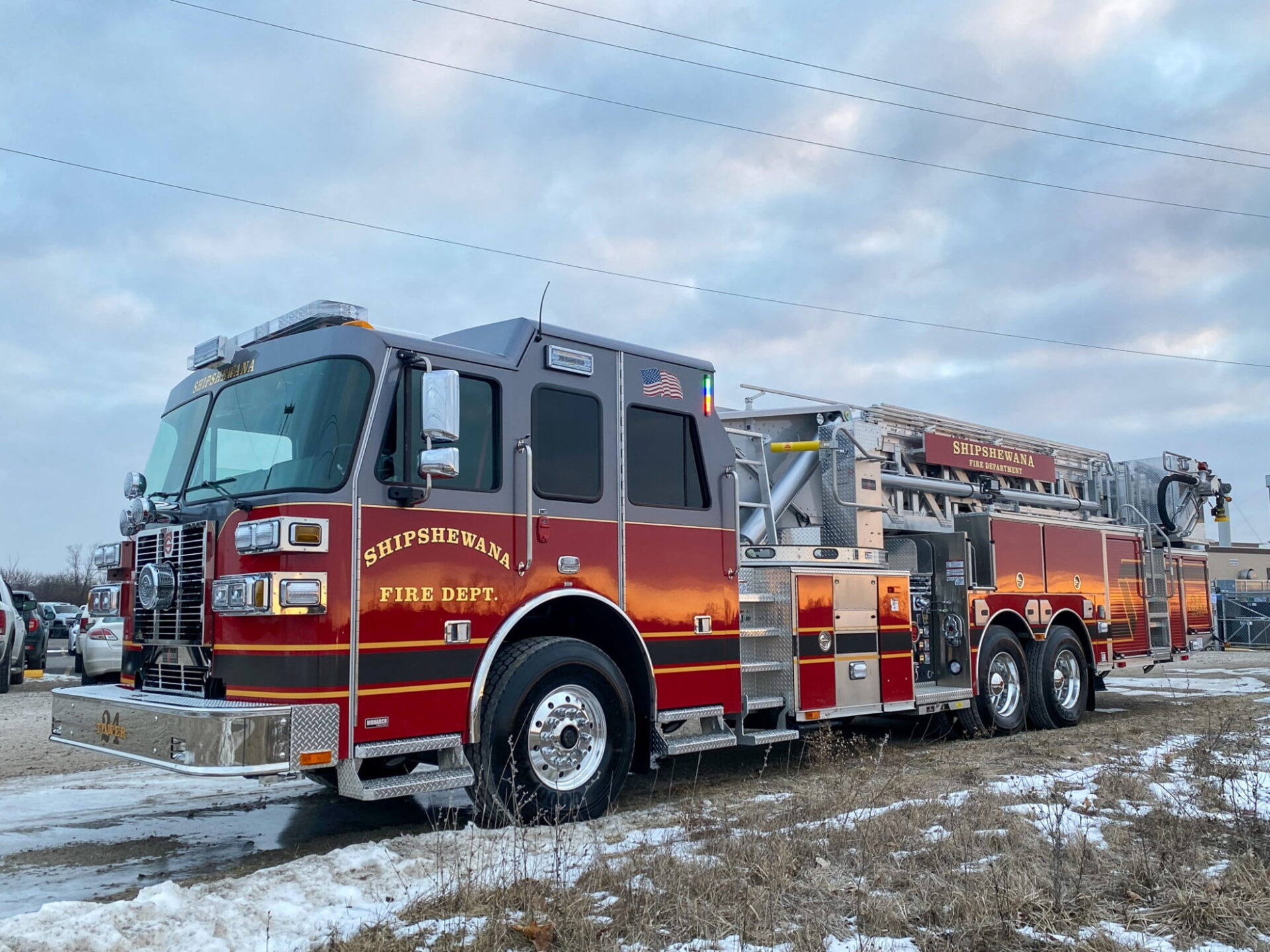

SPH 100 – Shipshewana Fire Department, IN

Location:
Shipshewana, IN
Department:
Shipshewana Fire Department

Specs

Cab
Four-door, six-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 12 500 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4000

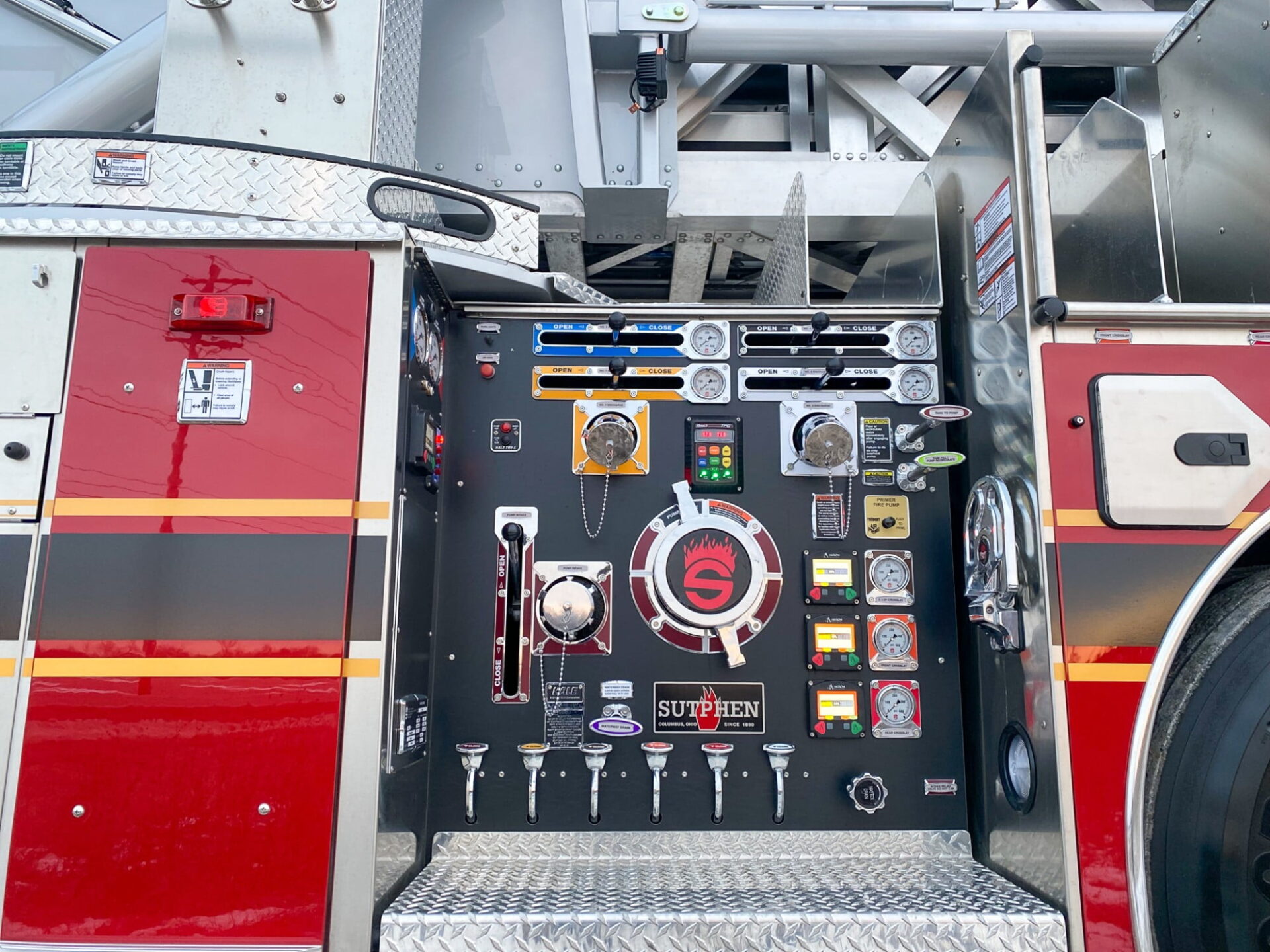

Water Pump
Qmax-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
Crosslay
(1) 2 ½” Crosslay 2 ½” Swivel and (2) 2” Crosslays 1 ½” Swivel
Water Tank
300-gallon
Construction
Huckbolted #304 stainless steel
Doors
Mixed roll-up and hinged compartment
Total Compartment Space
Over 280 cu. ft.

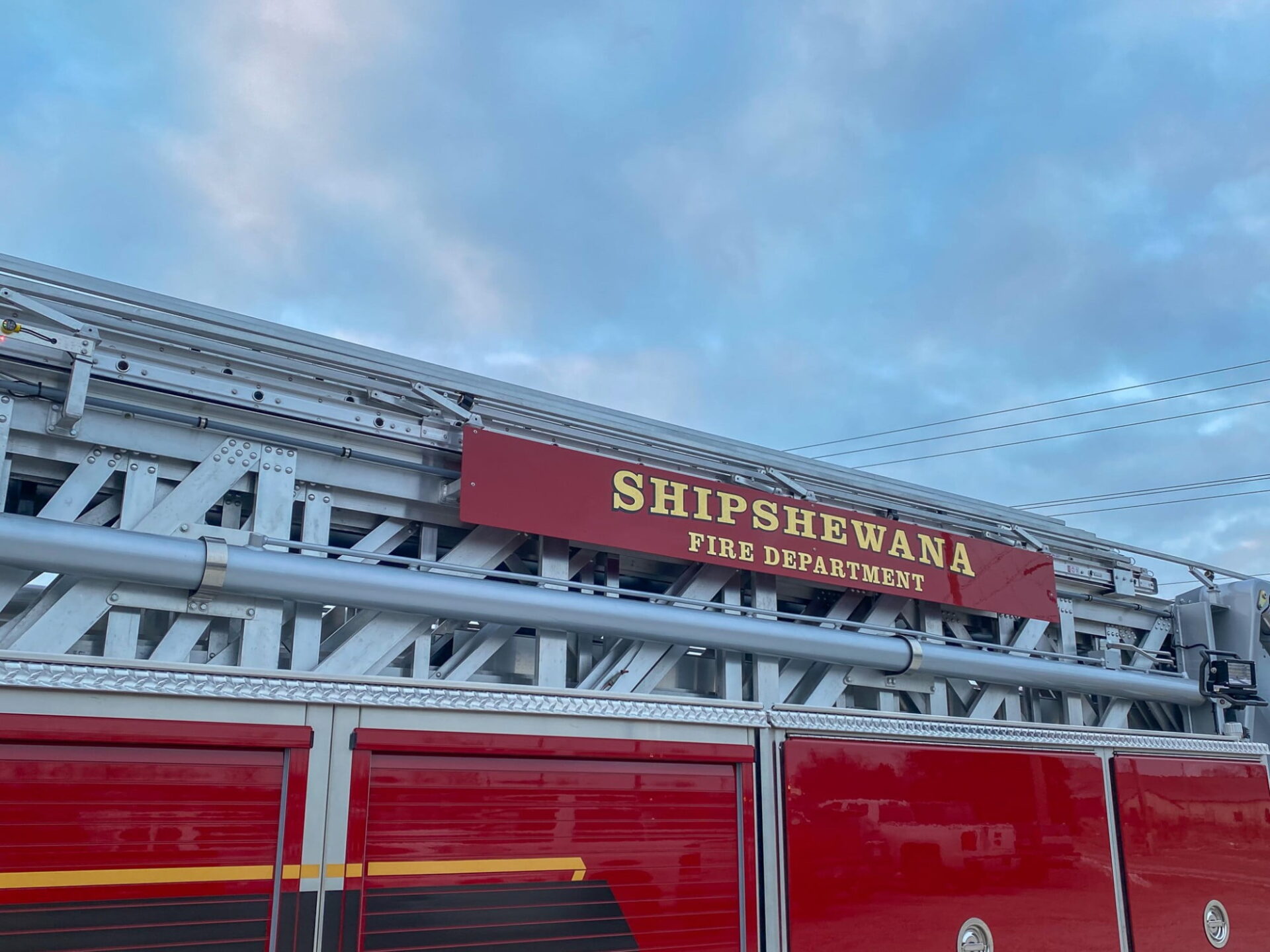

Ladder Package Alco-Lite (SPH)
(1) 35’ 2-sec, (1) 24’ 2-Sec, (2) 16’ Roof, (1) 14’ Combo, (1) 10’ F
Body
SPH-3, Left 56” H / Right 56” H
Bumper Extension
12” polished stainless steel bumper
Siren
Federal q2b , grille mount
Power
Hannay electric cord reel, 150’ (1)
Generator
10KW Smart Power
Intercom System
FRC ACT 2-Station
Stowable Handrail
Included
Whelen Freedom IV
72” led light bar
12V Spectra Brow
Light
12V FireTech Spotlights
Included
12V Whelen 600
Scene light
240V FR Spectra
Scene light
Driver Side Monitor
Akron 3483 Stream Master2, Manual 1250 GPM
Officer Side Monitor
Akron 3483 Stream Master2, Manual 1250 GPM
Driver Side Nozzle
Akron 5160 Auto
Officer Side Nozzle
Akron 2499 & 3488 Pipe
