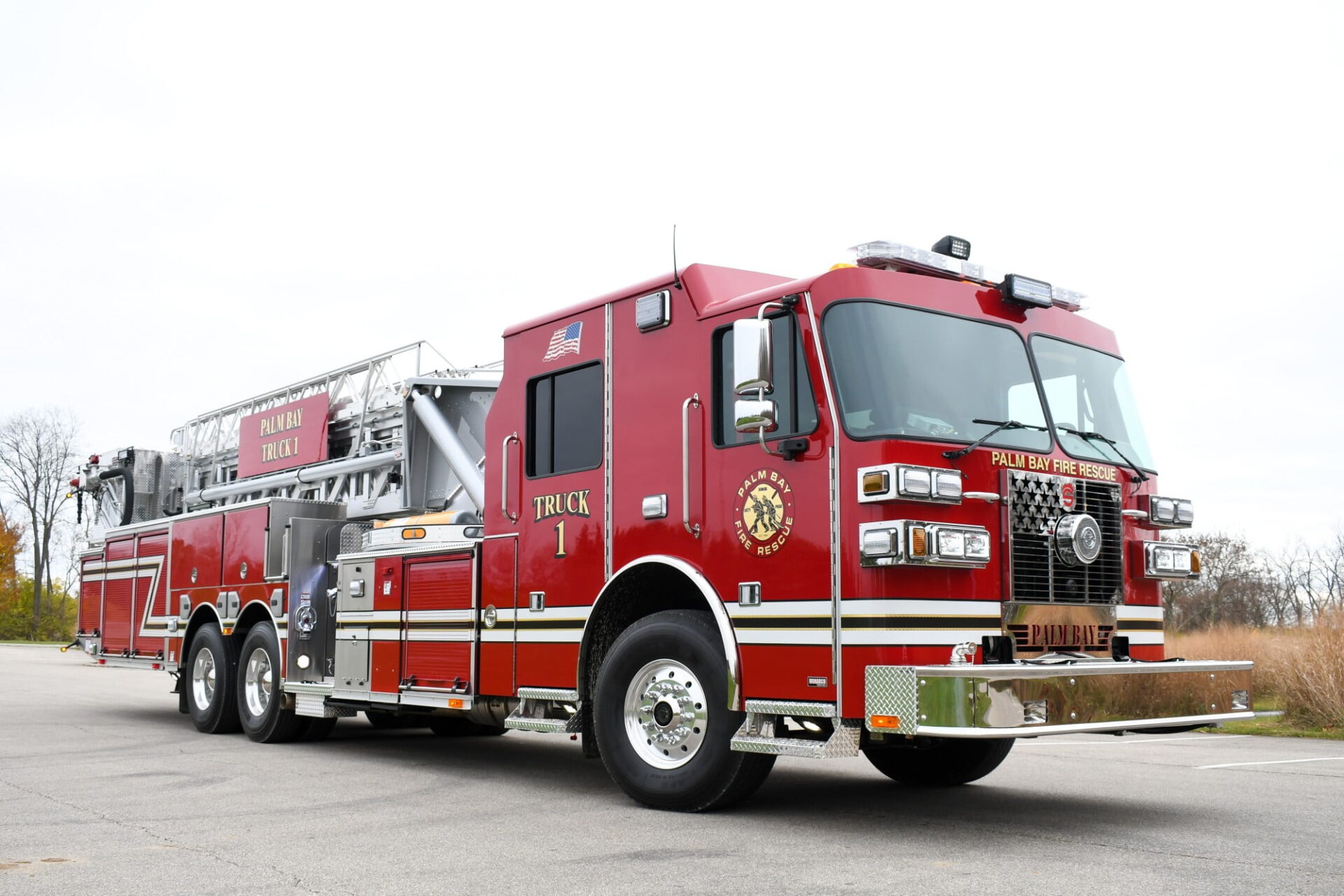

SPH 100 – Palm Bay Fire Rescue, FL

Location:
City of Palm Bay, FL
Department:
Palm Bay Fire Rescue

Specs

Cab
Four-door, seven-person
10” Double Domex
Frame rails, tandem axle - aerial (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 12 500HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS4000

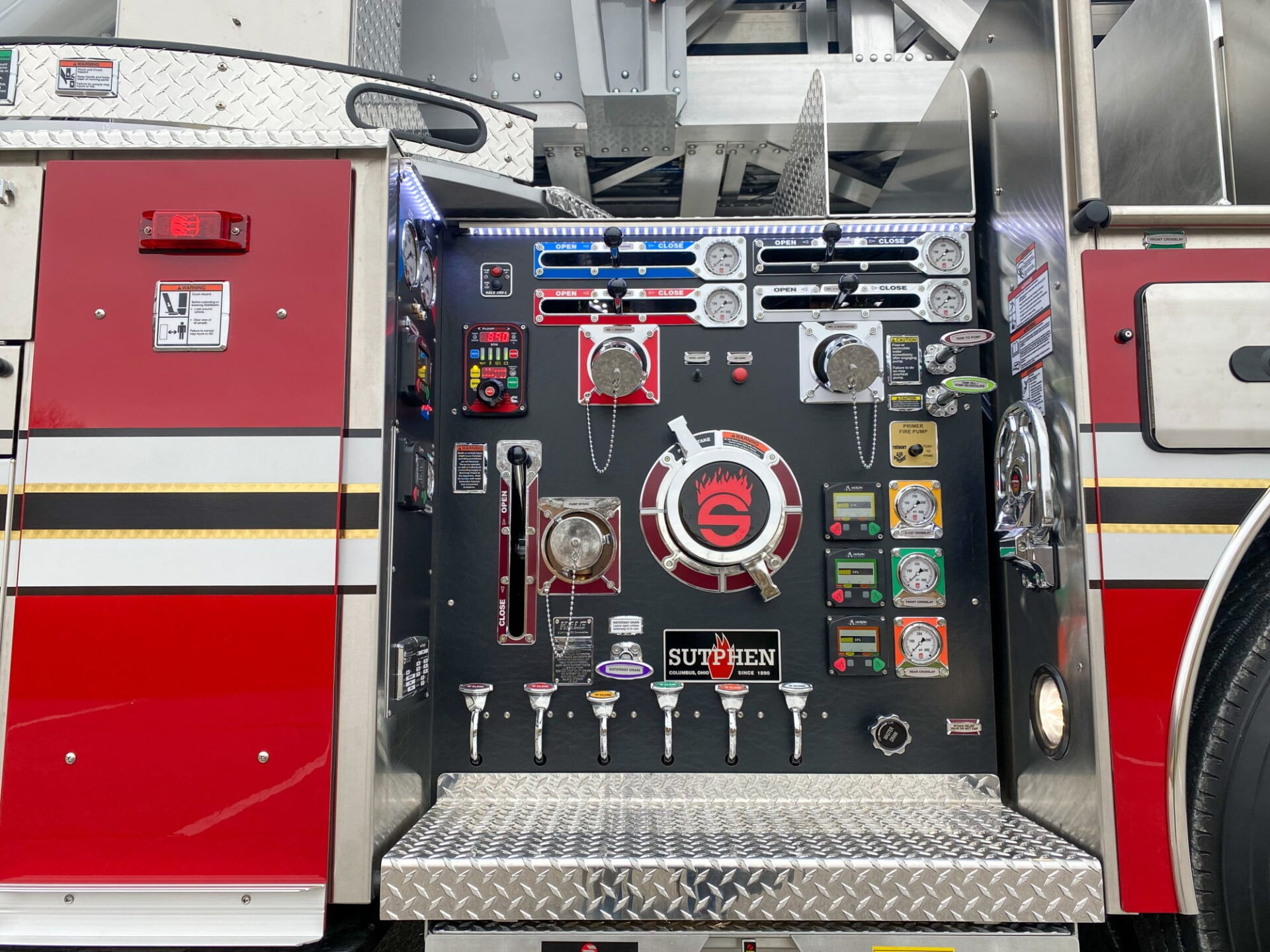

Water Pump
Qmax-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
Crosslay
(1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
Water Tank
300-gallon
Construction
Huckbolted #304 stainless steel
Doors
Sph mixed roll up and hinged compartment
Alco-Lite Ladder Package – 115’
14’, 16’, 16’, 24’ 2 Section, 35’ 2 Section, & 10’ Folding
Body
SPH-3, LEFT 56" H / RIGHT 56" H
Bumper Extension
18” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
Brigade 360 Camera Aerial
Intercom System
FRC ACT 2-Station
Power
Hannay electric cord reel, 150’ (1)
Generator
Smart Power 6KW
Whelen Freedom IV
72” led lightbar
Whelen TAL85 Traffic
Advisor
Whelen PCPSM1 120V
Scene light
Whelen 900 12V
Scene light
Whelen PFH2 12V
Led brow
Whelen PFP2 120V
Tele
Driver Side Monitor
Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
Officer Side Monitor
Akron 3473 Gemini Manual 1000 GPM
Officer Side Nozzle
Akron 5160 Auto
