SPH 100 – New Bern Fire Department, NC

Location:
New Bern, NC
Department:
New Bern Fire Department

Specs

Cab
Four-door, six-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 12, 500 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS 4000

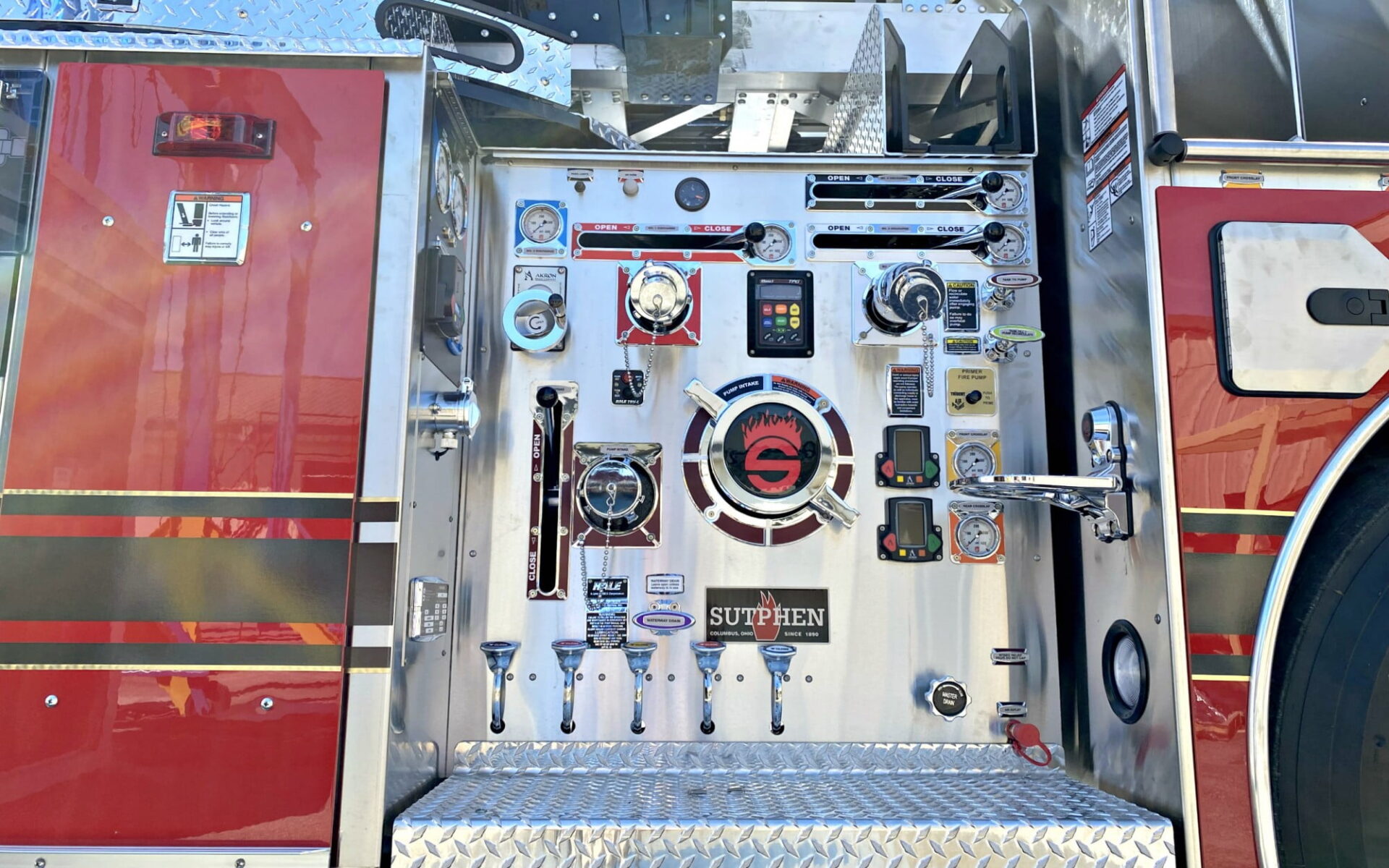

Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
Crosslays
(2) 2” Valve-Piping 1 ½” Swivel
Water Tank
300-gallon
Construction
Huck bolted #304 stainless steel
Doors
Hinged compartment
Total Compartment Space
Over 280 cu. ft.
Duo-Safety Ladder Package (115’
14’ Combo, 16’ Roof Double Hooks, 16’ Roof Double Hooks, 24’ 2-Section, 35’ 2-Section & 10’ Folding)
Body
SPH-3, Left 56” H / Right 56” H
Bumper Extension
12” polished stainless steel
Camera System, Brigade
Two camera
Siren
Federal q2b , grille mount
Power
Hannay electric cord reel, 150’ (1)
Generator
Onan, 6KW HYD
Whelen Freedom IV
72” led lightbar
Whelen PCH2 12V
Brow
Whelen M6 Red
Led
Whelen Rota-Beam Beacon
Included
FR Spectra 240V
Tele
Driver Side
Akron 3483 Stream Master2, Manual 1250 GPM
Officer Side
Akron 3483 Stream Master2, Manual 1250 GPM
