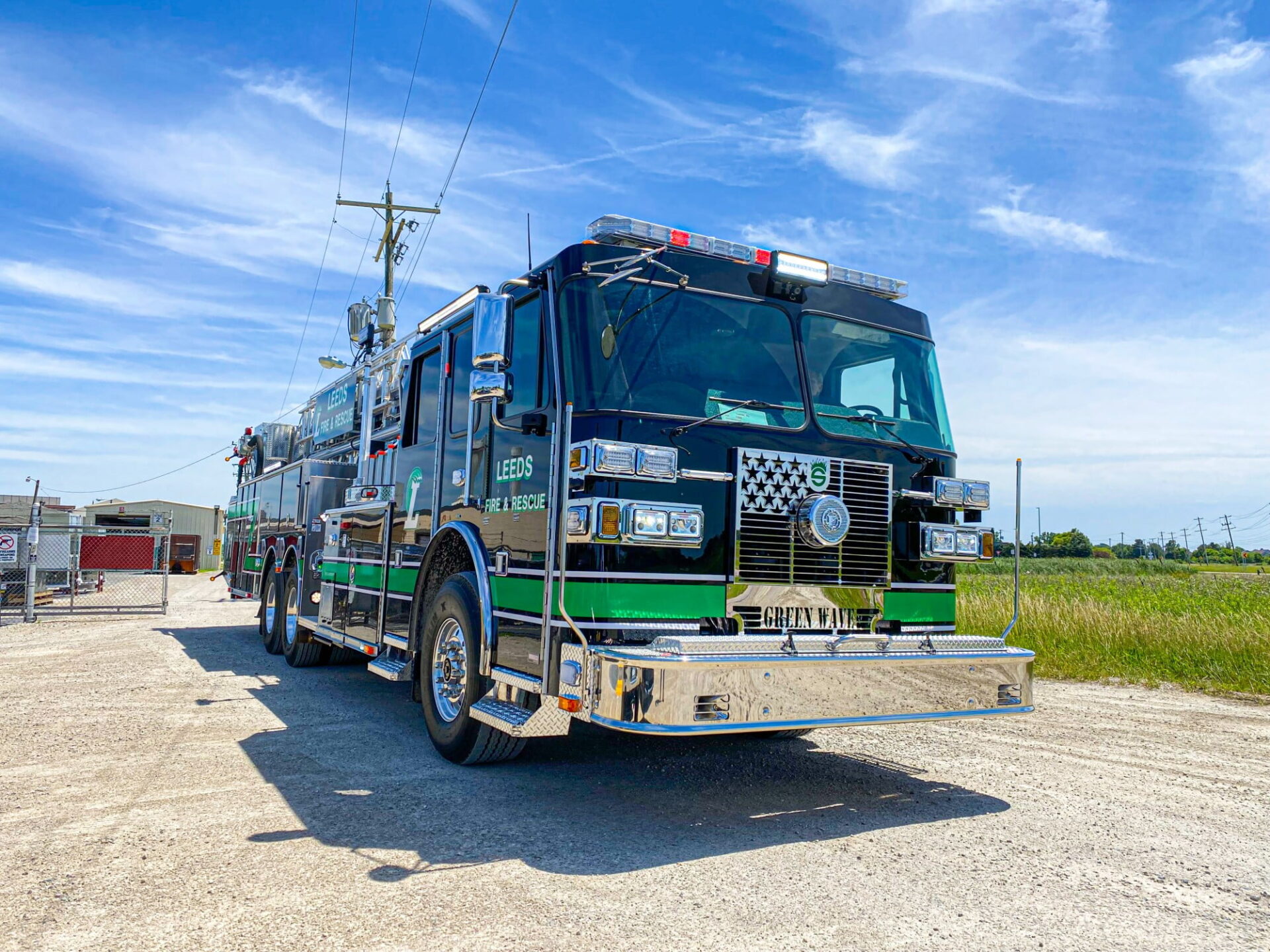

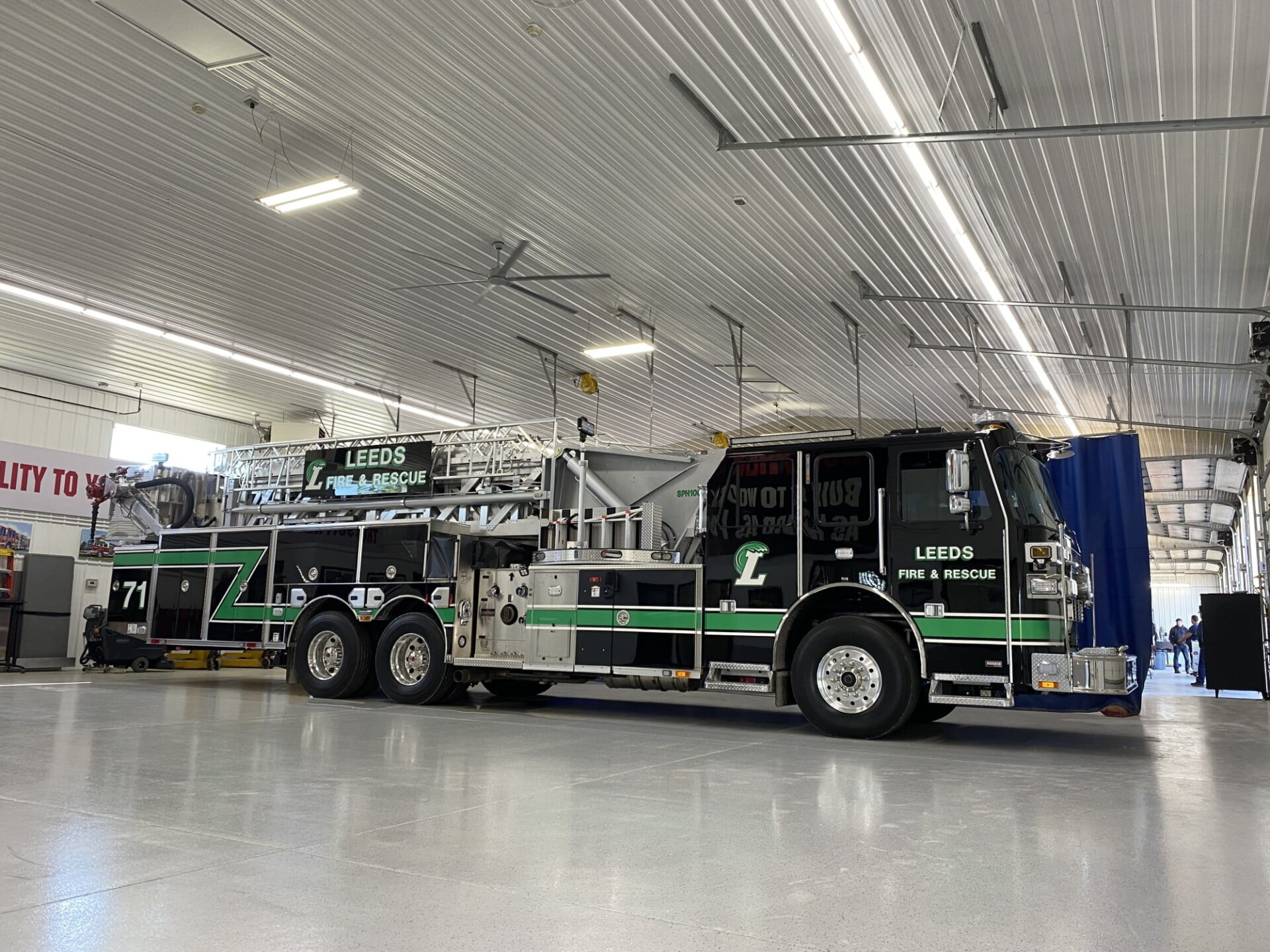

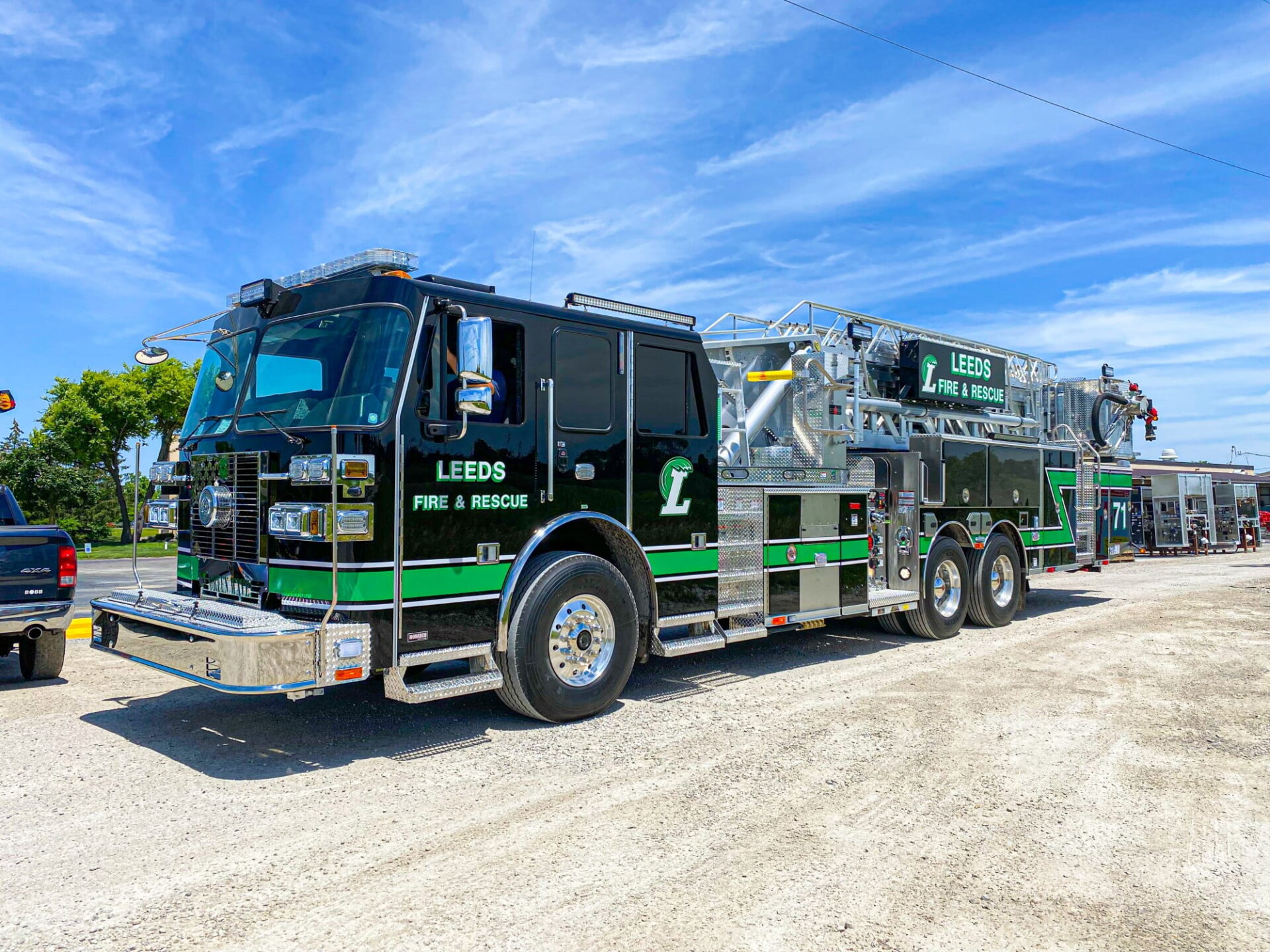

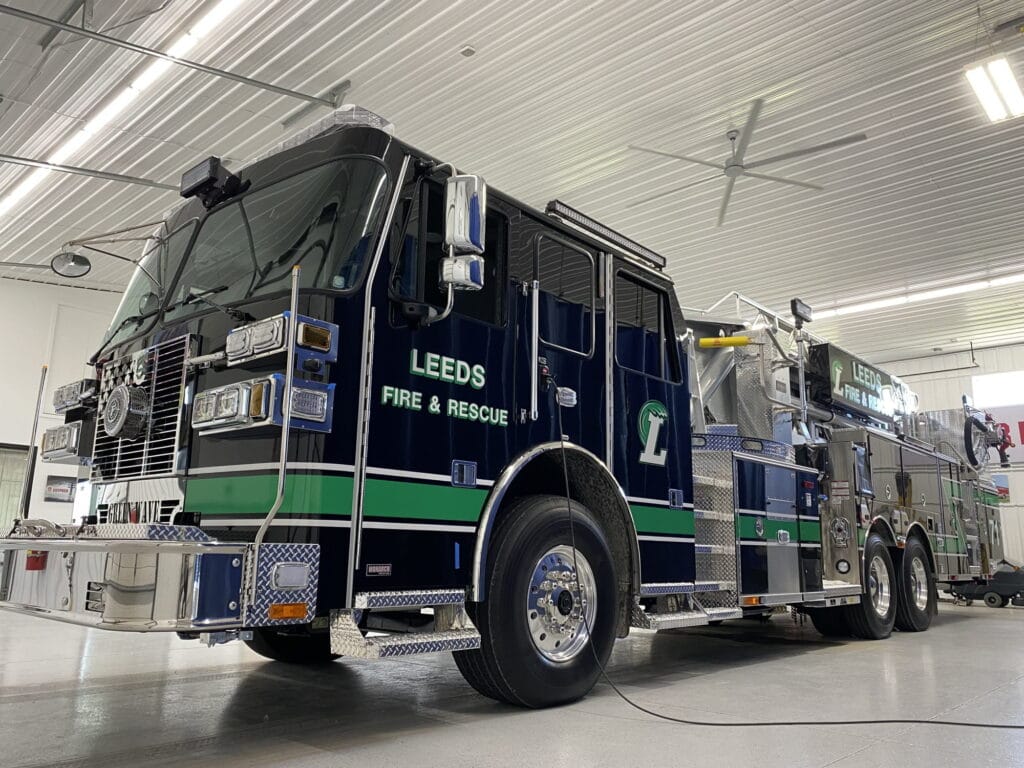

SPH 100 – Leeds Fire Department, AL

Specs

Cab
Four-door, four-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 15 600HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4500R w/ Retarder
Water Pump
Qmax-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) ½” Front Bumper
Crosslays
(1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
Water Tank
300-gallon
Water Tank
20-gallon foam tank
Foam System
Hale Smartfoam 2.1A
Construction
Huckbolted #304 stainless steel
Doors
Hinged compartment
Total Compartment Space
Over 283 cu ft.
Alco-Lite Ladder Package
14’, 16’, 16’, 24’ 2-Section, 35’ 2-Section, 10’ F, 16’ R
Body
SPH-3, LEFT 56" H / RIGHT 56" H
Bumper Extension
18” polished stainless steel,
Siren
Federal q2b , grille mount
Camera System
Pro Vision 360
Intercom System
FRC ACT 2-Station
Power
Hannay electric cord reel, 150’ (1)
Generator
Smart Power, 10KW ER HYD
Whelen Freedom IV
81” lightbar
FRC Spectra 12V
Brow light
FRC Spectra 240V
Tele light
FireTech Aerial Spotlights
Included
FireTech 12V Scene
Light
FireTech 12V Work
Lights
Driver Side Monitor
Akron 3482 Stream Master2, Manual 1250 GPM w/ Akron 5177 Electric Nozzle
Officer Side Monitor
Akron 3483 Stream Master2, Manual 1250 GPM
Driver Side Nozzle
Akron #3488 Streamshaper w/ #2499 Stacked Tips
Officer Side Nozzle
Akron 2499 & 3488 Pipe
