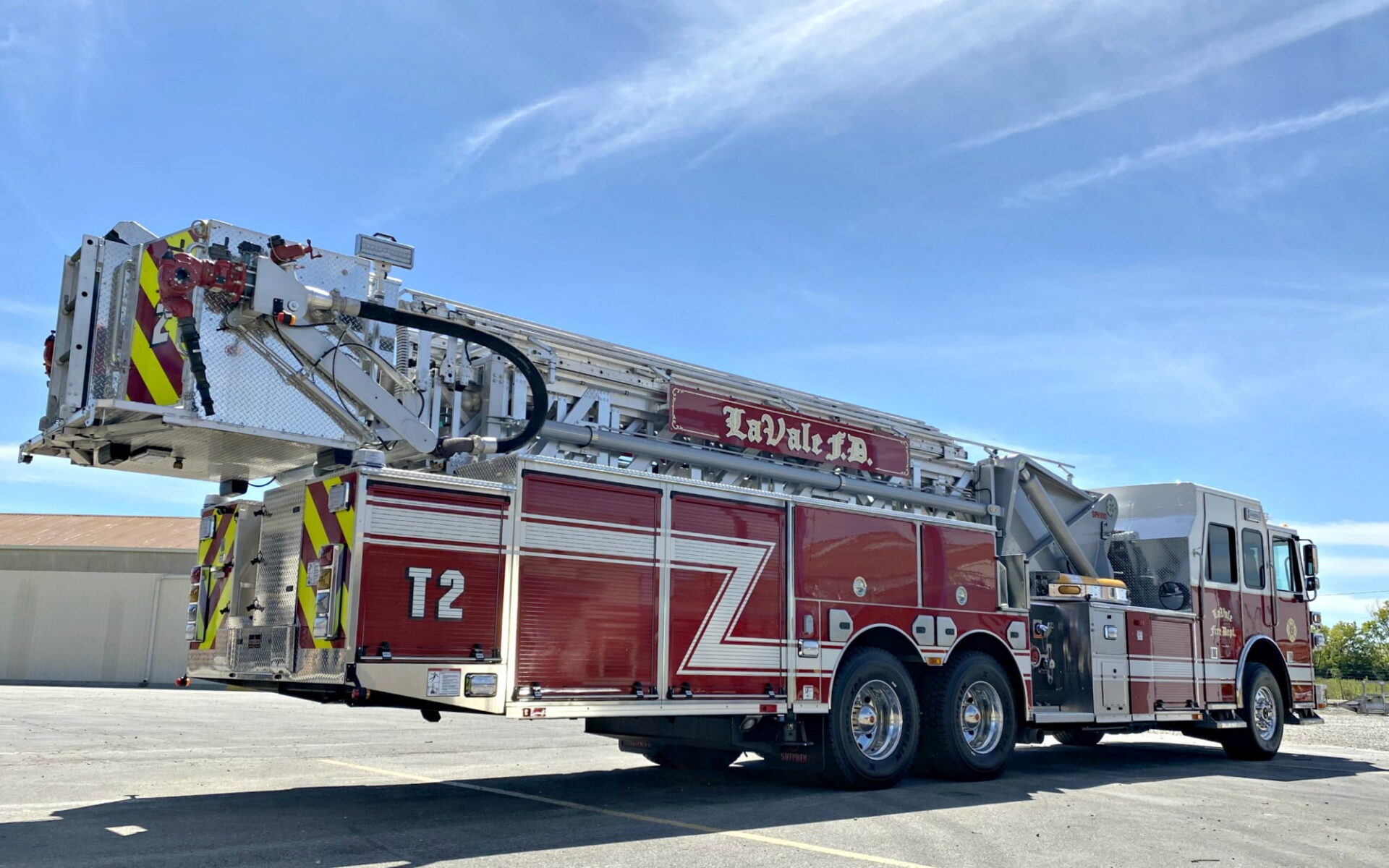

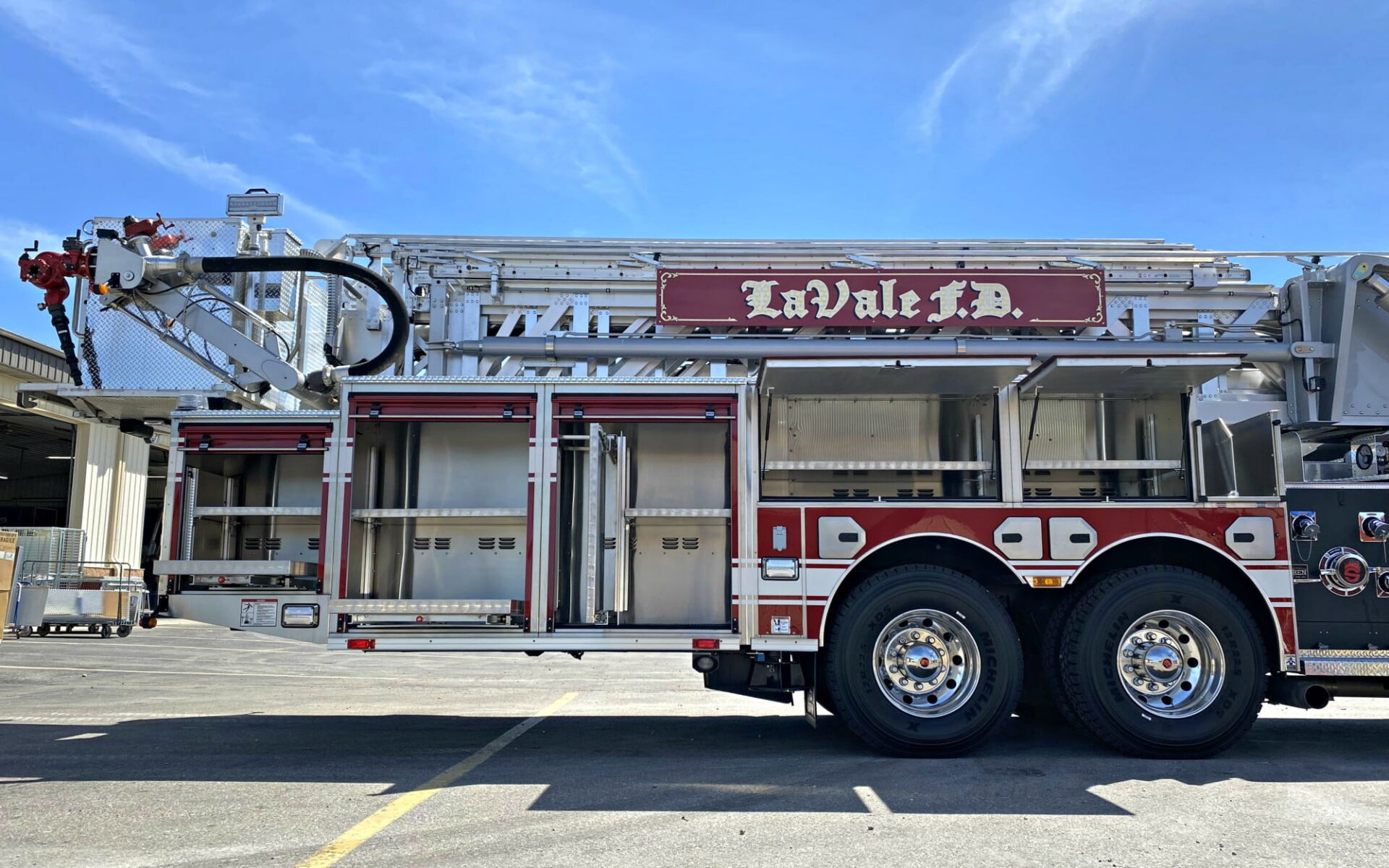

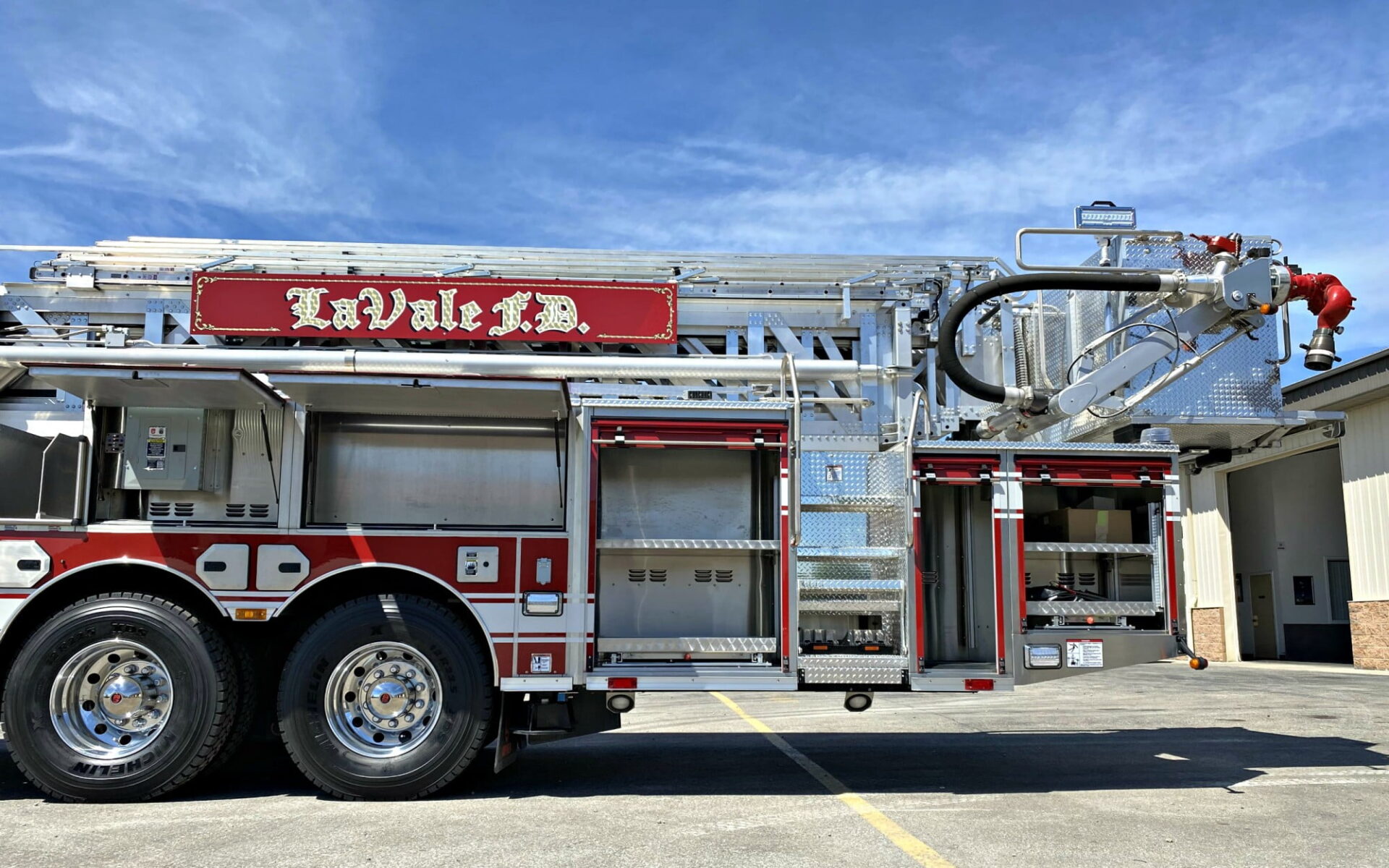

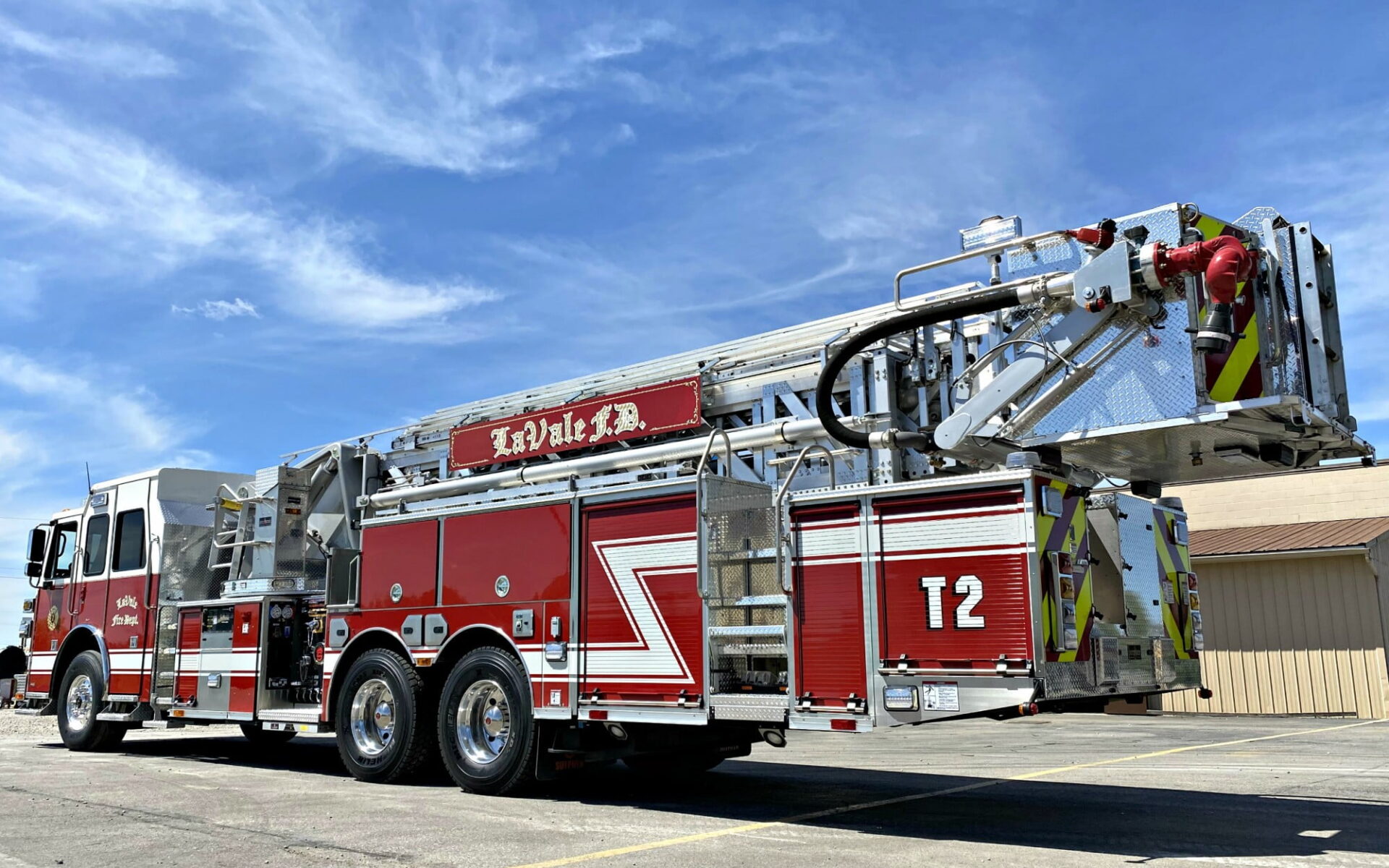

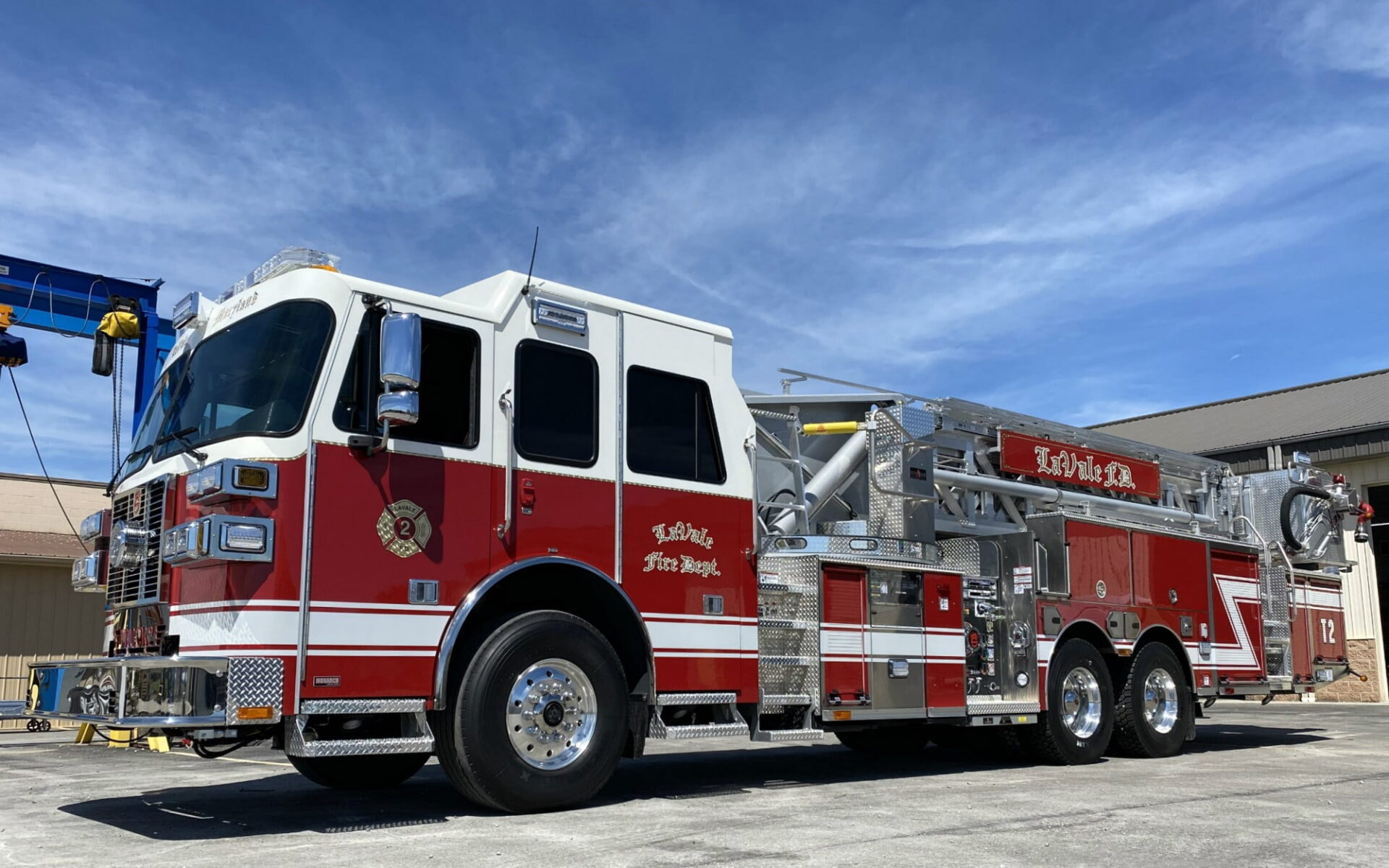

SPH 100 – LaVale Fire Department, Maryland

Location:
LaVale, Maryland
Department:
LaVale Fire Department

Specs

Cab
Four-door, six-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 12, 500 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS 4000

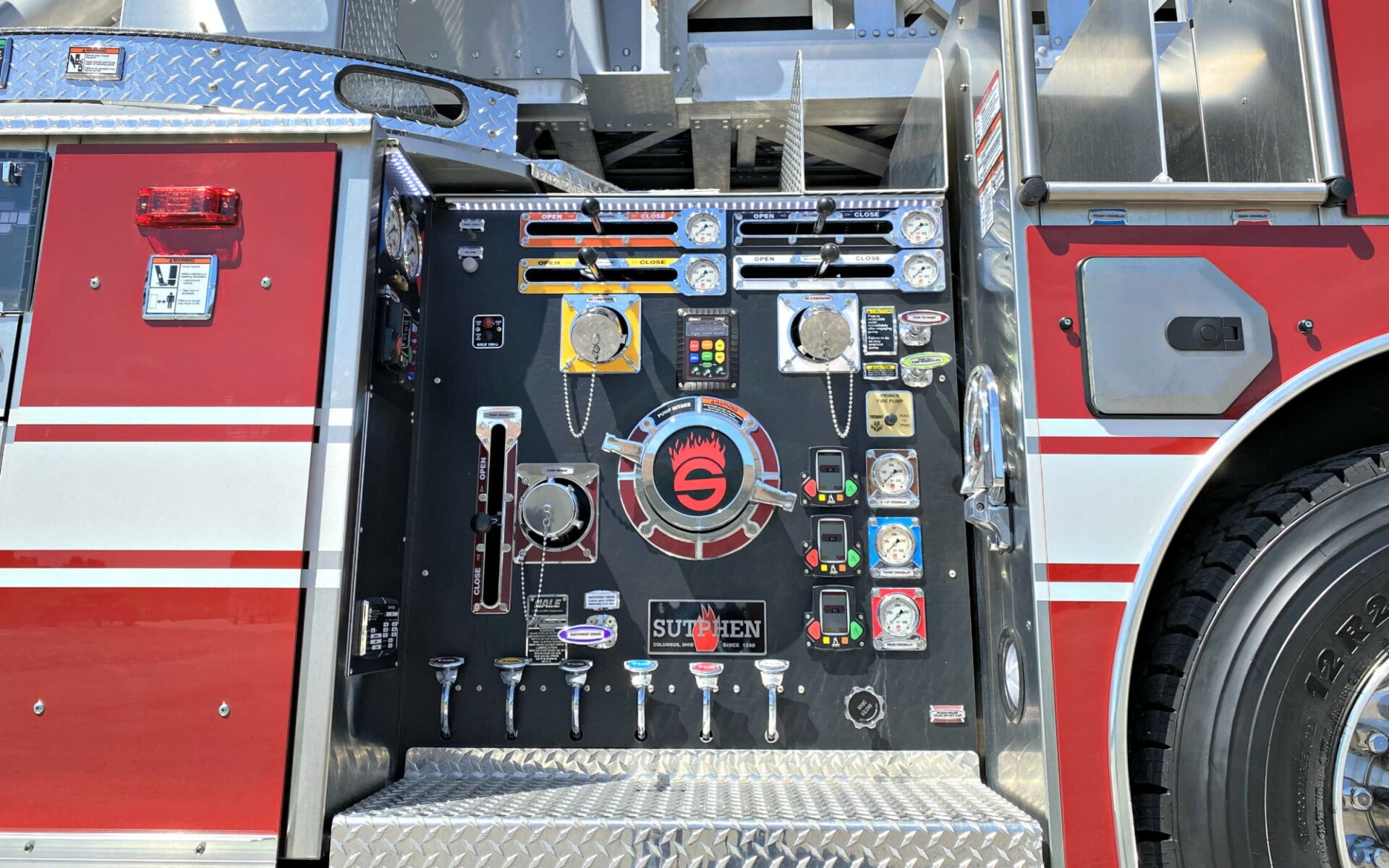

Water Pump
Qmax-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
Crosslays
(1) 2 ½” w/ 2 ½” Swivel, (2) 2” w. 1 ½” Swivel
Water Tank
300-gallon
Construction
Huck bolted #304 stainless steel
Doors
Amdor roll-up compartment
Total Compartment Space
Over 280 cu. ft.
Alco-Lite (115’
14’, 16’, 16’, 24’ 2-Section, 35’ 2-Section & 10’ Folding)
Body
SPH-3, Left 56” H / Right 56” H
Bumper Extension
12” polished stainless steel
Camera System, Inview
Trueview, frc
Siren
Federal q2b , grille mount
Power
Hannay electric cord reel, 150’ (1)
HAAS HA-5 Safety
Alerting system
Generator
Smart Power 10KW
Roto-Ray Warning Light
Included
Whelen Freedom IV
72” led lightbar
FR Spectra LED
Brow
FR Spectra 12V
Scene
FR Spectra 240V
Tele
Driver Side
Akron 3483 Stream Master2, Manual 1250 GPM
Officer Side
Akron 3483 Stream Master2, Manual 1250 GPM
