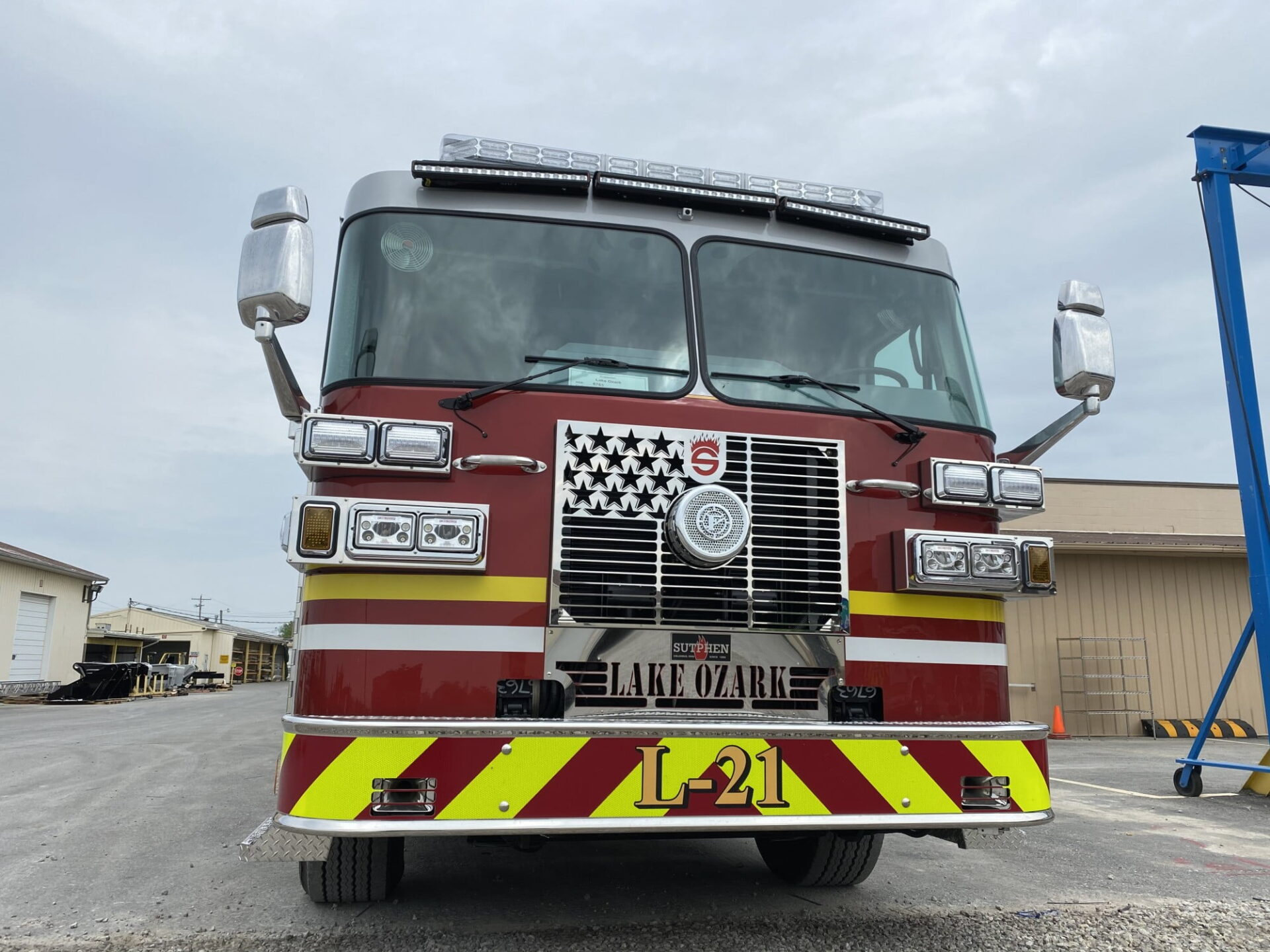

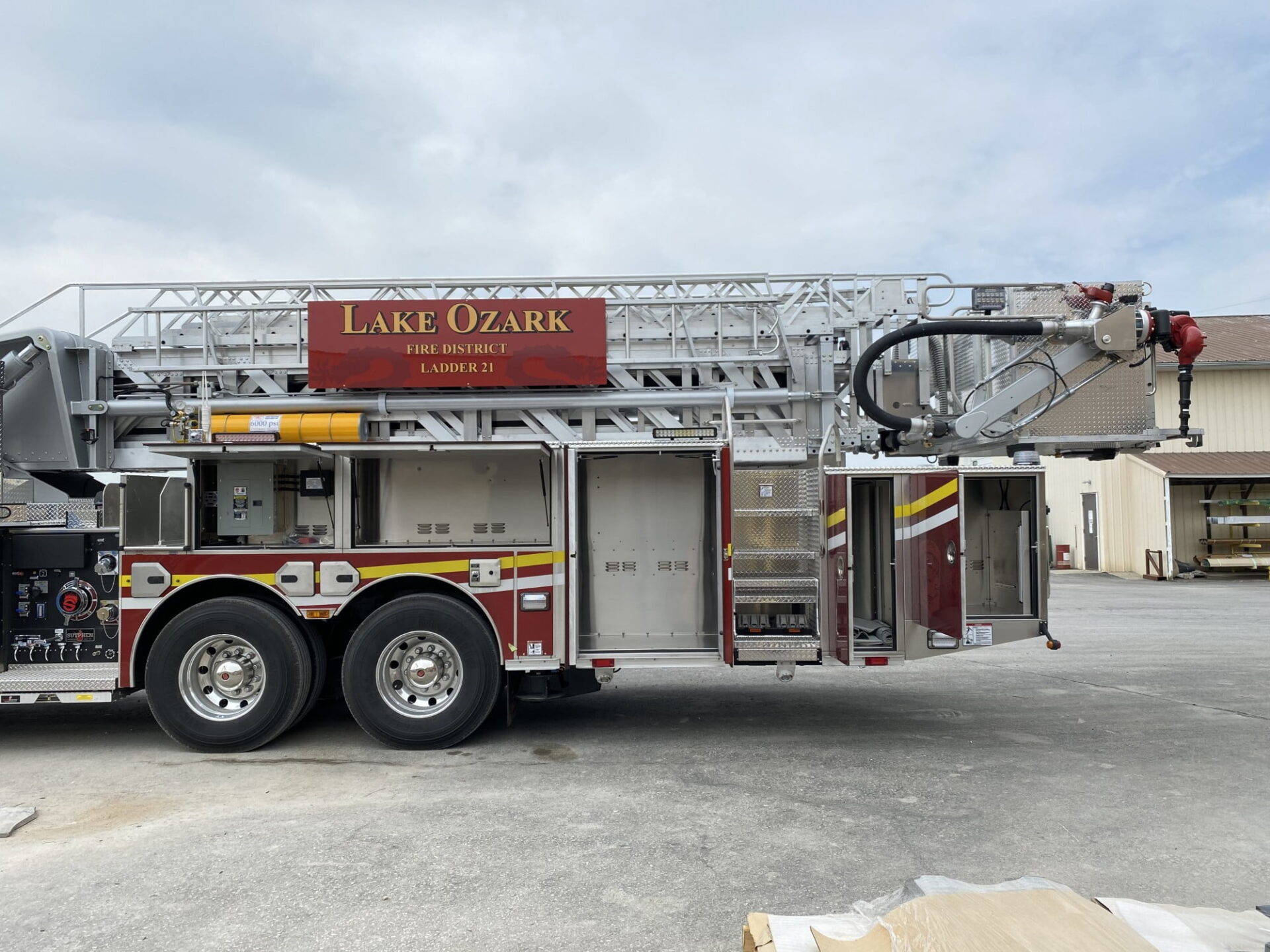

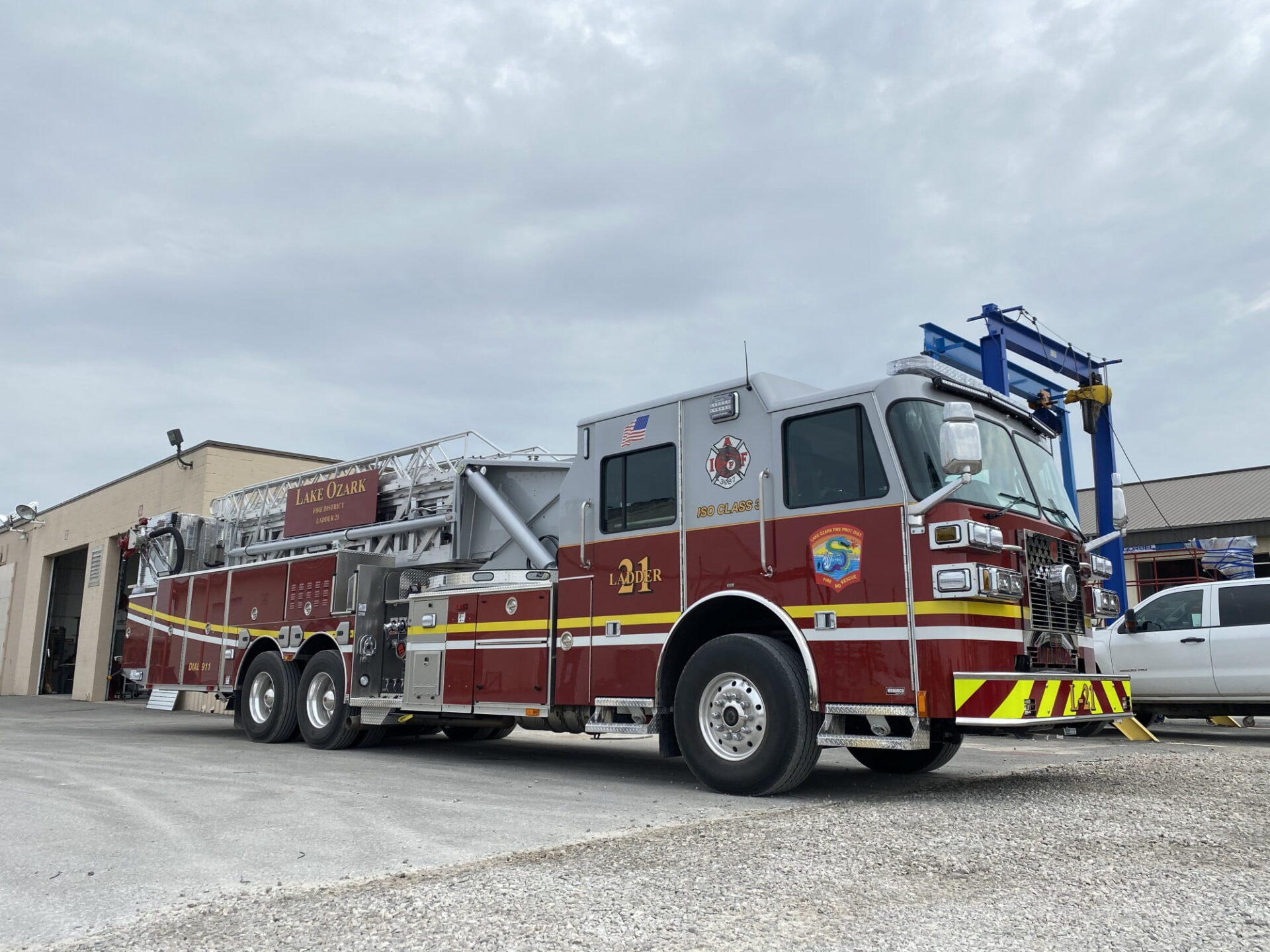

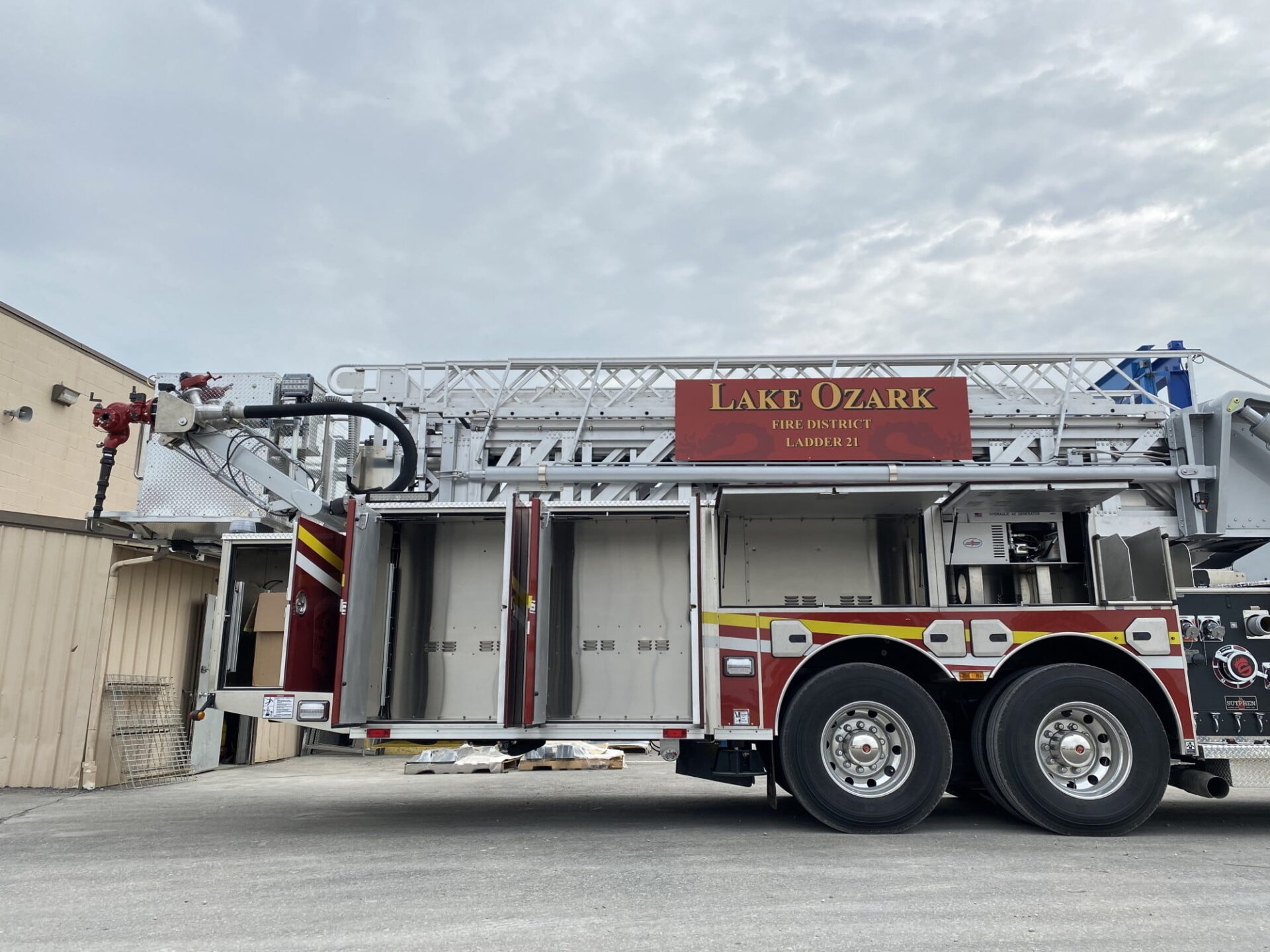

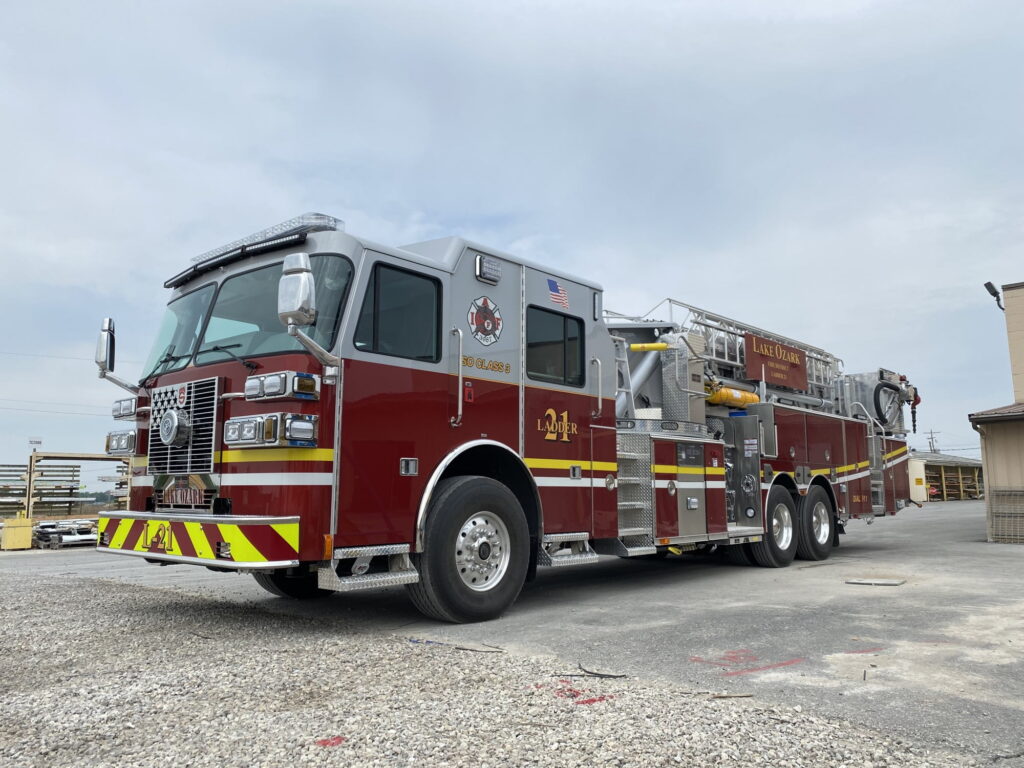

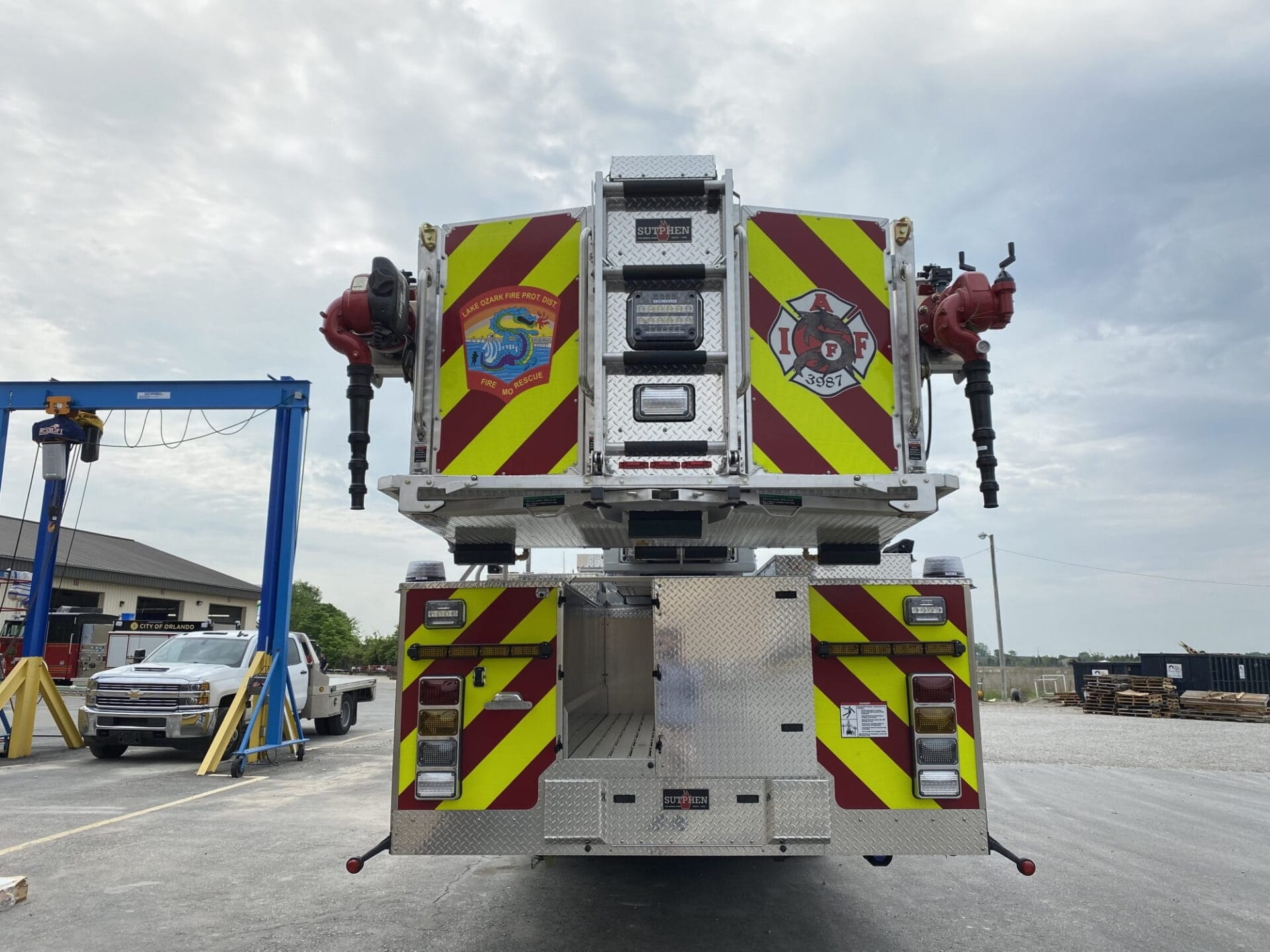

SPH 100 – Lake Ozark Fire Protection District, MO

Specs

Cab
Four-door, five-person
10” Double Domex
Frame rails, tandem axle - aerial (110k psi)
Front Axle and Suspension
24,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 15 600HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison EVS4500

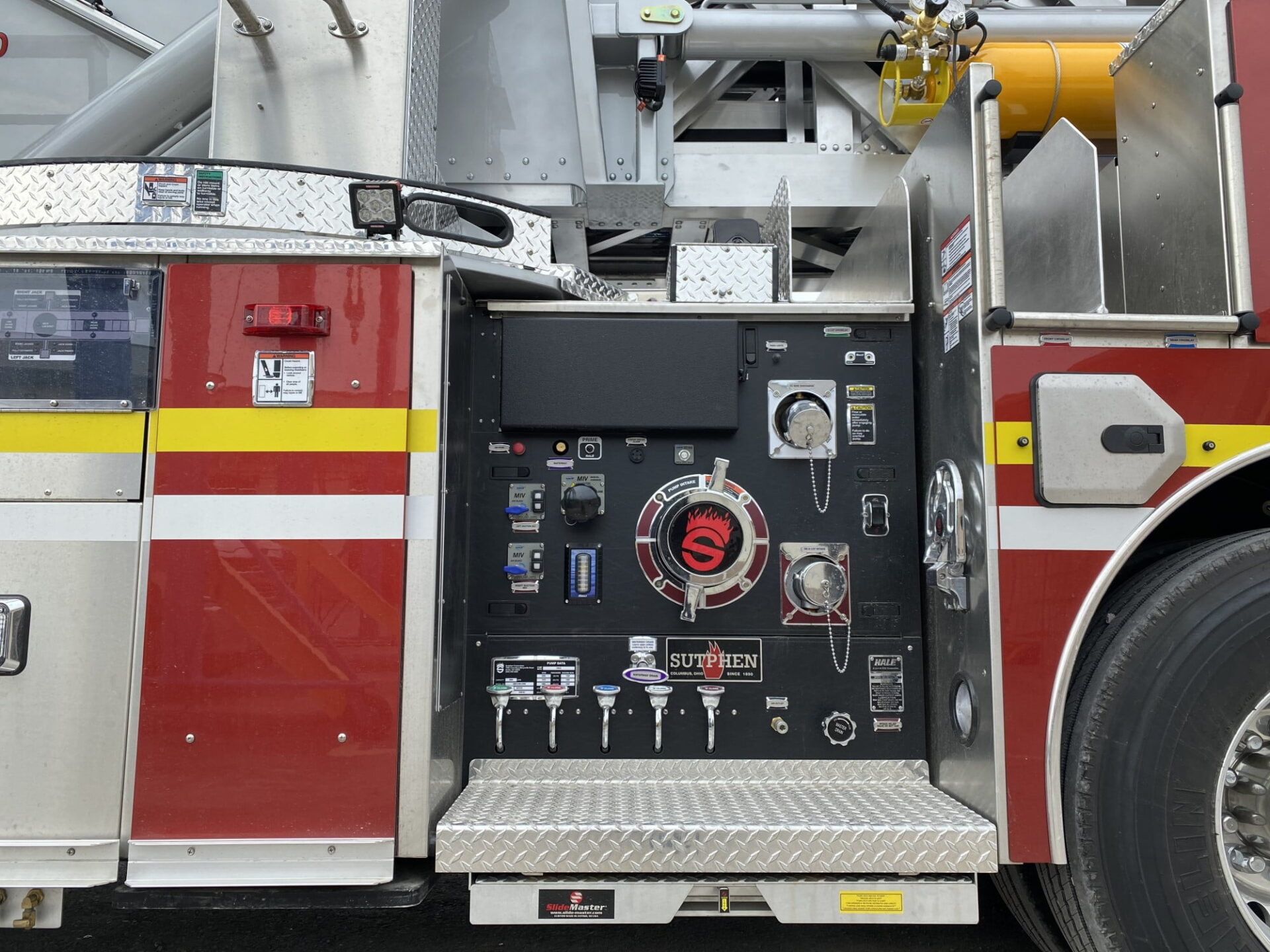

Water Pump
Qmax-2000 gpm 6” suction, single stage pump
Discharges
(1) 2 ½” Left, (1) 4” Right, (2) 2 ½” Right
Crosslay
(1) 2 ½”, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
Water Tank
400-gallon
Doors
Hinged compartment
Total Compartment Space
287 cu. ft.
Duo-Safety (Aerials)
119’ 14’, 16’, 16’, 28’-2Sec, 35’-2Sec & 10’F
Body
SPH-3, LEFT 56" H / RIGHT 56"H
Bumper Extension
6” polished stainless-steel bumper
Siren
Federal q2b , grille mount
Camera System
Brigade 360 For Multiplex
FRC ACT 2-Station
Intercom system
Whelen Freedom IV
72” led lightbars
12V Firetech Brow
W/ icc lights
Whelen 600 Warning
Lights
Firetech LED Aerial
Spotlights
Firetech Guardian Elite
120v tele
Guardian Elite Scene
Light
Power
Smart 10kw generator
Officer Side Monitor
Akron 3483 Stream Master 2, Manual 1250 GPM
Driver Side Monitor
Akron 3482 Stream Master2, Manual, 1250 GPM
