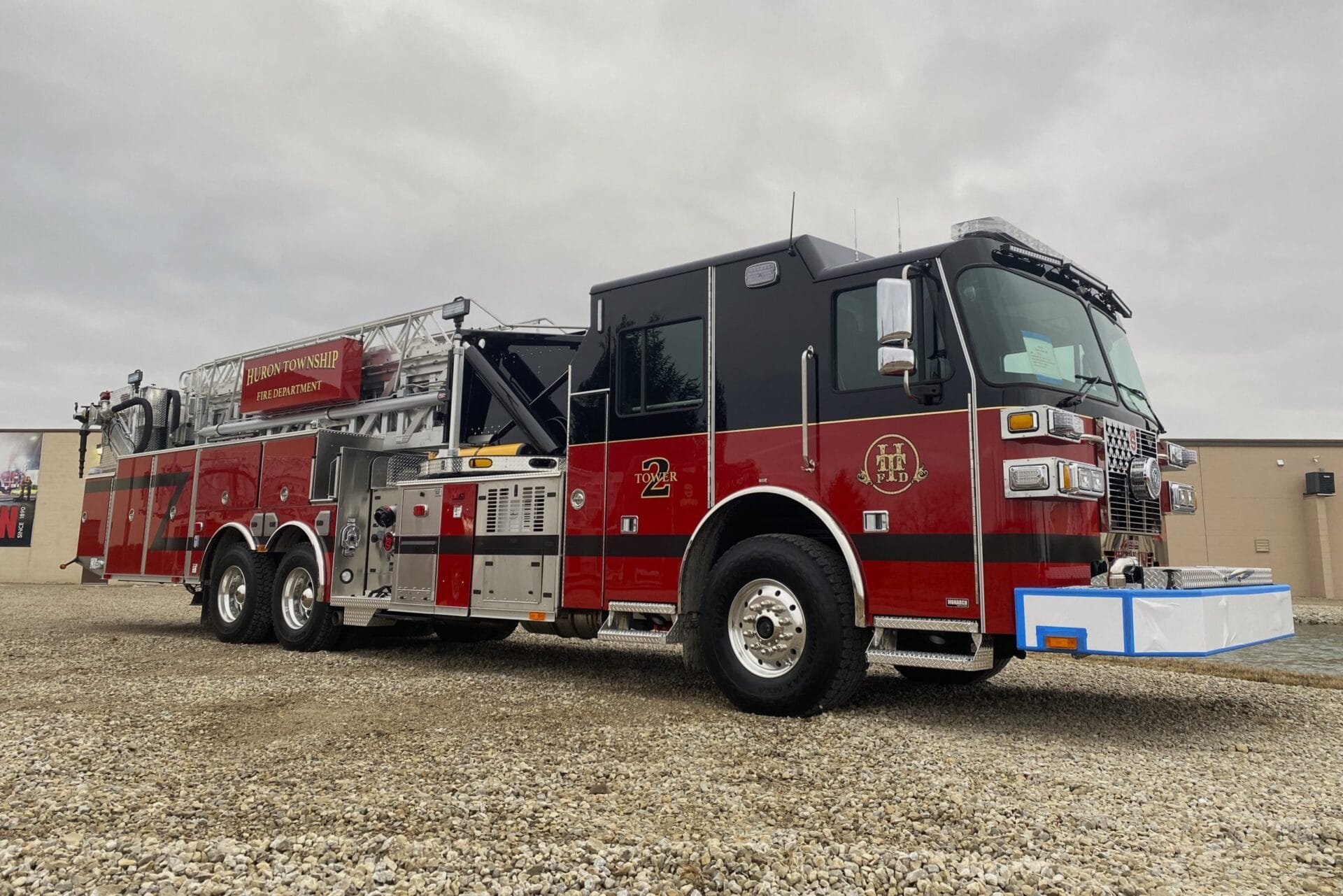

SPH 100 – Huron Charter Township Fire Department, MI

Specs

Cab
Four-door, four-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs w/ (4) 56” leafs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 12, 500 HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front Bumper
Crosslays
(1) 2 ½”, 2 ½” Swivel & (2) 2” w/ 1 ½” Swivels
Water Tank
300-gallon
Water Tank
20-gallon foam tank
Construction
Huckbolt #304 stainless steel
Doors
Hinged compartment
Total Compartment Space
Over 280 cu ft.
Alco-Lite Ladder Package
115’ 14’, 16’, 16’, 24’ 2-Section, 35’ 3-Section & 10’ Folding
Body
SPH-3, Left 56” H / Right 56” H
Bumper Extension
24” formed steel bumper
Camera System
Brigade, Backeye 360 (Wired)
Intercom System
FRC ACT 2-Station
Generator
Smart Power, 8KW
Siren
Federal q2b, grille mount
FireTech 3-Piece 12V
Brow
Whelen Freedom IV
72” light bar
FireTech Lightbar 12V
Scene
240V FRC Spectra
Scene light
240V FRC Spectra
Tele light
DS
TFT Monsoon RC, Elec, w/ Elec Vum, (2) Panel Controllers & (1) Wireless Controller, Includes TFT Master Stream 1250 GPM Elec Nozzle
OS
TFT Monsoon, Manual 1250 GPM w/ Manual Vum
OS Nozzle
TFT MST-4NJ Stacked Tips w/ XF-SS10 Stream Straightener
