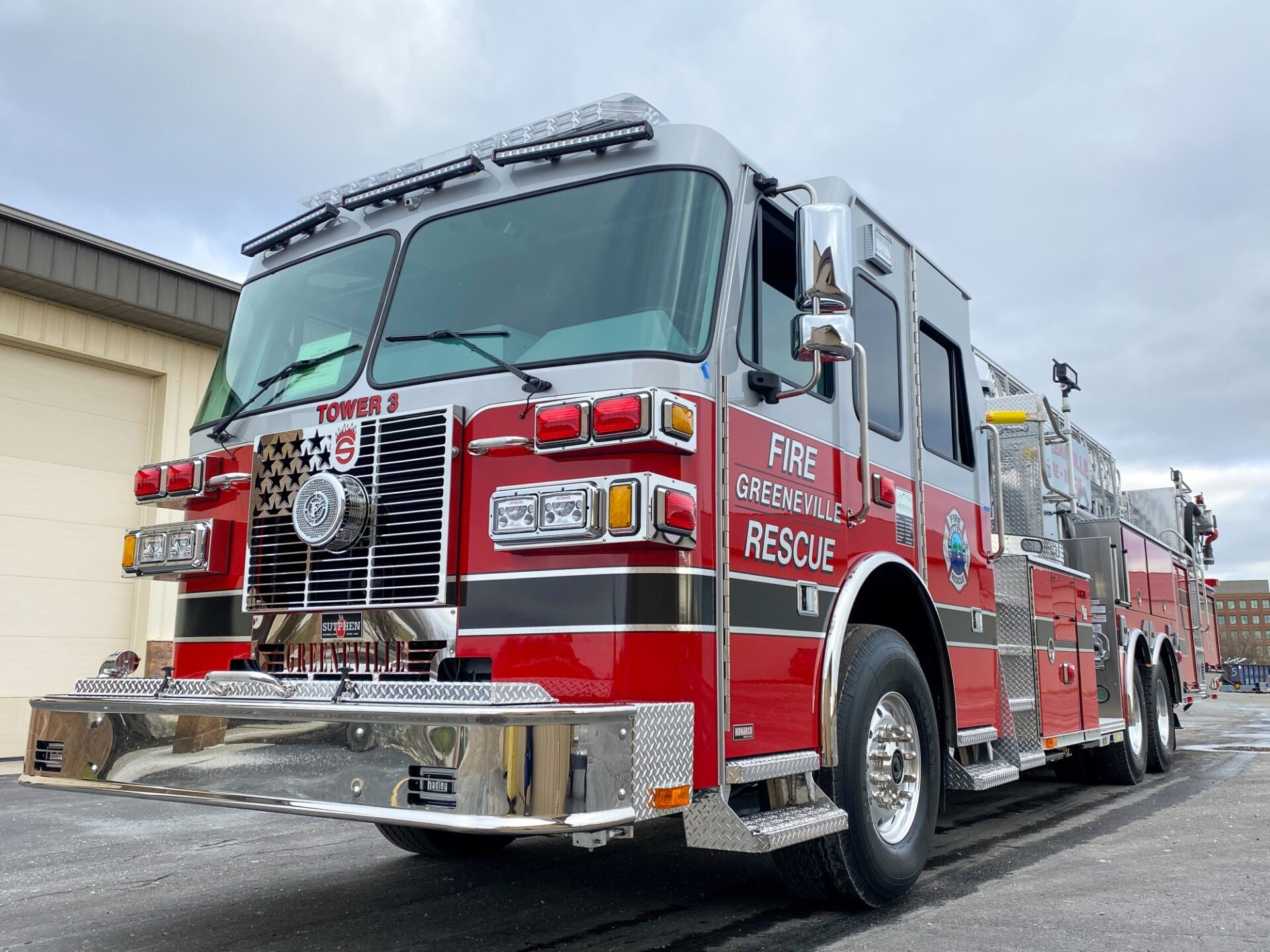

SPH 100 – Greeneville Fire Department, TN

Truck Type:
SPH 100 Aerial Platform
Dealer:
Sutphen
Location:
Greeneville Fire Department
Department:
Greeneville Fire Department

Specs

Cab
Four-door, four-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
24,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 15, 600HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front Bumper
Crosslays
(1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
Water Tank
300-gallon
Construction
Huckbolt #304 stainless steel
Doors
Mixed roll up and hinged compartment
Total Compartment Space
Nearly 300 cu ft.
Duo-Safety Ladder Package
14’, 16’, 16’, 24’ 2-Section, 35’ 2-Section & 10’ F
Body
SPH-3, Left 56” H / Right 56” H
Bumper Extension
18” polished stainless steel,
Siren
Federal q2b , grille mount
Intercom System
LiberatorMax, Single Radio, 4 Position
Generator
Smart Power, 6KW
Camera System
Brigade, Backeye 360 Camera System
Driver Side Monitor
Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
Officer Side Monitor
Akron 3483 Stream Master2, Manual 1250 GPM
Officer Side Nozzle
Akron 2499 & 3488 Pipe
