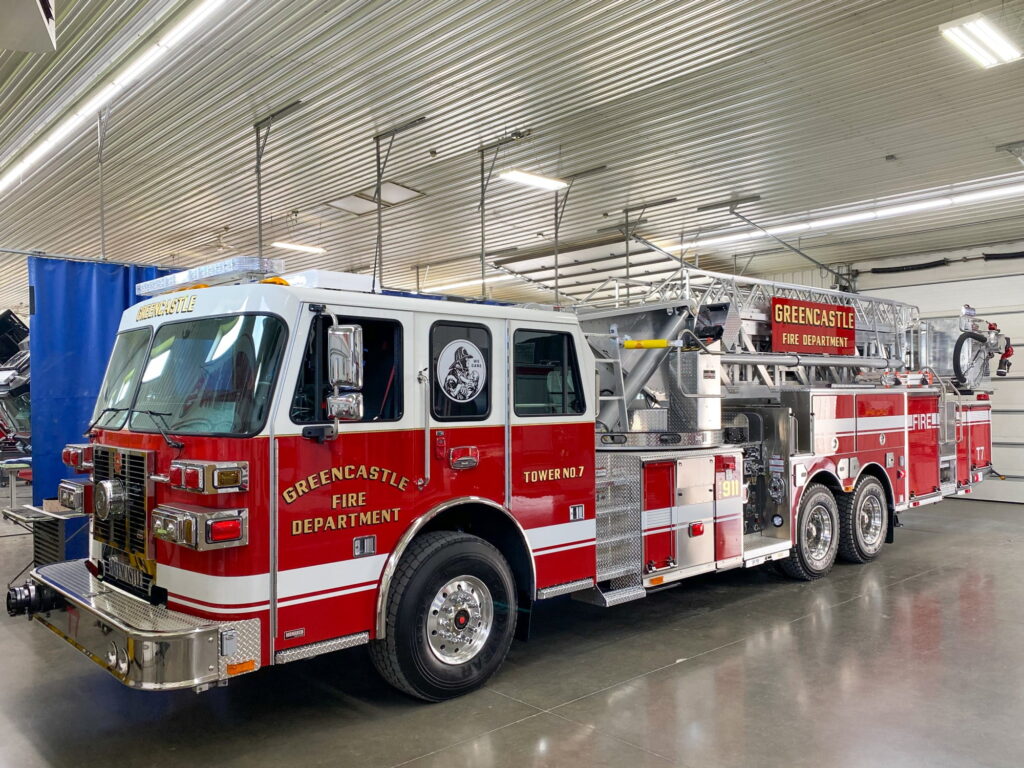

SPH 100 – Greencastle Fire Department, IN

Location:
Greencastle, IN
Department:
Greencastle Fire Department

Specs

Cab
Four-door, four-person
10” Double Domex
Frame rails, tandem axle - aerial (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 12 600HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison EVS4000

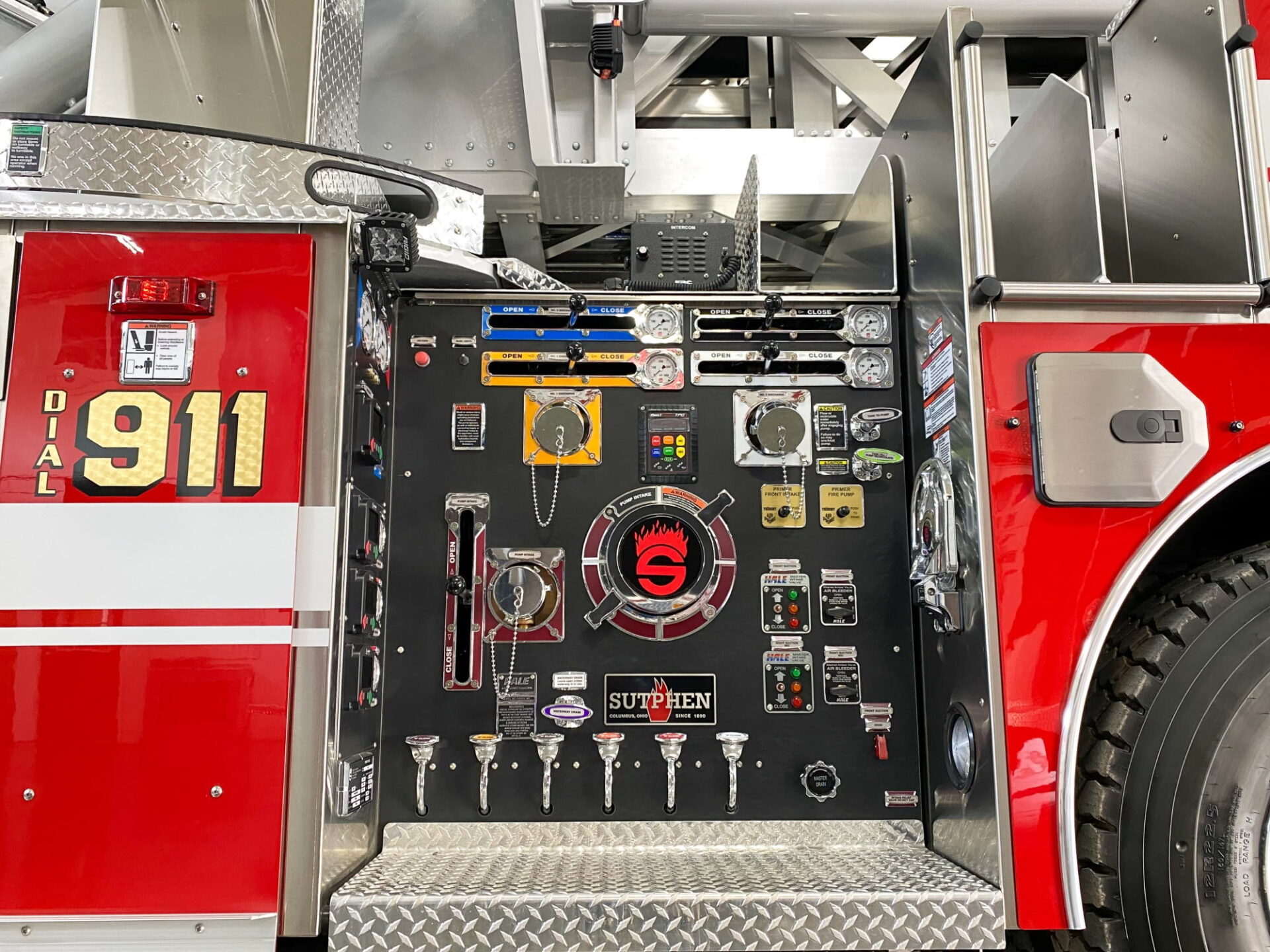

Water Pump
Qmax-1500 gpm 6” suction, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (2) 2 ½” Right
Crosslay
(1) 2 ½”, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
Water Tank
300-gallon
Doors
Mix amdor roll up and hinged compartment
Total Compartment Space
Over 280 cu. ft.
Alco-Lite Ladder Package
115’: 14’, 16’, 16’, 24’-2Sec, 35’-2Sec & 10’F
Body
SPH-3, LEFT 56" H / RIGHT 56"H
Bumper Extension
12” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC Inview Trueview, Two Camera
Intercom System
FRC IC301 3-Station
Power
Hannay electric cord reel, 175’ (1)
Generator
Smart Power 10KW
Whelen Freedom IV
72” led lightbars
Whelen M9V2
Included
Whelen LED Traffic
Advisor
FireTech FT-B-46-W Screen
Lights
FR 240V Spectra
Scene light
FR 240V Spectra
Tele lights
Officer Side Monitor
Akron 3483 Stream Master 2, Manual 1250 GPM
Driver Side Monitor
Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
