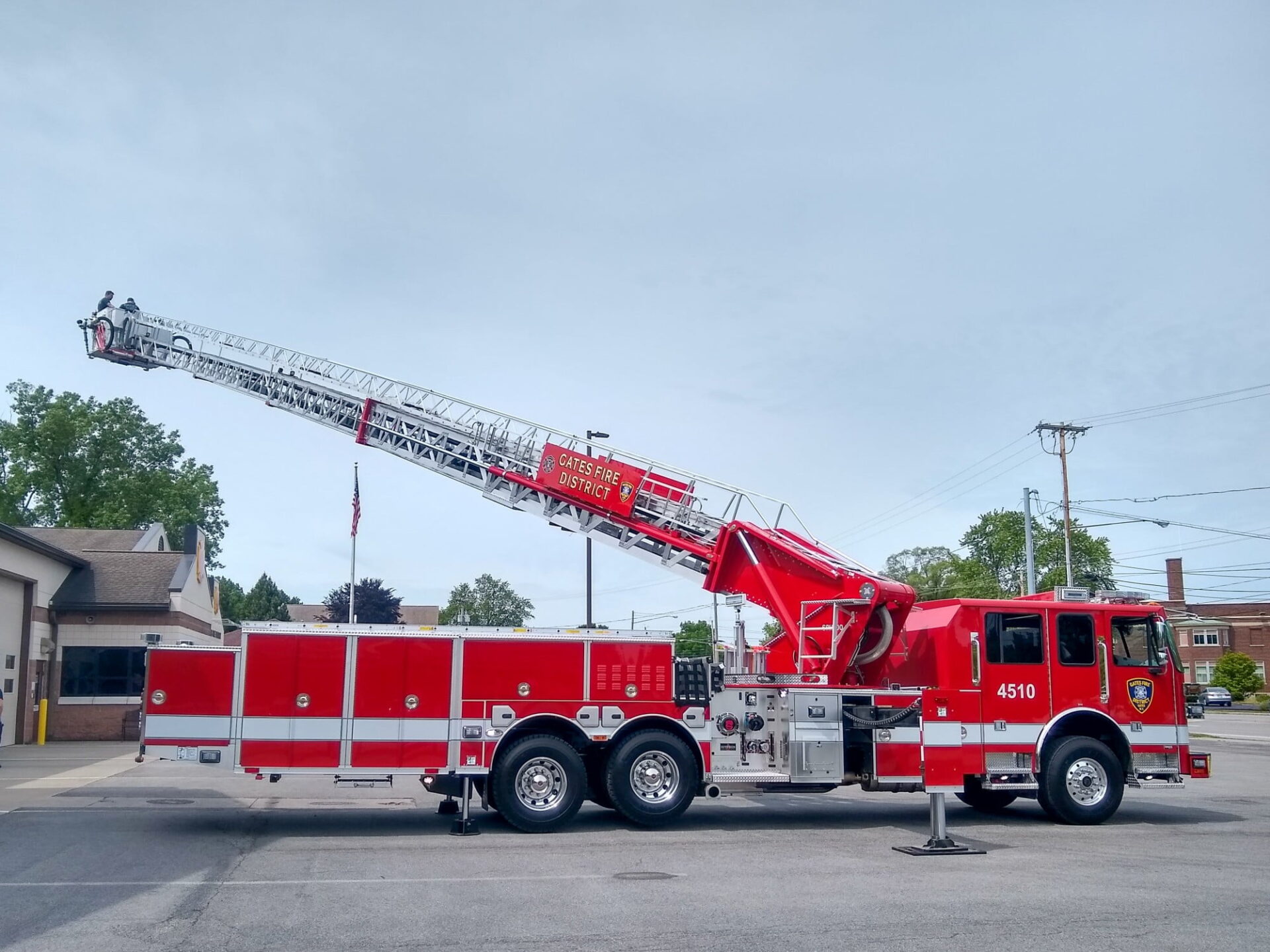

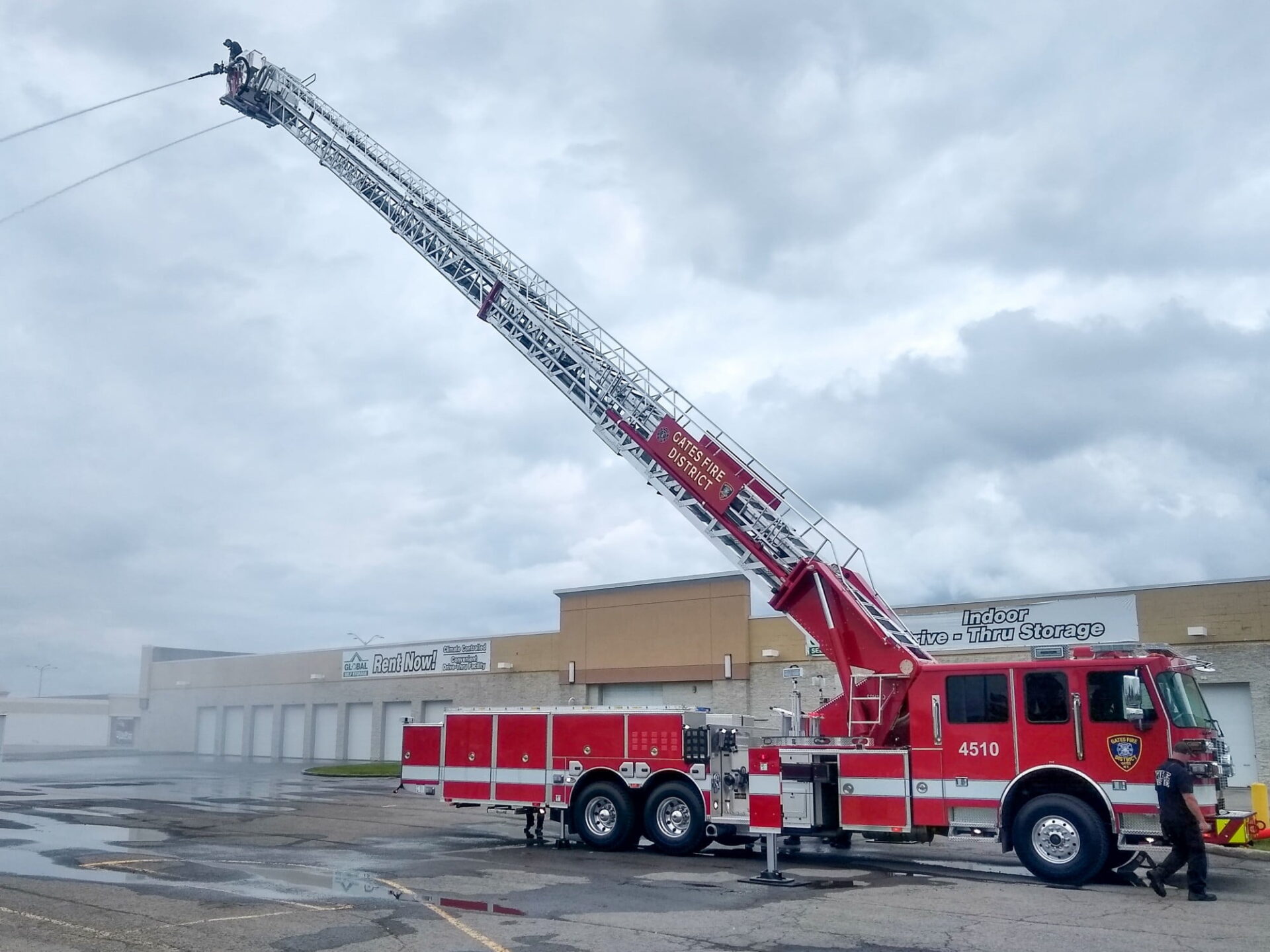

SPH 100 – Gates Fire District, NY

Location:
Rochester, NY
Department:
Gates Fire District, NY

Specs

Cab
Four-door, six-person
10” Double Domex
Frame rails, tandem axle - aerial (110k psi)
Front Axle and Suspension
24,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 12 500HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Csu-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (2) 2 ½” Right
Crosslay
(1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
Water Tank
300-gallon
Doors
Hinged compartment
Total Compartment Space
Over 280 cu. ft.
Alco-Lite Ladder Compliment
171’: (2) 16’ Roof, 18’ Roof, 20’ Roof, (2) 28’-2Sec, 35’-2Sec & 10’F
Body
SPH-3, LEFT 56" H / RIGHT 56"H
Bumper Extension
12” formed steel channel painted bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Single Camera
FRC ACT 3-Station
Intercom system
Power
Hannay electric cord reel, 150’ (1)
Generator
Harrison, 8KW HYD
Whelen Freedom IV
72” led lightbars
Whelen Freedom IV
21” led light bar
FR Spectra 12V
Scene
FR Spectra Tripod
120v scene
FR Spectra Max
Brow
Driver Side Monitor
TFT Monsoon, Manual 1250 GPM w/ Manual VUM
Driver Side Nozzle
TFT MST-4NJ Stacked Tips w/ XF-SS10 Stream Straightener
Officer Side Monitor
TFT Monsoon, Manual 1250 GPM w/ Manual VUM
Officer Side Nozzle
TFT M-R1250-NJ Automatic Fog Nozzle
