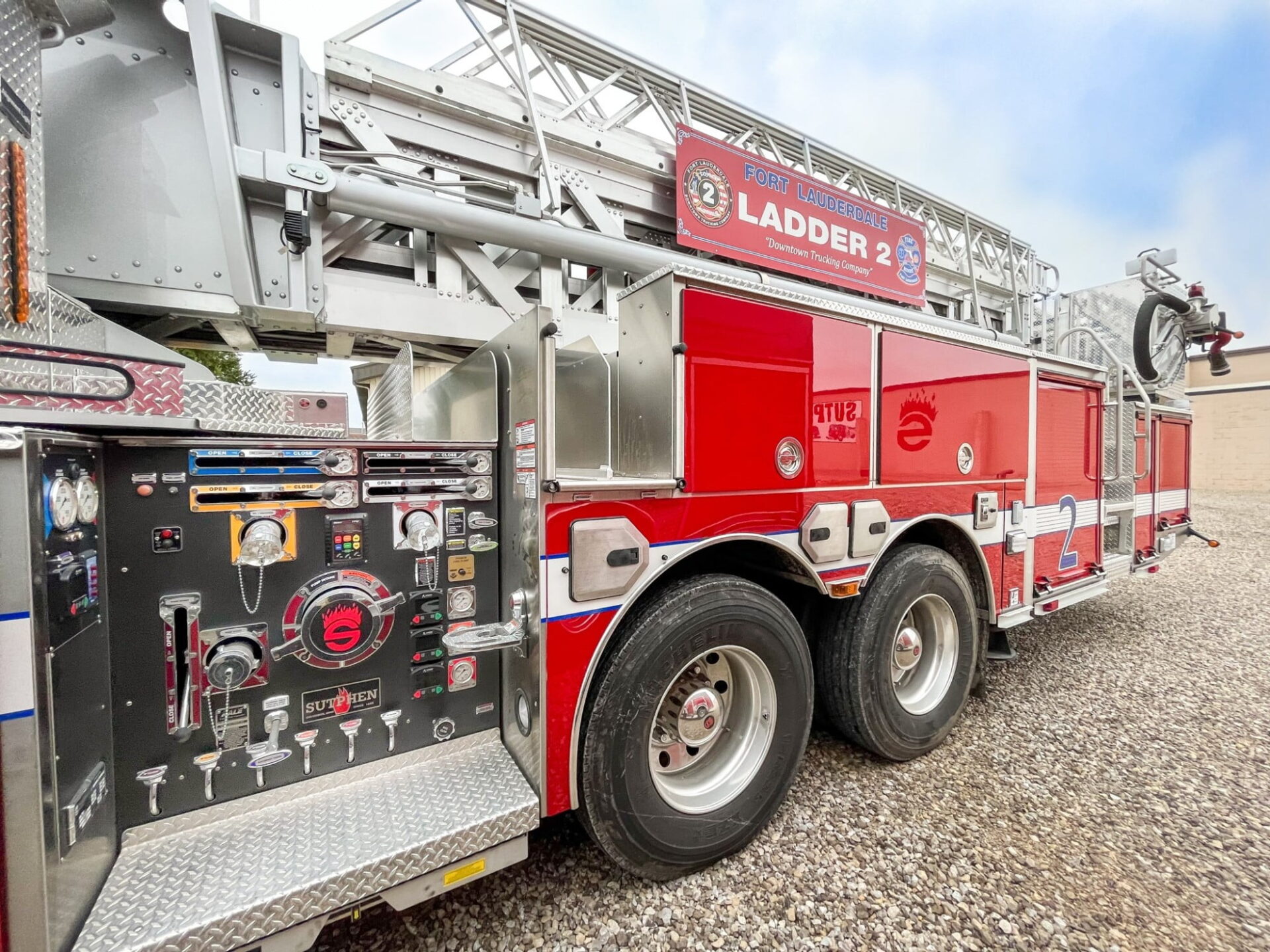

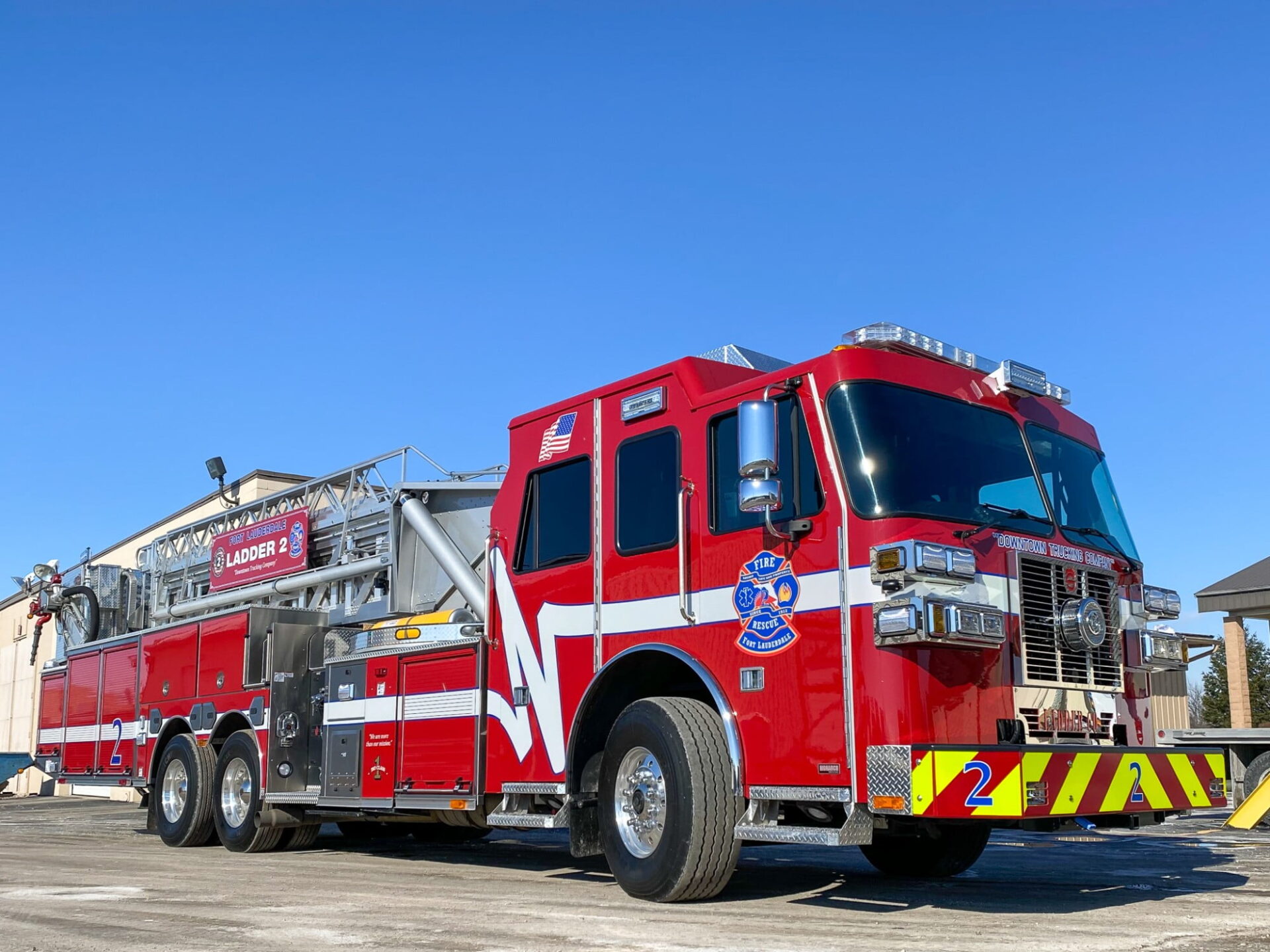

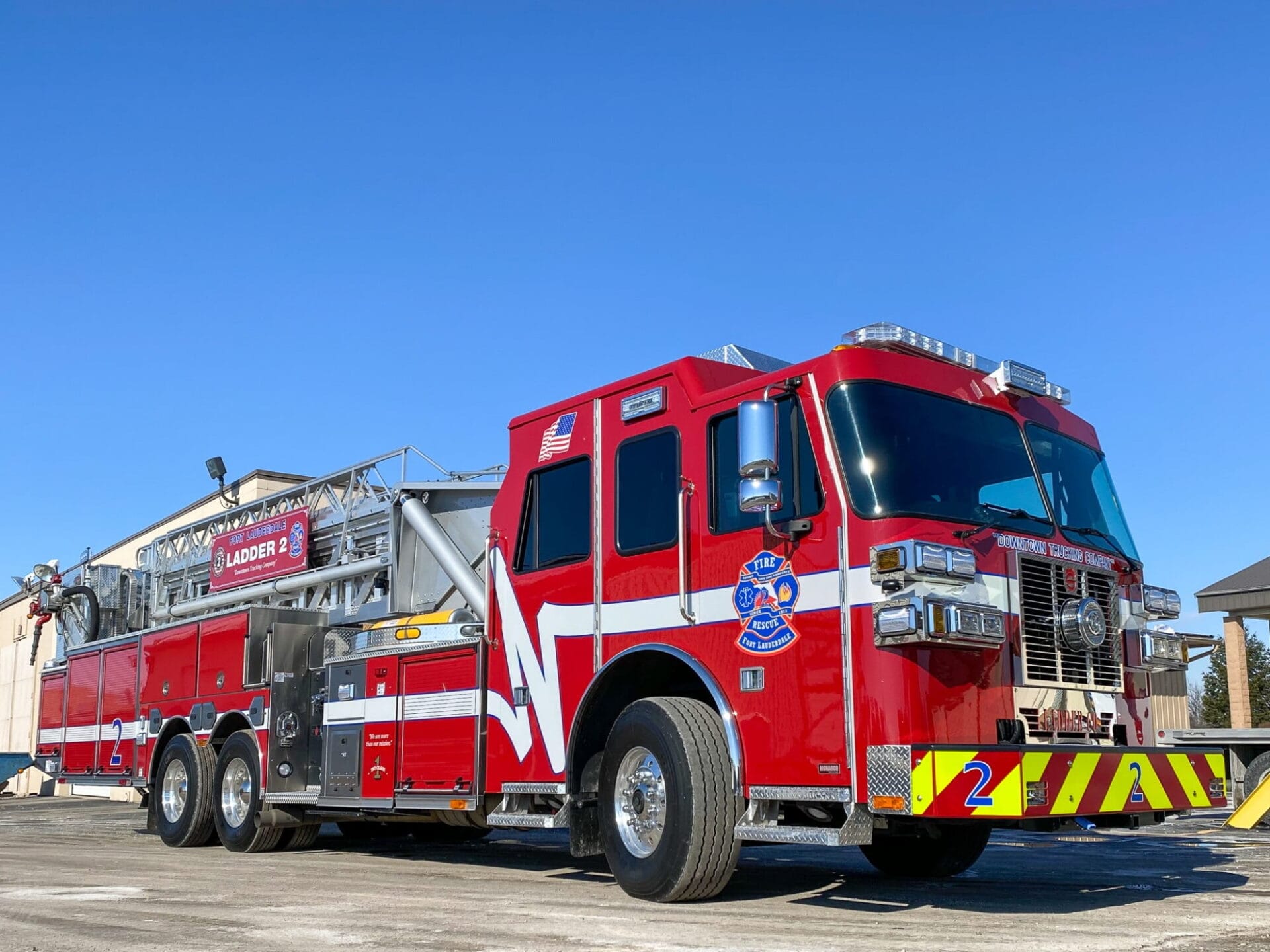

SPH 100 – Fort Lauderdale, FL

Specs

Cab
Four-door, six-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 12, 500HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax – 2000 gpm 6” suction, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
Crosslays
(1) 2 ½” Crosslay, (1) 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
Water Tank
300-gallon
Construction
Huckbolted #304 stainless steel
Doors
Sph mixed roll-up and hinged compartment
Total Compartment Space
Over 283 cu ft.
Alco-Lite Ladders
(1) 14’, (2) 16’, (1) 24’ 2-section, (1) 35 2-section & (1) 10’ Folding
Body
SPH-3, Left 56” H / Right 56” H
Bumper Extension
12” stainless steel,
Siren
Federal q2b , grille mount
Whelen Freedom IV
72” led lightbar
FRC Spectra Brow
Light
FR Spectra 12V
Scene light
FR Spectra 240V
Tele lights
Camera System
FRC, Inview Trueview, Two Cameras (Wired)
Intercom System
FRC, ACT 2 - Station
