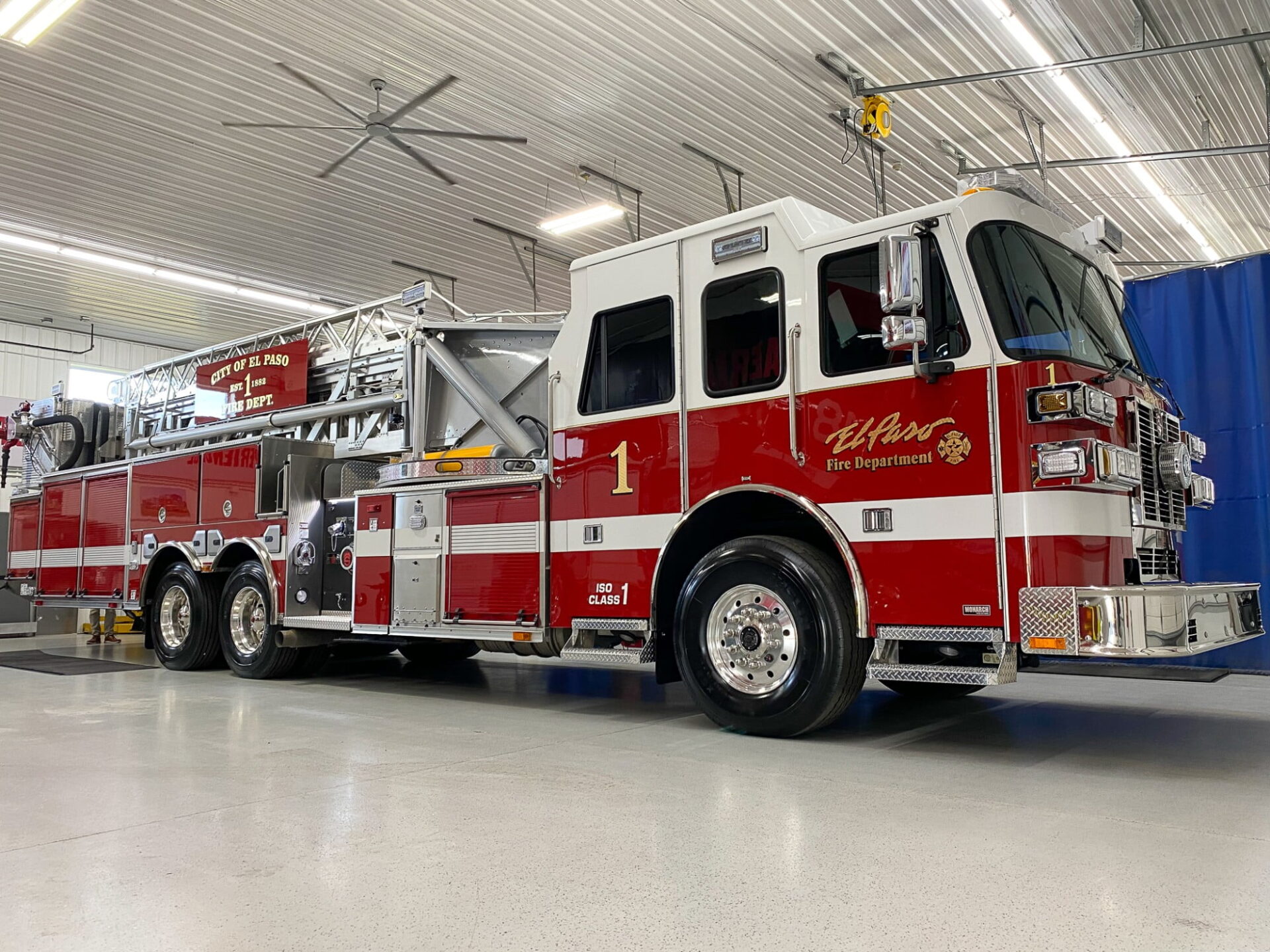

SPH 100 – El Paso Fire Department, TX
Truck Type:
Dealer:
Location:
El Paso, TX
Department:
El Paso Fire DepartmentSpecs
Cab
Four-door, six-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs.
Rear Axle and Suspension
52,000 lbs.
Engine
Cummins X 12, 500HP
Alternator
Delco Remy 420 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax-2000 gpm, 6” suction single stage pump
Discharge
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
Crosslay
(1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
Water Tank
300-gallon
Construction
Huckbolted #304 stainless steel
Doors
Mixed roll-up and hinged compartment
Total Compartment Space
Over 280 cu. ft.
Alco-lite Ladders (115’
14’, 16’, 16’, 24’ 2-Section, 35’ 2-Section & 10’ F)
Body SPH-3, Left
56” h / right 56” high
Bumper Extension
12” polished stainless steel
Siren
Federal q2b , grille mount
Power
6kw smart generator
FRC Inview Trueview
Camera system
Power
Hannay electric cord reel, 150’ (1)
Integrated Jack Pads
Included
Whelen Freedom IV
72” lightbar
FR Spectra 12V
Brow light
FR Spectra 12V
Scene lights
FireTech 12V Aerial
Spotlights
