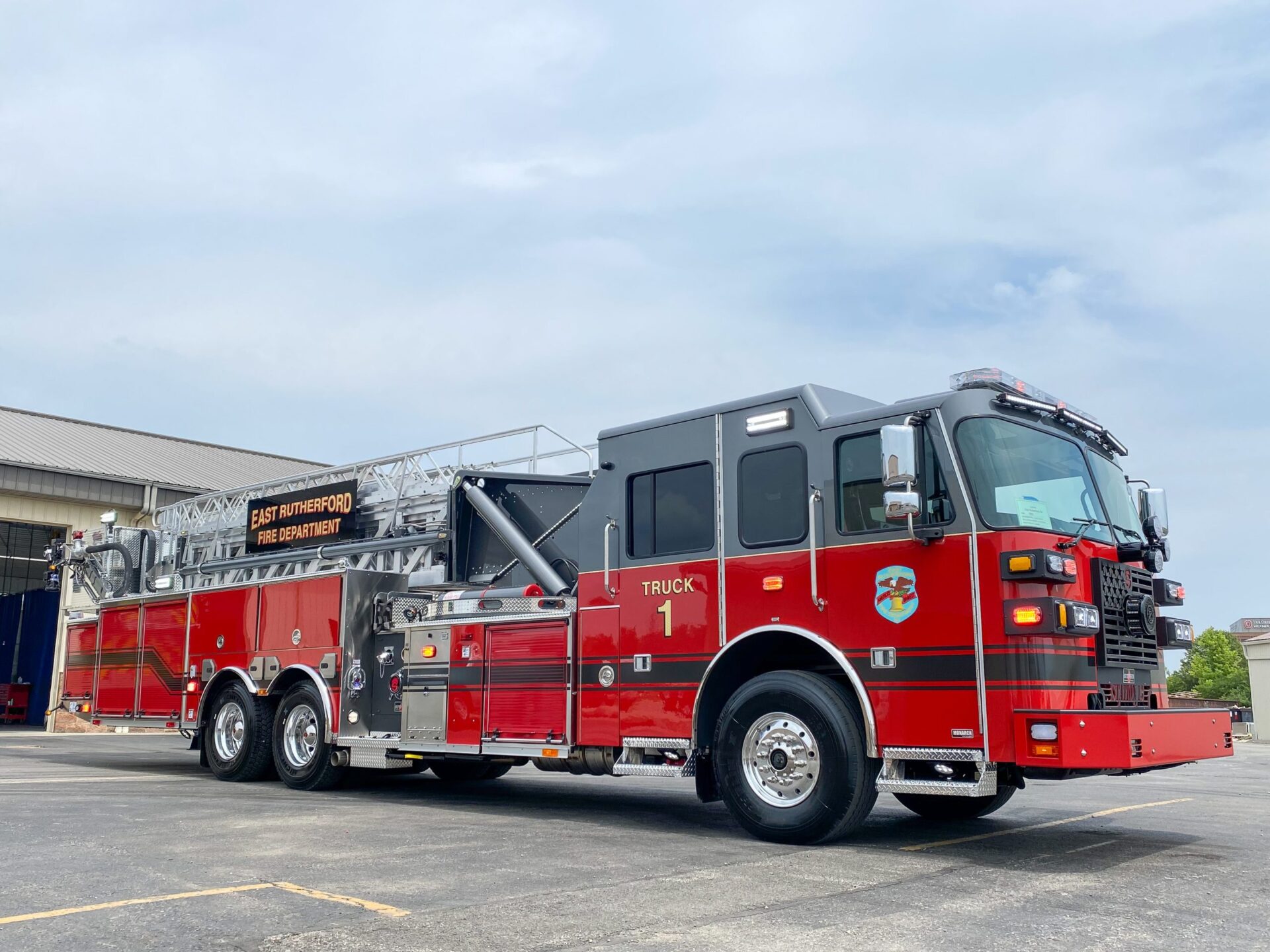

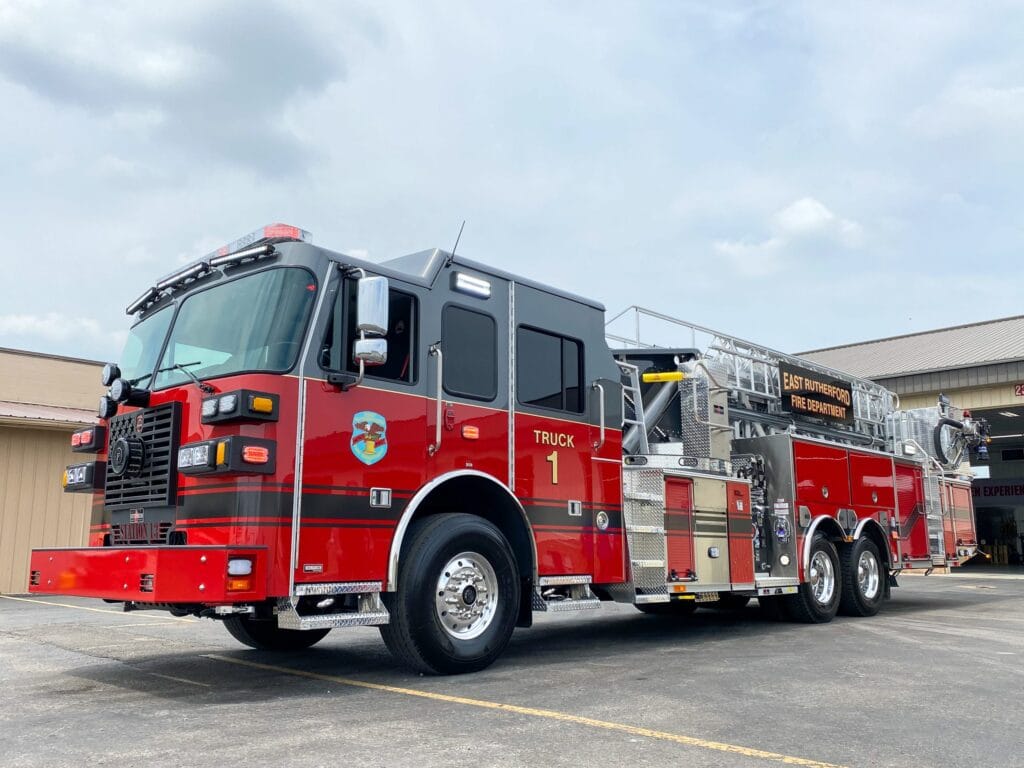

SPH 100 – East Rutherford Fire Department, NJ

Location:
East Rutherford, NJ
Department:
East Rutherford Fire Department

Specs

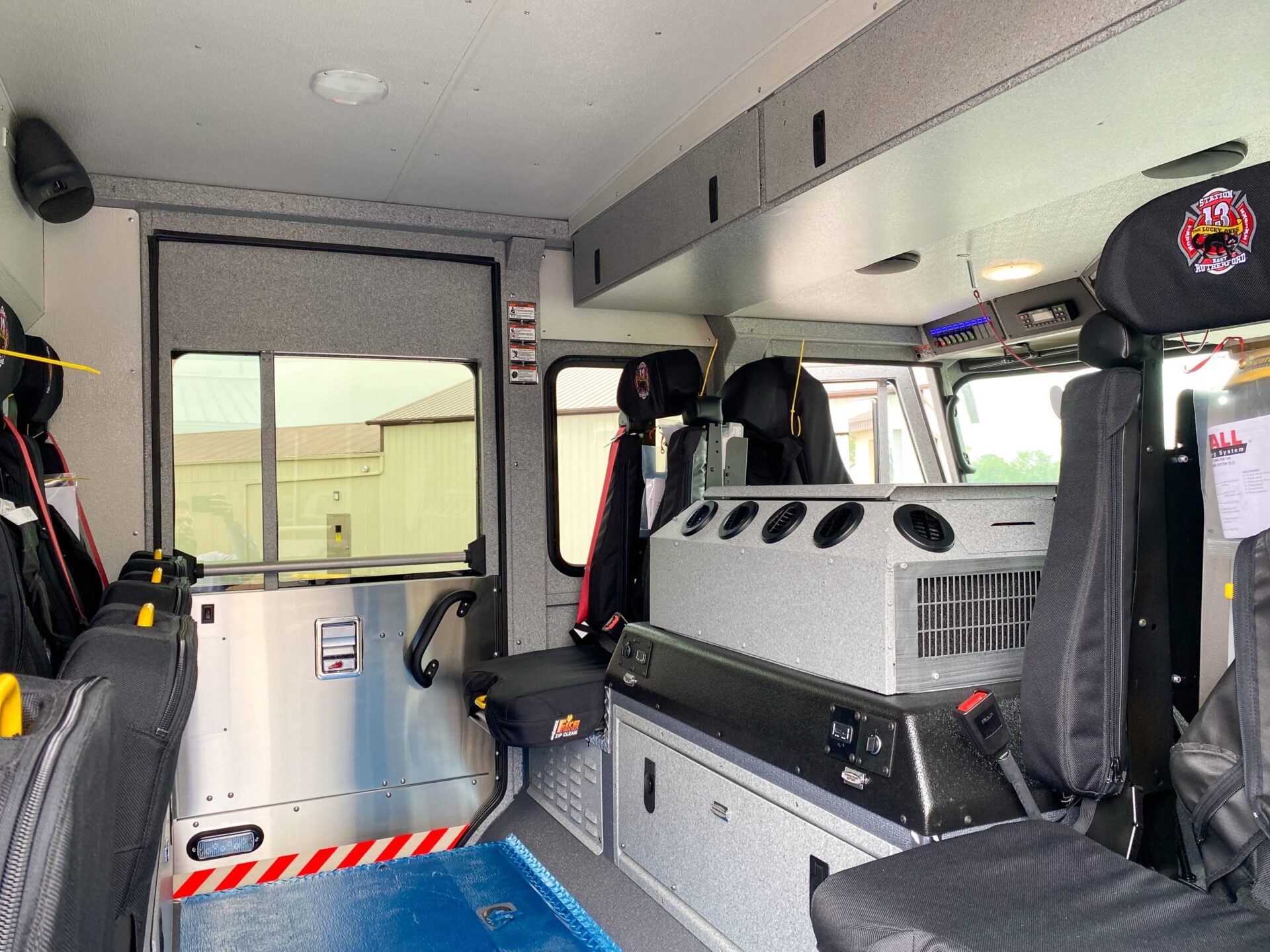

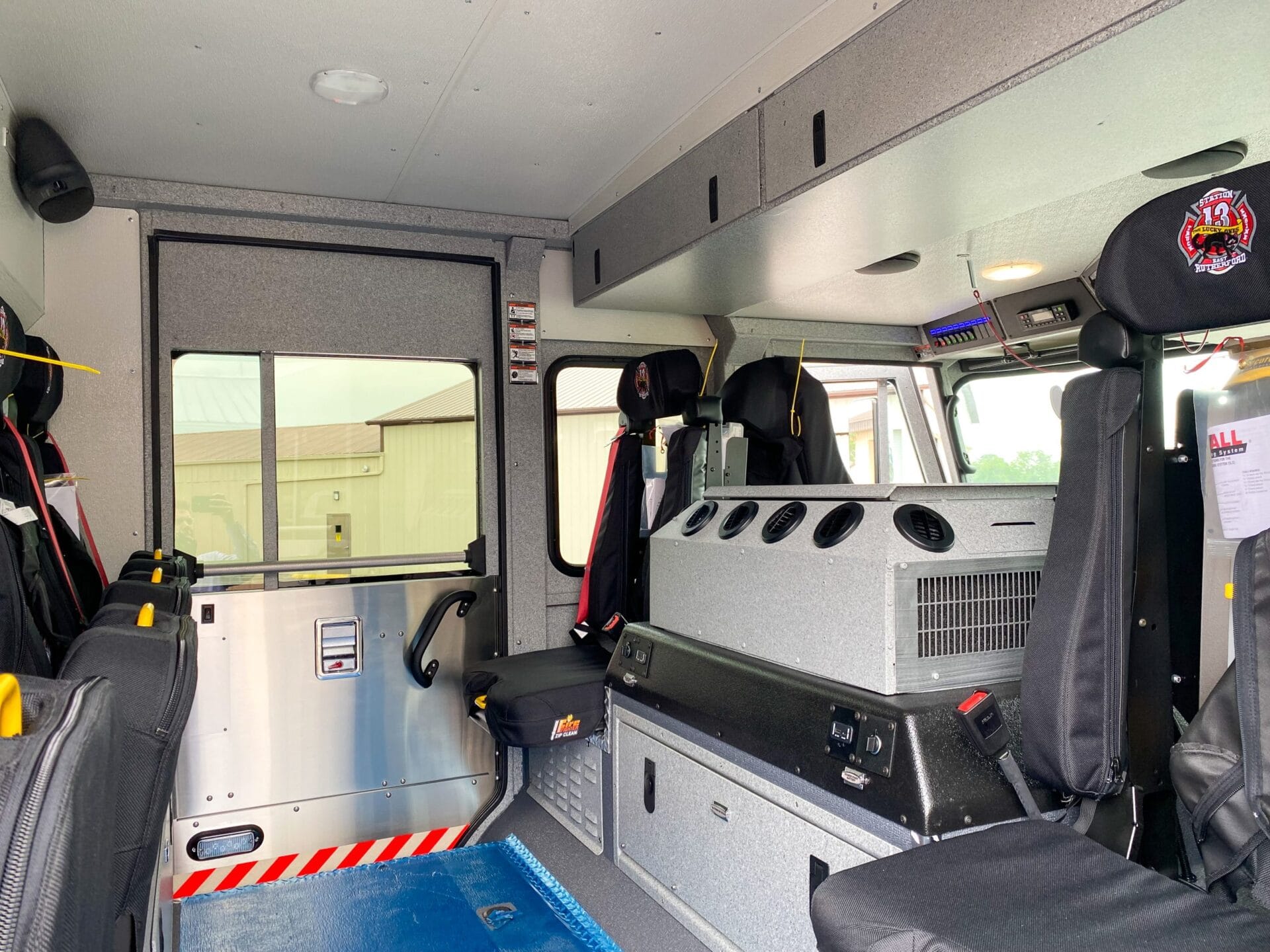

Cab
Four-door, eight-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 12, 500 HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS4000

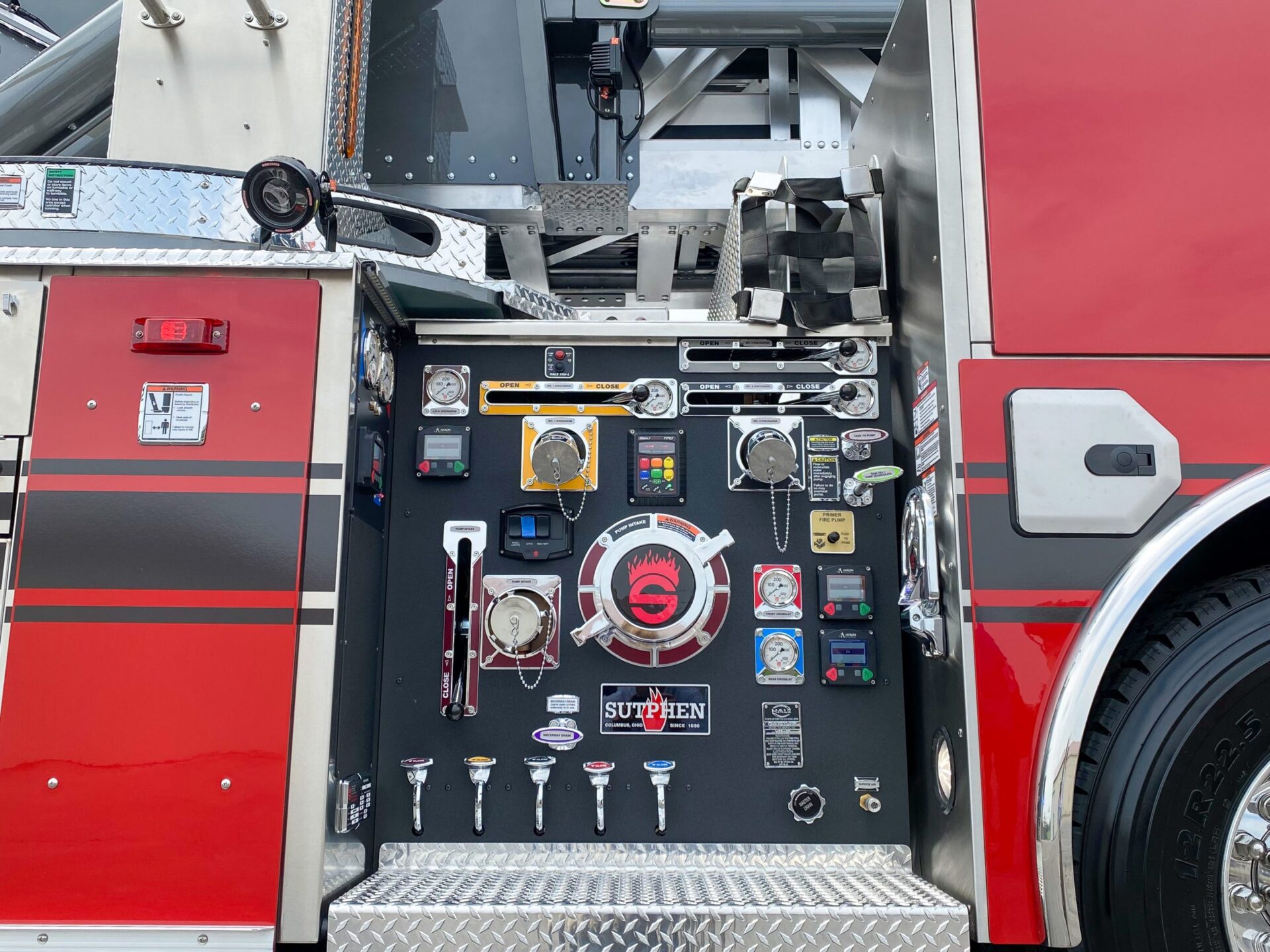

Water Pump
Qmax-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right
Crosslays
(2) 2” Crosslay Valve-Piping w/ 1 ½” Swivel
Water Tank
300-gallon
Construction
Huckbolt #304 stainless steel
Doors
Mixed roll up and hinged compartment
Total Compartment Space
Over 280 cu ft.
Alco-Lite Ladder Package
16’, 16’, 24’ 2-Section, 24’ 2-Section, 35’ 2-Section & 10’ F
Body
SPH-3, Left 56” H / Right 56” H
Bumper Extension
12” formed steel channel,
Siren
Federal q2b , grille mount
Intercom System
FRC, Act 3-Station
Power
Hannay electric cord reel, 175’ (1)
Generator
Smart Power, 6KW
Camera System
Brigade, Backeye 360
Whelen Freedom IV
72” light bar
12V FireTech 3-Piece
Brow light
12V FR Spectra
Scene lights
12V FireTech Aerial
Spotlights
240V FR Spectra
Tele lights
Driver Side Monitor
TFT Monsoon RC, Elec, w/ Elec VUM, (2) Panel Controllers & (1) Wireless Controller, Includes TFT Master Stream 1250 GPM Elec Nozzle
Officer Side Monitor
TFT Monsoon RC, Elec, w/ Elec VUM, Includes TFT Master Stream 1250 GPM Elec Nozzle
