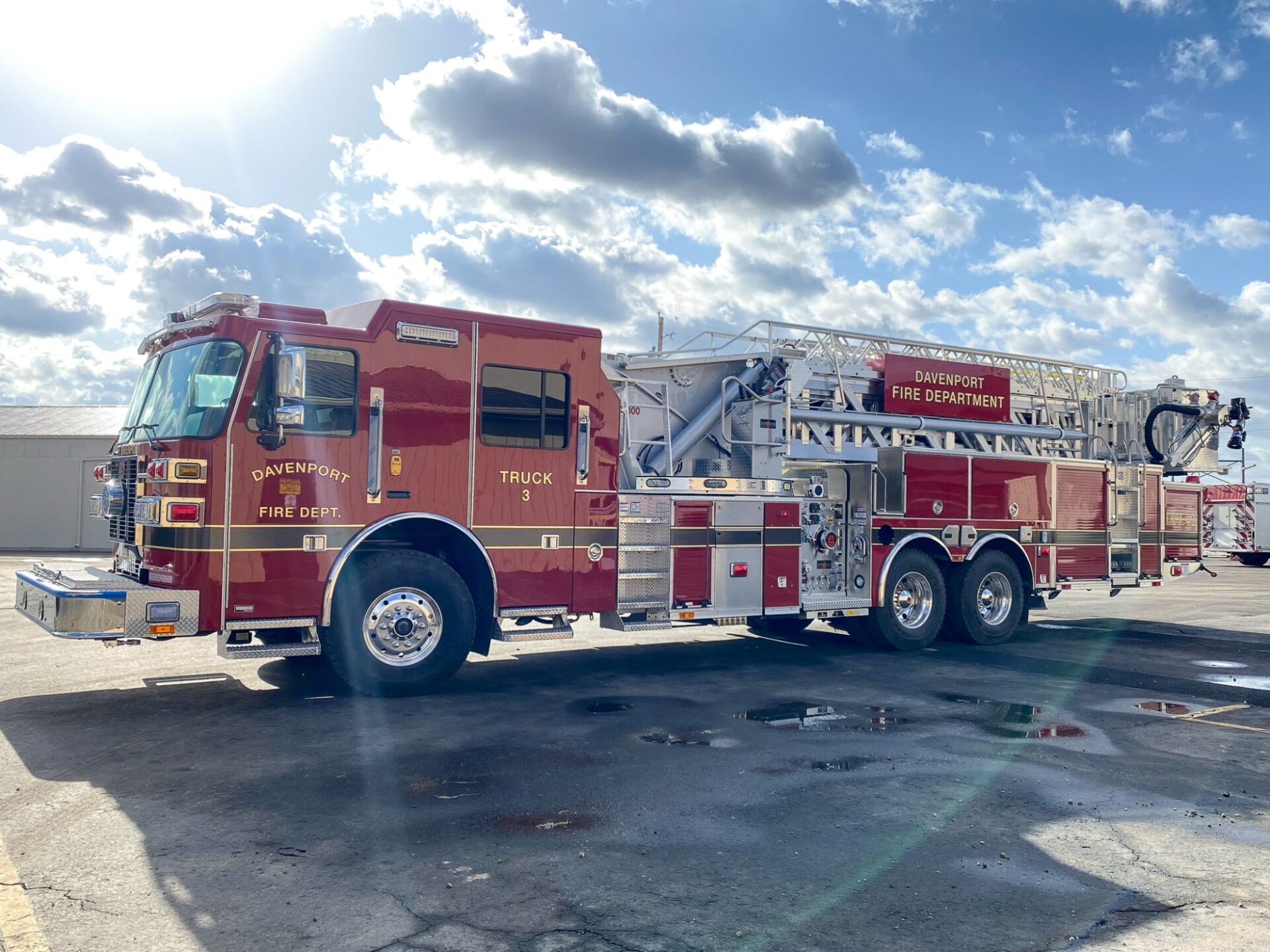

SPH 100 – Davenport Fire Department, IA

Specs

Cab
Four-door, four-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
24,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 15, 600HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4000

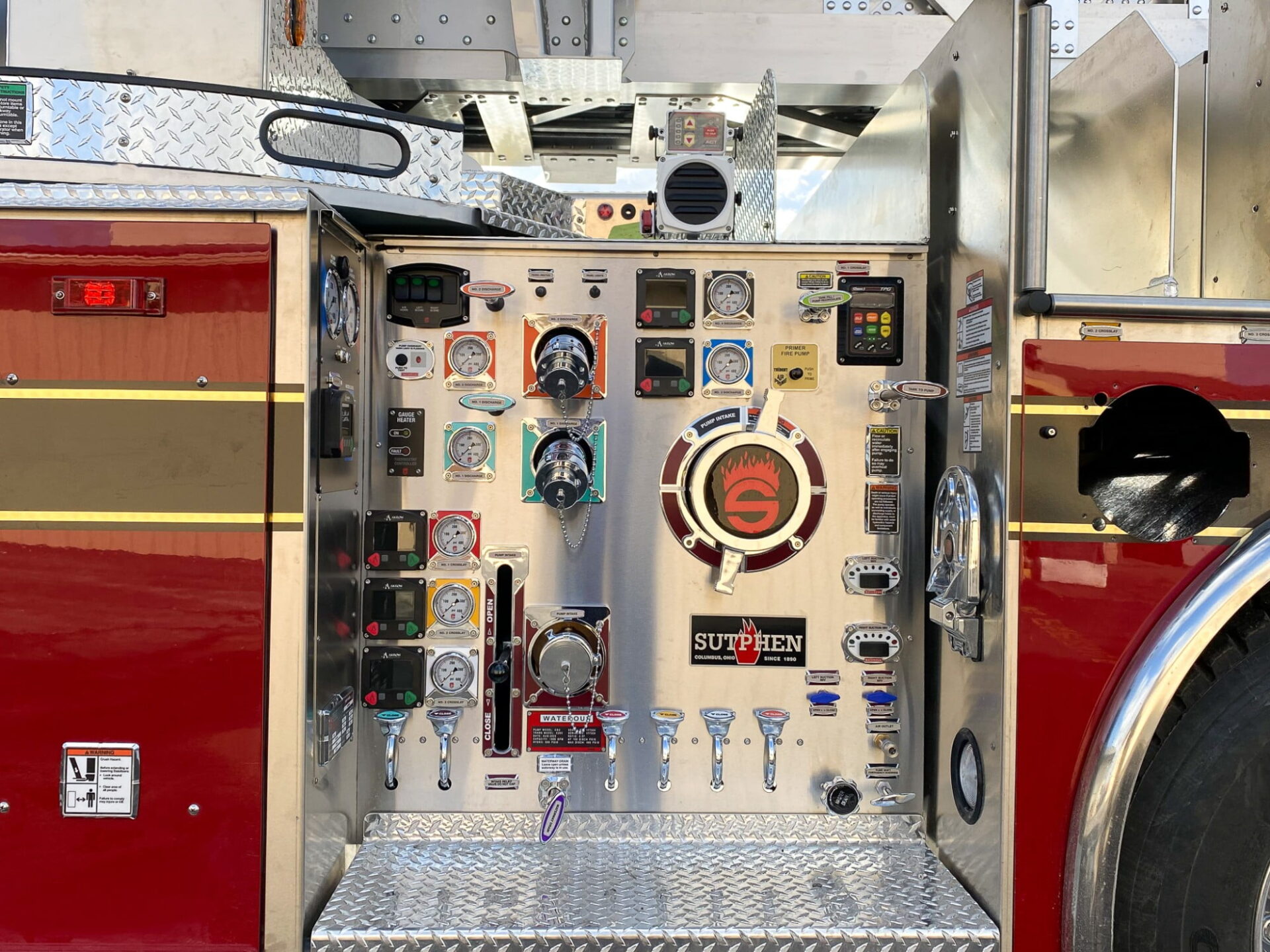

Water Pump
Csu-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 2 ½” Right, (1) 3” Right
Crosslays
(1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
Water Tank
300-gallon
Construction
Huckbolt #304 stainless steel
Doors
Mixed roll up and hinged compartment
Total Compartment Space
Over 280 cu ft.
Duo-Safety Ladder Package
115’: 14’; 16’; 16’; 24’ 2-Section; 35’ 2-Section & 10’F
Body
SPH-3, Left 56” H / Right 56” H
Bumper Extension
24” polished stainless steel,
Siren
Federal q2b , grille mount
Intercom System
FRC ACT 3-Station
Power
Hannay electric cord reel, 150’ (1)
Generator
Onan 6KW HYD
Camera System
FRC, Inview 360HD w/ Built-In DVR
12V FireTech 3-Piece
Brow light
Whelen Freedom IV
72” light bar
Rigid D2 Aerial
Spotlights
Whelen 600 Warning
Light
Whelen Traffic Advisor
Included
240V FR Focus
Tele light
Opticom
Included
Driver Side Monitor
TFT Monsoon RC, Electric w/ Elec. VUM, (2) Panel Controllers & (1) Wireless Controller, Includes TFT Master Stream 1250 GPM Electric Nozzle
Officer Side Monitor
Akron 3473 Gemini Manual 1000 GPM
Officer Side Nozzle
Akron 5160 Auto
