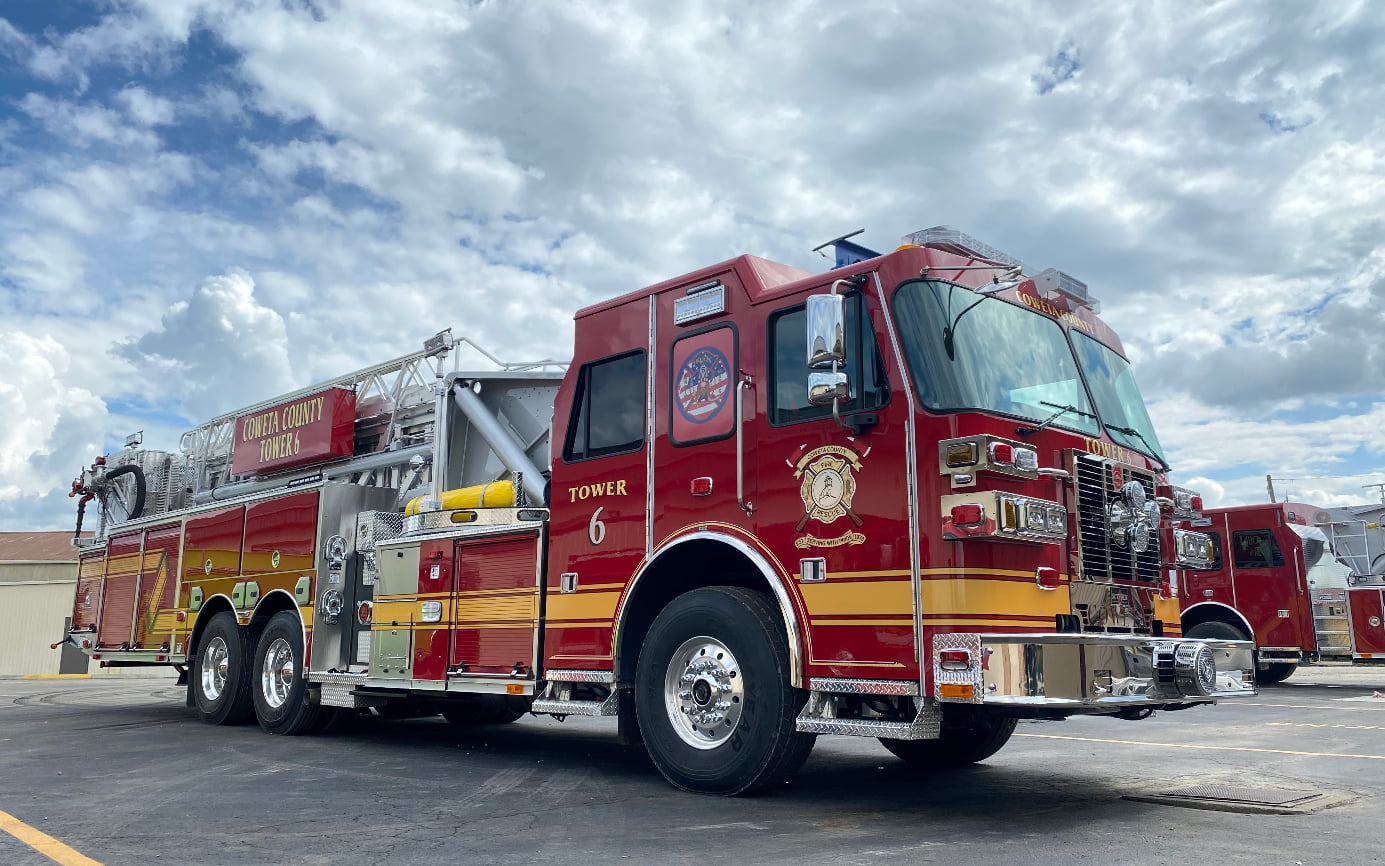

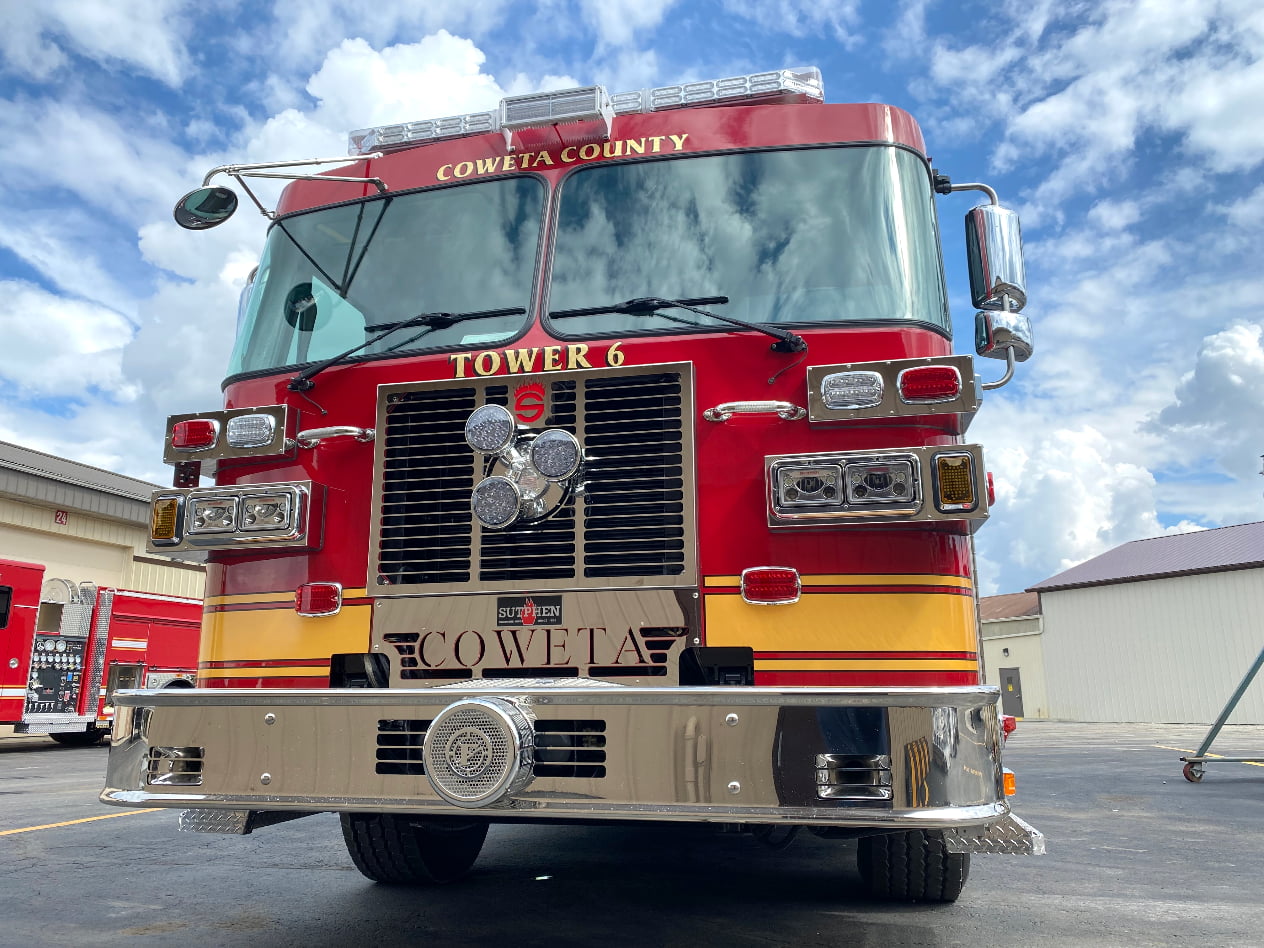

SPH 100 – Coweta County Fire Department, GA

Specs

Cab
Four-door, six-person
10” Double Domex
Frame rails, tandem axle - aerial (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 12 500HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison EVS4500
Construction
Huckbolted #304 stainless steel
Doors
Mixed hinged and roll-up compartment
Total Compartment Space
Over 280 cu. ft.
Duo-Safety Aerial Complement
193’ – 4’ Wall Ladder, 8’ Wall Ladder, 14’ Roof Ladder, (2) 16’ Roof Ladder, 18’ Roof Ladder, 20’ Roof Ladder, 24’ 2-Section Ladder, 28’ 2-Section, 35’ 2-Section and 10’ Folding
Body
SPH-3, LEFT 56" H / RIGHT 56"H
Bumper Extension
12” polished stainless steel bumper
Bumper Extension
Federal q2b siren, front bumper mount
Camera System
Voyager 2
Intercom System
FRC ACT 2-Station
Power
Hannay electric cord reel, 150’ (1)
Generator
Onan 6KW
Ladder Compliment
19’ little giant ladder
Roto-Ray Warning Light
Included
Whelen Freedom IV
72” light bar
Whelen Pioneer 12V
Brow light
Whelen M6V2 Cornering
Light
Whelen Pioneer 120V
Tele light
Whelen M9 Scene
Light
Driver Side Monitor
Akron 3483 Stream Master2, Manual, 1250 GPM
Driver Side Nozzle
Akron 5160 Auto
Officer Side Monitor
Akron 3483 Stream Master2, Manual 1250 GPM
Officer Side Monitor
Akron 2499 & 2488 Pipe
