SPH 100 – Courtenay Fire Department, Canada

Location:
Courtenay, British Columbia
Department:
Courtenay Fire Department

Specs

Cab
Four-door, six-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 12, 500HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS4500

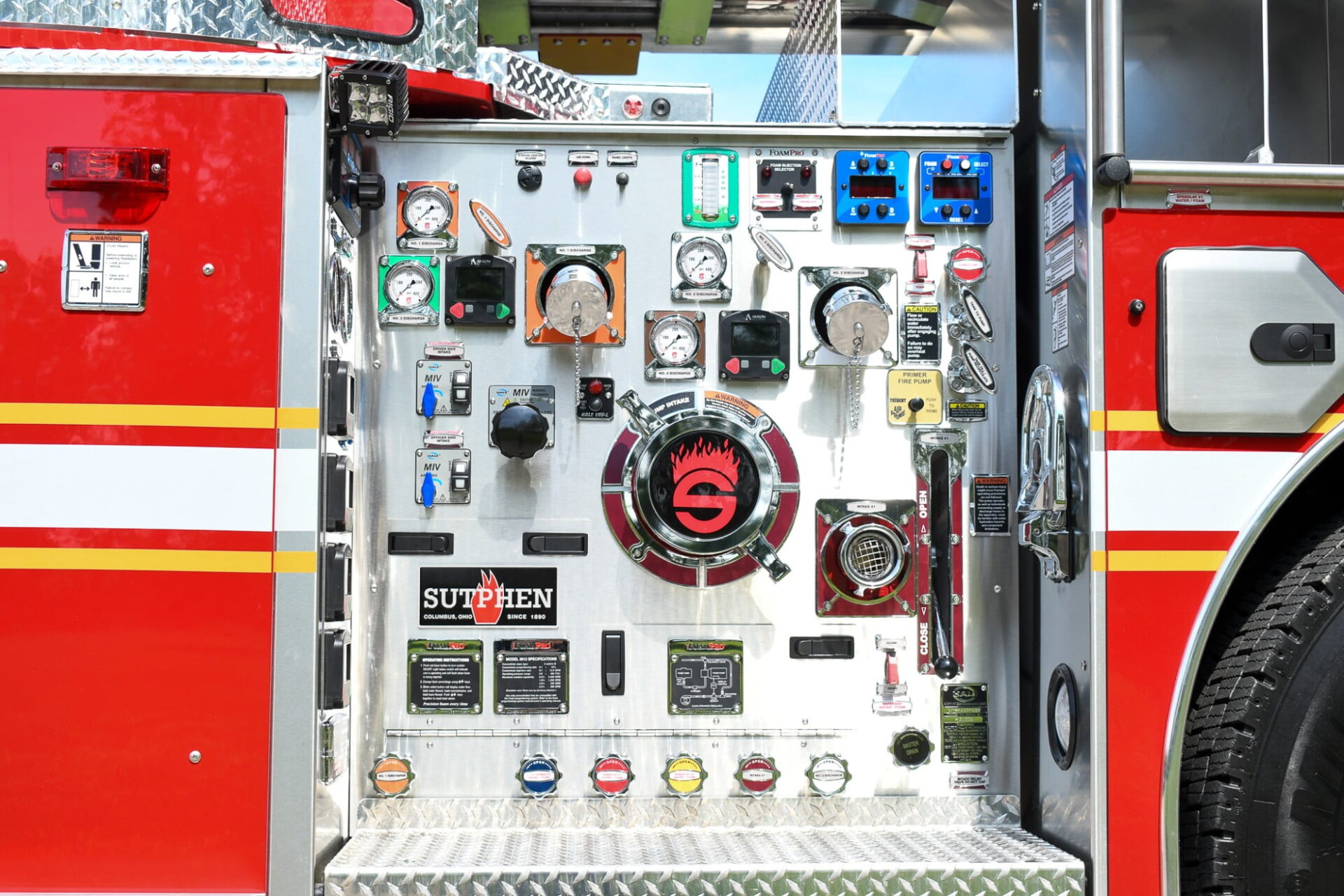

Water Pump
Qmax-2000 gpm 6” suction, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
Crosslays
(1) 2 ½” Crosslays, (1) 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
Water Tank
270-gallon
Water Tank
30-gallon foam tank
Foam System
Foam Pro 3012
Construction
Huckbolt #304 stainless steel
Doors
Sph mixed amdor roll-up and hinged compartment
Total Compartment Space
Over 283 cu ft.
Duo-Safety Ladder Package
(1) 14’, (2) 16’ R, (1) 24’ 2-Section, (1) 35’ 2-Section, (1) 10’ Folding
Body
SPH-3, Left 56” H / Right 56” H
Bumper Extension
12” formed steel channel,
Siren
Federal q2b , grille mount
Intercom System
FRC ACT 2-Station
Camera System
Brigade Backeye
Power
Hannay electric cord reel, 150’ (1)
Generator
8KW Harrison HYD
Whelen Freedom IV
72” lightbar
FireTech 3-Piece 12V
Brow light
FR Spectra 12V
Scene light
FR Spectra 240V
Tele lights
Driver Side Monitor
Akron 3480 Stream Master2, Electric 2000 GPM w/ Akron 5178 Electric Nozzle
Officer Side Monitor
Akron 3483 Stream Master2, Manual 1250 GPM
Officer Side Nozzle
Akron 2499 & 3488 Pipe
