SPH 100 – City of Alabaster Fire Department, AL

Location:
Alabaster, AL
Department:
Alabama Fire Department

Specs

Cab
Four-door, five-person
10” Double Domex
Frame rails, tandem axle - aerial (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 12 500HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison EVS4500R

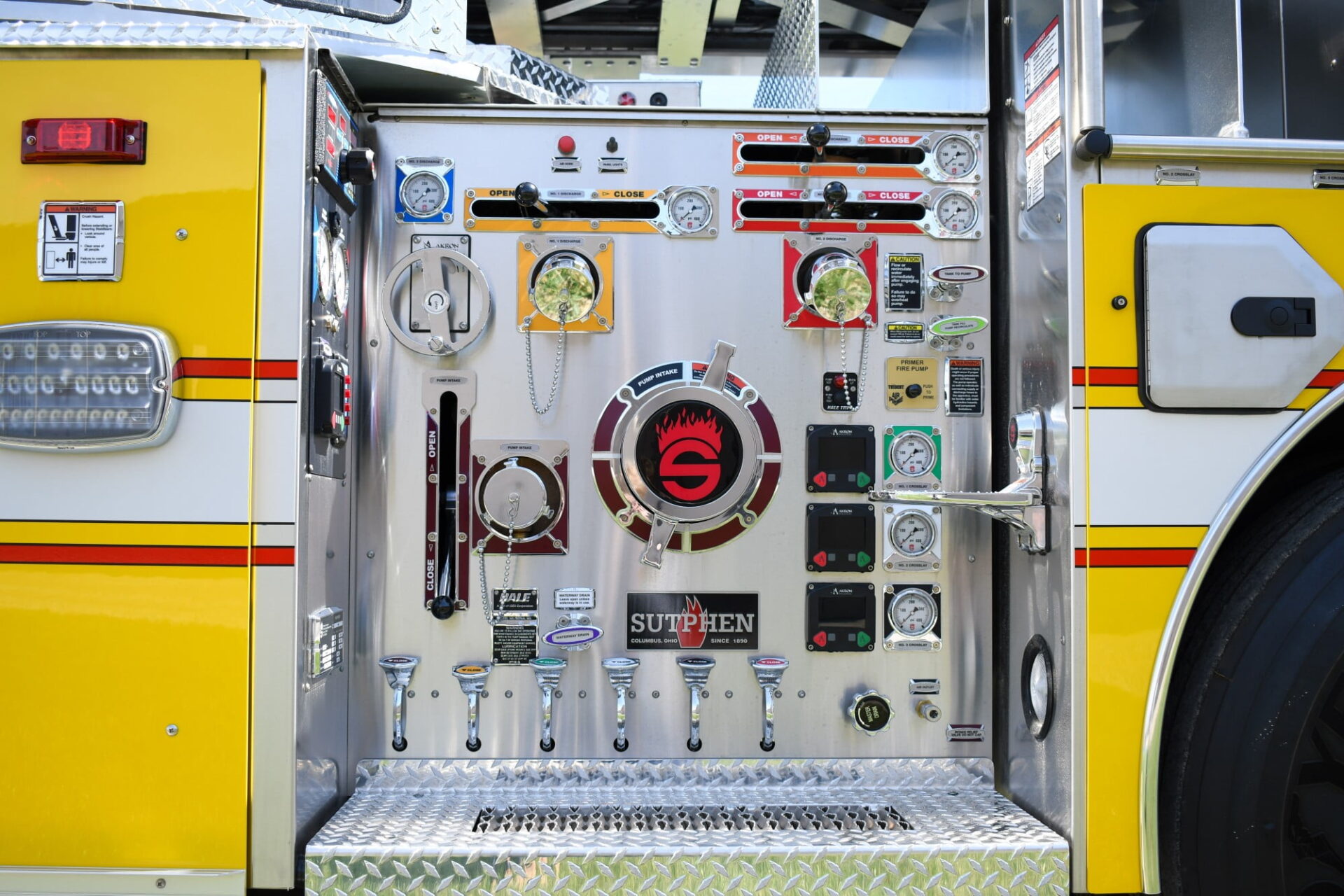

Water Pump
Qmax-2000 gpm 6” suction, single stage pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right
Crosslay
(1) 2 ½” w/ 2 ½” Swivel, (2) 2” w/ 1 ½” Swivel
Water Tank
300-gallon
Doors
Mix roll-up and hinged compartment

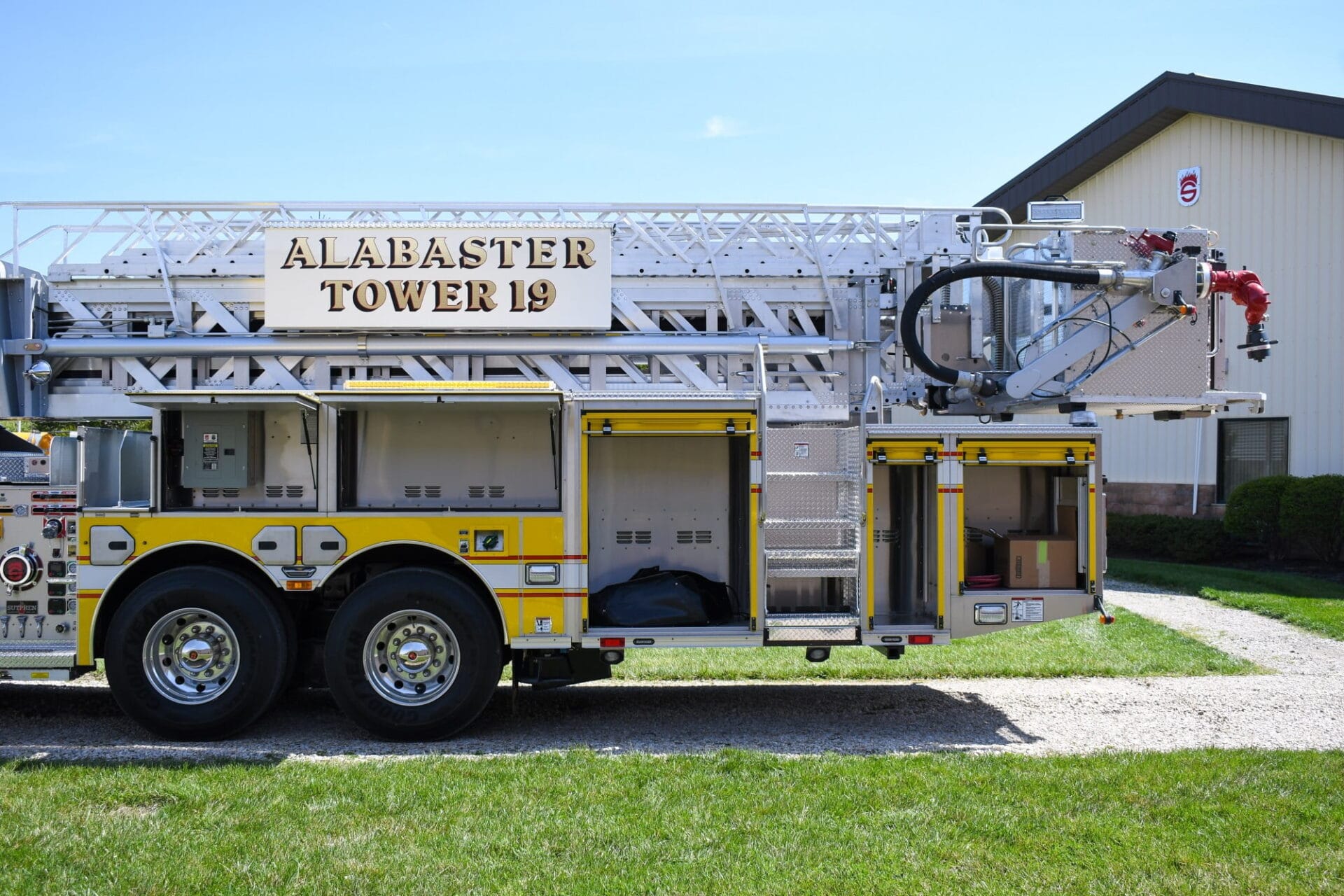

Total Compartment Space
49 cu. ft.
Alco-Lite (SPH)
14’ Combo, 14’ Roof Ladder, 16’ Roof Ladder, 28’-2 Section, 35’-2 Section
Body
SPH-3, LEFT 56" H / RIGHT 56"H
Bumper Extension
12” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
Voyager 2
FRC ACT 2-Station
Intercom system
Whelen Freedom IV
72” led lightbars
FR Spectra 12V
Led brow
Whelen 600 Warning
Lights
FRC CLA100-A49 LED
Scene light
FR 240V LED
Tele
UNITY P46WLC Flood
Led lights
Officer Side Monitor
Akron 3483 Stream Master 2, Manual 1250 GPM
Driver Side Monitor
Akron 3482 Stream Master2, Manual, 1250 GPM
