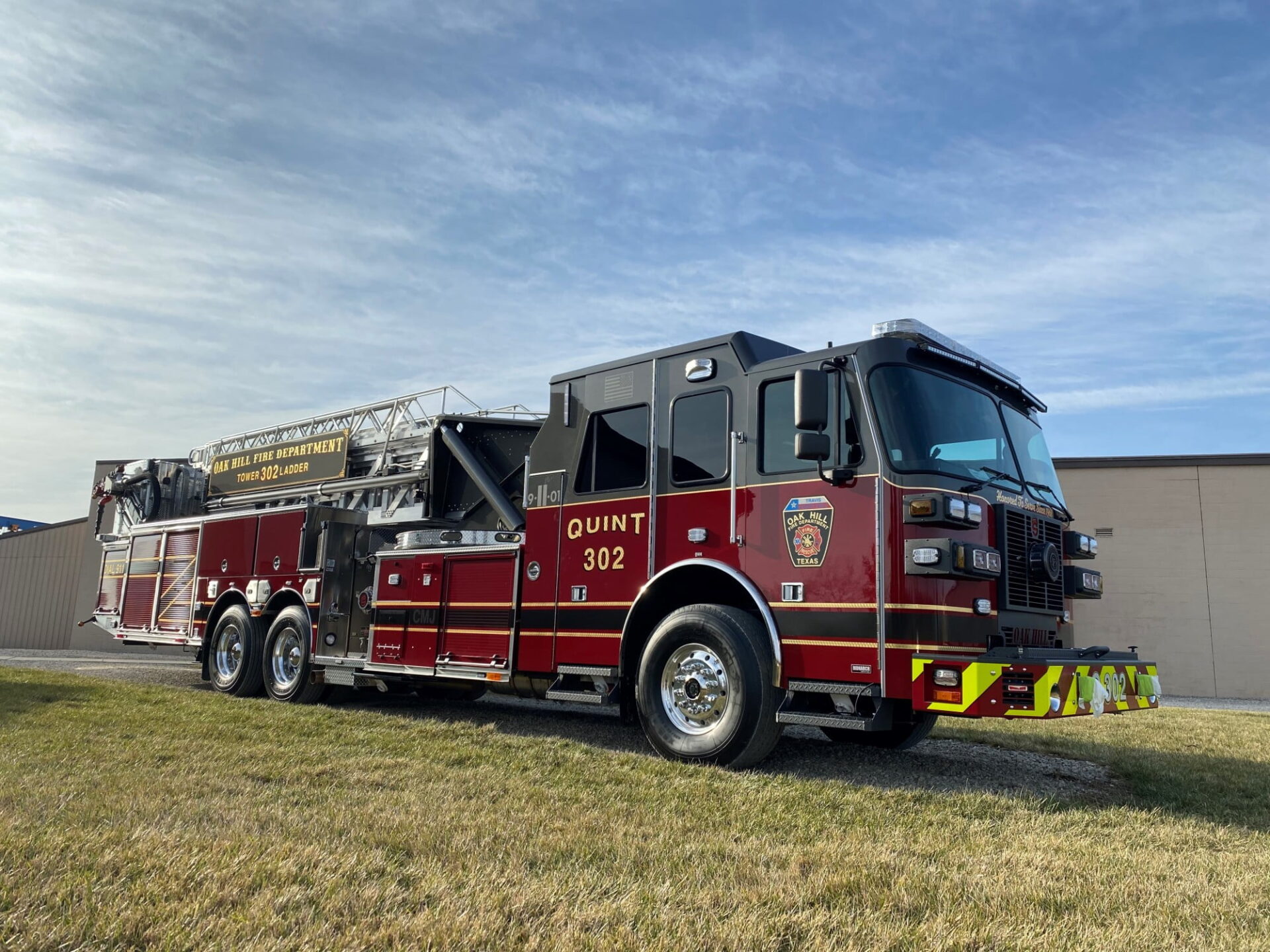

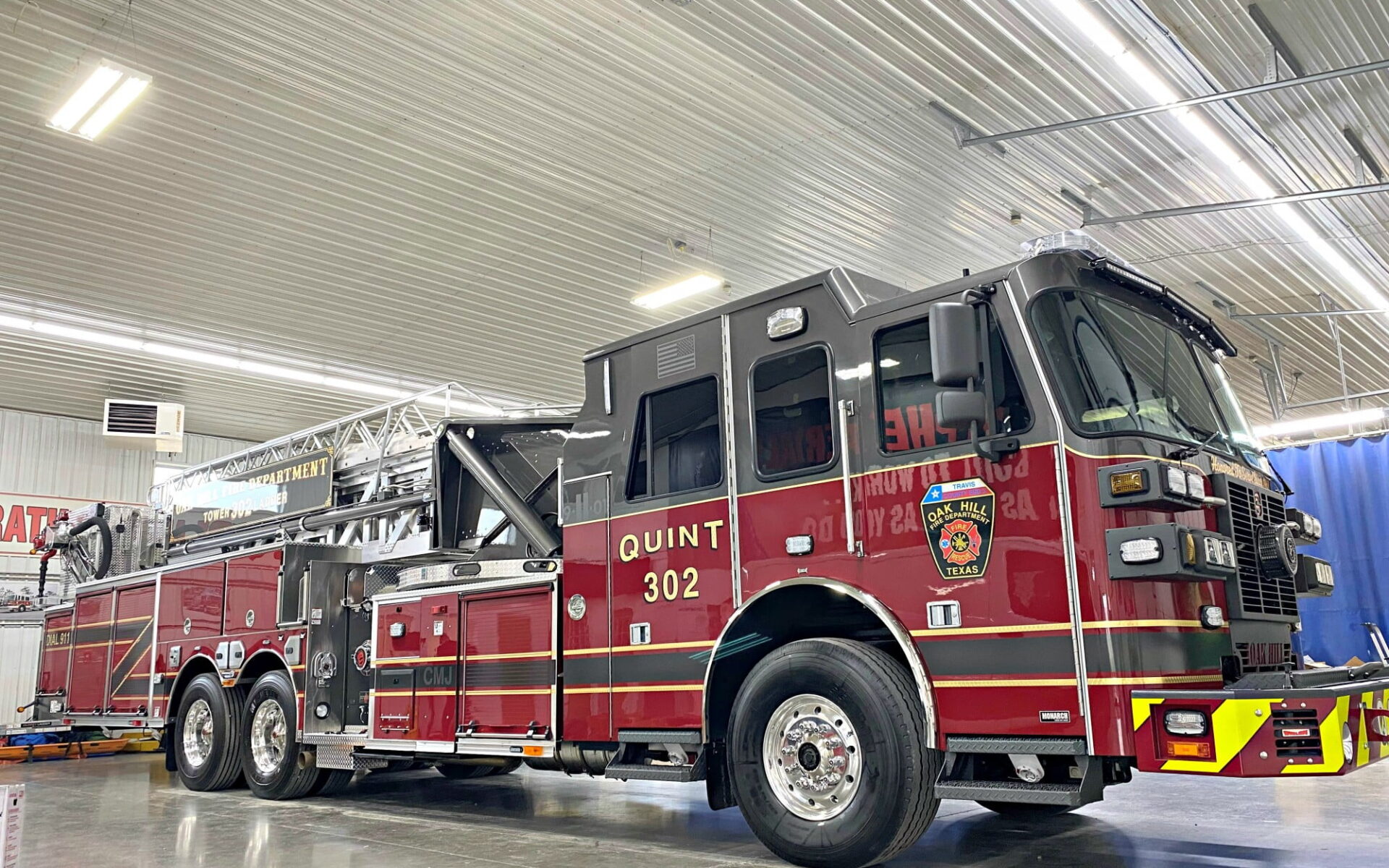

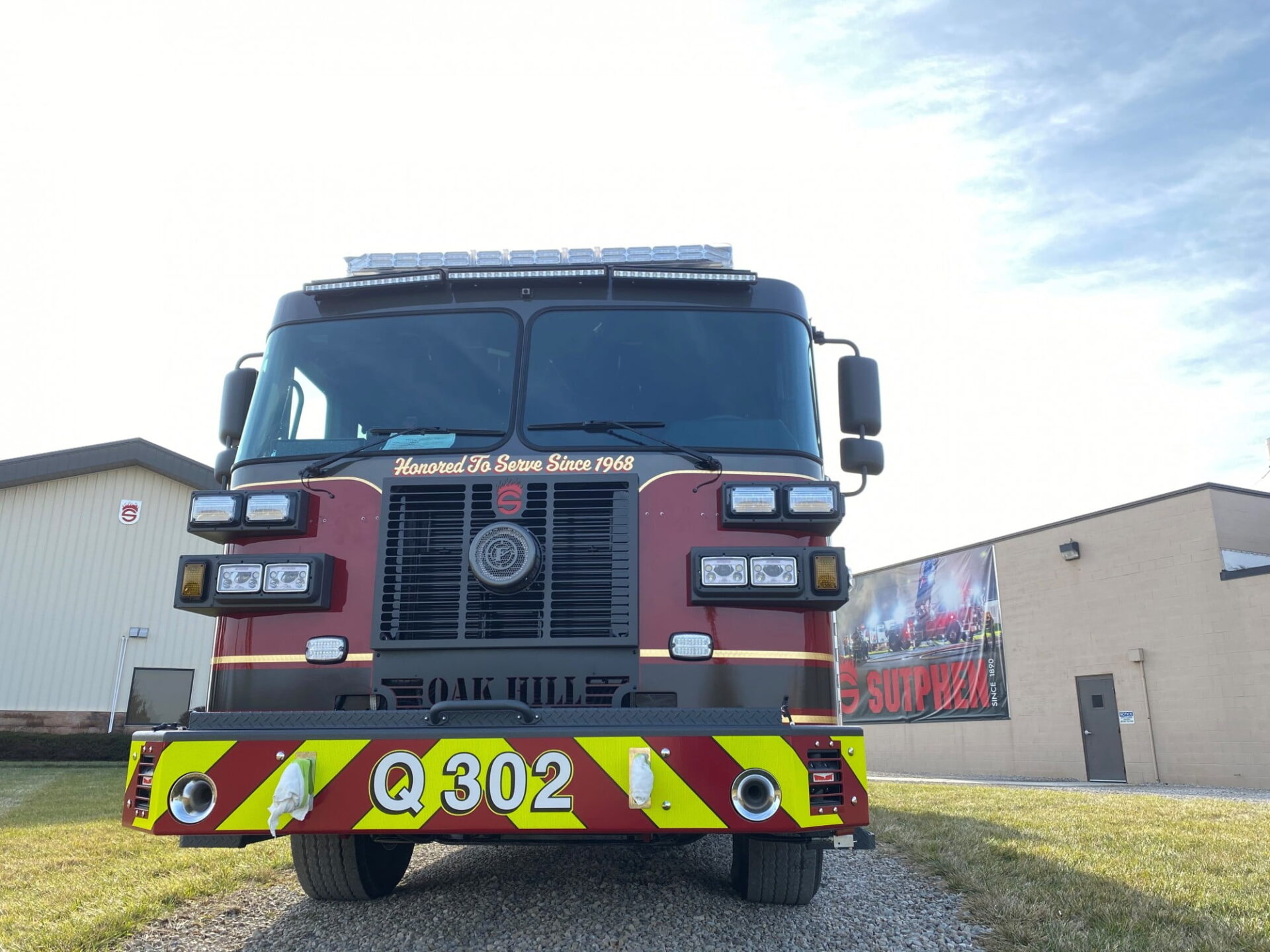

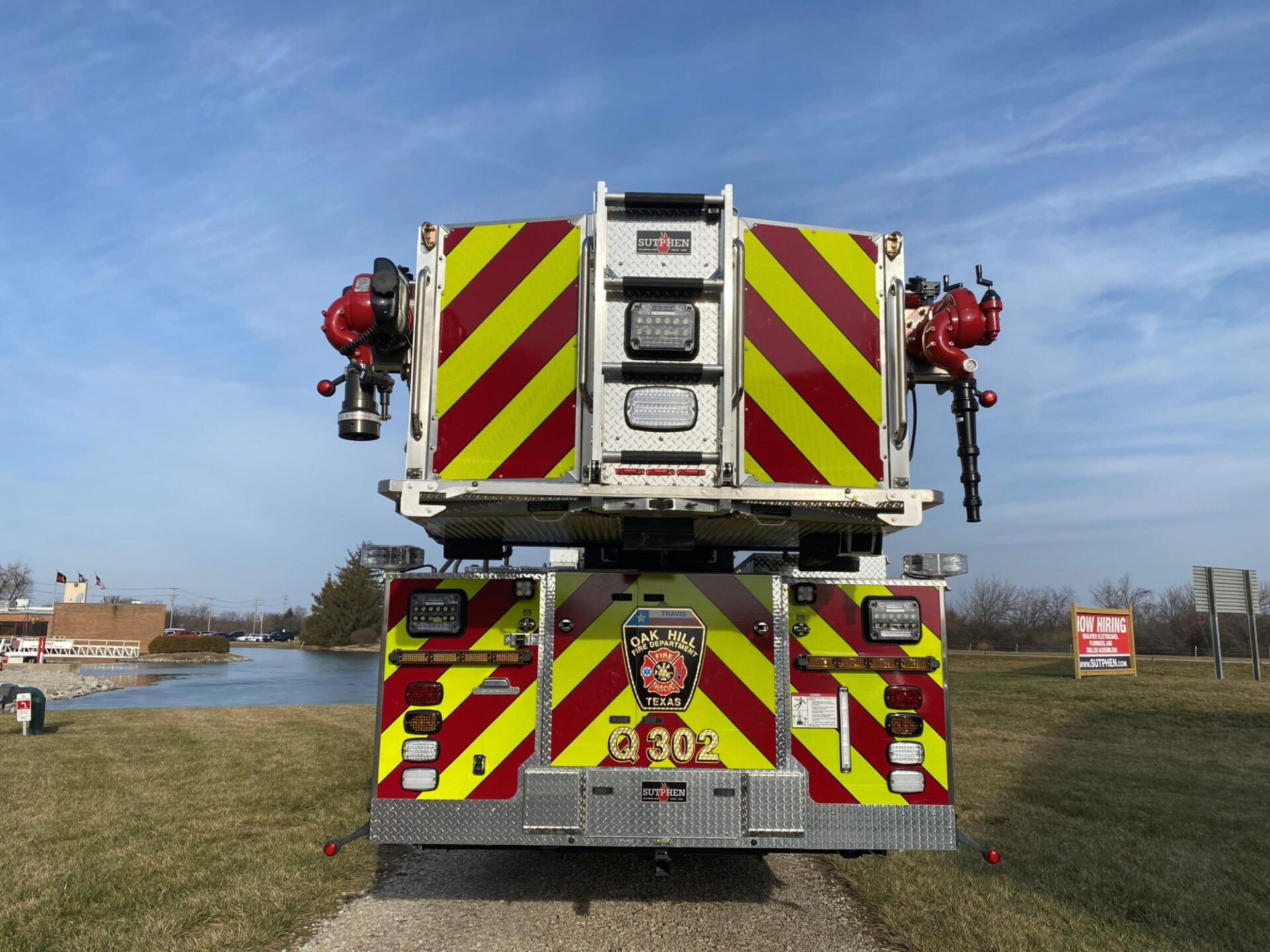

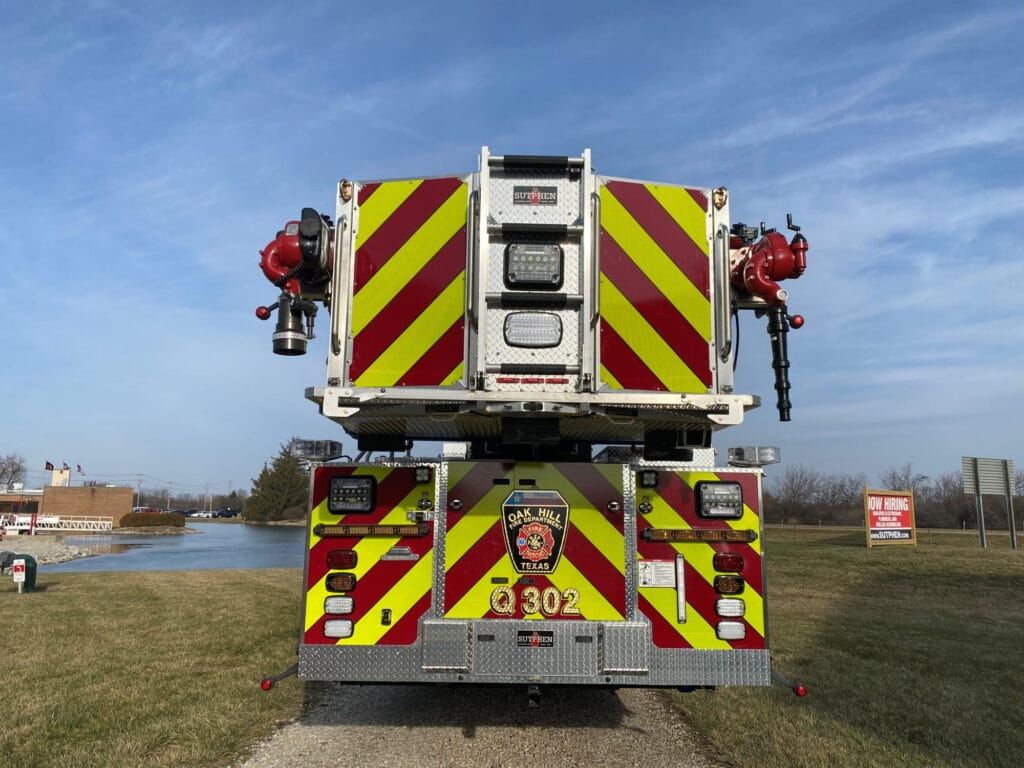

SPH 100 Aerial Platform – Oak Hill Fire Department, TX

Truck Type:
SPH 100 Aerial Platform
Dealer:
Sutphen
Location:
Oak Hill, TX
Department:
Oak Hill Fire Department

Specs

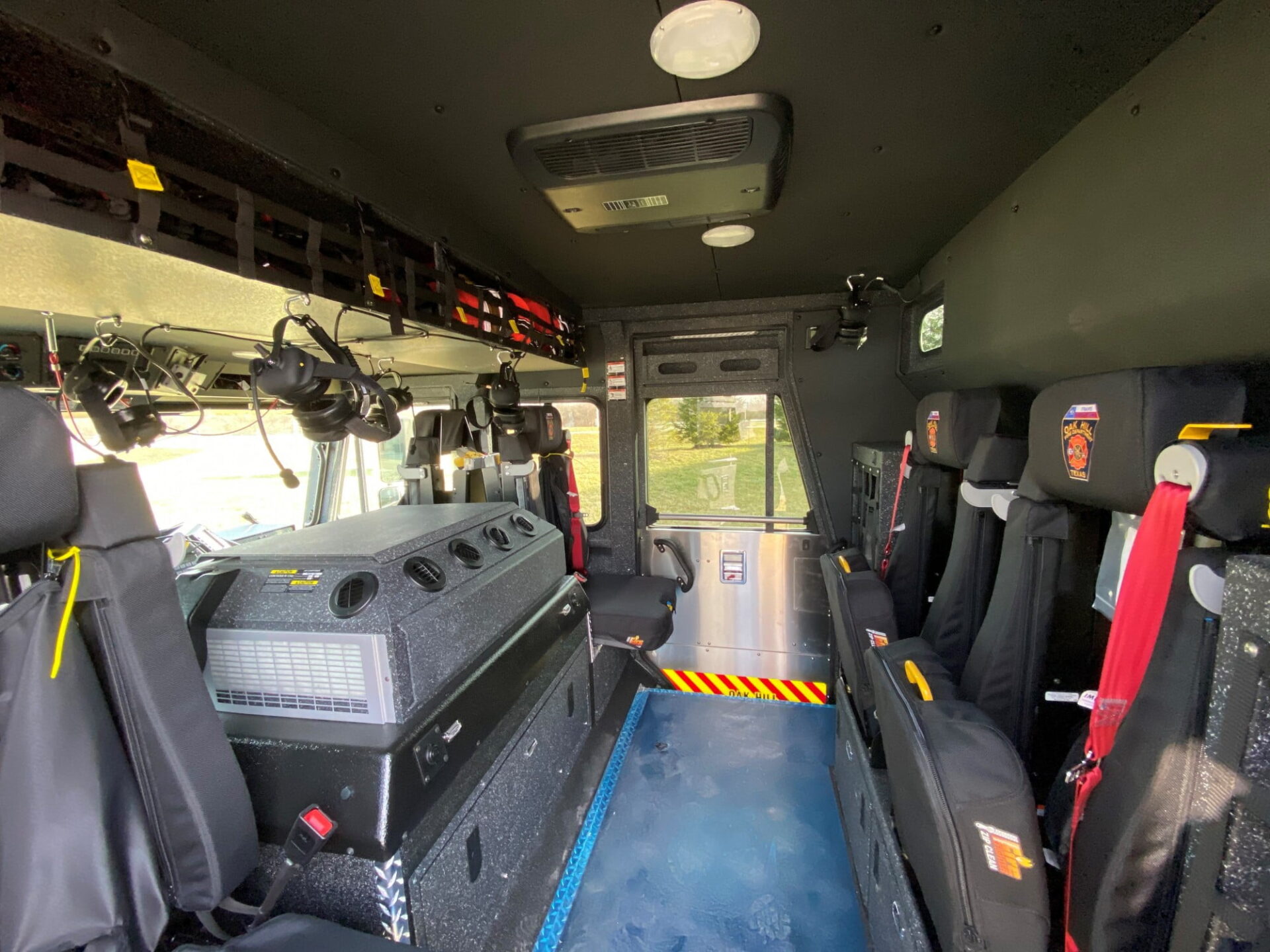

Cab
Four-door, six-person
10” Double Domex
Frame rails, tandem axle - aerial (110k psi)
Front Axle and Suspension
24,000 lbs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 12 500HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Csu-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front Bumper
Crosslay
(1) 2 ½” w/ 2 ½” Swivel, (2) 2” w/ 1 ½” Swivel
Water Tank
300-gallon
Doors
Mix roll-up and hinged compartment
Total Compartment Space
99 cu. ft.

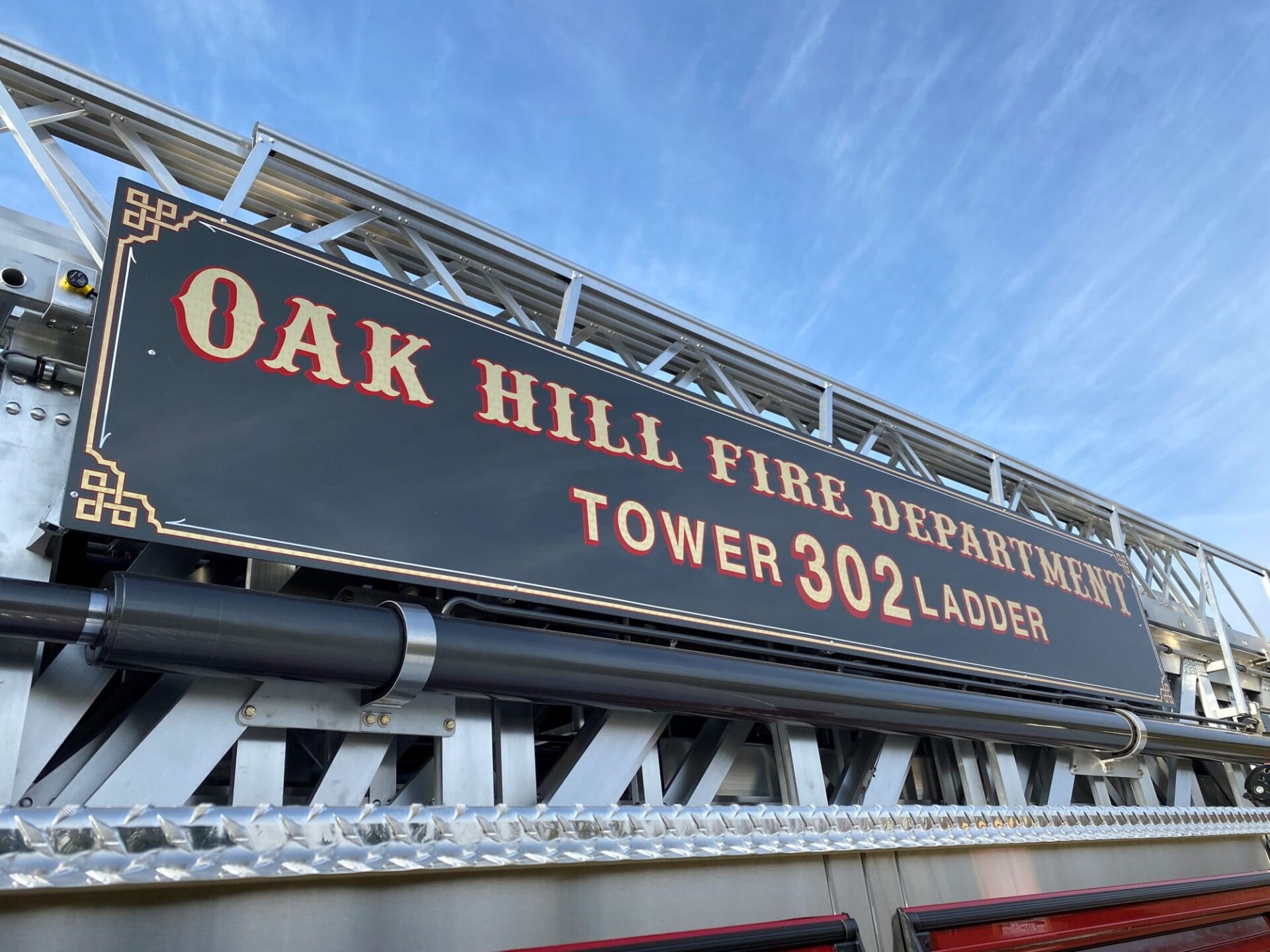

Duo-Safety (SPH) 117’
14’, 16’, 18’, 24’-2sec, 35'-2sec & 10'F
Body
SPH-3, LEFT 56" H / RIGHT 56"H
Bumper Extension
18” formed steel channel painted bumper
Siren
Federal q2b , grille mount
Thermal Imaging Camera
In bucket
Camera System
Brigade 360
FRC ACT 3-Station
Intercom system
Whelen Freedom IV
(16) led lightbar
FireTech 12V 3-Piece
Led brow light
FireTech 120V Tele
Lights
FireTech Scene Lights
Included
Whelen Traffic Advisor
Tal 85 22”, 2-piece
Whelen M6 Warning
Lights
Whelen M9 Warning
Light
Whelen L31 Beacons
Included
Officer Side Monitor
Akron 3483 Stream Master 2, Manual 1250 GPM
Officer Side Nozzle
Akron #3488 Streamshaper w/ #2499 Stacked Tips
Driver Side Monitor
Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
