SP 95 – Syracuse Fire Department, NY

Specs

Cab
Four-door, four-person
10” Double Frame
Rails tandem axle – aerial (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
44,000 lbs
Engine
Cummins X 12, 500 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4500

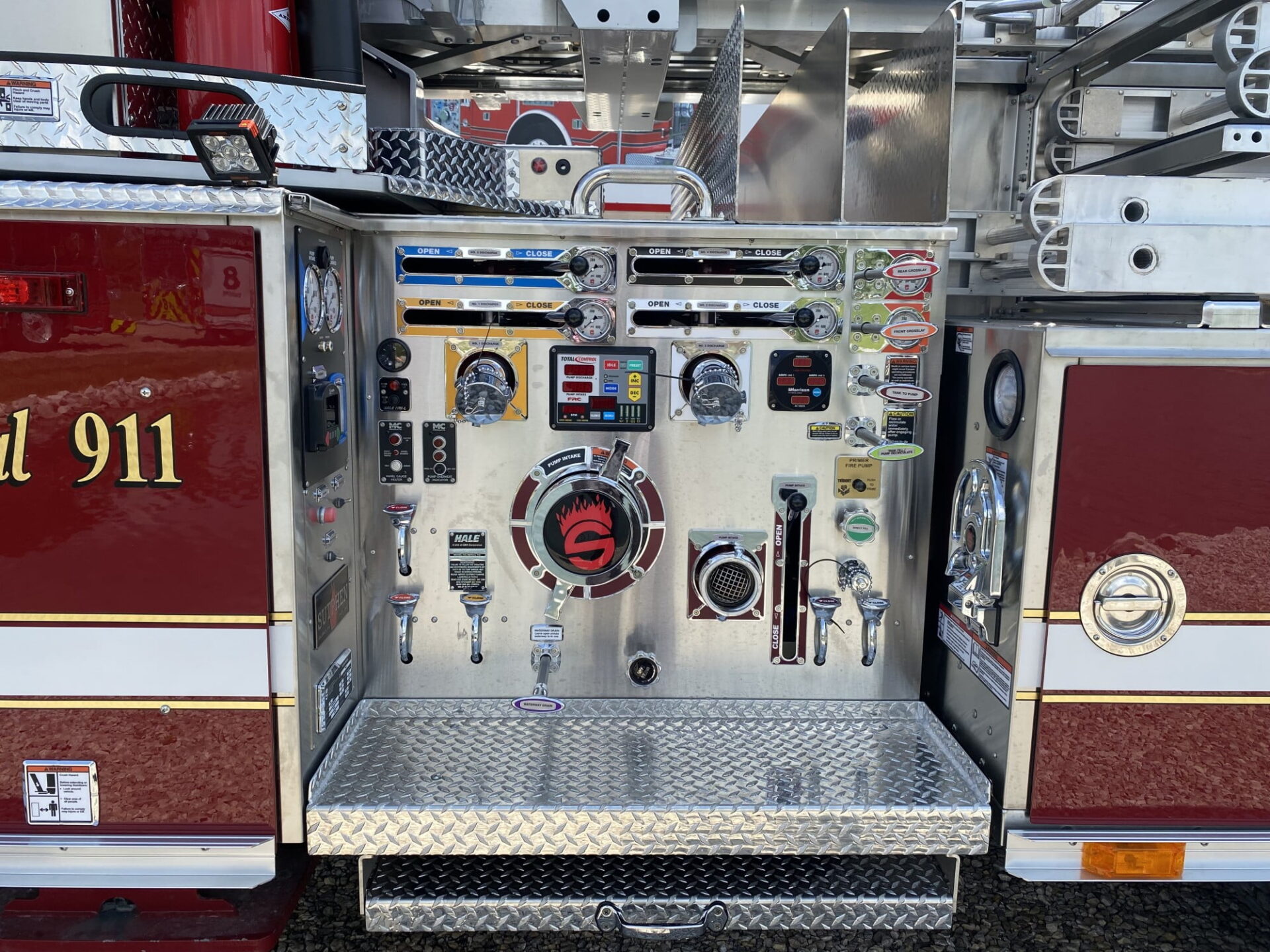

Water Pump
Qmax-1500 gpm, 6” suction single stage pump
Discharges
(2) 2 ½” Left, (2) 3” Right
Crosslay
(2) 2” Valve-Piping 1 ½” Swivel
Water Tank
400-gallon
Doors
Mixed compartment doors
Ladders
Duo Safety Syracuse Ladder Package. (1) 12’, (1) 16’, (1) 18’, (2) 20’ Extra Wide, (2) 30’ 2-Section, (2) 35’ 2-Section
Cab
95’ low rail ladder le track
Body
SP1 – Left Low / Right Low
Bumper Extension
12” formed steel channel bumper, painted
Siren
Federal q2b , grille mount
Intercom System
FRC ACT 2-Station
Whelen Freedom IV
Lightbar w/ opticom
FRC Spectra LED
Fixed/pedestal lights
MCFLED LED Beacons
Included
Whelen 600 Red
Leds
Driver Side Monitor
(1) Akron 3473 Gemini Manual 1000 GPM
Officer Side Monitor
(1) Akron 3473 Gemini Manual 1000 GPM
