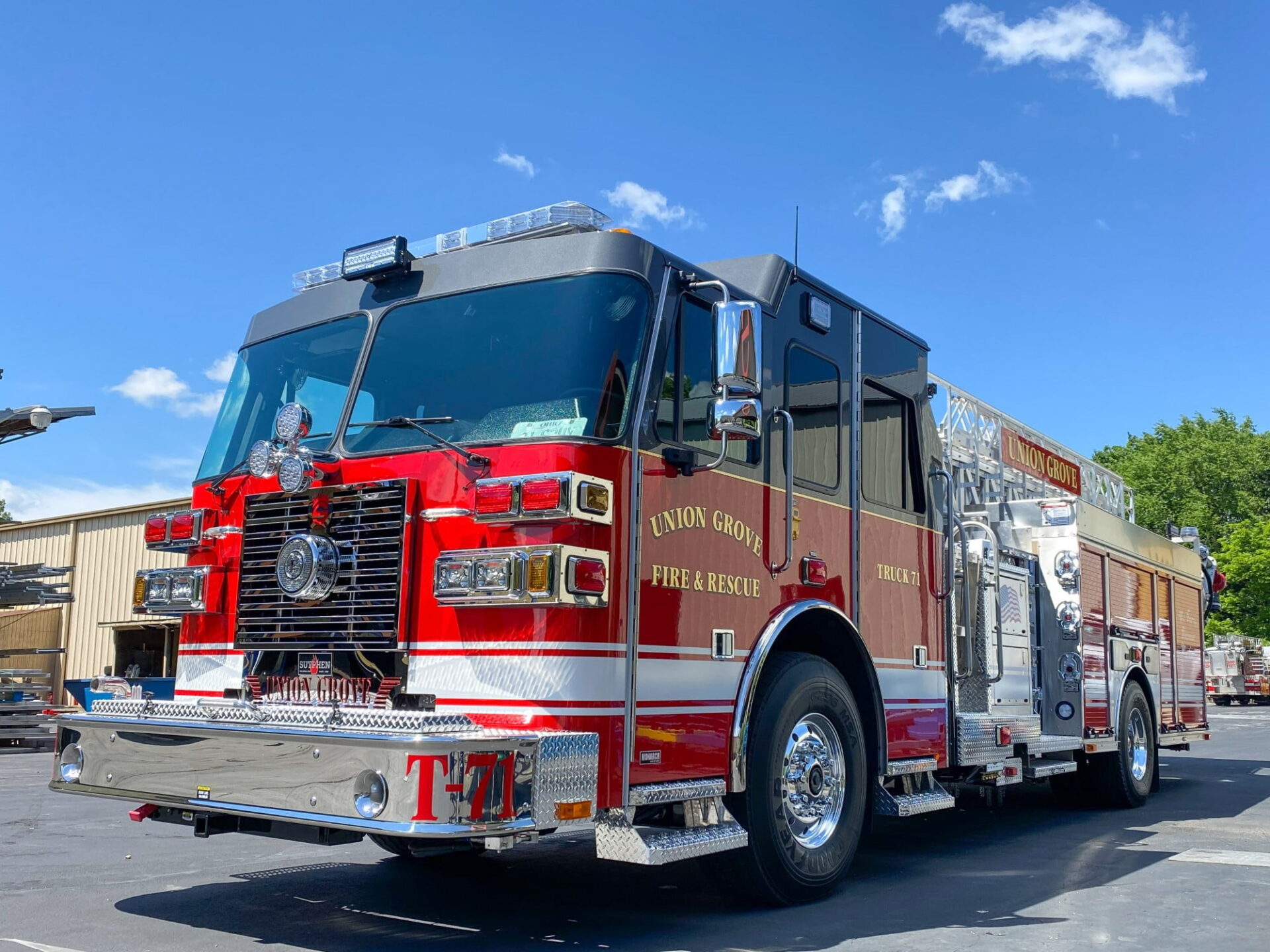

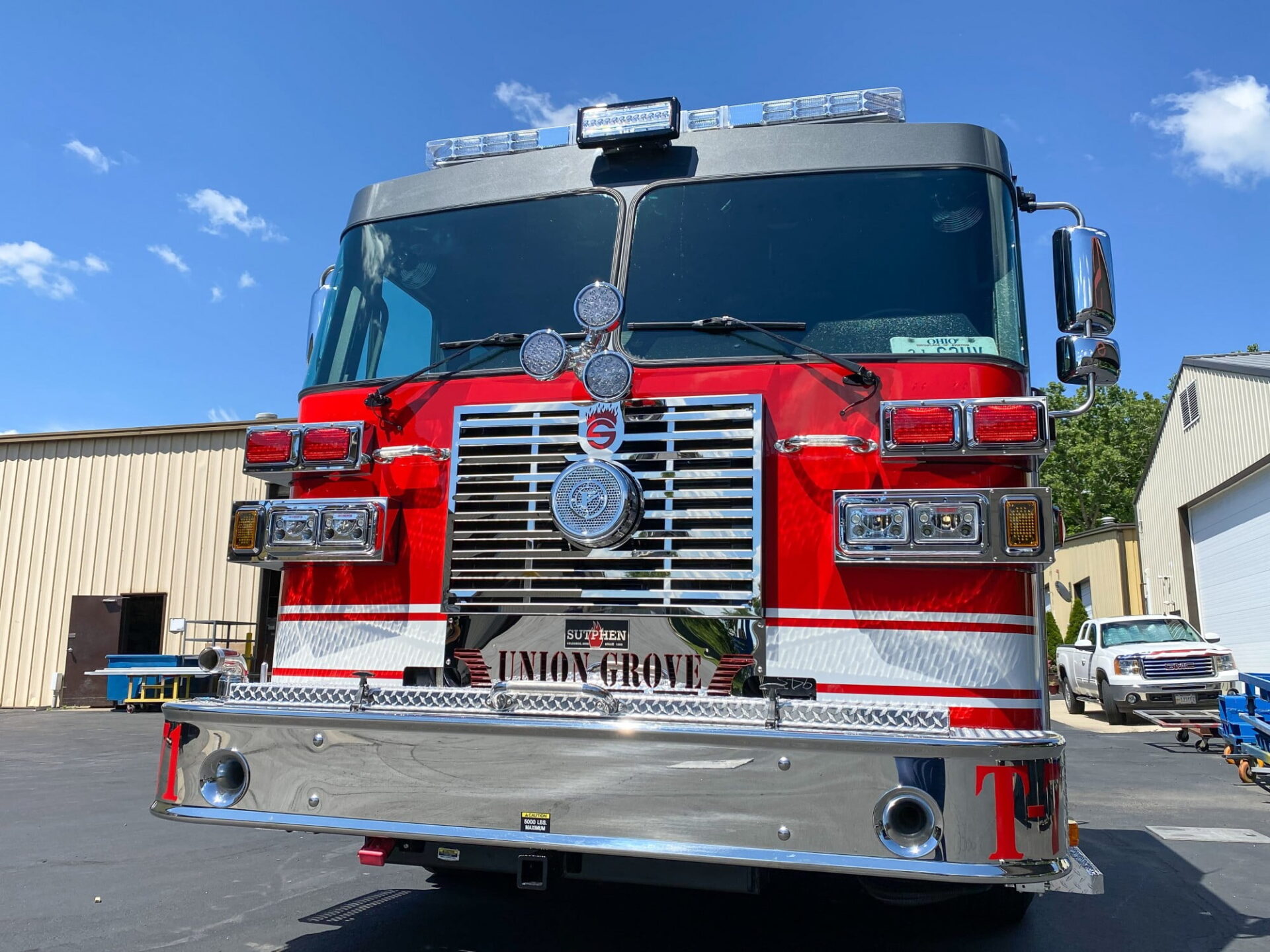

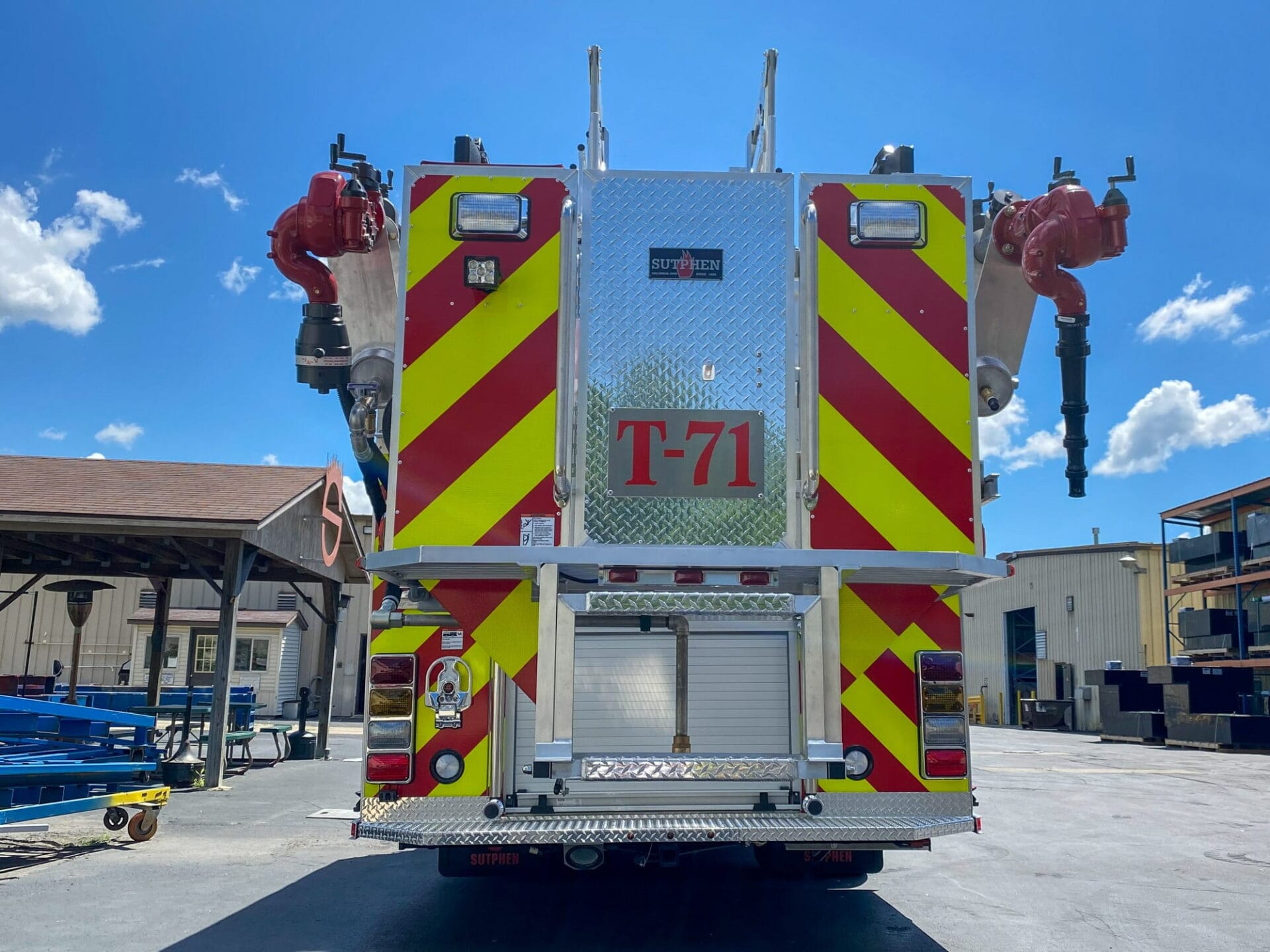

SP 70 – Union Grove Fire Department, AL

Specs

Cab
Four-door, six-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000

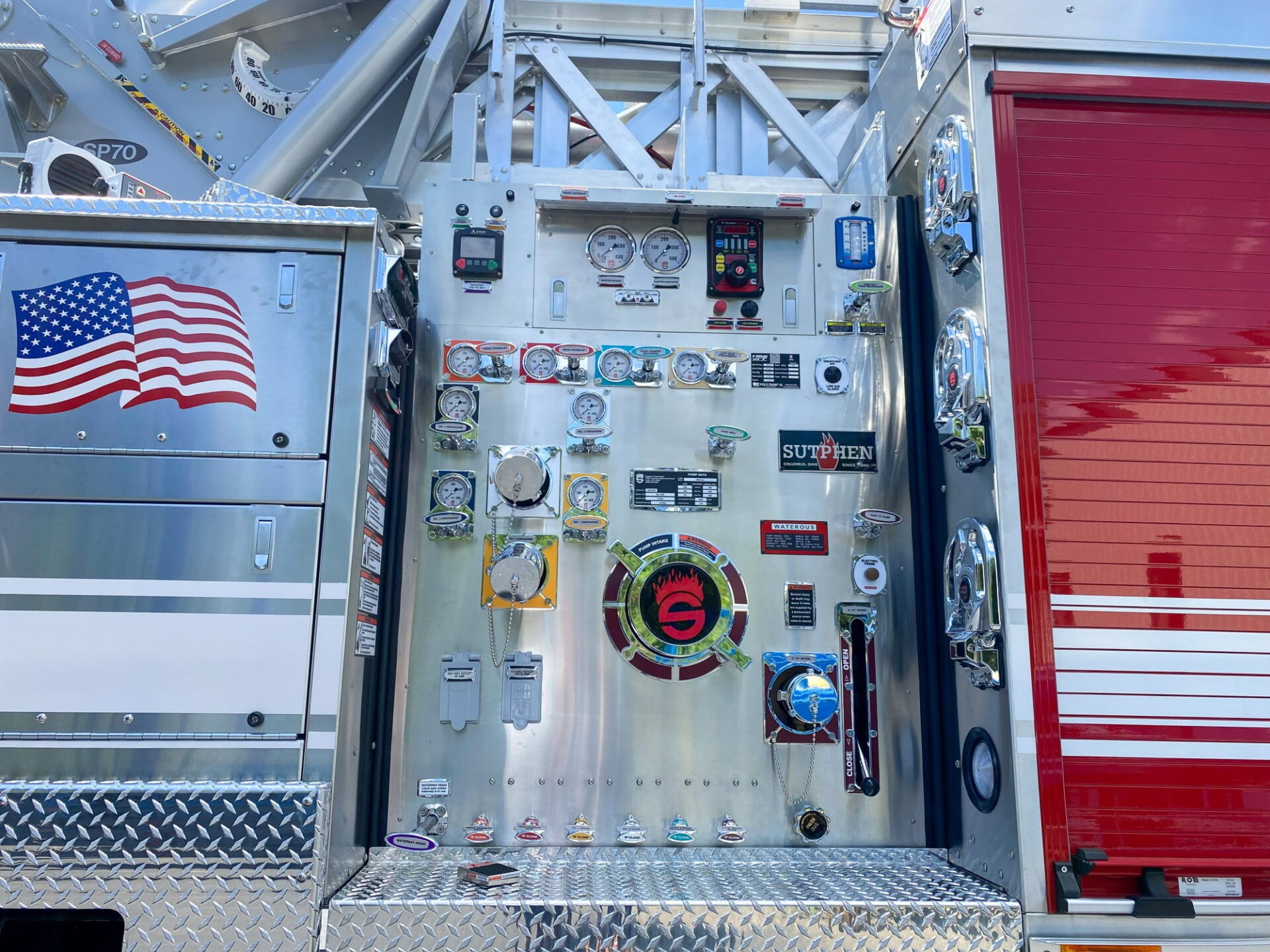

Water Pump
Csu-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (1) 2 ½” Front Bumper
Crosslay
(2) Crosslay 2” Valve-Piping 1 ½” Swivel
Water Tank
500-gallon

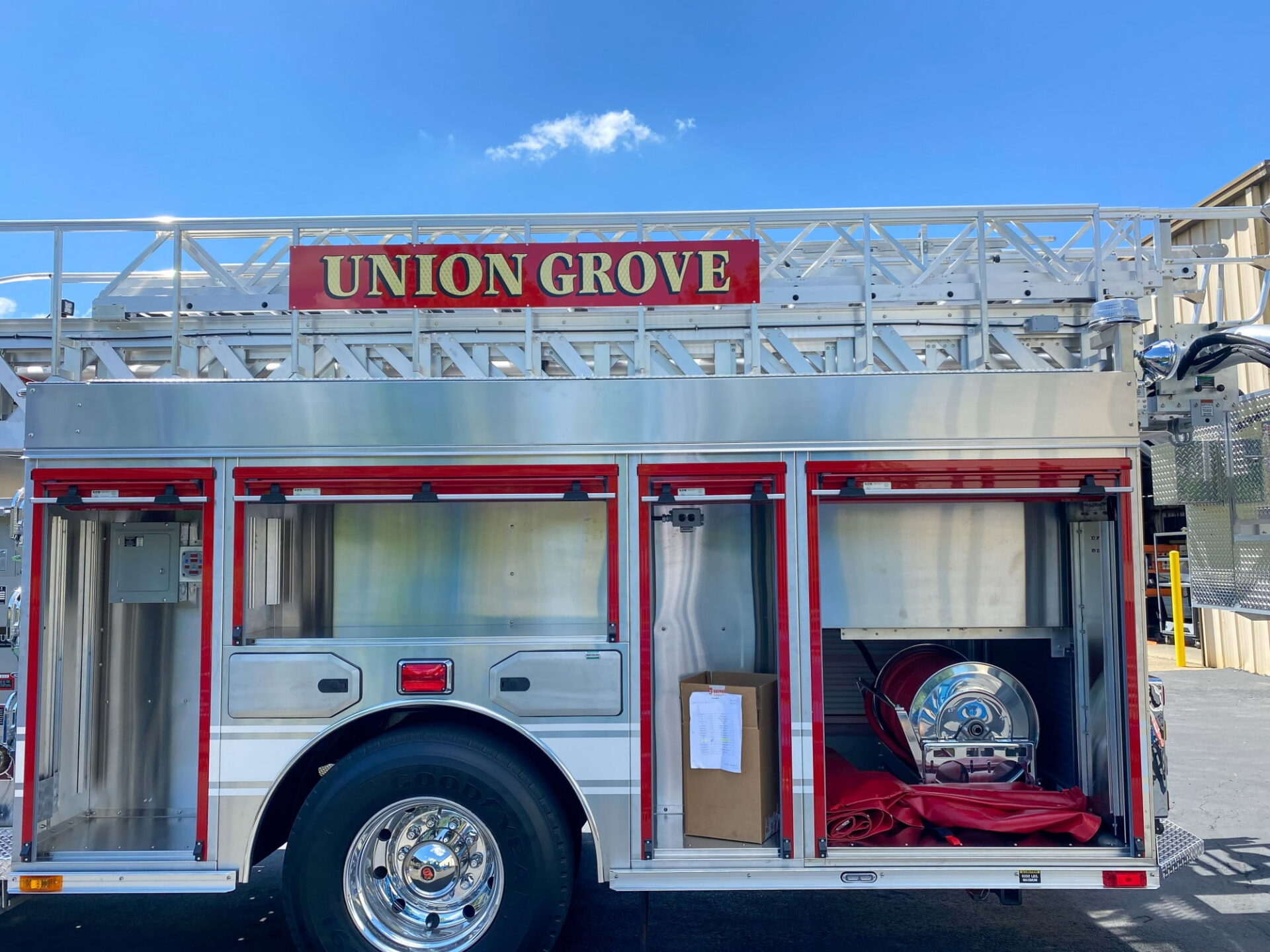

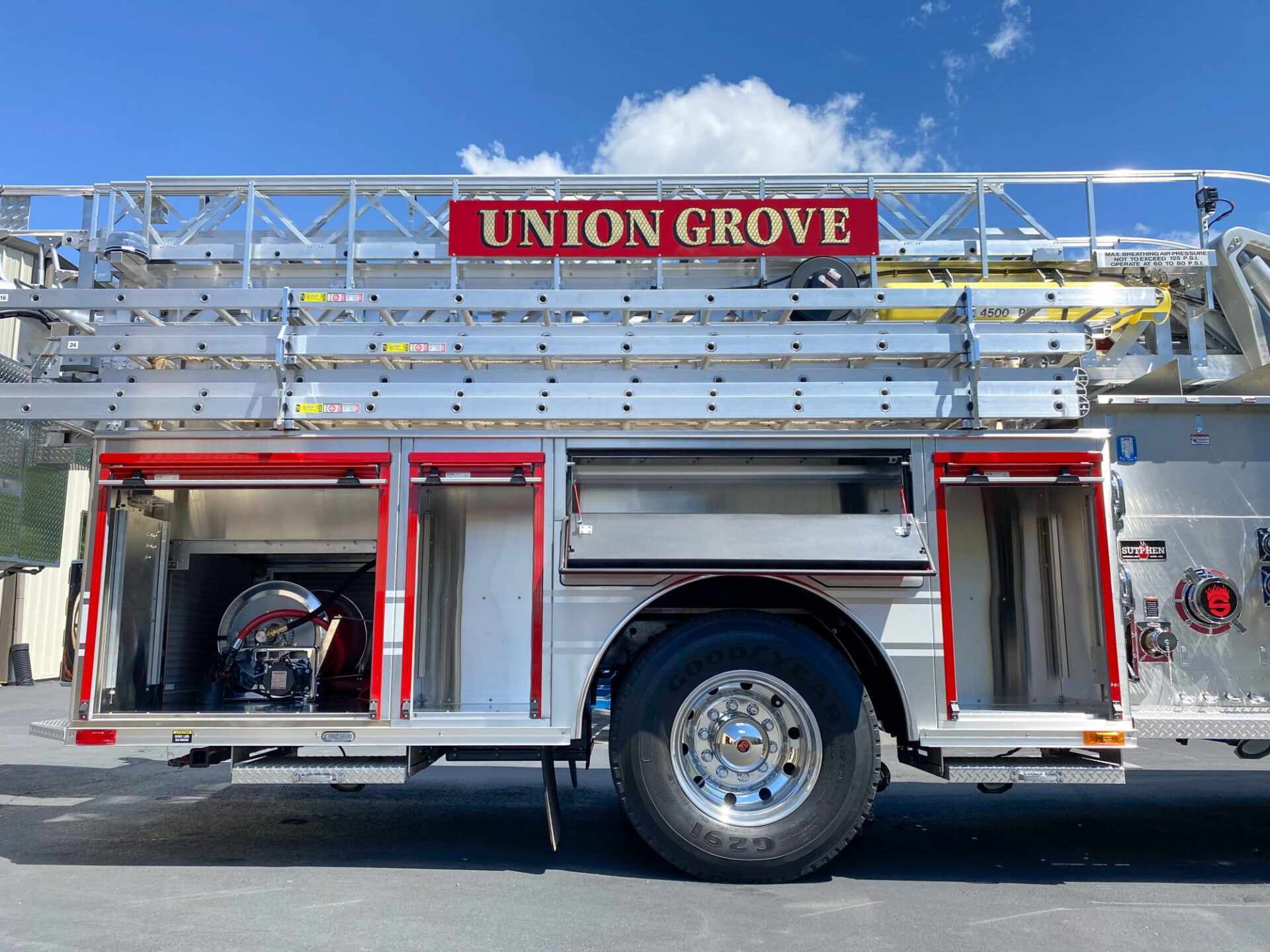

Doors
Rom roll-up compartment
Total Compartment Space
Over 190 cu. ft.
Duo-Safety Custom Ladder Compliment
(85’: 16’R, 24’ 2-Section, 35’ 3-Section & 10’ F)
Body
SAA-4, Left High / Right Intermed / Trans
Monitor
(2) Akron Manual Stream Master2 w/ Stream Shaper, Tips and Fog Nozzle
Bumper Extension
18” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Single Camera
Intercom System
FRC ACT 2-Station
Generator
Smart Power 6KW
FRC SpectraMax 28K
Led brow light
FRC Spectra 900
Scene light
FRC Spectra 240V
Led telescoping scene lights
FireTech LED Platform
Spotlight
Whelen Freedom 4
Lightbar
Roto Ray Warning
Light
