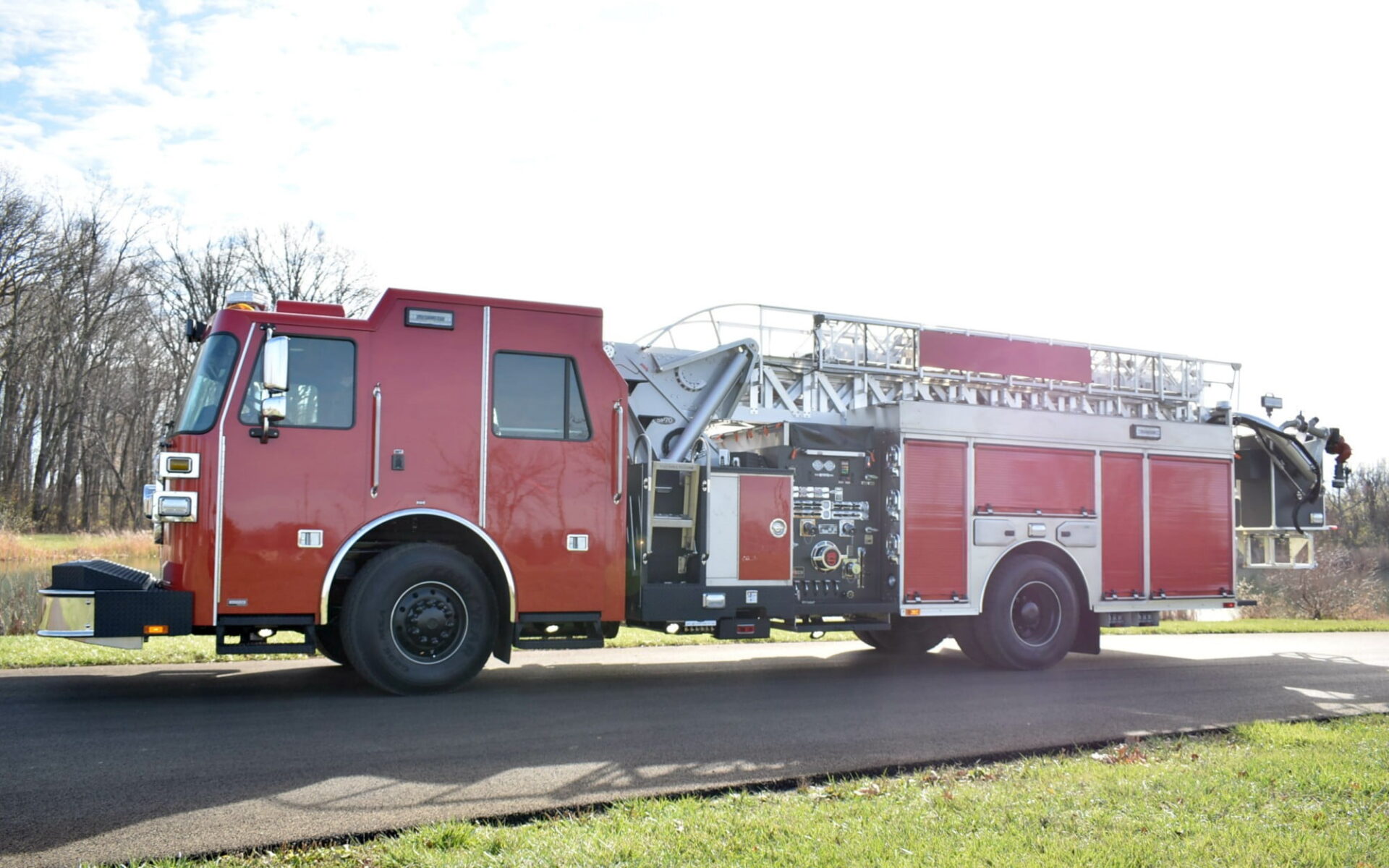

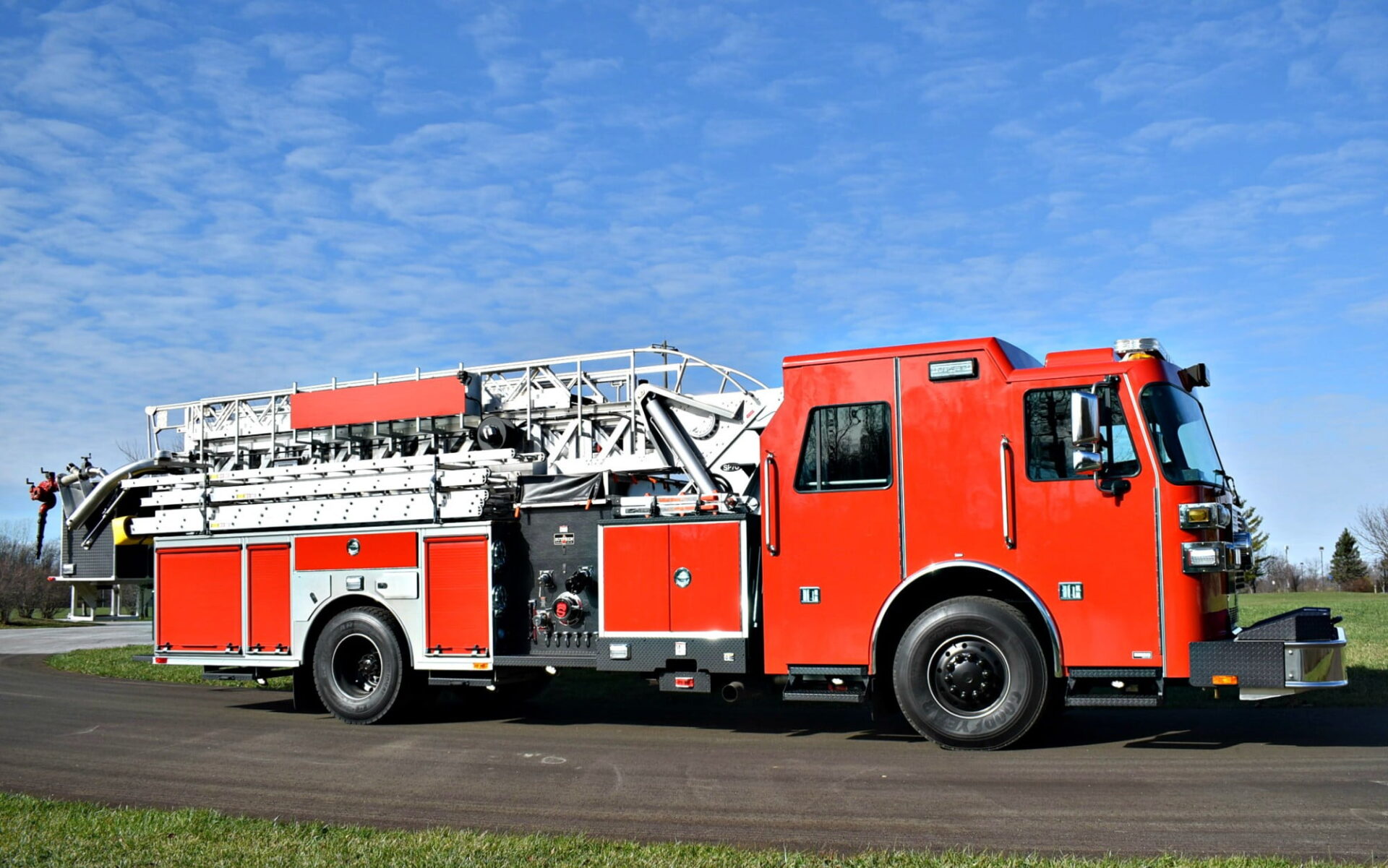

SP 70 – Trotwood Fire Department, OH

Location:
Trotwood, Ohio
Department:
Trotwood Fire Department

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper
Crosslay
(2) 2” Valve-Piping 1 ½” Swivel
Water Tank
500-gallon

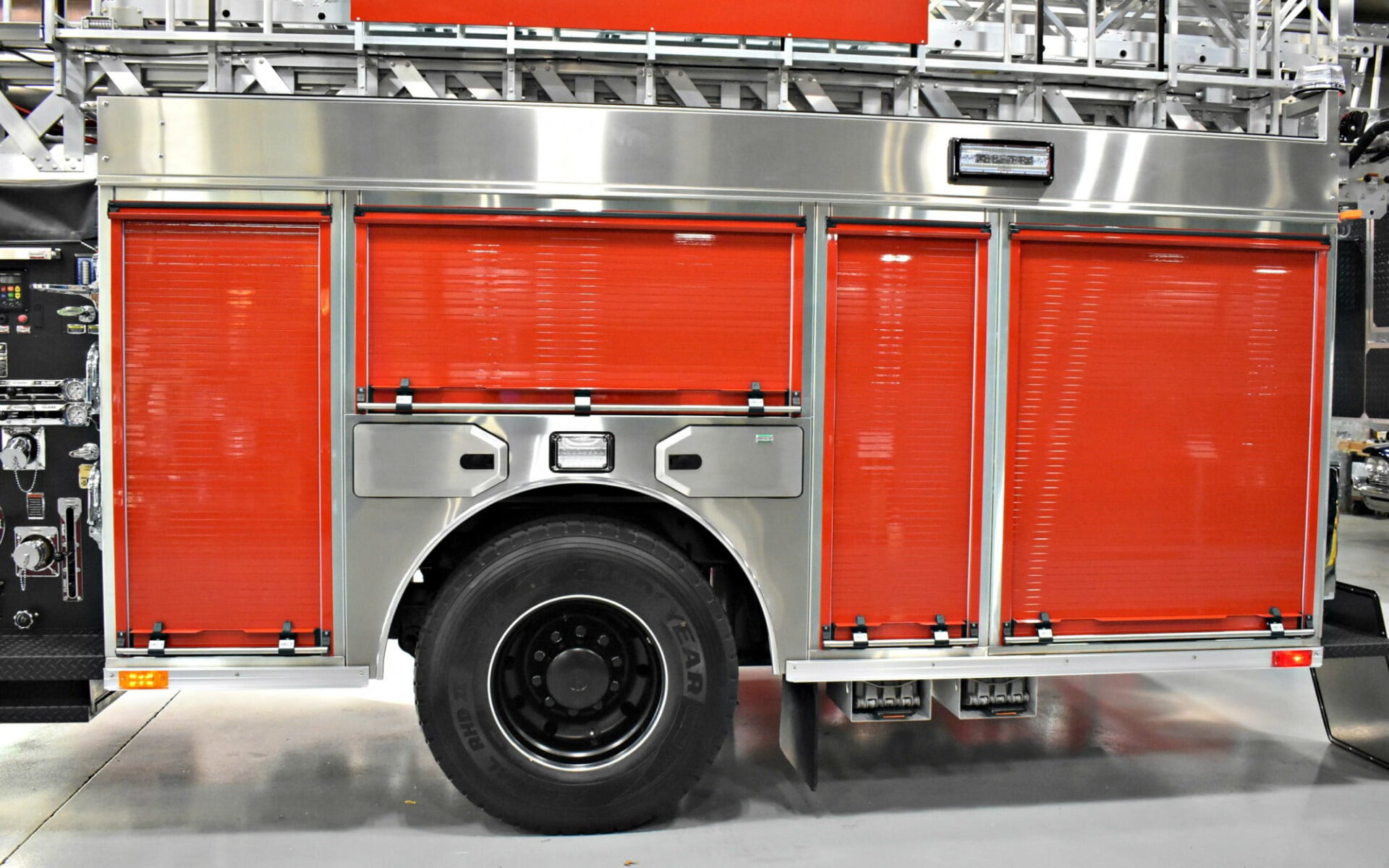

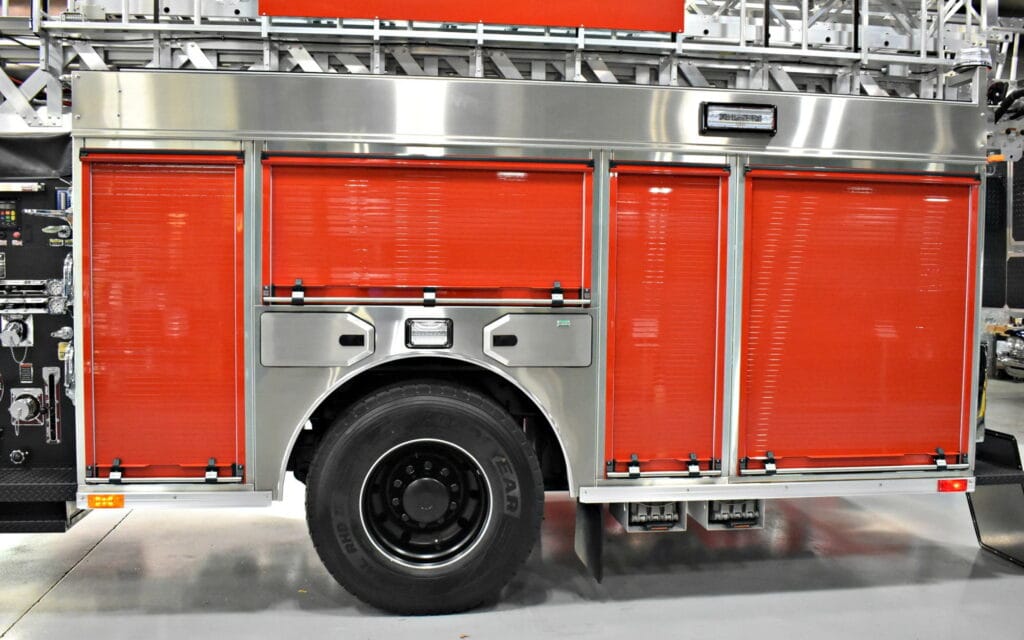

Doors
Amdor roll-up compartment

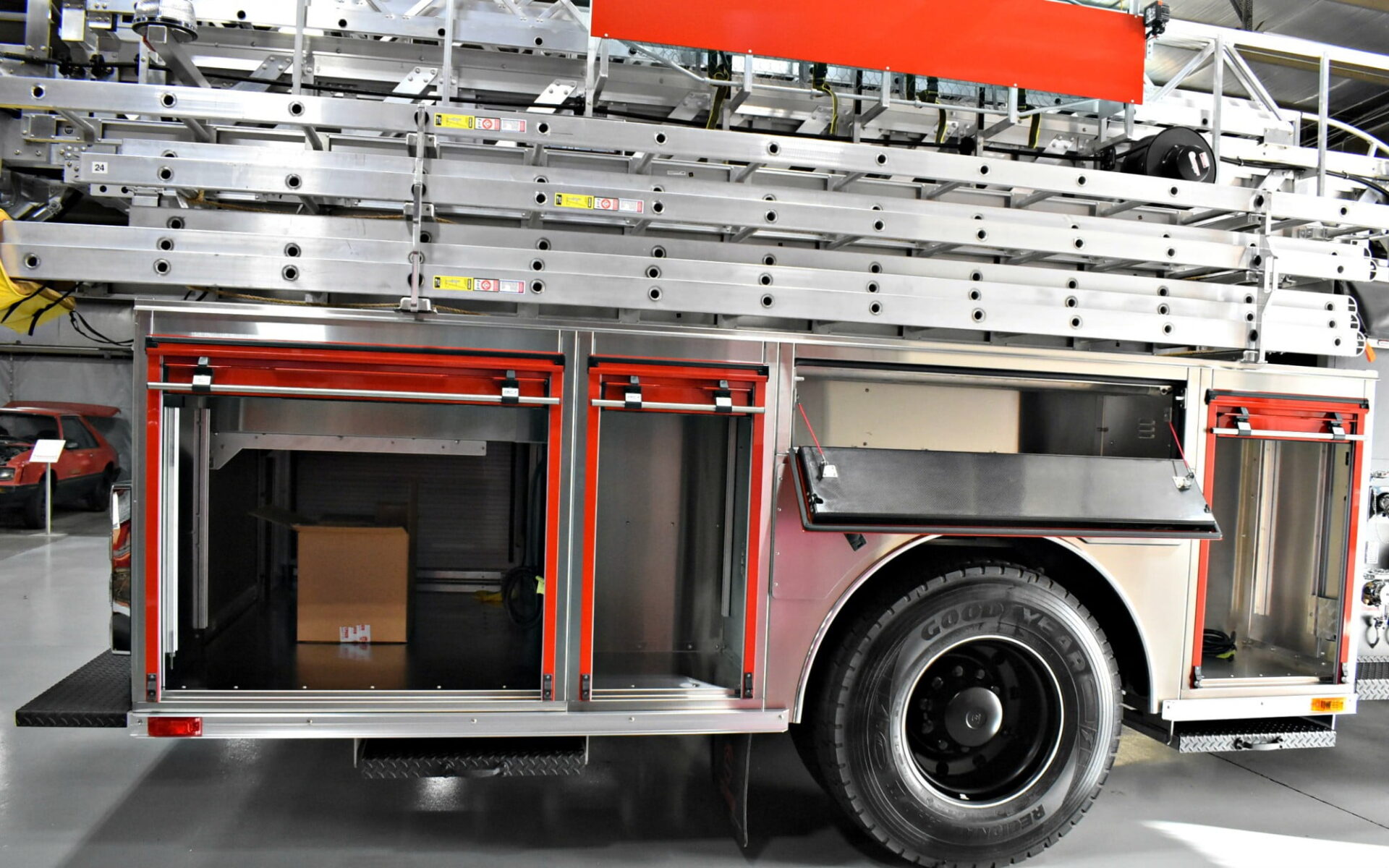

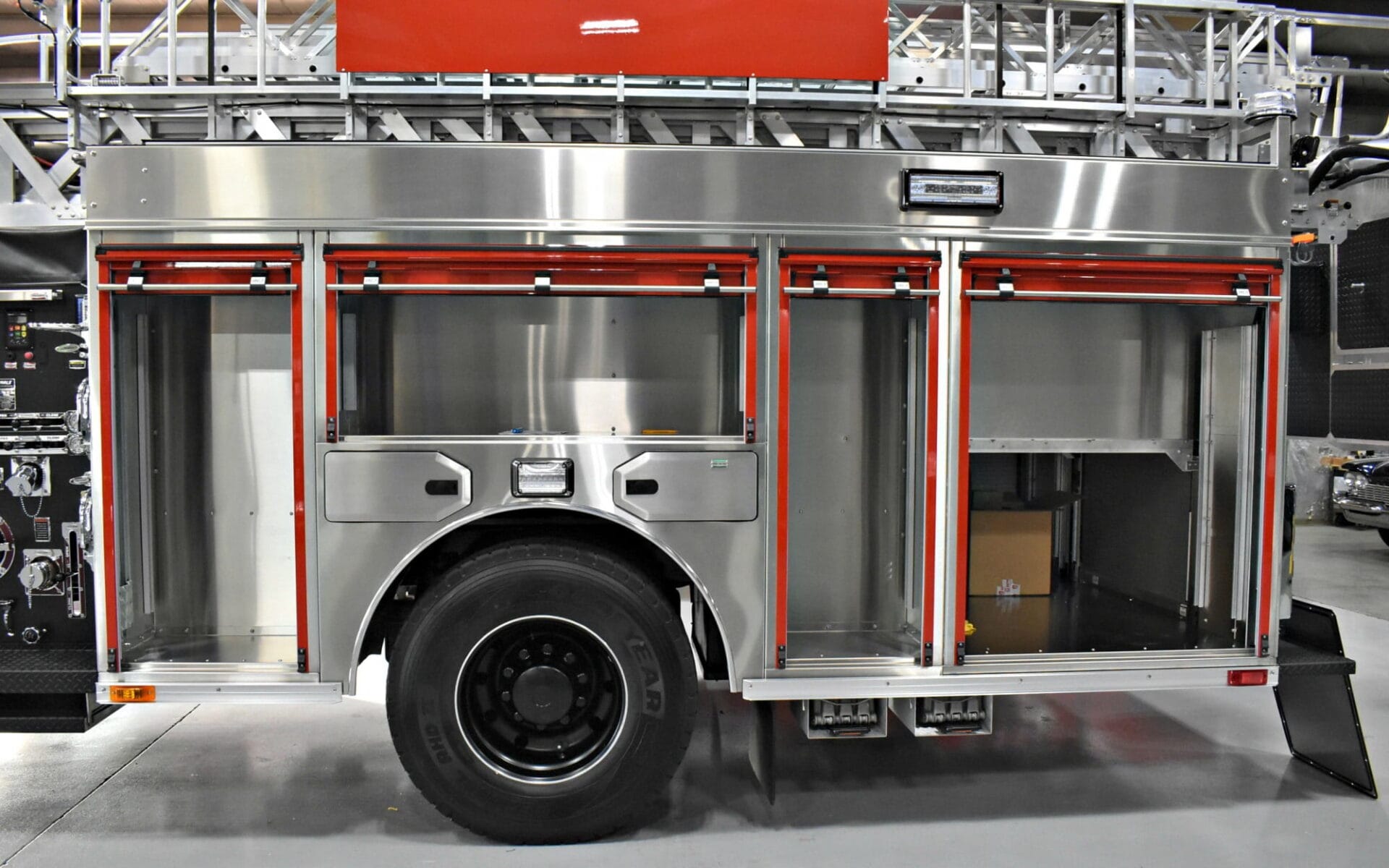

Total Compartment Space
Over 190 cu. ft.

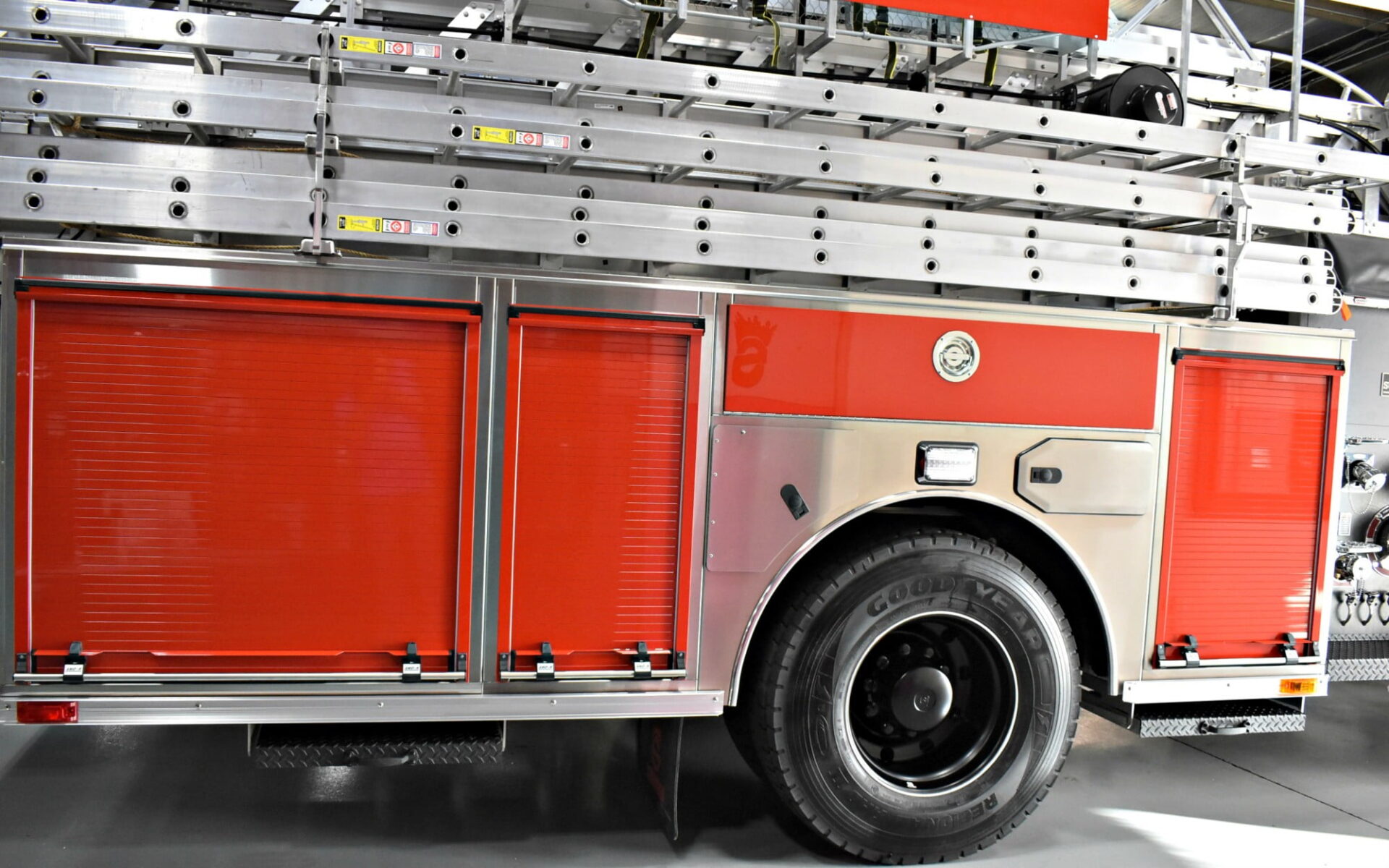

Duo-Safety Ladder Package (85’
(2) 16’ Roof, 24’ 2-Section, 35’ 3-Section & 12’ Folding)
Body
SAA-4, Left High/Right Intermed / Trans
Bumper Extension
30” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Single Camera
Intercom System
FRC ACT 2-Station
Ladder Compliment
Little giant ladder 13’
Whelen Freedom 4
Lightbar
FRC Spectra 12V
20k led brow light
FRC Spectra 12V
20k led scene light
Driver Side Monitor
(1) Akron 3482 Stream Master 2 Electric RF w/ Akron 5177 Nozzle
Officer Side Monitor
(1) Akron Manual Stream Master 2 w/ Shaper and Tips
