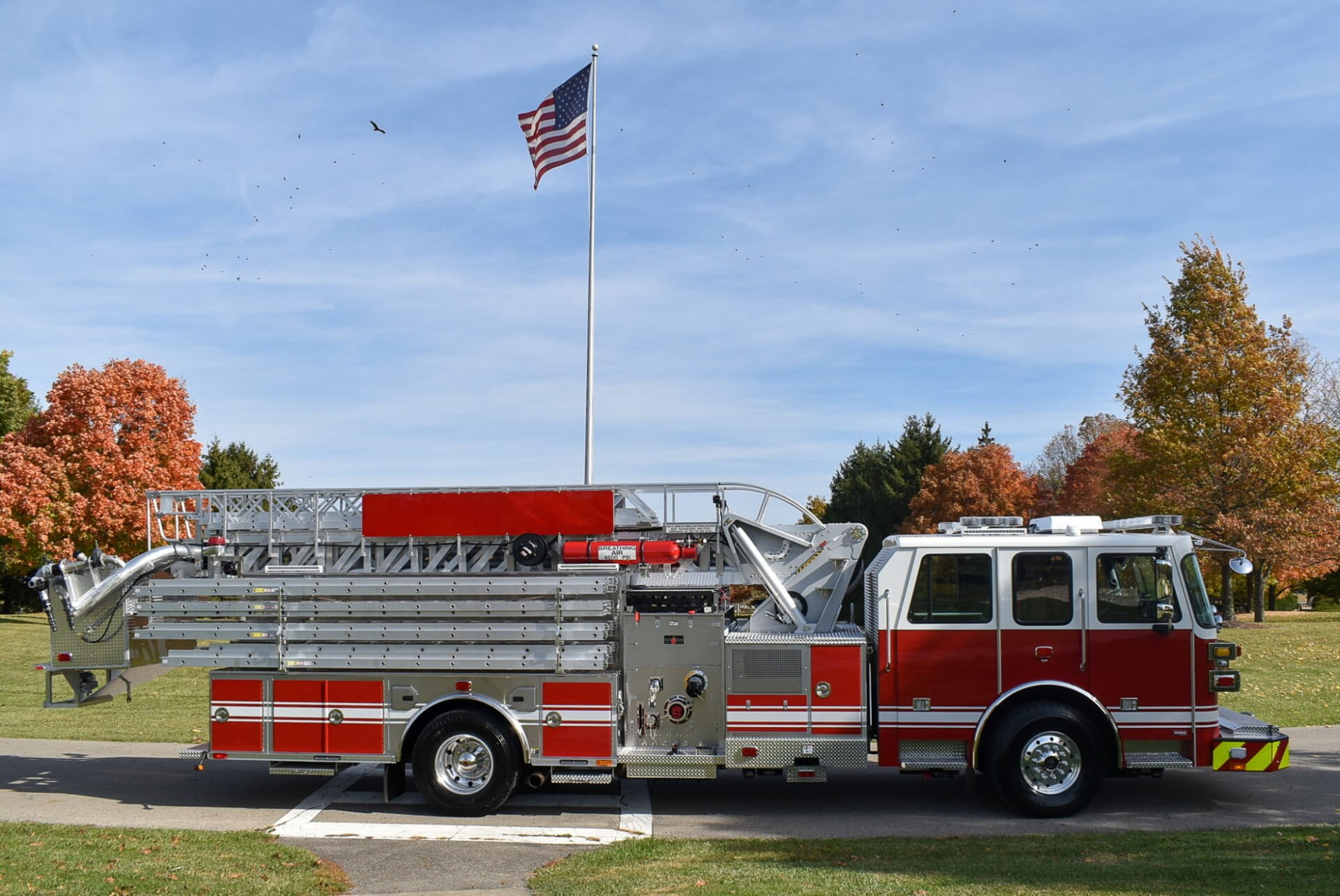

SP 70 – Greensboro Fire Department, NC

Truck Type:
SP 70 Aerial Platform
Dealer:
Sutphen
Location:
Greensboro, NC
Department:
Greensboro Fire Department

Specs

Cab
Four-door, five-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins X 12, 500HP
Alternator
Delco-Remy, 430 AMP
Transmission
Allison Gen 5, EVS4500
Water Pump
Qmax-1500 gpm 6” suction, single stage pump
Discharges
(1) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left Side
Monitor
(2) TFT Monsoon Manual Y4-M15A, w/ Apollo Stream Shapers 3488 & Elkhart ST-191A Stacked Tips (2)
Crosslays
(2) 2” Valve Piping, 1 ½” Swivel
Water Tank
300-gallon
Construction
Huckbolt #304 stainless steel
Doors
Hinged compartment , painted
Total Compartment Space
Over 162 cu ft.
Duo-Safety Ladder Package
16’ R (2), 28’ 2-Section (2), 35’ 3-Section, & 10’ Folding
Body
SAA-1, Left High / Right Low
Bumper Extension
24” formed steel channel,
Siren
Federal q2b , grille mount
Intercom System
FRC ACT 2-Station
Generator
10KW Smart Power
Power
Hannay electric cord reel, 150’ (2)
Camera System
Safety Vision SV-CLCD0-70
Roto-Ray Warning Light
Included
Whelen Freedom 4
Rotabeam 81” lightbar
Opticom
Included
Whelen Freedom 4
23.35” rotabeam lightbar
FireTech FT-MB-18 12V
Led scene light
FireTech WL-X-9 LED
Work lights
Traffic Advisor (6)
Whelen ion led
