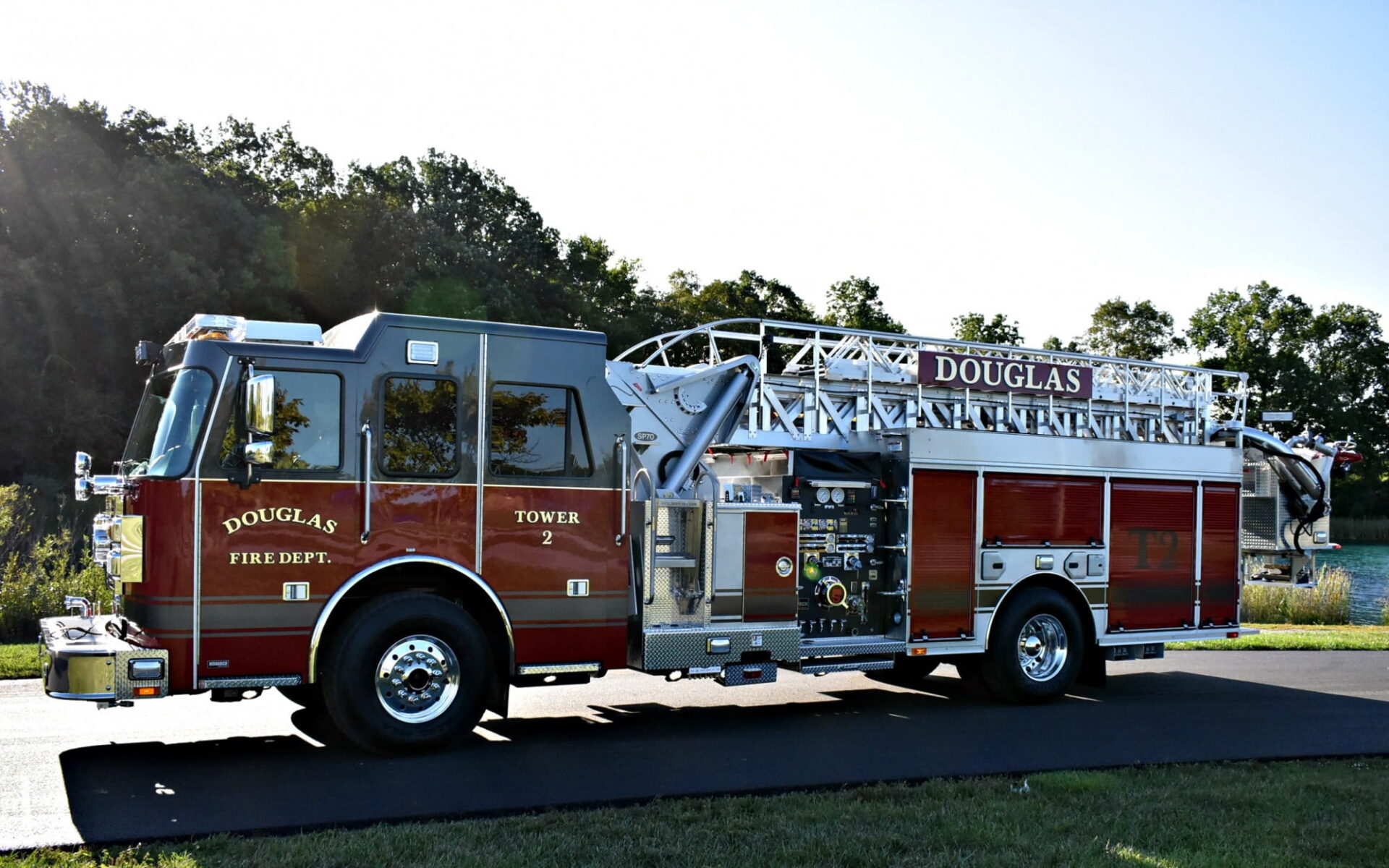

SP 70 – Douglas Fire Department, GA

Truck Type:
SP 70 Aerial Platform
Dealer:
Sutphen
Location:
Douglas, GA
Department:
Douglas Fire Department

Specs

Cab
Four-door, six-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper
Crosslay
(2) 2” Valve-Piping 1 ½” Swivel
Water Tank
500-gallon
Doors
Amdor roll-up compartment
Total Compartment Space
Over 190 cu. ft.
Alco-Lite Ladder Package (85’
16’ Roof, 24’ 2-Section, 35’ 3-Section & 10’ Folding)
Body
SAA-3, Left High/Right Intermed
Bumper Extension
18” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
Voyager 2
Generator
Smart Power 6KW HYD
Intercom System
FRC ACT 2-Station
Power
Hannay electric cord reel, 175’ (1)
Roto-Ray Warning Light
Included
Whelen Freedom 4
Lightbar
FRC Spectra LED
Brow light
FRC Spectra 900
Scene light
FRC Spectra 120V
20k led scene light
FireTech 12V LED
Rear work lights
Monitor
(2) Elkhart #293-6A w/ CSW Nozzle
