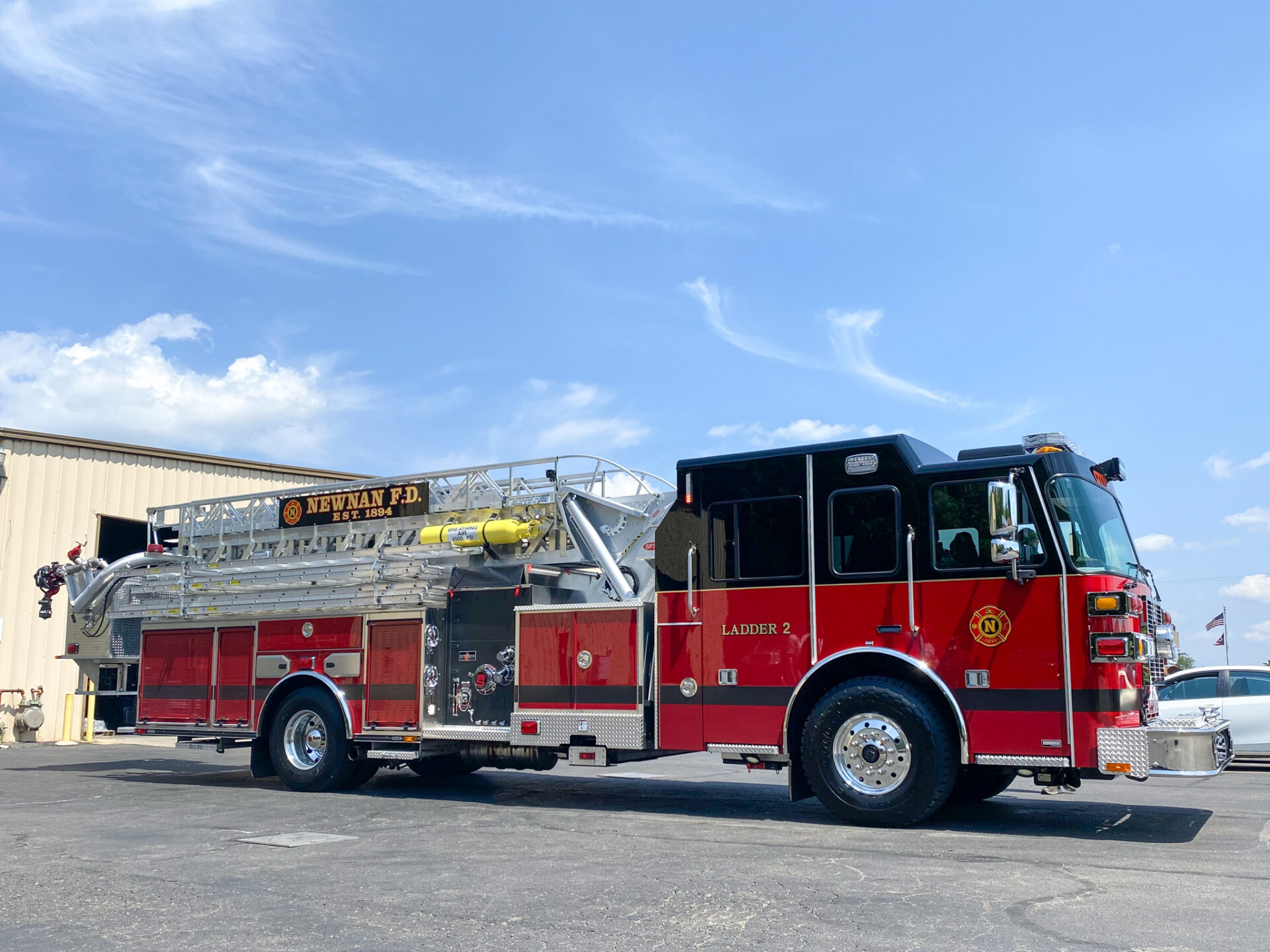

SP 70 – City of Newnan Fire Department, GA

Specs

Cab
Four-door, four-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins X12, 500 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 6, EVS4000

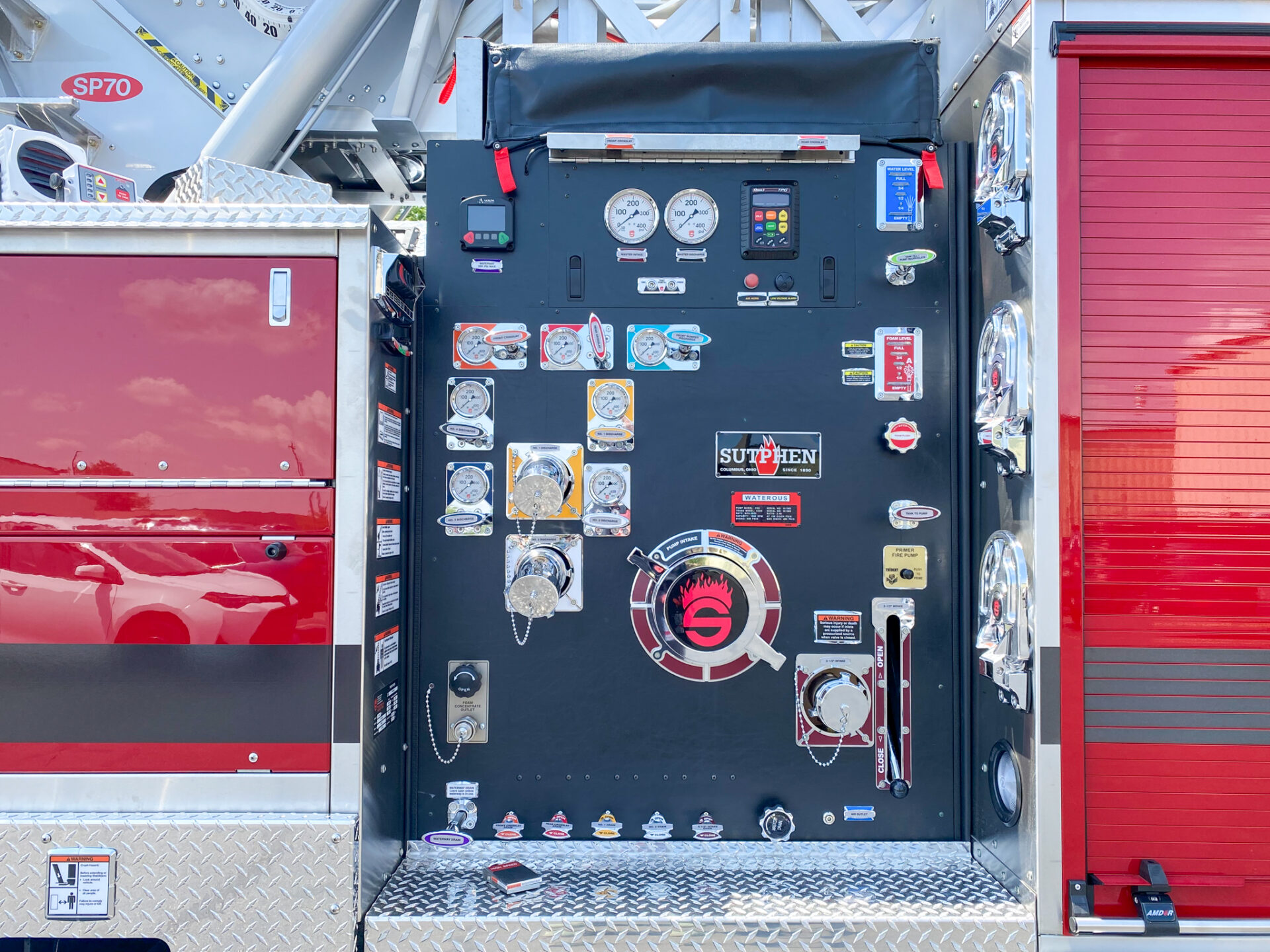

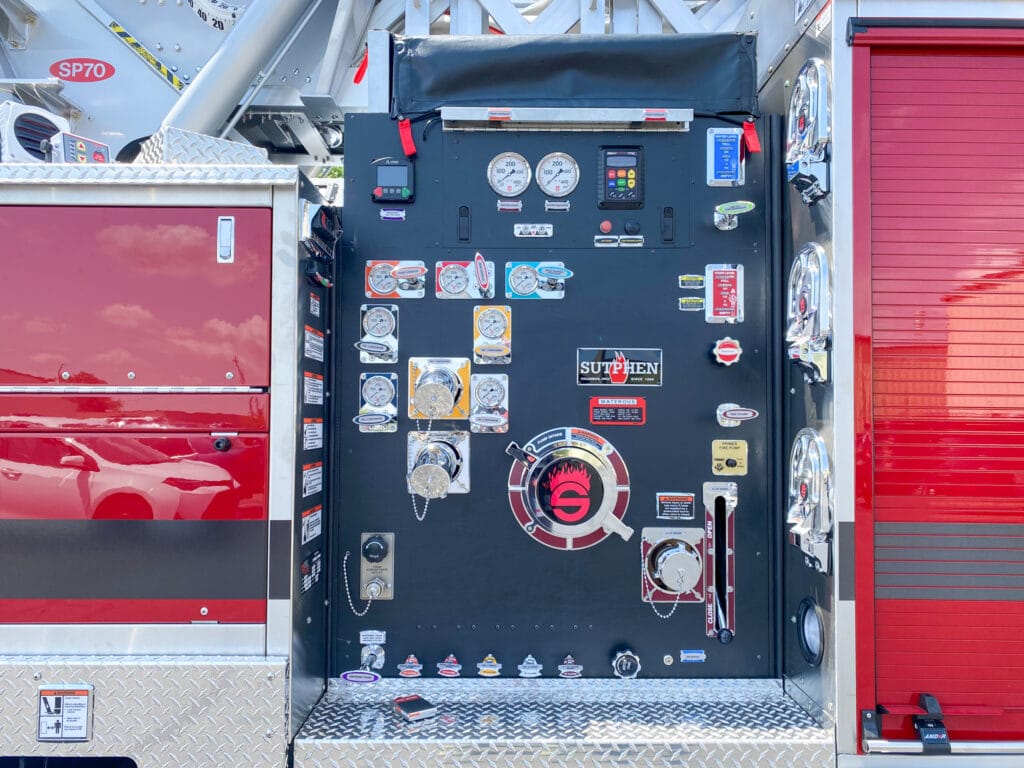

Water Pump
Csu-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
Monitor
(1) Akron 3482 Stream Master2 Elec RF w/ Akron 5177 Nozzle & (1) Akron Manual Stram Master2 w/ Stream Shaper & Tips
Crosslays
(2) 2” Valve-Piping 1 ½” Swivel
Water Tank
30-gallon foam tank
Foam Supply System
Elkhart
Water Tank
500-gallon
Construction
Huckbolt #304 stainless steel
Doors
Amdor roll-up compartment
Total Compartment Space
Over 190 cu ft.
Alco-Lite Ladder Package
16’ R, 24’ 2-Section, 35’ 3-Section & 10’ F
Body
SAA-4, Left High / Right Intermed / Trans
Bumper Extension
18” polished stainless steel,
Siren
Federal q2b , grille mount
Intercom System
FRC ACT 2-Station
FRC Spectra 15K
Brow light
Whelen Freedom 4
Lightbar
Whelen M9 Scene
Lights
