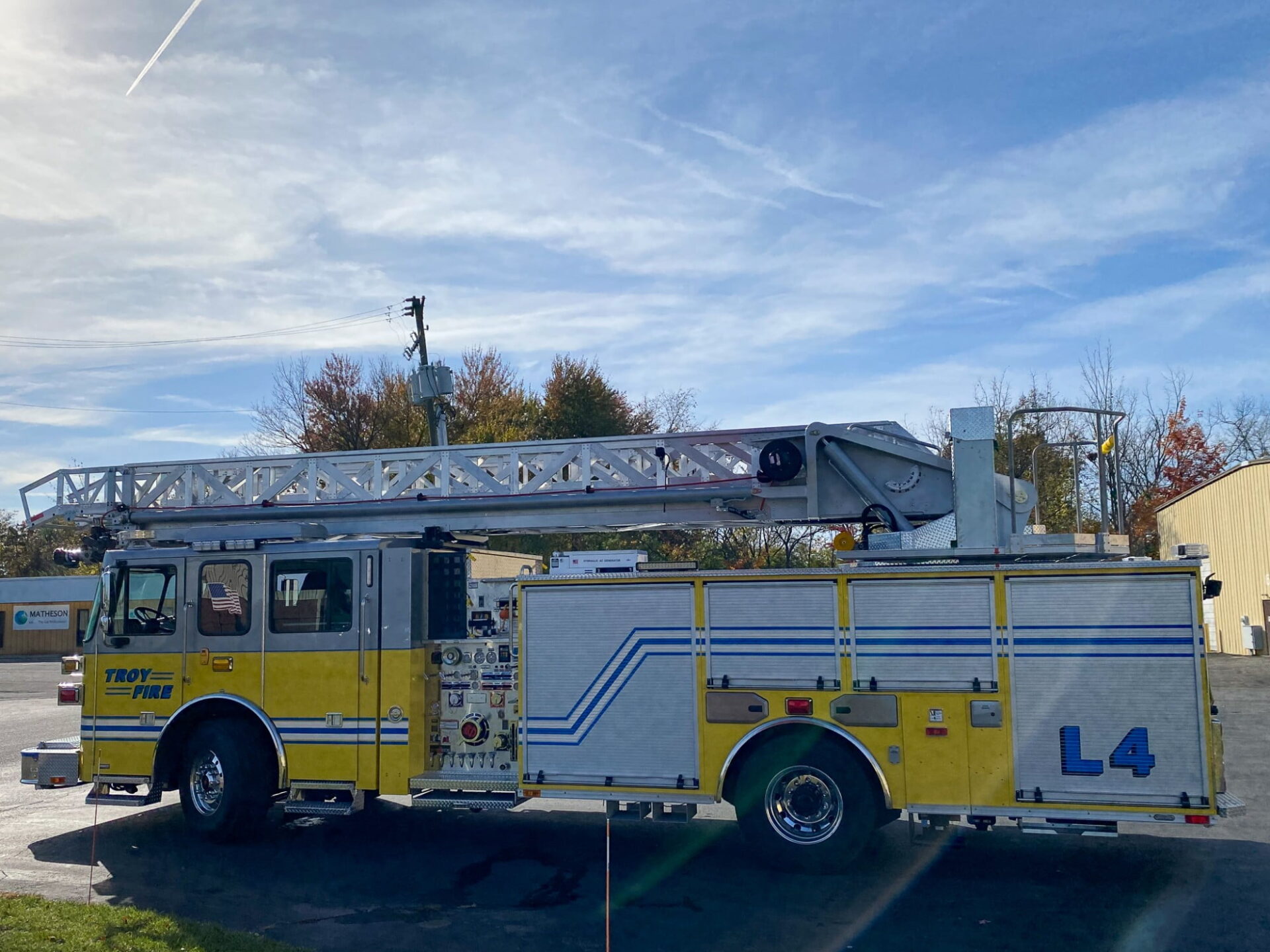

SLR 75 – Troy Fire Department, MI

Specs

Cab
Four-door, four-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
35,000 lbs
Engine
Cummins L 9, 450HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-2000 gpm 6” suction, single stage pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
Monitor
TFT Y4-E11A-P-01 Monsoon Electric w/ M-ERP-1500 Nozzle
Crosslays
(1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
Water Tank
500-gallon
Construction
Huckbolt #304 stainless steel
Doors
Amdor roll-up compartment
Total Compartment Space
Over 178 cu ft.
Duo-Safety Ladder Package
16’ R (2), 24’ 2-Section, 35’ 3-Section, & 10’ Folding
Body
SAA-RM1, Left High / Right High
Bumper Extension
24” polished stainless steel,
Siren
Federal q2b , grille mount
Intercom System
FRC ACT 2-Station
Generator
6KW Smart Power HR Series
Power
Hannay electric cord reel, 175’ (2)
Camera System
Voyager 3
Roto-Ray Warning Light
Included
FireTech 3-Piece 72”
Led brow light w/ icc lights
Whelen FNMINI Lightbar
Included
FireTech FT-BG2-R3-26 12V
Led scene light
FireTech LED Boom
Spot lights
FireTech 12V LED
Work lights
Whelen Traffic Advisor
Included
