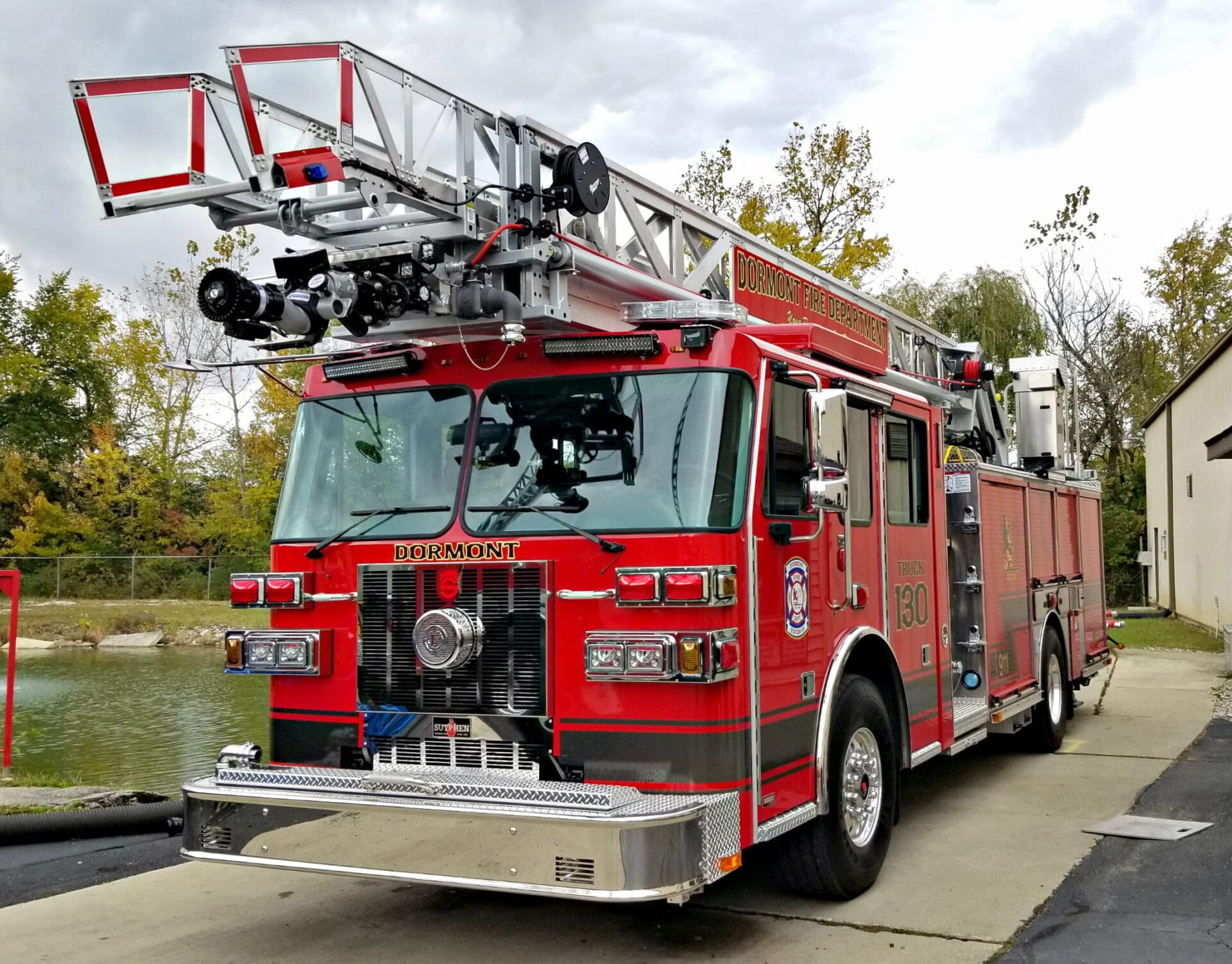

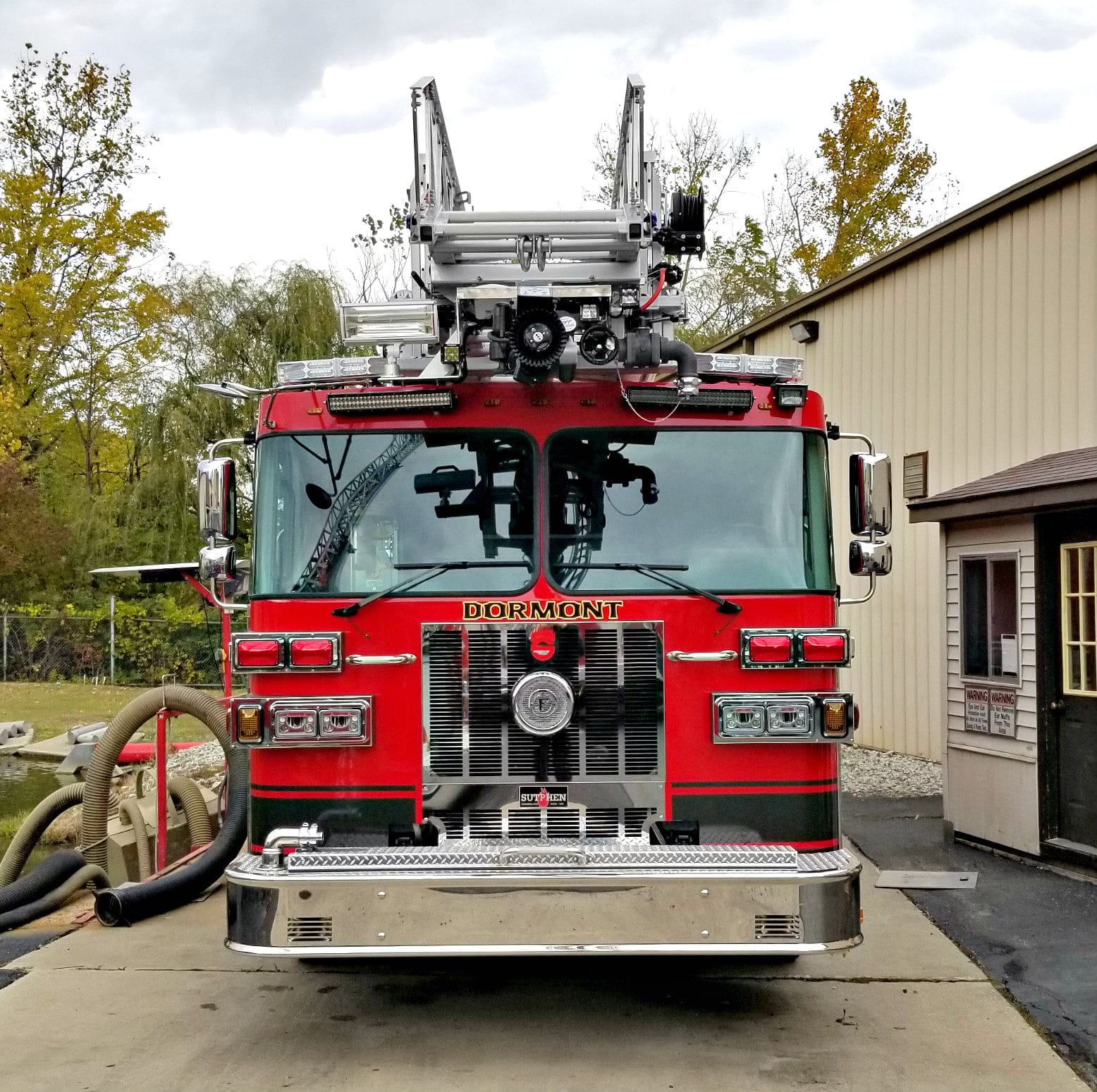

SLR 75 – Dormont Fire Department, PA

Specs

Cab
Four-door, six-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
35,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-2000 gpm single stage
Discharge
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Bumper, (1) 2 ½” Auxiliary Discharge
Monitor
TFT Y4-E11A-P-01 Monsoon Electric with M-ERP-1500 Nozzle
Crosslays
(1) 2 ½”, 2 ½” Swivel and (2) 2” Crosslays with 1 ½” Swivel
Water Tank
500-gallon
Construction
Huck bolted #304 stainless steel
Construction
Stainless steel left high/right high
Total Compartment Space
31 cu. ft.
Ladder Compliment
Alco-lite quint
Doors
Rom roll-up
Ladder Compliment
Ladder chute
Siren
Federal q2b
Power
6kw smart generator
Power
Hannay electric cord reel, 150’ (1)
Camera System, FRC
Inview true sight, single camera
Whelen Mini Freedom
Iv 21” led light bars
Ladder Compliment
Whelen m2 flashing blue led light at ladder tip (2)
