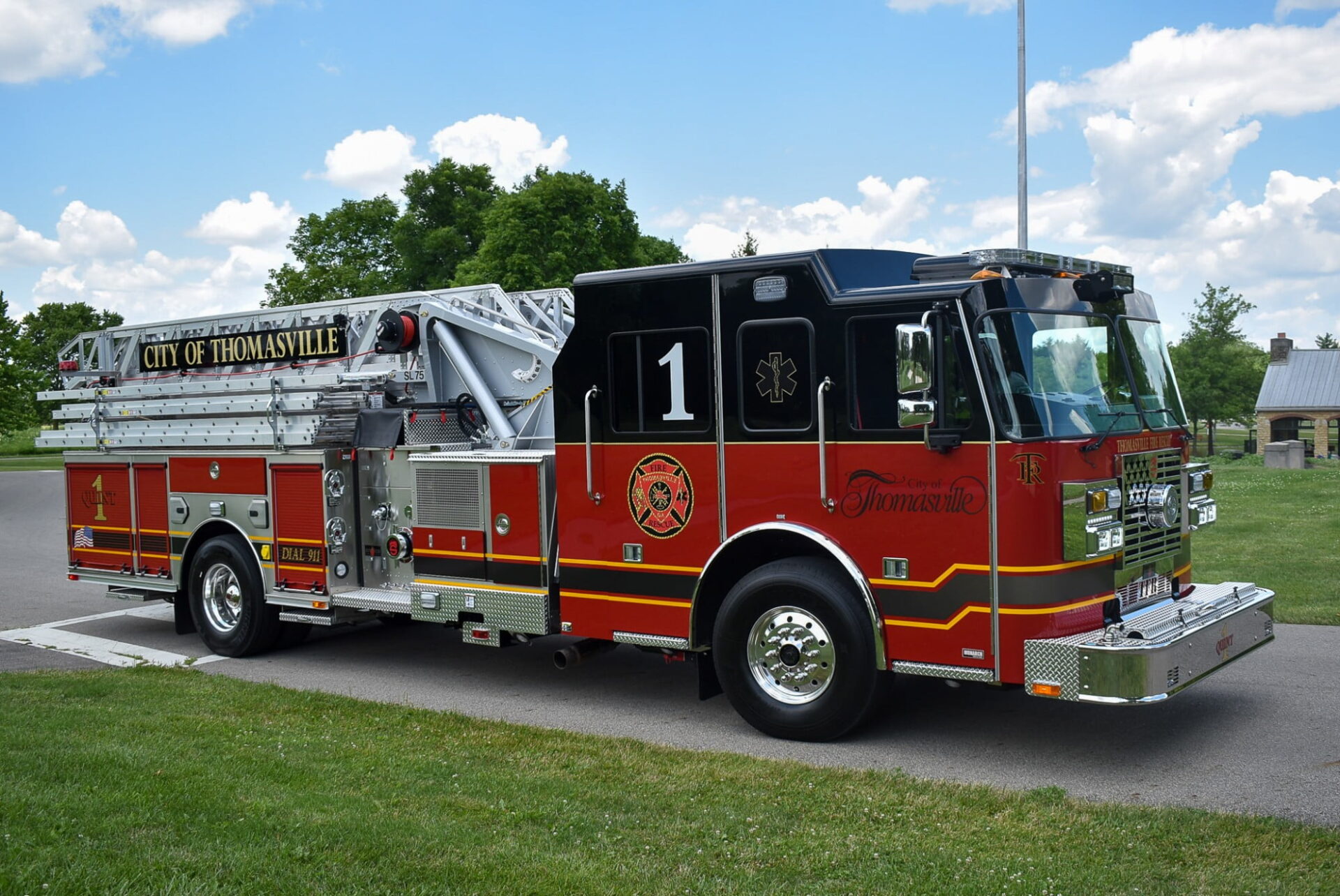

SL 75 – Thomasville Fire Department, GA

Location:
Thomasville, GA
Department:
Thomasville Fire Department

Specs

Cab
Four-door, four-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins L 9, 450HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-1750 gpm 6” suction, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper
Monitor
TFT Y4-E11A-P-01 Monsoon Electric w/ M-ERP-1500 Nozzle
Crosslays
(2) 2” Valve Piping w/ 1 ½” Swivel
Water Tank
400-gallon
Construction
Huckbolt #304 stainless steel
Doors
Amdor roll up compartment , painted
Total Compartment Space
Over 192 cu ft.
Duo-Safety Ladder Package
(2) 16’ R, 24’ 2-Section, 35’ 3-Section, & (2) 10’ Folding
Body
SAA-4, Left High / Right Intermed / Trans
Bumper Extension
18” polished stainless steel,
Siren
Federal q2b , grille mount
Intercom System
FRC ACT 2-Station
Generator
6KW Smart Power
Whelen Freedom 4
Lightbar
Whelen PFH2 12V
Les brow light
Whelen M9 Scene
Lights
